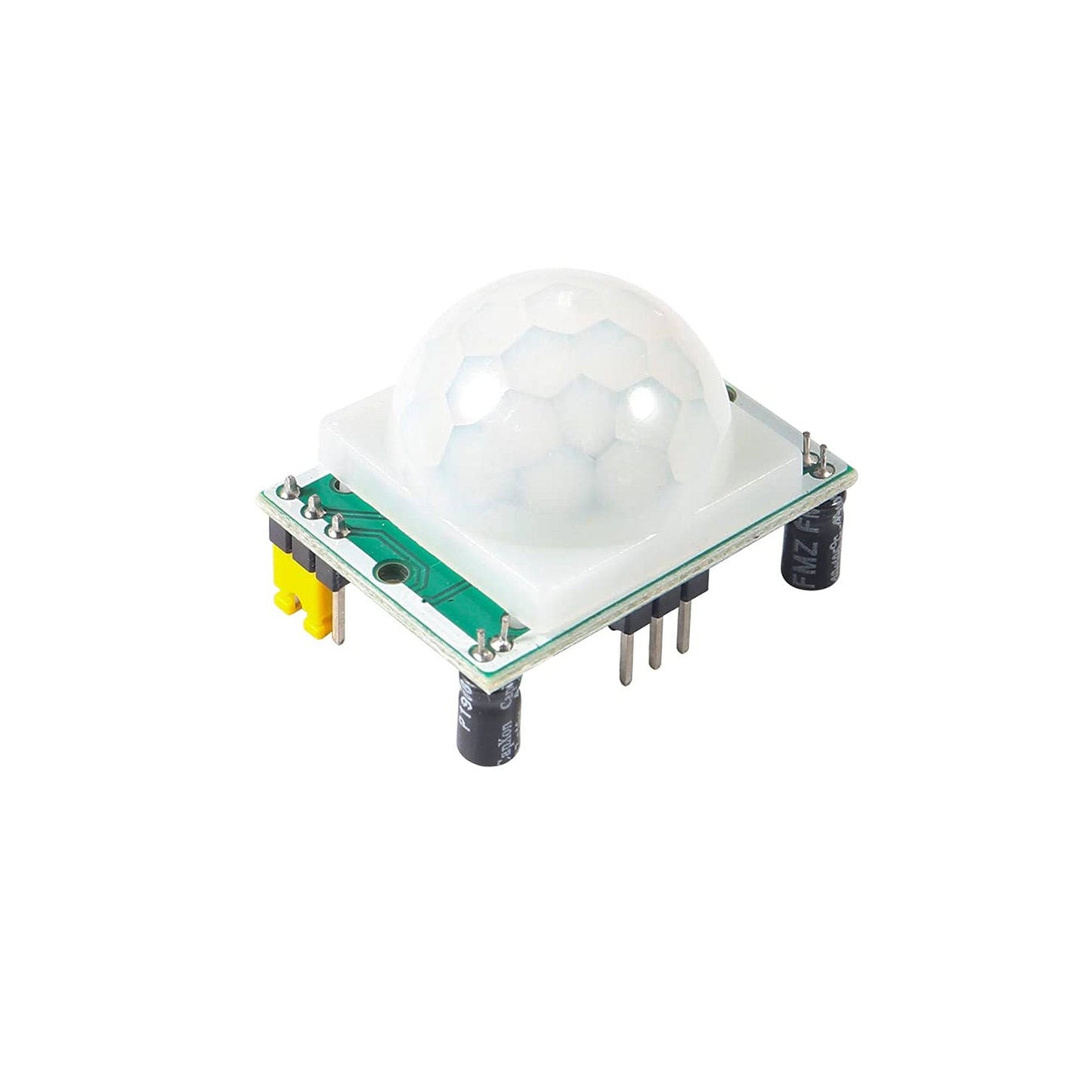

PIR Motion Sensor HC-SR501 Adjust IR Pyroelectric Infrared PIR Motion Sensor Detector Modules - SR019

PIR Motion Sensor HC-SR501 Adjust IR Pyroelectric Infrared PIR Motion Sensor Detector Modules - SR019

SKU:SR019

394 in stock

Regular price Rs. 55.00
Regular price Sale price Rs. 55.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

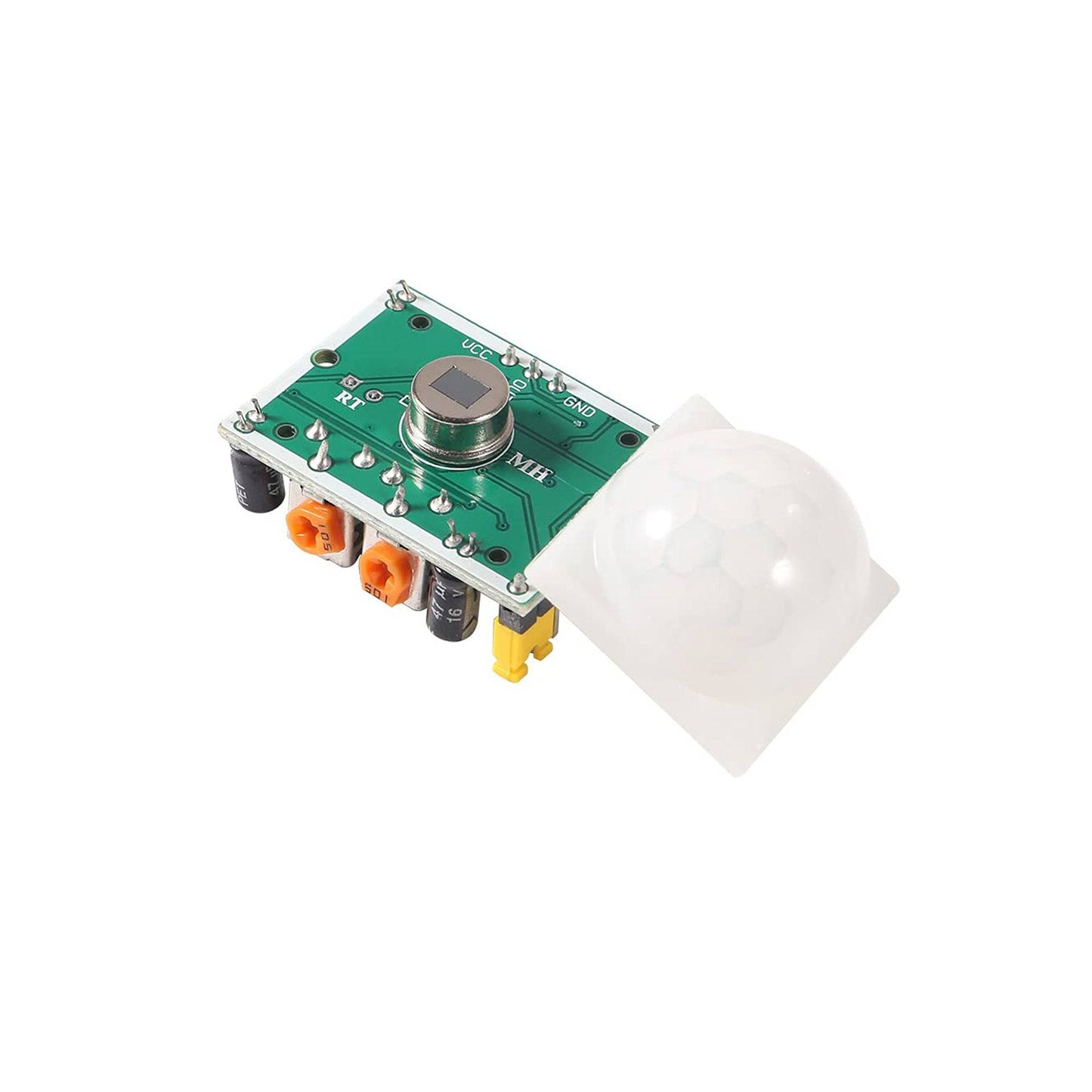

PIR Sensor Module (Passive Infra-Red ) Sensor is an electronic semiconductor-type sensor that measures infrared (IR) light radiating from objects in its field of view. This PIR Motion Sensor Module detects and gives a trigger when there is any motion by a heat-radiating object in its range of view. This sensor is passive as it does not emit or radiate any energy for detection. Every object above absolute zero emits heat, this heat signature is in Infrared wavelength which cannot be seen by the naked eye but can be measured by infrared devices. This PIR Motion Sensor is covered with Fresnel Lenses, which create a wide angle of detection and are also used for noise filtering. This PIR includes an adjustable delay before firing (approx 0.5 - 200 seconds) and has adjustable sensitivity. PIR Motion Sensor runs on 4.5V-20V power (or 3V by bypassing the regulator with a bit of soldering) and has a digital signal output (3.3V) high, 0V low. Its sensing range is up to 7 meters in a 100-degree cone.

Specifications:

  • Working voltage: 5V - 20V
  • Power Consumption: 65 mA
  • TTL Output: 3.3V
  • Lock Time: 0.2 sec

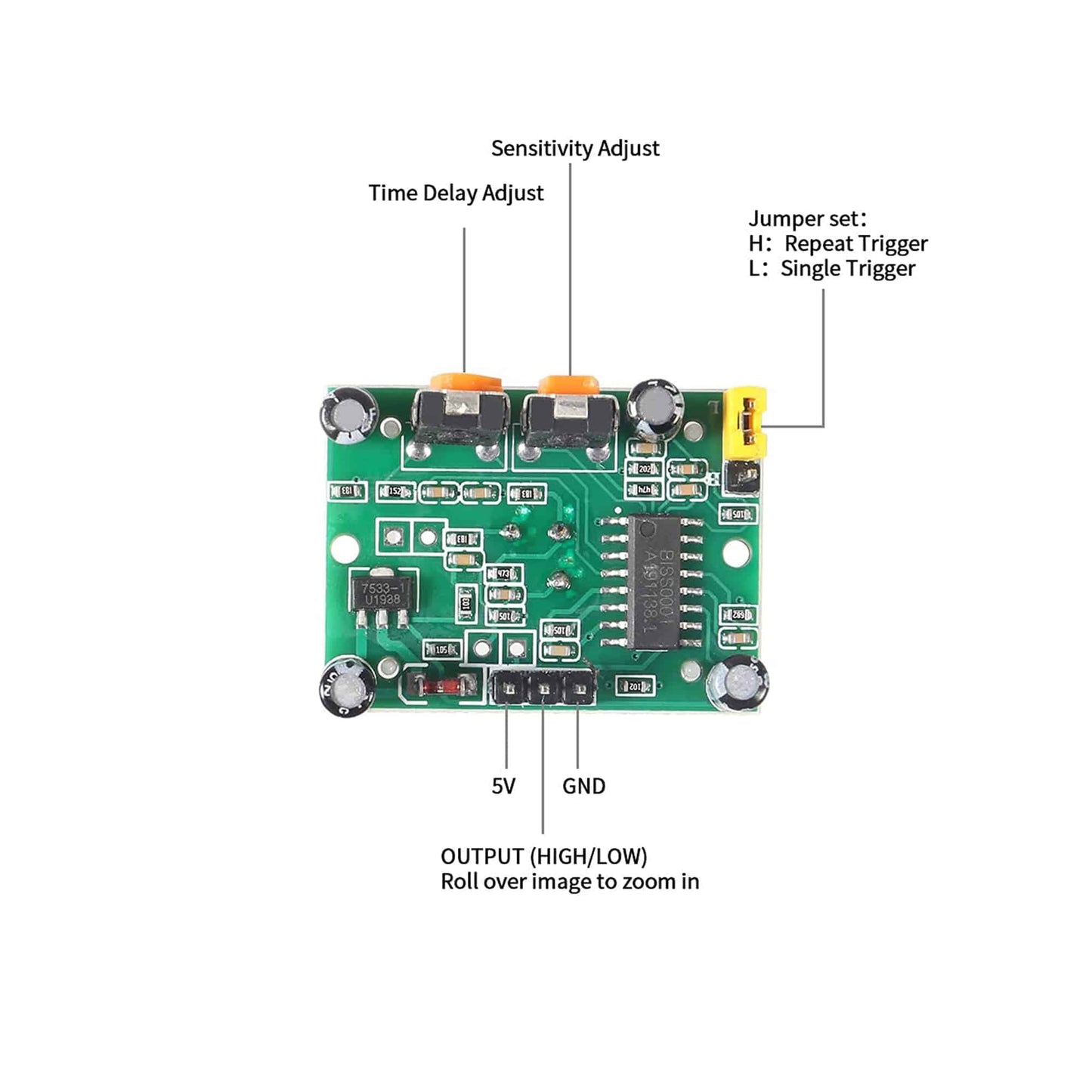

  • Trigger Methods:
    • L- Disable Repeat Trigger
    • H- Enable repeat Trigger (Default)
  • Sensing range: less than 120 degrees, within 7 meters
  • Temperature: – 15 ~ +70
  • Dwell time: (Stay-ON time) adjustable between 5-300 Seconds

Features:

  • Infrared Sensor with Control Circuit Board.
  • The Sensitivity and Holding Time are adjustable.

Package Included:

1 x PIR Motion Sensor HC-SR501 Adjust IR Pyroelectric Infrared PIR Motion Sensor Detector Modules
