Description:
This is the PICkit3 PICkit3 Programmer Emulator Controller Development board with a w/a Pinout diagram to ease the customer. The USB connection is more stable than ICD2. PICKIT3.5, begin to support the Win7 system. Full patch design, patch through the reflow soldering processing, more stable quality. PIC developing data, C language development tool manual. A lot of PIC basic experiment program code; ICD2 PICKIT3 etc application specifications.
The PICkit3 Programmer allows debugging and programming of PIC and dsPIC Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer's PC using a full-speed USB interface and can connect to the target via a Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE).
Specification:
- Input Supply Voltage: 1.8 ~ 5V
- Flash Memory: 512 Kbytes
Features:
- Full-speed USB support using Windows standard drivers
- PICkit3 Programmer has real-time execution
- Processors run at maximum speeds
- PICkit3 Programmer has built-in over-voltage/short circuit monitor
- Low voltage to 5V (1.8 to the 5V range)
- Read/write program and data memory of the microcontroller

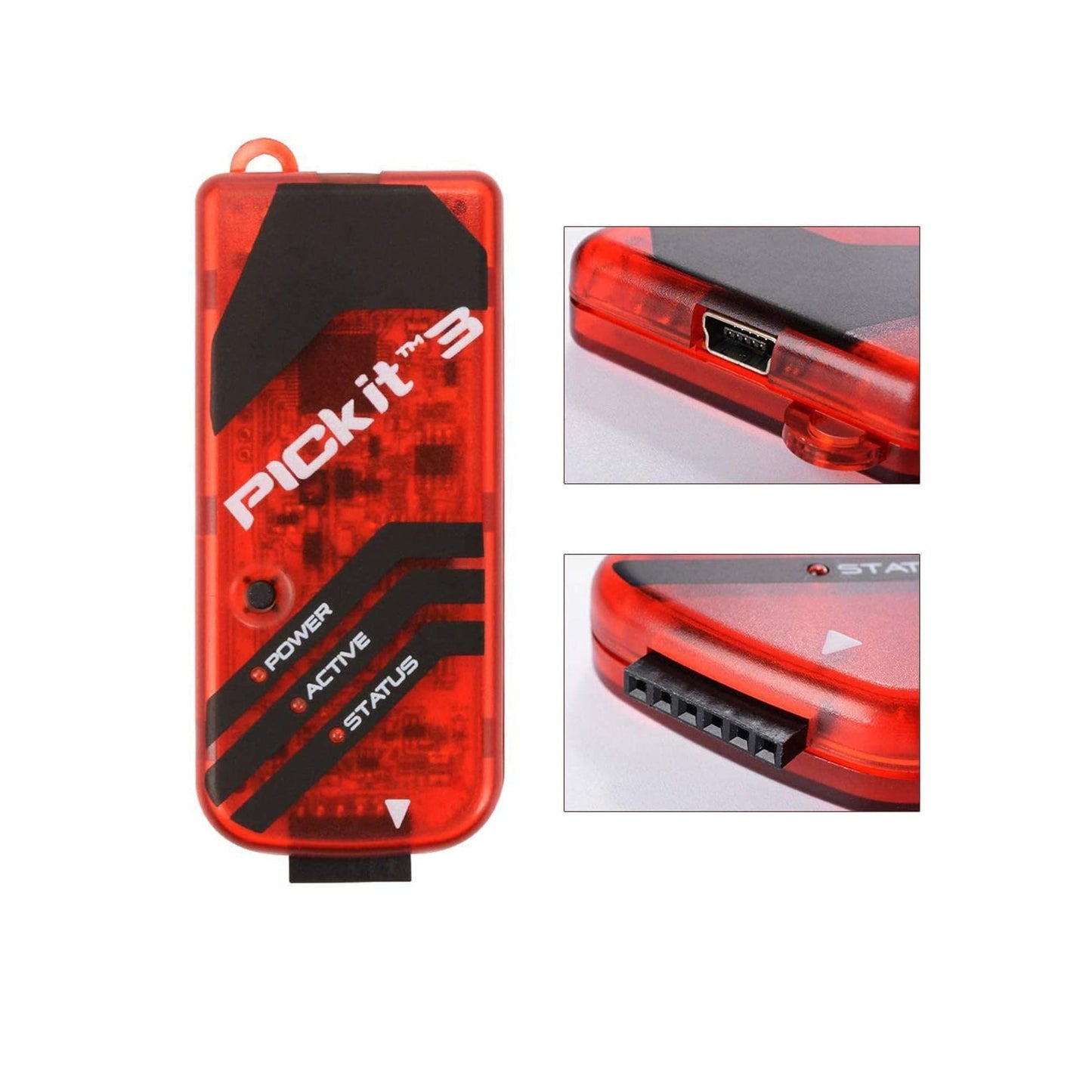

- PICkit3 Programmer have diagnostic LEDs (power, active, status)
- Read/write program and data memory of the microcontroller
- 1Erase of all memory types (EEPROM, ID, configuration, and program) with verification
- Peripheral freeze at the breakpoint.
- Program up to 512K byte flash.
Package Included:

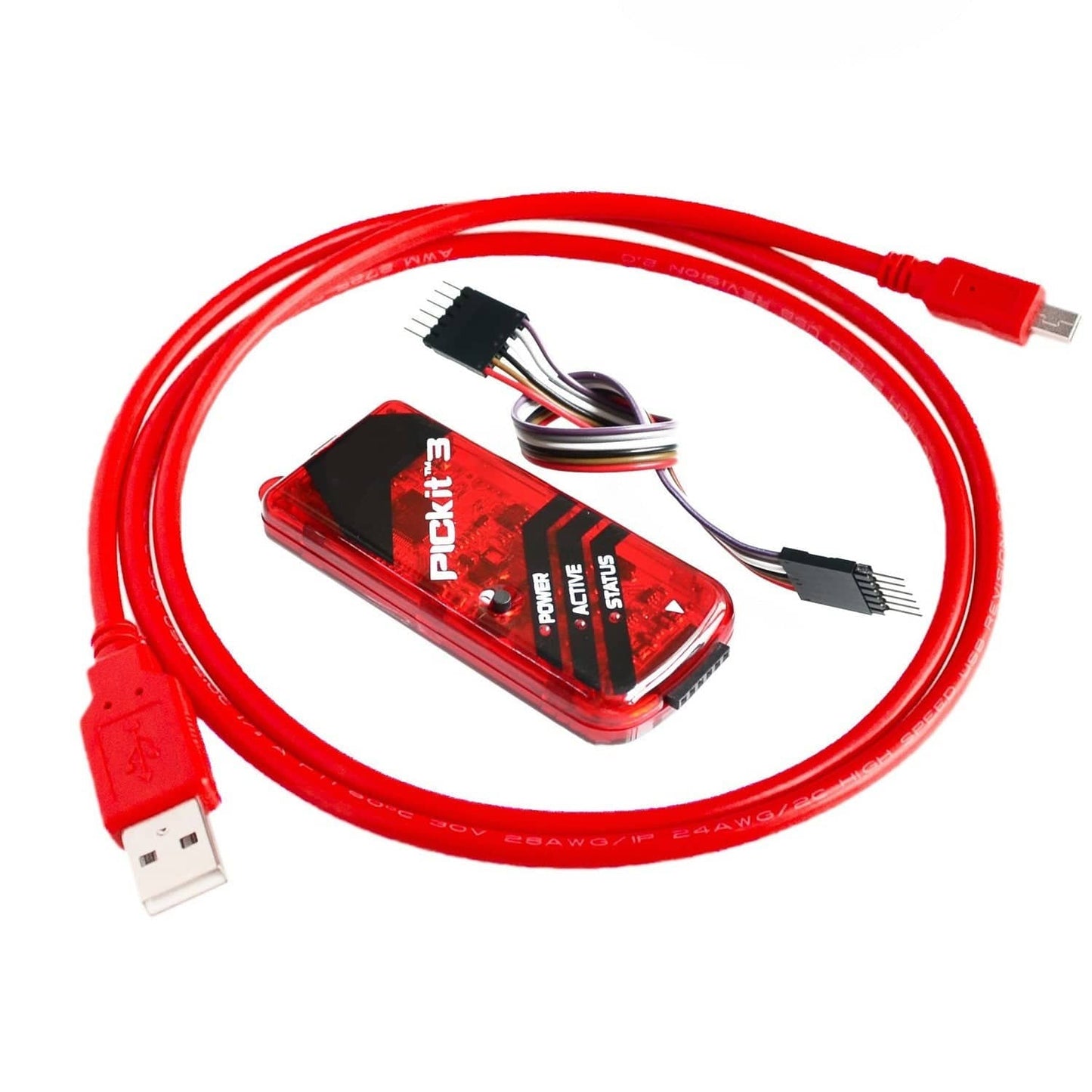

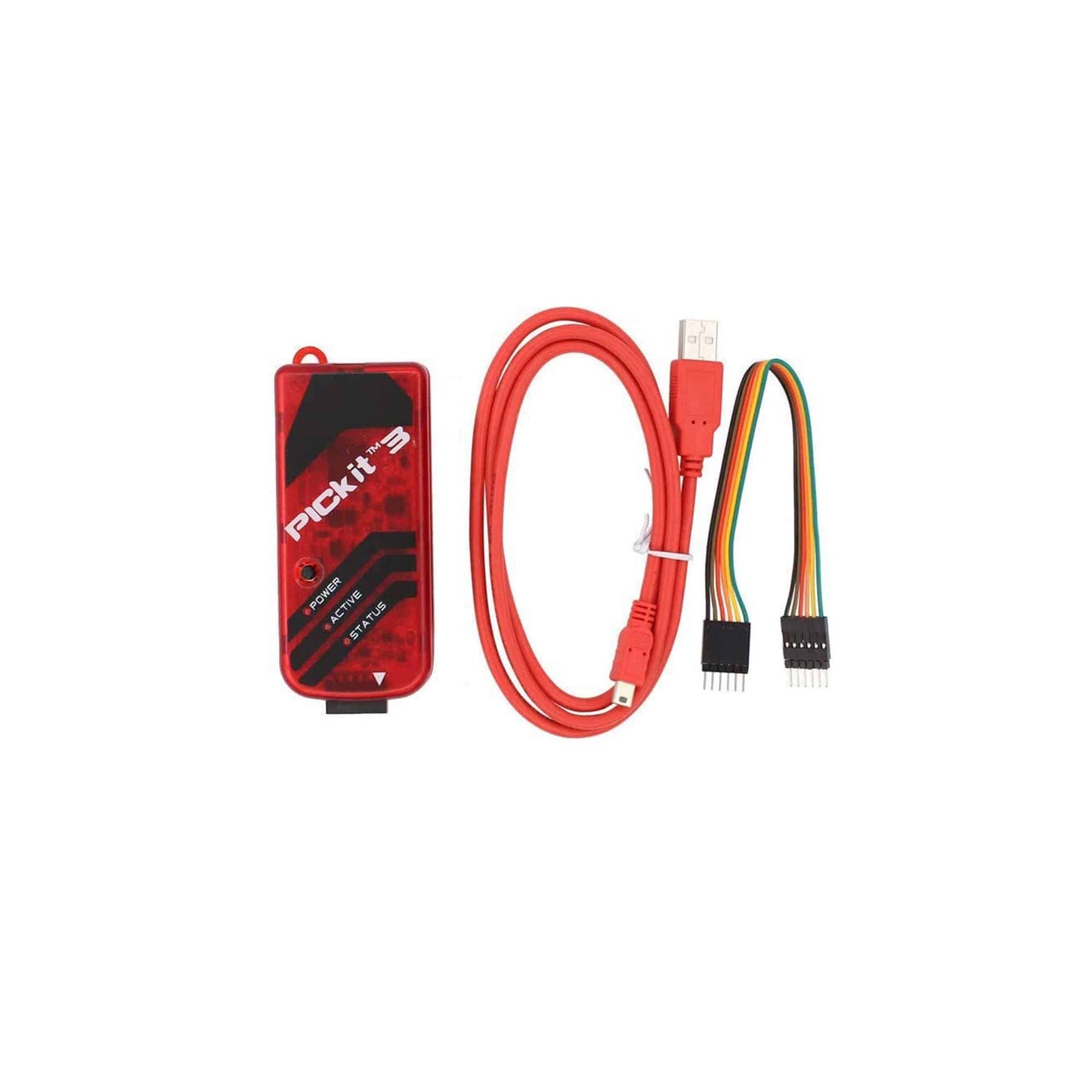

1 x PICkit3 Programmer PIC Debugger Programmer Emulator Controller Development Board
