Description:
The PIC K150 Programmer With ICSP Cable is a low-cost high-performance PIC programmer. This PIC K150 Programmer supports most popular PIC chips, programmed, readout, encryption, use a high-speed USB communication, fast programming. The programming quality is stable and reliable. (speed average PICSTART + 3-5 times) fully automatic programming checksum.

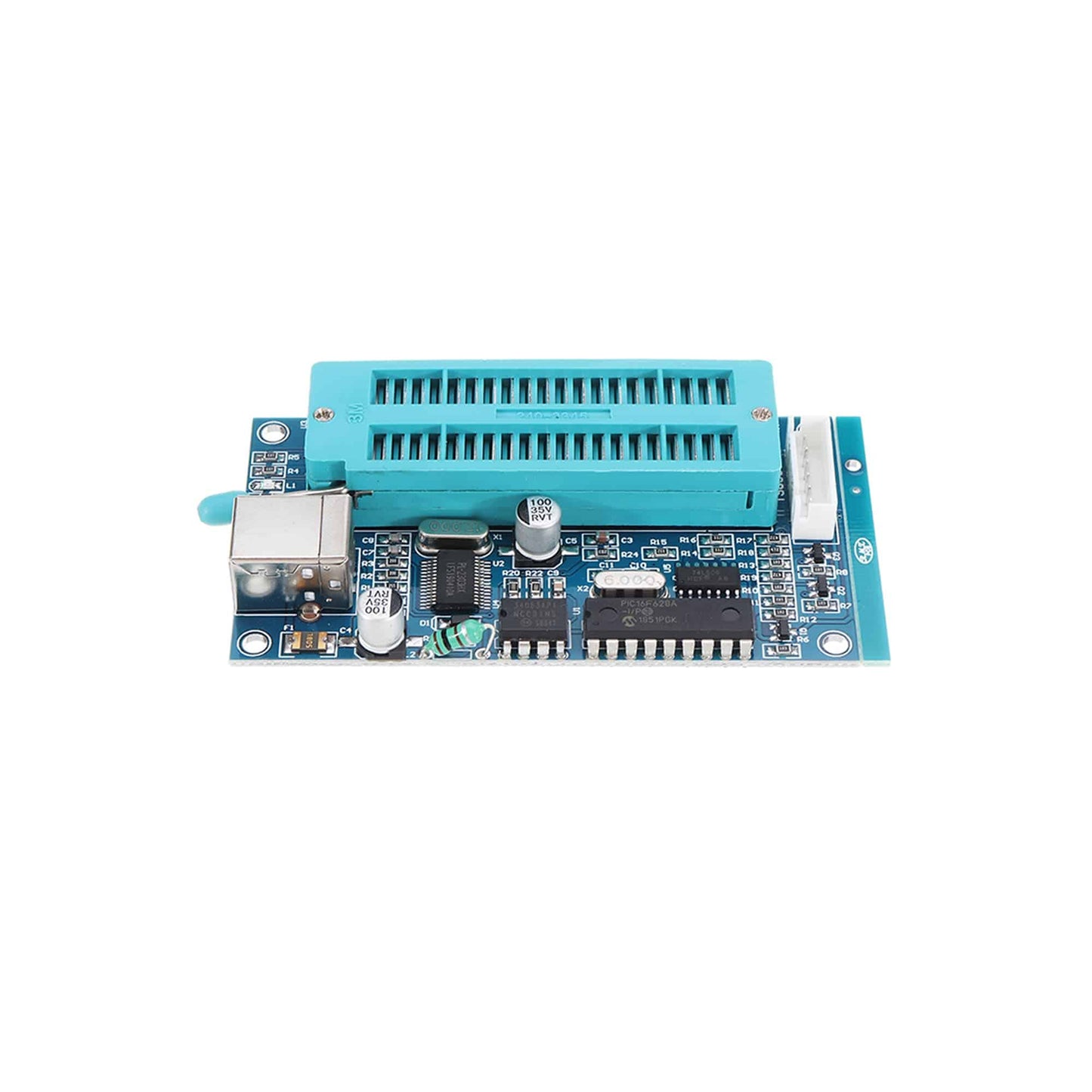

This PIC K150 Programmer is equipped with 40pin DIP programming Block, direct programming of 8pin – 40pin DIP chip. 8 pin-40 pin chip other than through the onboard the ICSP interface online to download software. Software-compatible with PIC K150 Programmer is the Windows98 and Windows2000/NT, Windows XP/windows7/ Windows 8/ Windows 10 operating system. The new device will vary with the PIC escalating. Master chip retains the DIP package with the seat.
Features:
- PIC K150 Programmer support the most popular programming PIC chips, read, encryption and other features!
- No external power supply, communication, and power is only a USB cable to print complete, without any cable.
- PICSTARTPLUS much faster rate than programming.
- PIC K150 Programmer can easily read the contents of the chip program area.
- PIC K150 Programmer has automatic programming verification.
- Comprehensive information prompts, allowing users to understand the working state.
- With 40pin ZIF programming of the seat, can be directly programmed in 8-pin to 40 pin PIC microcontroller chip can be programmed Using ICSP online or add conversion blocks. 8 pin 40 pin-board outside the chip can be downloaded directly online ICSP output.
- PIC K150 Programmer is compatible with Windows98 and Windows2000/NT, Windows XP / Windows 7 and some other operating systems.
- Programming software provides easy to use instructions.
- PIC K150 Programmer can not program CIs from family 18F
PIC MCU Models Support:
10 Series:
- PIC10F200 * PIC10F202 * PIC10F204 * PIC10F206 *
- PIC10F220 * PIC10F222 *
- 12C Series:
- PIC12C508 PIC12C508A PIC12C509 PIC12C509A
- PIC12C671 PIC12C672 PIC12CE518 PIC12CE519
- PIC12CE673 PIC12CE674
- 12F Series:
- PIC12F508 PIC12F509 PIC12F629 PIC12F635
- PIC12F675 PIC12F683
- 16C Series:
- PIC16C505 PIC16C554 PIC16C558 PIC16C61
- PIC16C62 PIC16C62A PIC16C62B PIC16C63
- PIC16C63A PIC 16C64 PIC16C64A PIC16C65
- PIC16C65A PIC16C65B PIC16C66 PIC16C66A
- PIC16C67 PIC16C620 PIC16C620A PIC16C621
- PIC16C621A PIC16C622 PIC16C622A PIC16C71
- PIC16C71A PIC16C72 PIC16C72A PIC16C73
- PIC16C73A PIC16C73B PIC16C74 PIC16C74A
- PIC16C74B PIC16C76 PIC16C77 PIC16C710
- PIC16C711 PIC16C712 PIC16C716 PIC16C745
- PIC16C765 PIC16C773 PIC16C774 PIC16C83
- PIC16C84
16F Series:
- PIC16F505 PIC16F506 PIC16F54 PIC16F57 *
- PIC16F59 * PIC16F627 PIC16LF627A PIC16F627A
- PIC16F628 PIC16LF628A PIC16F628A PIC16F630
- PIC16F631 PIC16F631-1 PIC16F636 PIC16F636-1
- PIC16F639 * PIC16F639-1 * PIC16F648A PIC16F676
- PIC16F677 PIC16F677-1 PIC16F684 PIC16F685 *
- PIC16F685-1 * PIC16F687 * PIC16F687 *- 1 PIC16F688
- PIC16F689 * PIC16F689-1 * PIC16F690 * PIC16F690-1 *
- PIC16F716 PIC16F72 PIC16F73 PIC16F74
- PIC16F76 PIC16F77 PIC16F737 PIC16F747
- PIC16F767 PIC16F777 PIC16F83 PIC16F84
- PIC16F84A PIC16F87 PIC16F88 PIC16F818
- PIC16F819 PIC16F870 PIC16F871 PIC16F872
- PIC16F873 PIC16F873A PIC16LF873A PIC16F874
- PIC16F874A PIC16F876 PIC16F876A PIC16F877
- PIC16F877A
18 Series:
- PIC18F242 PIC18F248 PIC18F252 PIC18F258 PIC18F442 PIC18F448
- PIC18F452 PIC18F458 PIC18F1220 PIC18F1320 PIC18F2220 PIC18F2320
- PIC18F2321 PIC18F4210 PIC18F2331 PIC18F2450 PIC18F2455 PIC18F2480
- PIC18F2510 PIC18F2515 PIC18F2520 PIC18F2525 PIC18F2550 PIC18F2580
- PIC18F2585 PIC18F2610 PIC18F2620 PIC18F2680 PIC18F4220 PIC18F4320
- PIC18F6525 PIC18F6621 PIC18F8525 PIC18F8621 PIC18F2331 PIC18F2431
- PIC18F4331 PIC18F4431 PIC18F2455 PIC18F2550 PIC18F4455 PIC18F4550
- PIC18F4580 PIC18F2580 PIC18F2420 PIC18F2520 PIC18F2620 PIC18F6520
- PIC18F6620 PIC18F6720 PIC18F6585 PIC18F6680 PIC18F8585 PIC18F8680
Package Included:

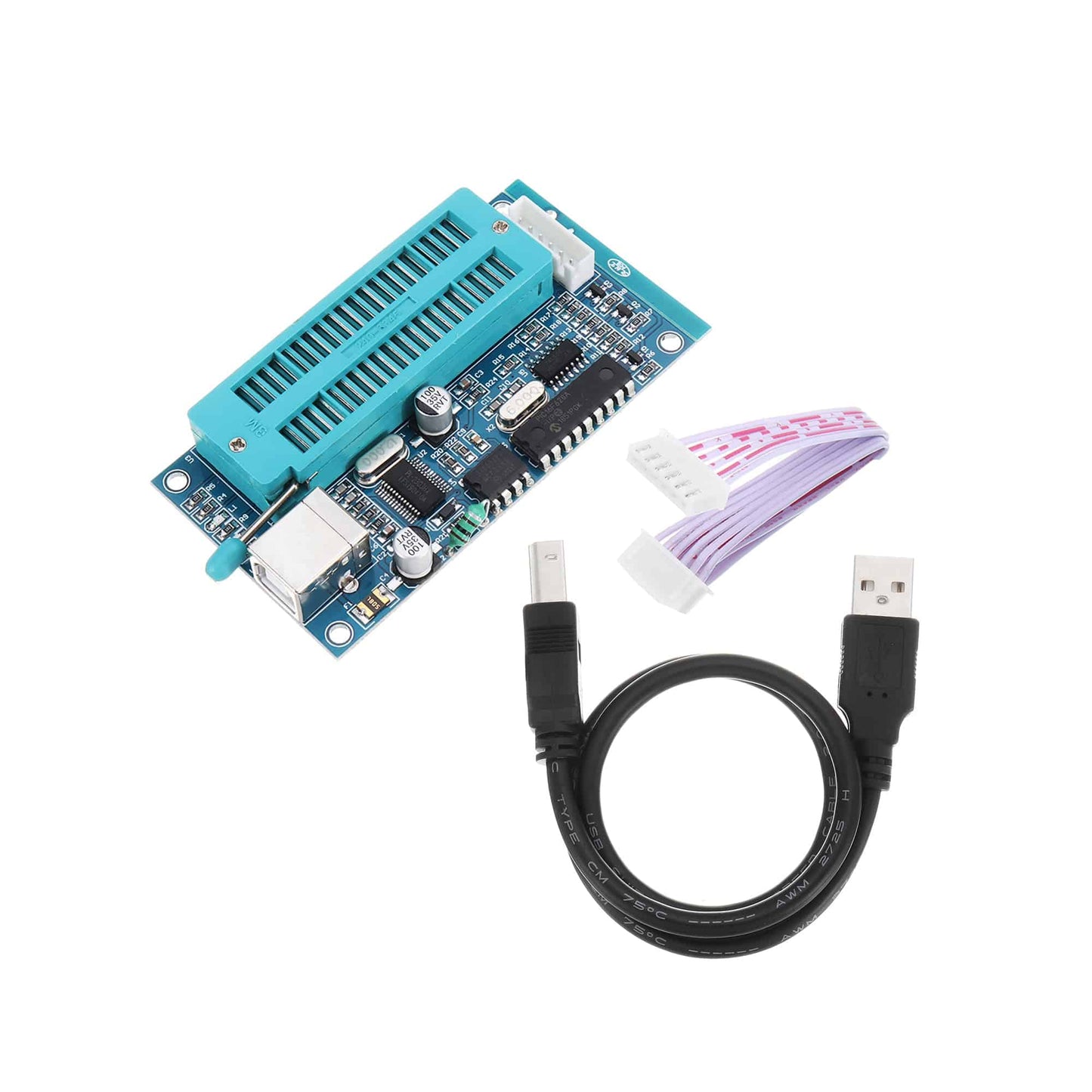

- 1x PIC K150 Programmer
- 1x ICSP Cable

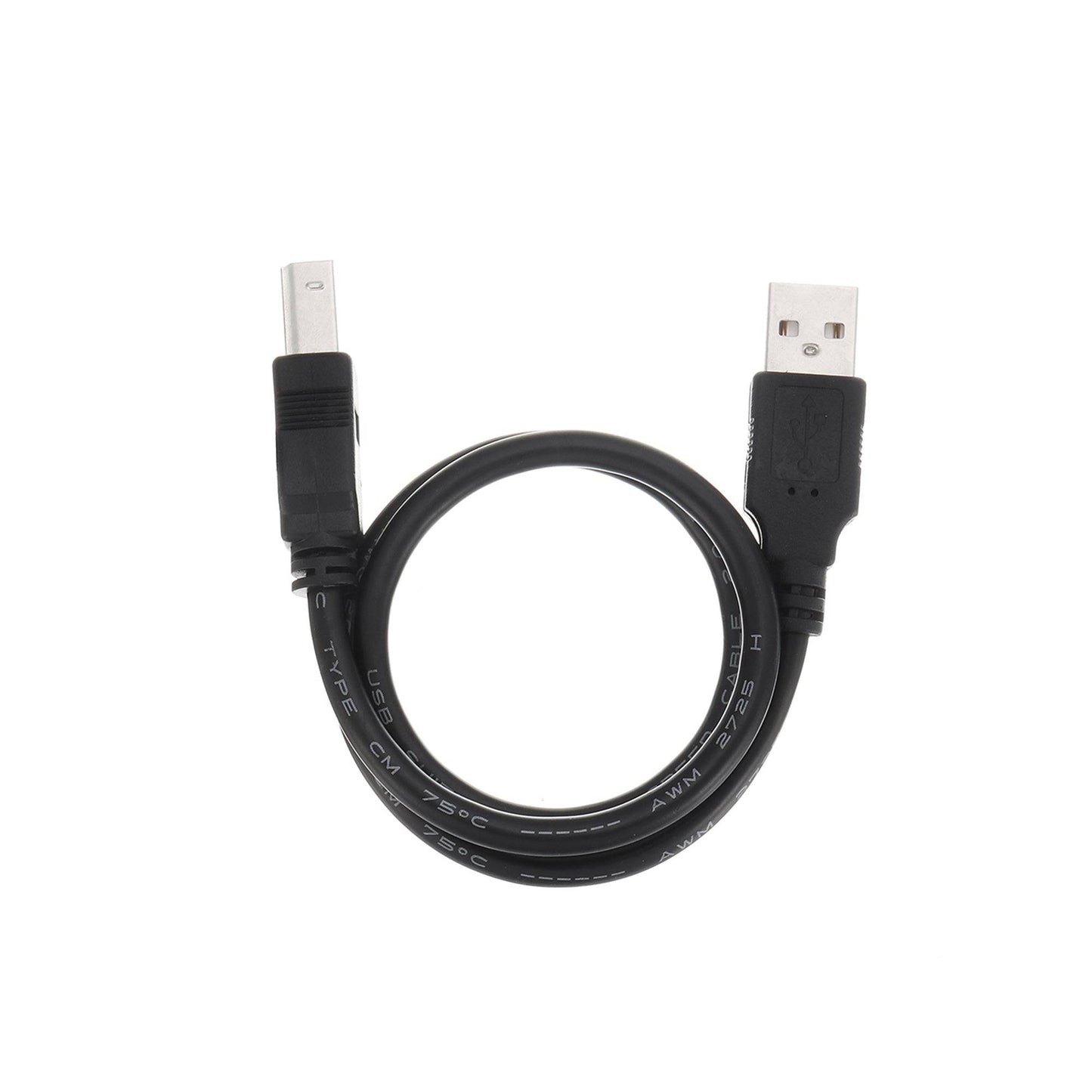

- 1x USB Cable
