Description:

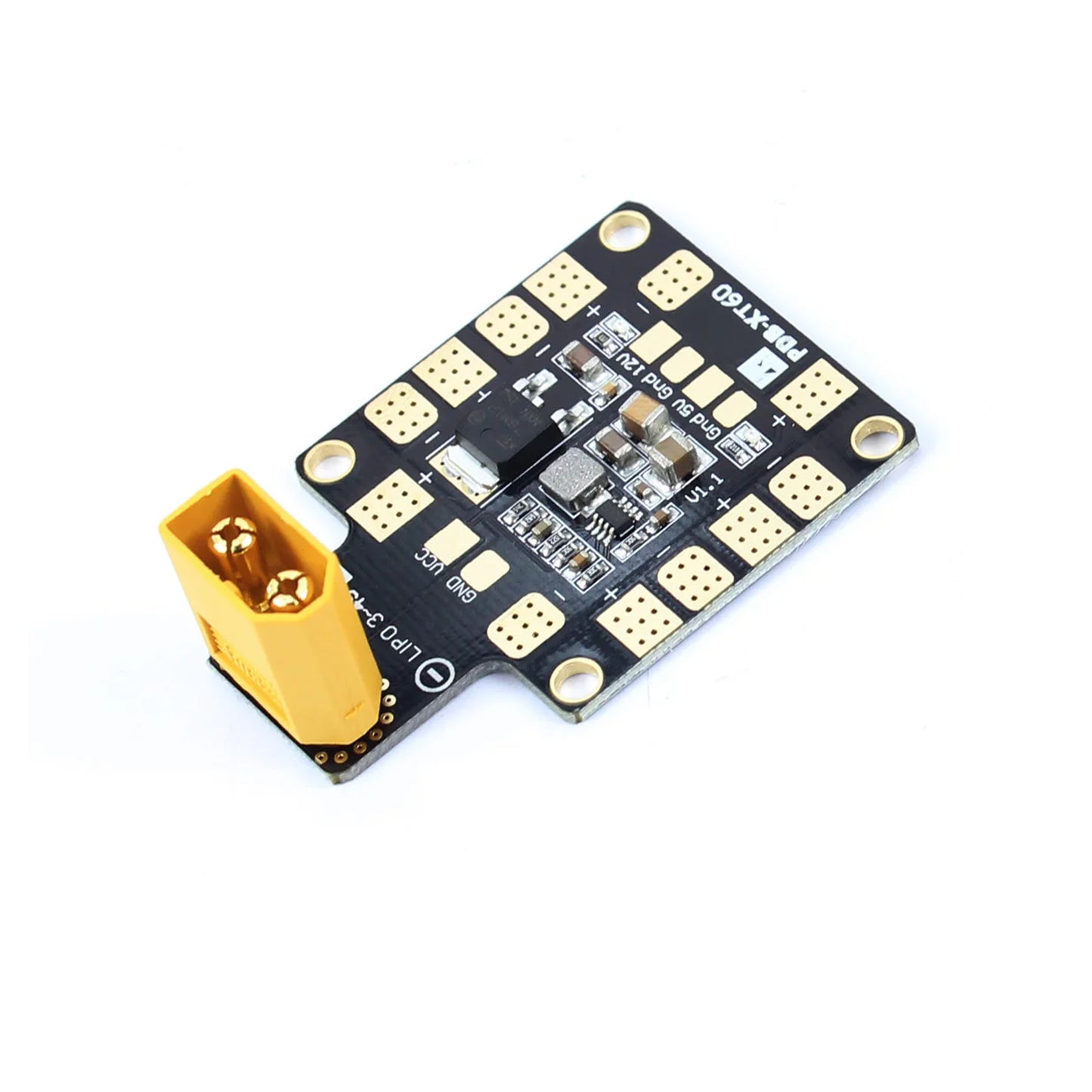

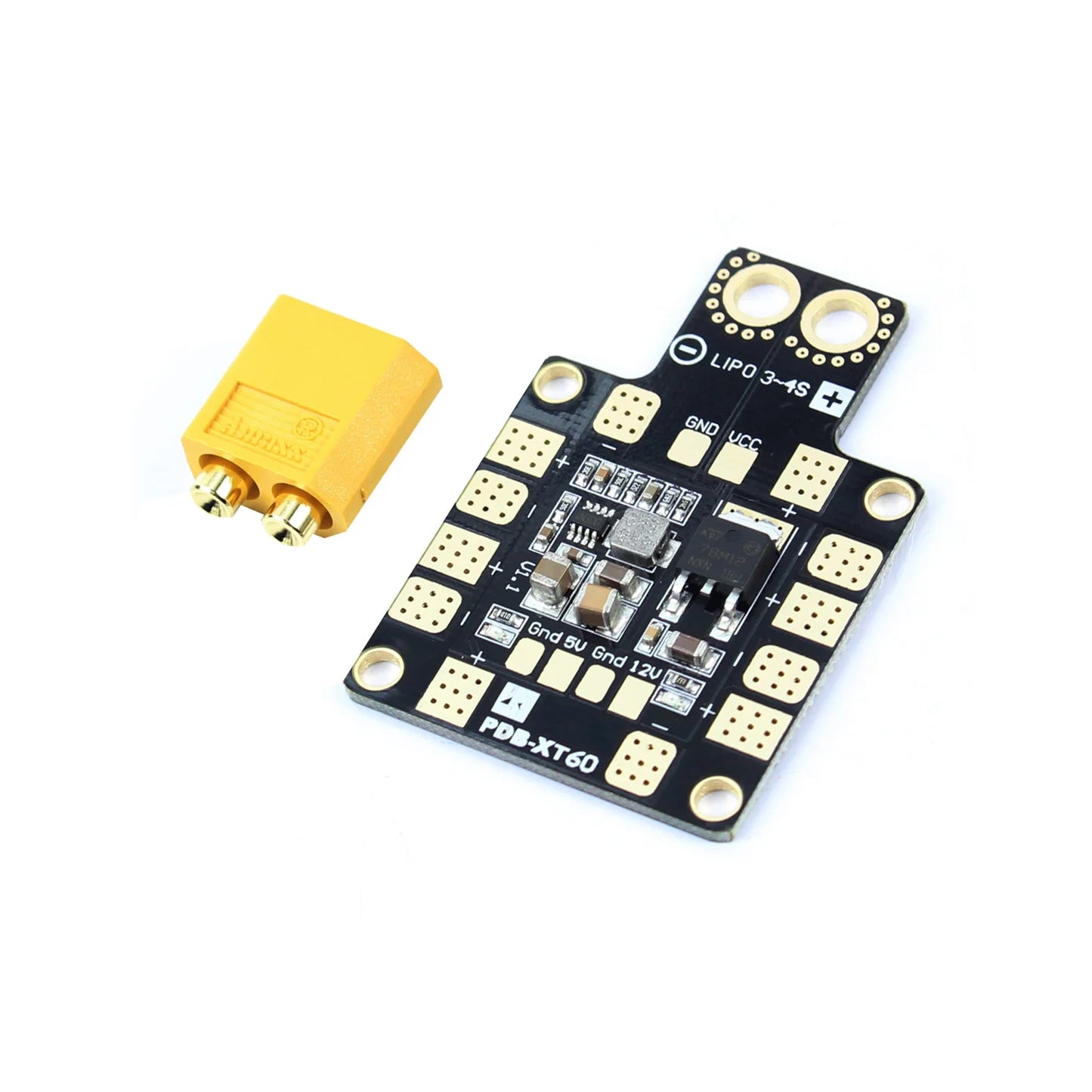

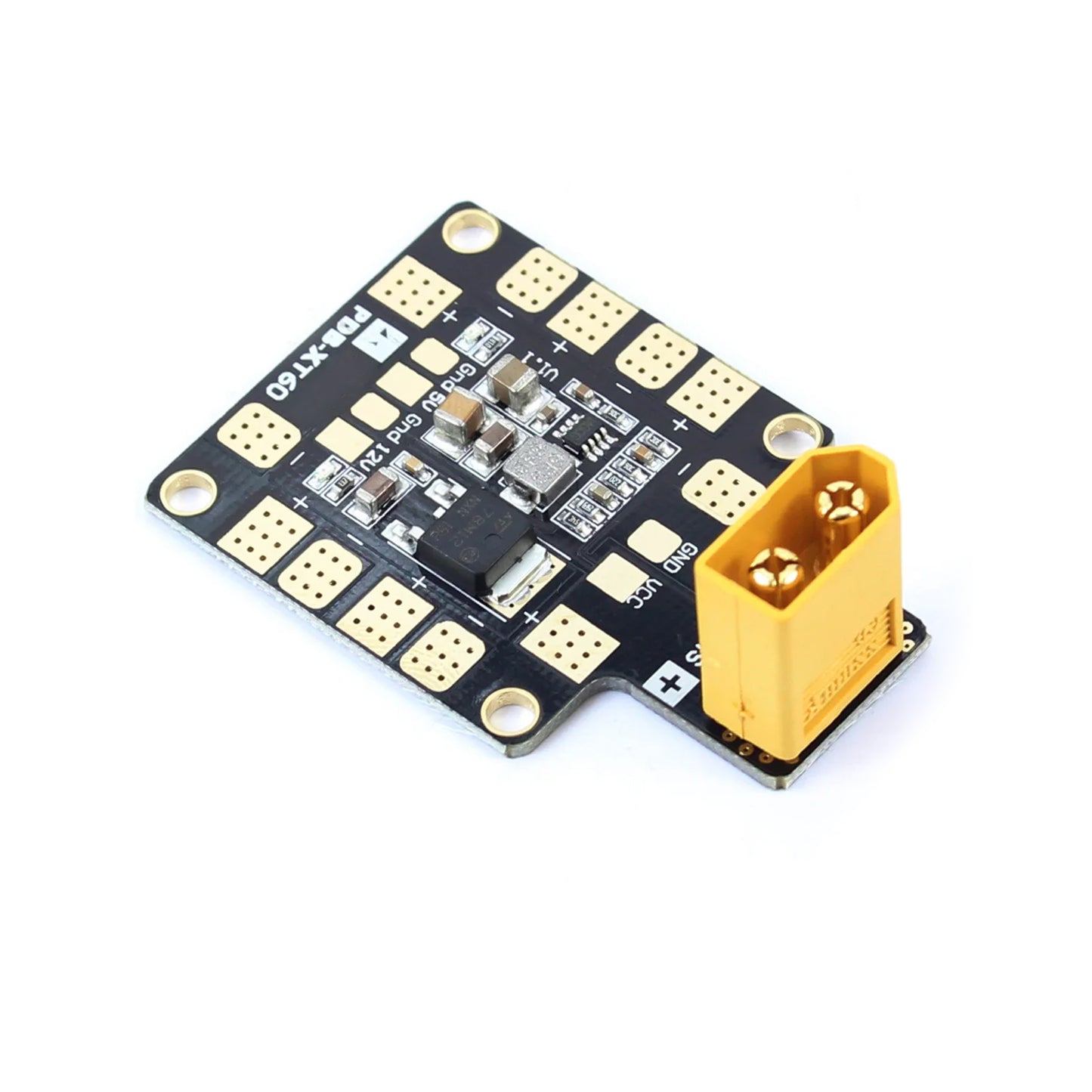

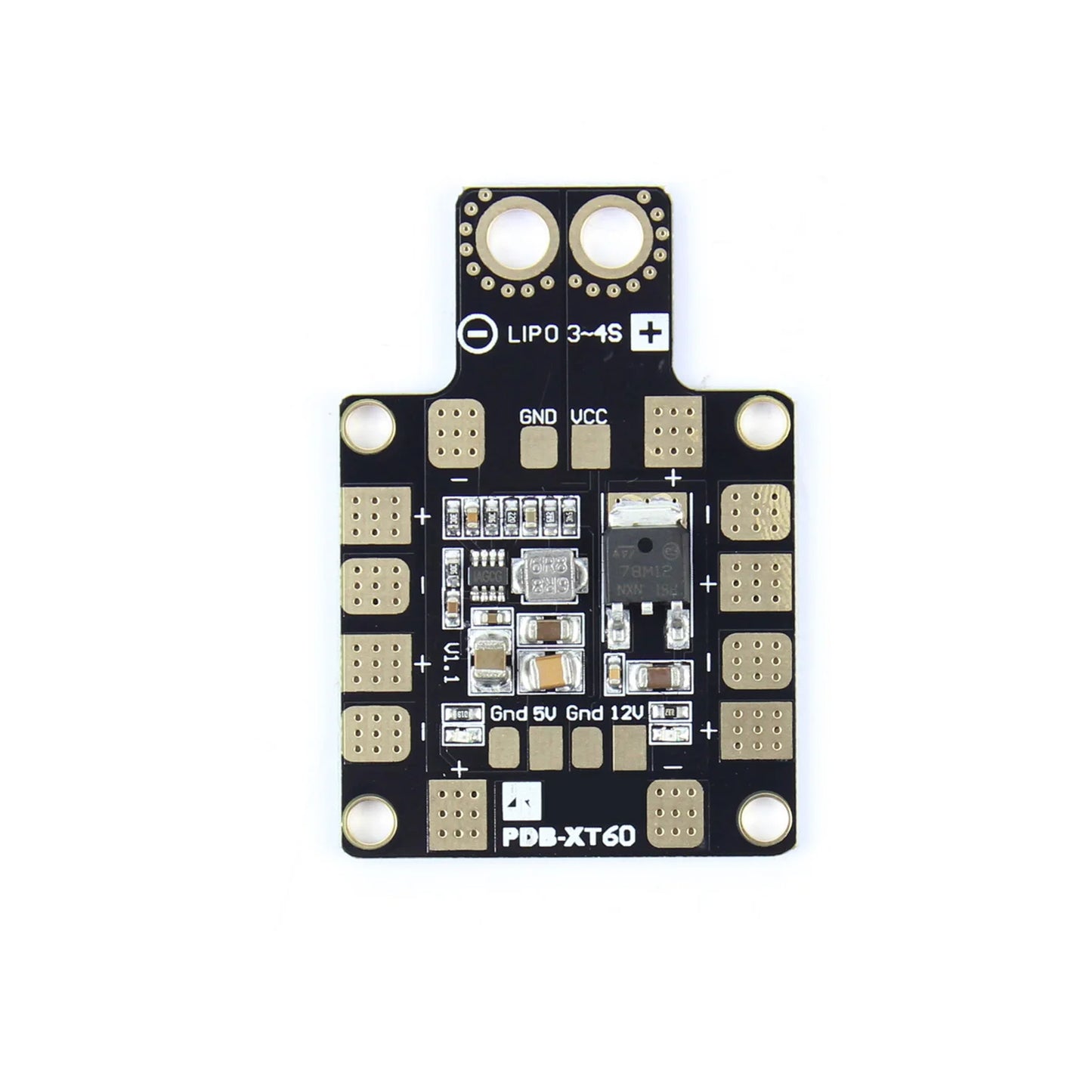

PDB-XT60 with BEC 5V and 12V Power Distribution Board has been engineered to provide the highest possible performance and reliability in a 36x50mm, 4-layer PCB. It comes with an XT60 for easy connection to LiPo batteries.
Using BEC it distributes power from 3~4S LiPo packs to 6 ESCs, as well as providing synchronized and regulated DC 5V outputs for RC Receivers, Flight controllers, OSD, and Servos.
It also provides linear regulated DC 12V for powering Cameras, Servos, RC receivers, Flight Controllers, Video Transmitters, LEDs, etc. It offers an XT60 socket to connect the LiPo pack conveniently.
ThePDB-XT60 with BEC 5V and 12V is a great package to get your Racing Drones powered up for racing.
Specifications:
- BEC 5V output: 5V/2A (Max.2.5A 10s/minute)
- Output Ripple:40mV (VIn= 16V, VOut= 5V@2A load)
- Short-circuit tolerant: 5 seconds/minute
- BEC 12V output (4S LiPoly, 13~18V DC): 12V/500mA (Max.0.8A 5s/minute)
- BEC 12V output (3S LiPoly): =3S LiPoly voltage 1V
- Track Material: 2oz Copper
- Short Circuit Tolerant Voltage(V): 9 to 18
- Output Continuous Current: 25A @4 and 15A @6
- Output Peak Current(for 10 seconds): 30A @4 and 20A@6
Features:
- 4 layers and 1.6mm PCB
- Built-in XT60 Socket
- A total of 6 pairs of ESC solder tabs are fit for an H or X-type frame
- 5V and 12V Output LED indicators
- Regulated 5V and 12V outputs
Package Included:
- 1 x PDB-XT60 W/BEC 5V and 12V board
- 1 x XT60 male Connector
