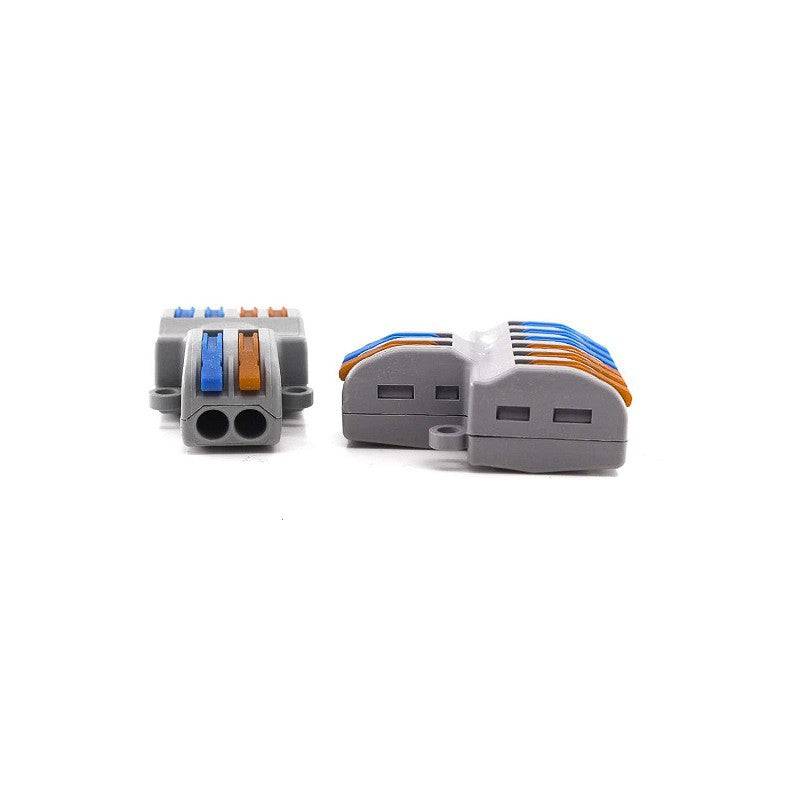

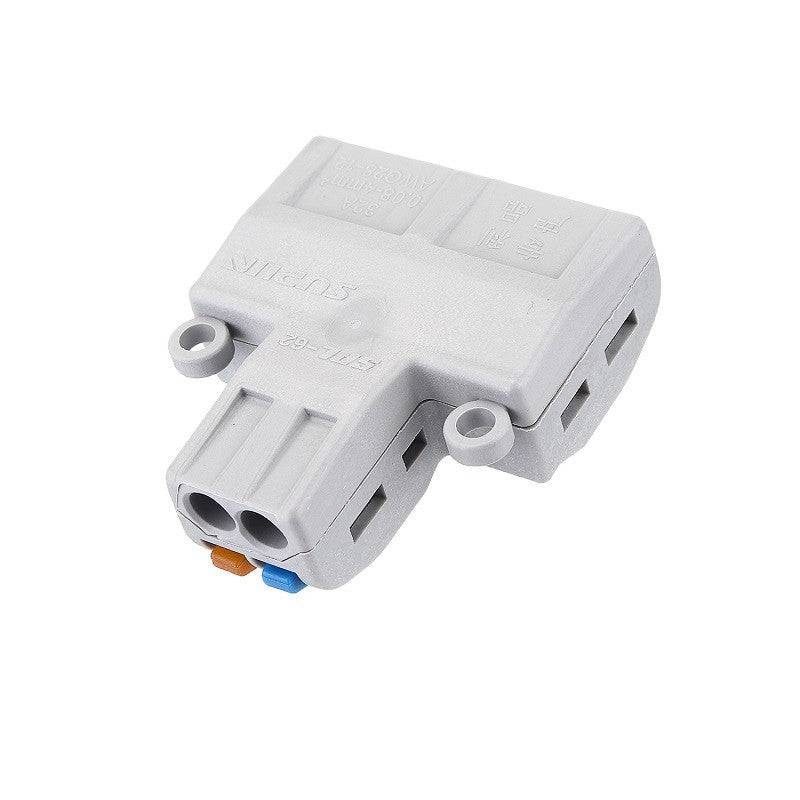

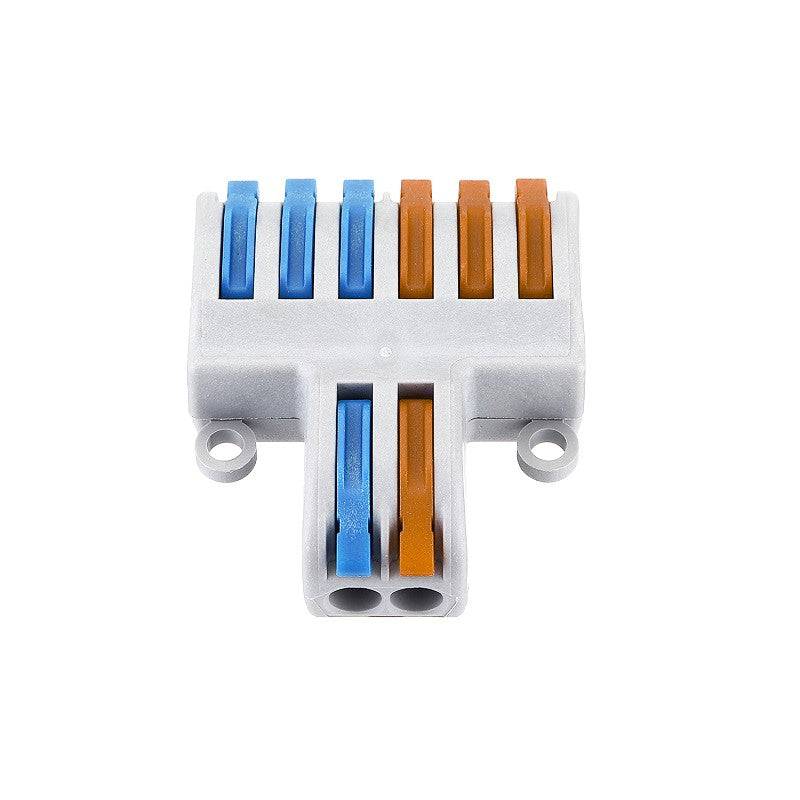

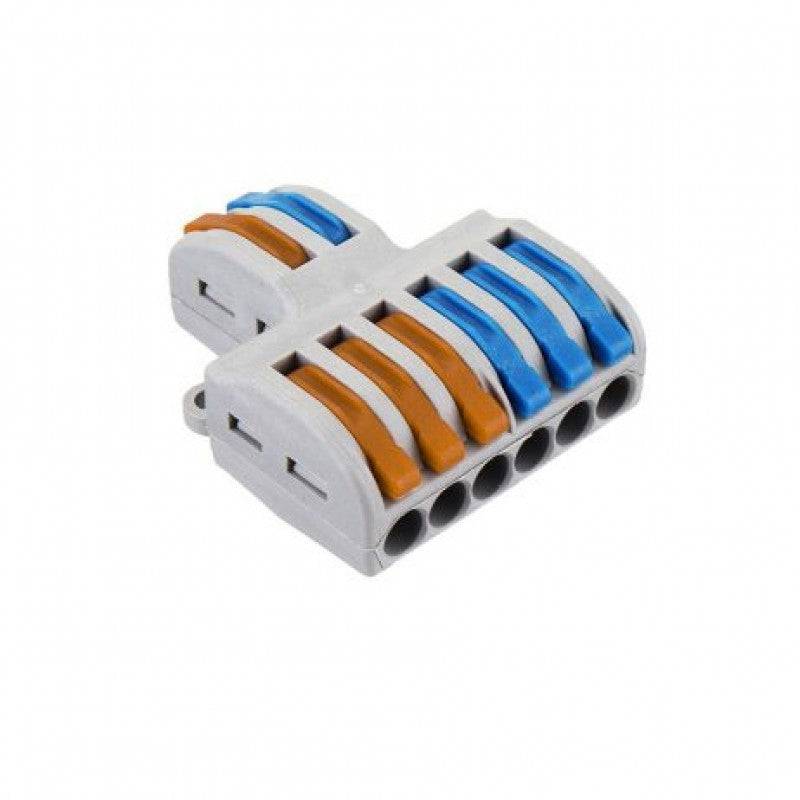

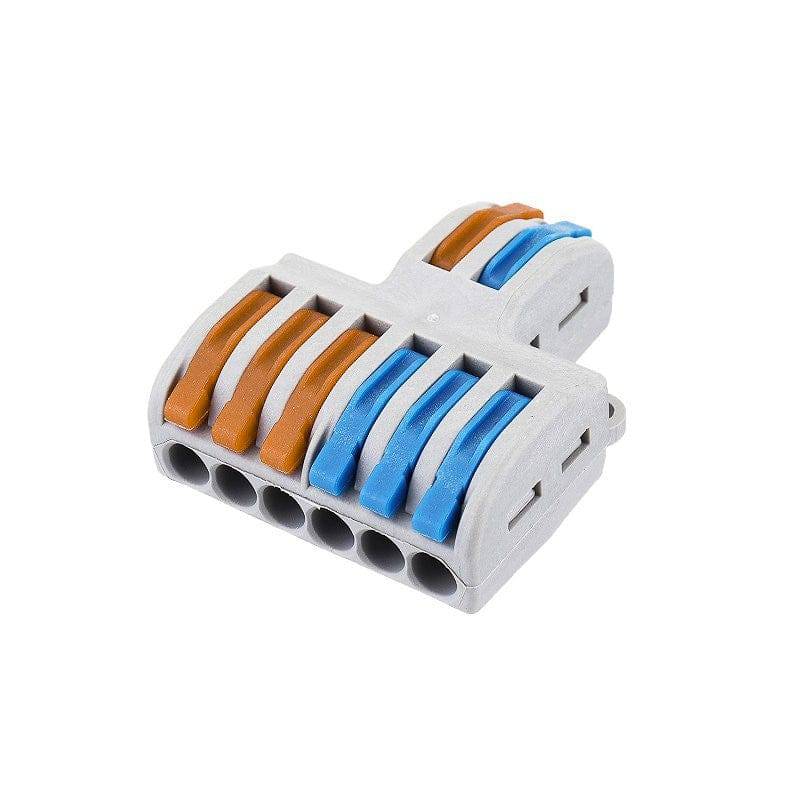

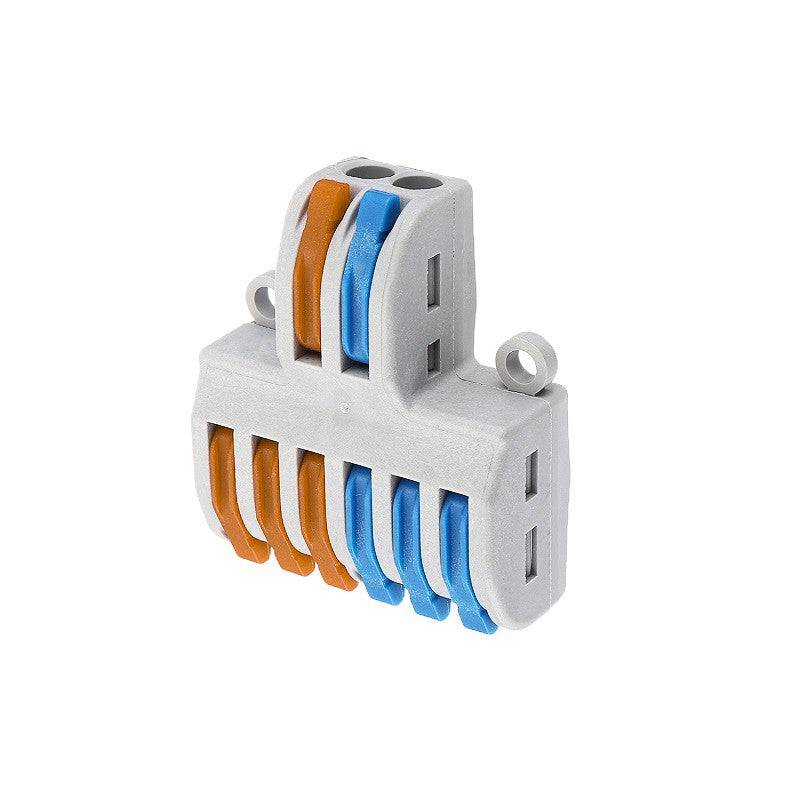

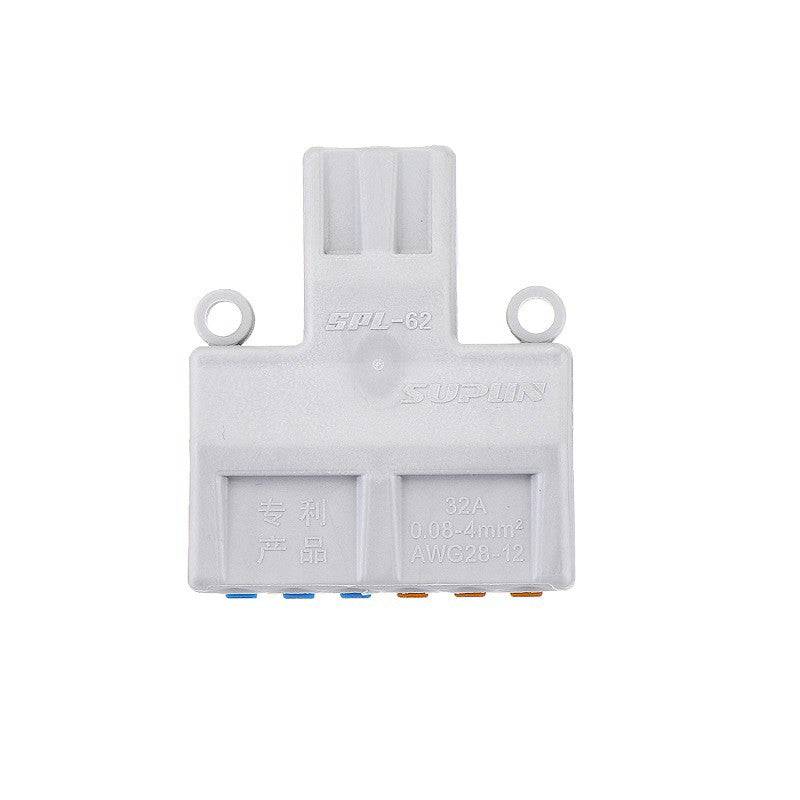

PCT-SPL-62 0.08-2.5mm 6:2 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection - RS3390

PCT-SPL-62 0.08-2.5mm 6:2 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection - RS3390

SKU:RS3390

455 in stock

Regular price Rs. 105.00
Regular price Sale price Rs. 105.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description :

This is a PCT-SPL-62 0.08-2.5mm 6:2 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector contains a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm2area or soft wire with 0.08mm to 4.0mm2area (or AWG28 to AWG12). This connector can tolerate a rated voltage of up to 400V with an electric current peak of 32A, resulting in a maximum of 7KW Power.

Specifications:

  • Model: PCT-SPL-62
  • Rated Voltage (V): 250V/4KV
  • Body Material: Modified Nylon (PA66)
  • Contact Material: Stainless Steel
  • No. of Contact Points: (6:2 )
  • Rated Power (W): 7 KW
  • Allowed Wire Size (AWG): 28 ~ 12
  • Color : Gray+Orange+Blue
  • Operating Temperature Range (C): -20 to 80
  • Length (mm): 40
  • Width (mm): 30
  • Weight (gm): 1

Features:

  • High-grade Insulative Nylon Material
  • Strong Spring Locking Lever
  • Nickel Plated Metal Point Inside
  • Good Temperature Resistance
  • Compact Splicing Connector
  • 6:2 -Conductor Terminal Block
  • With Operating Levers
  • Max. Continuous Service Temperature 85C

    Package Included:

    1 x PCT-SPL-62 0.08-2.5mm 6:2 Pole Wire Connector
