Description:

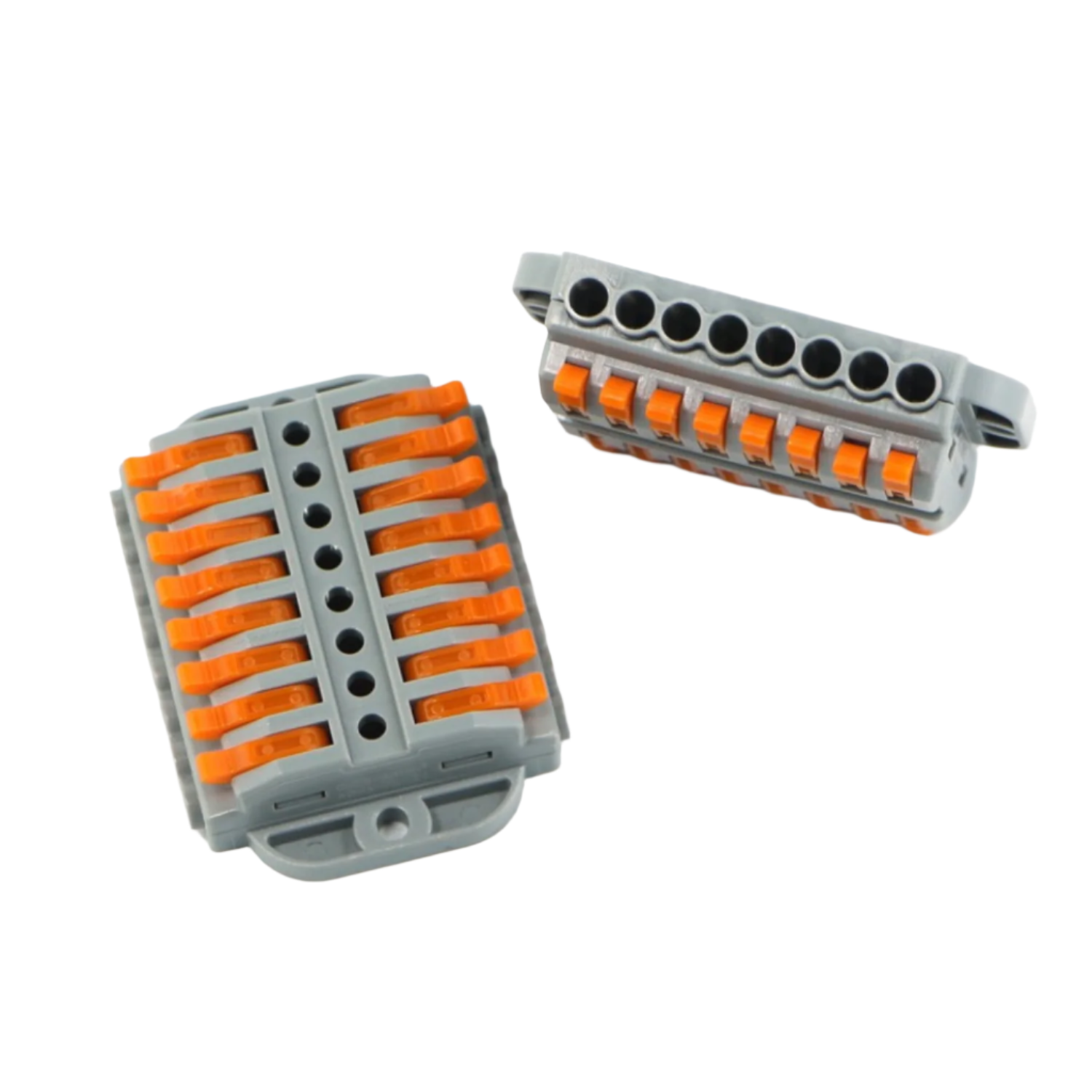

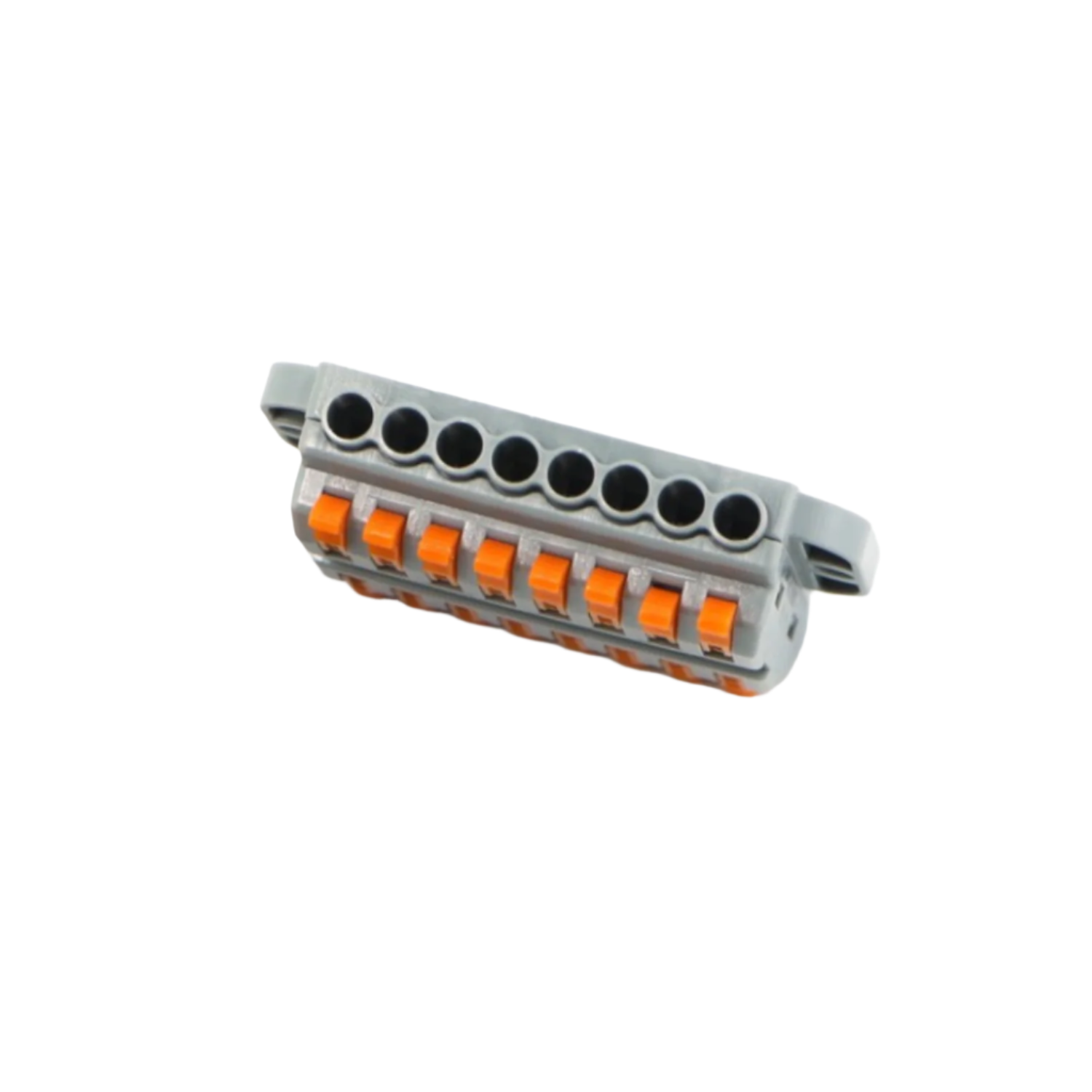

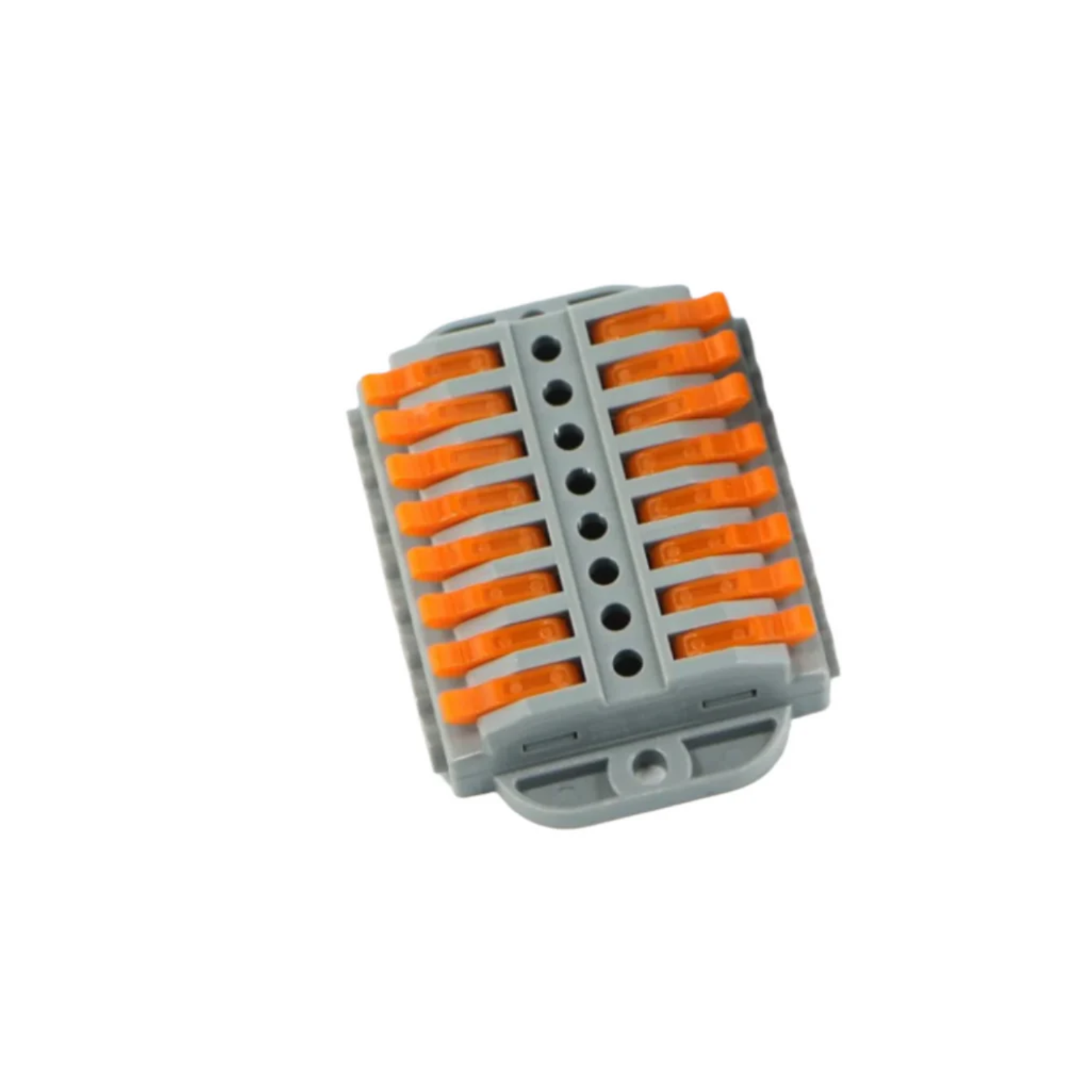

This is a PCT-223-8 0.08-2.5mm2 8 8-Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection.PCT Spring Lever Connector package contains a compact locking wire connector with a spring lever, which is used for single-strand hardwire with 0.08mm to 4 mm2 area or soft wire with 0.08mm to 4.0 mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 600V with an electric current peak of 32A.
Specifications:
- Model Series: PCT
- Current Rating: 32A
- Voltage Rating: 600V
- Allowed Wire Size: 12 to 28AWG
- Color: Grey, Orange
- Body Material: Modified Nylon (PA66)
- Contact Material: Stainless Steel
- No. of Contact Points: 8
- Operating Temperature: -20 to 80°C
Features:
- High-grade Insulating Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 4-Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85 °C
Package Included:
1 x PCT-223-8 Stationary Quick Connection Terminal Block
