- Rated voltage: 400V
- Rated current: 32A
- Number of poles: 3
- Wire section : 0.08~4.0mm2
- Number of clamps: 4
Description :

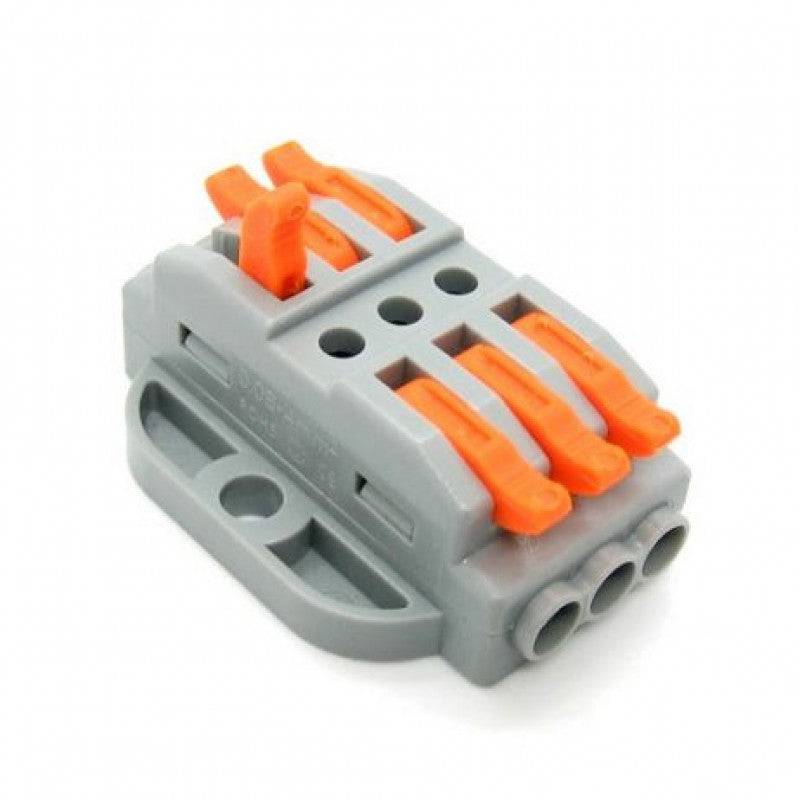

This is a PCT-223-3 0.08~4.0 mm2 3 Pole both side Wire Connector Terminal Block with Spring Lock Lever for Cable Connection. PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for Single -strand hardwire with 0.08~4.0 mm2 area or soft wire with 0.08~4.0 mm2 area. This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A and the Rated impulse Voltage is about 4 KV. The Strip length of the Connector is about 9-10 mm. Also, this connector is compatible with 28~12 AWG.
Features:
- Fast and easy to use
- The right terminal block and connector for every application
- Minimal space requirements enable high wiring density
- Clearly organized wiring in control cabinets and junction boxes
- Maintenance-free installation
- Permanent, secure connections
Specifications:
- Rated voltage: 400V
- Rated current: 32A
- Number of poles: 3
- Wire section : 0.08~4.0mm2
- Number of clamps: 4
Package Included:
1 x PCT-223-2 Stationary Type Quick Connection Terminal
