- Model : PCT-218
- Rated Voltage (V) : 250V/4KV
- Rated Current(A) : 32
- Body Material : Modified Nylon (PA66)
- Contact Material : Stainless Steel
- No. of Contact Points : 8
- Rated Power (W) : 7 KW
- Allowed Wire Size (AWG) : 28 ~ 12
- Color : Grey+Orange
- Operating Temperature Range (C) : -20 to 80
Description :

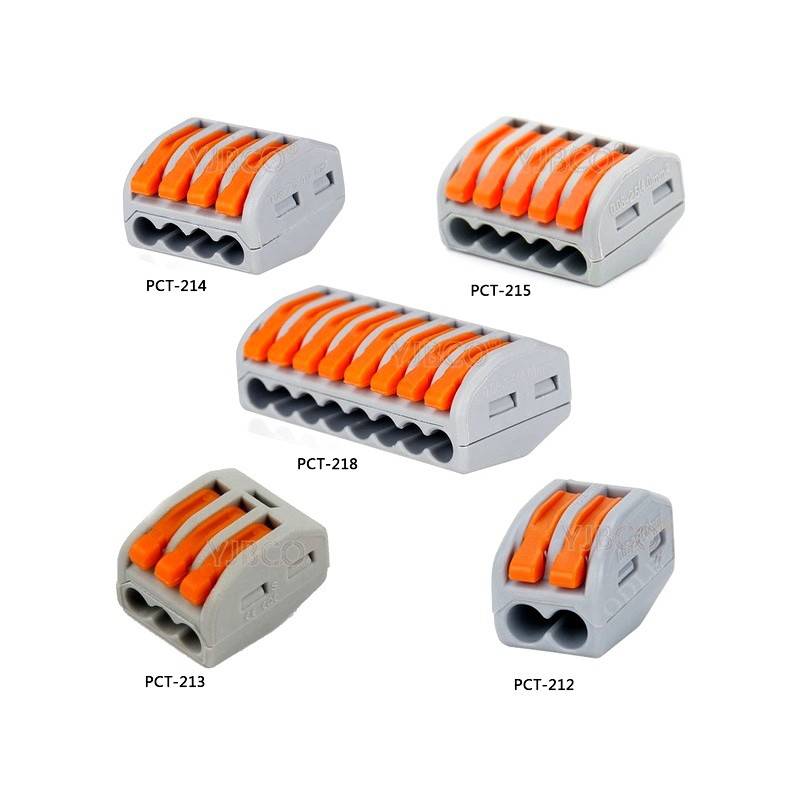

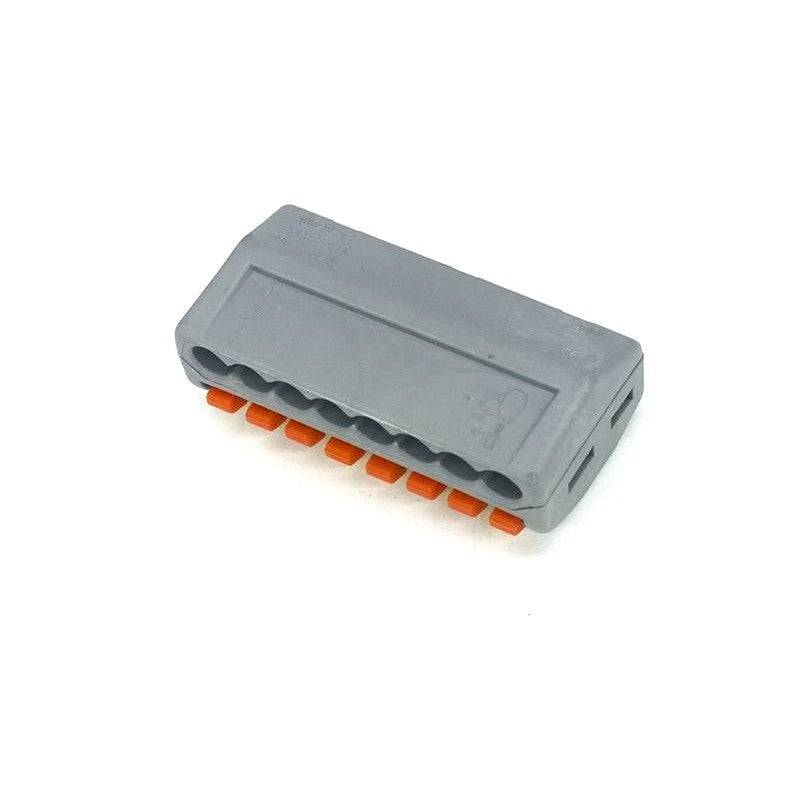

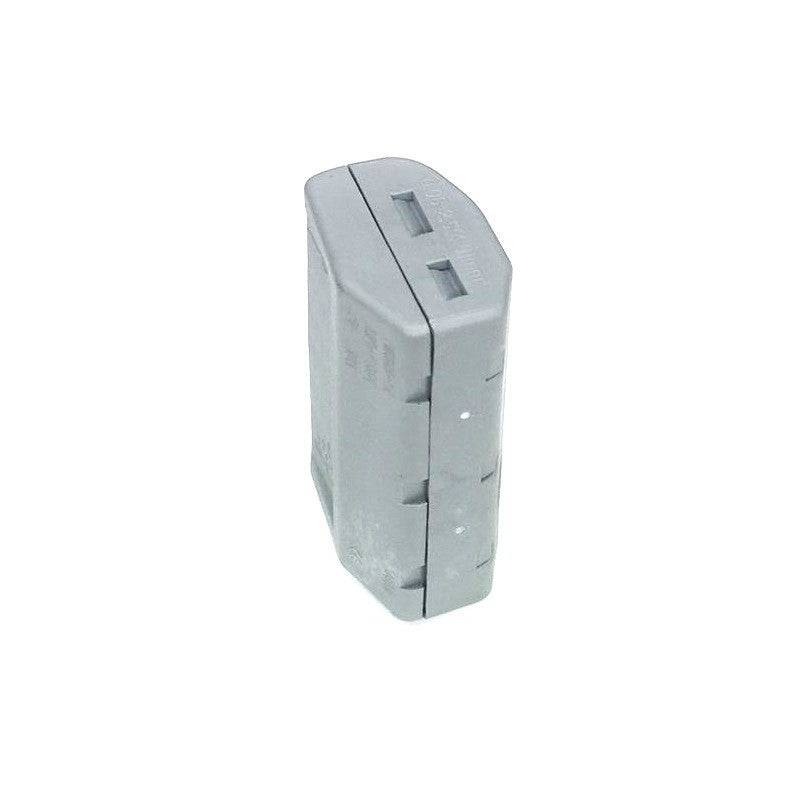

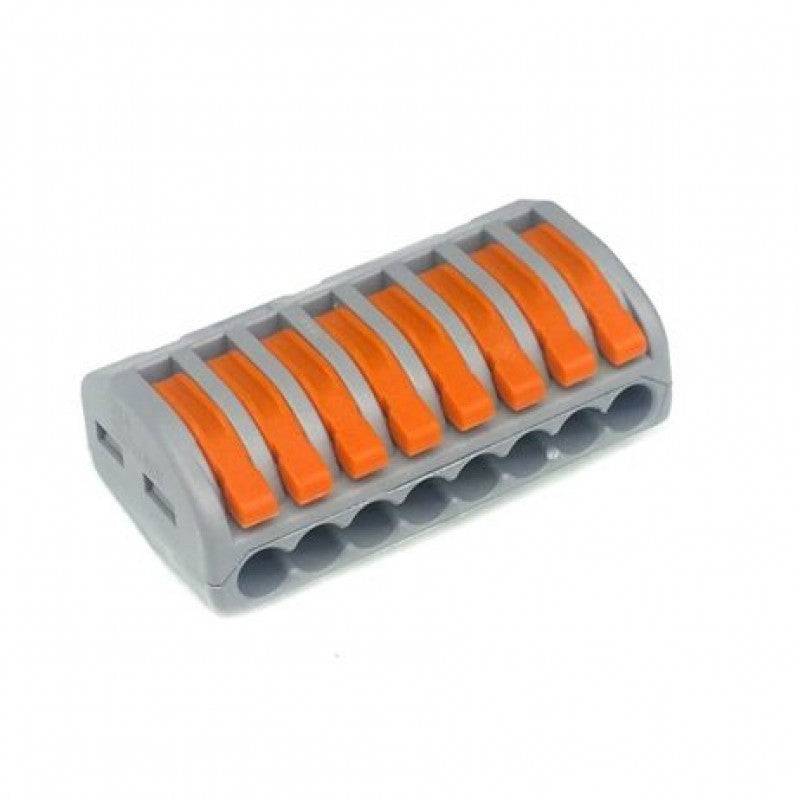

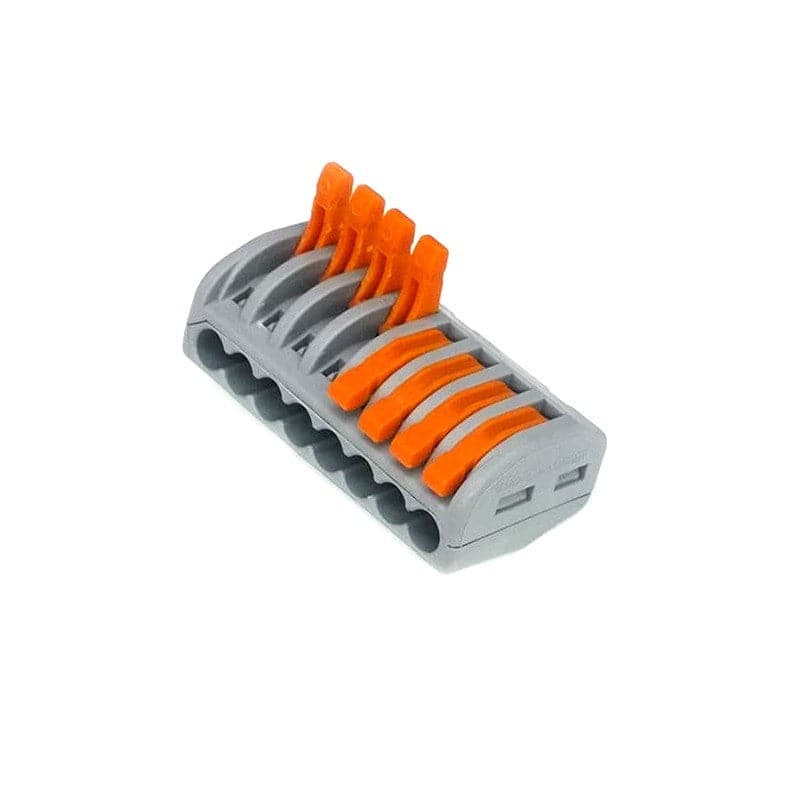

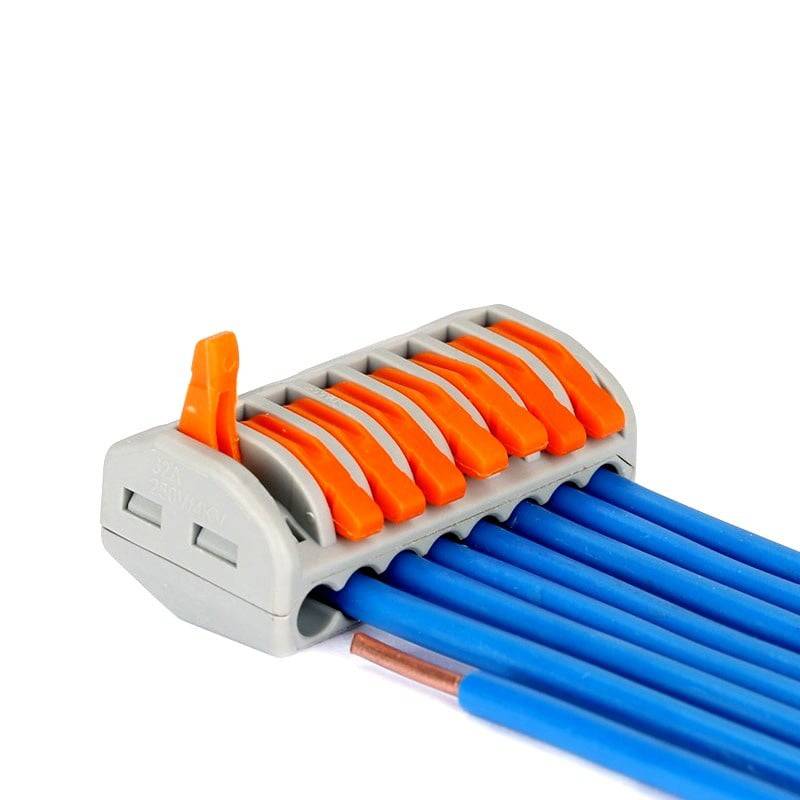

This is a PCT-218 0.08-2.5 mm 8 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection. PCT Spring Lever Connector [212, 213, 215, 215, 218] package contains a compact locking wire connector by a spring lever, which is used for single-strand hardware with 0.08 mm to 2.5mm2area or soft wire with 0.08 mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, to result in a maximum of 7KW Power.
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 4-Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85C
Specifications :
- Model : PCT-218
- Rated Voltage (V) : 250V/4KV
- Rated Current(A) : 32
- Body Material : Modified Nylon (PA66)
- Contact Material : Stainless Steel
- No. of Contact Points : 8
- Rated Power (W) : 7 KW
- Allowed Wire Size (AWG) : 28 ~ 12
- Color : Grey+Orange
- Operating Temperature Range (C) : -20 to 80
Package Included:
1 x PCT-218 0.08-2.5 mm 8 Pole Wire Connector Terminal Block
