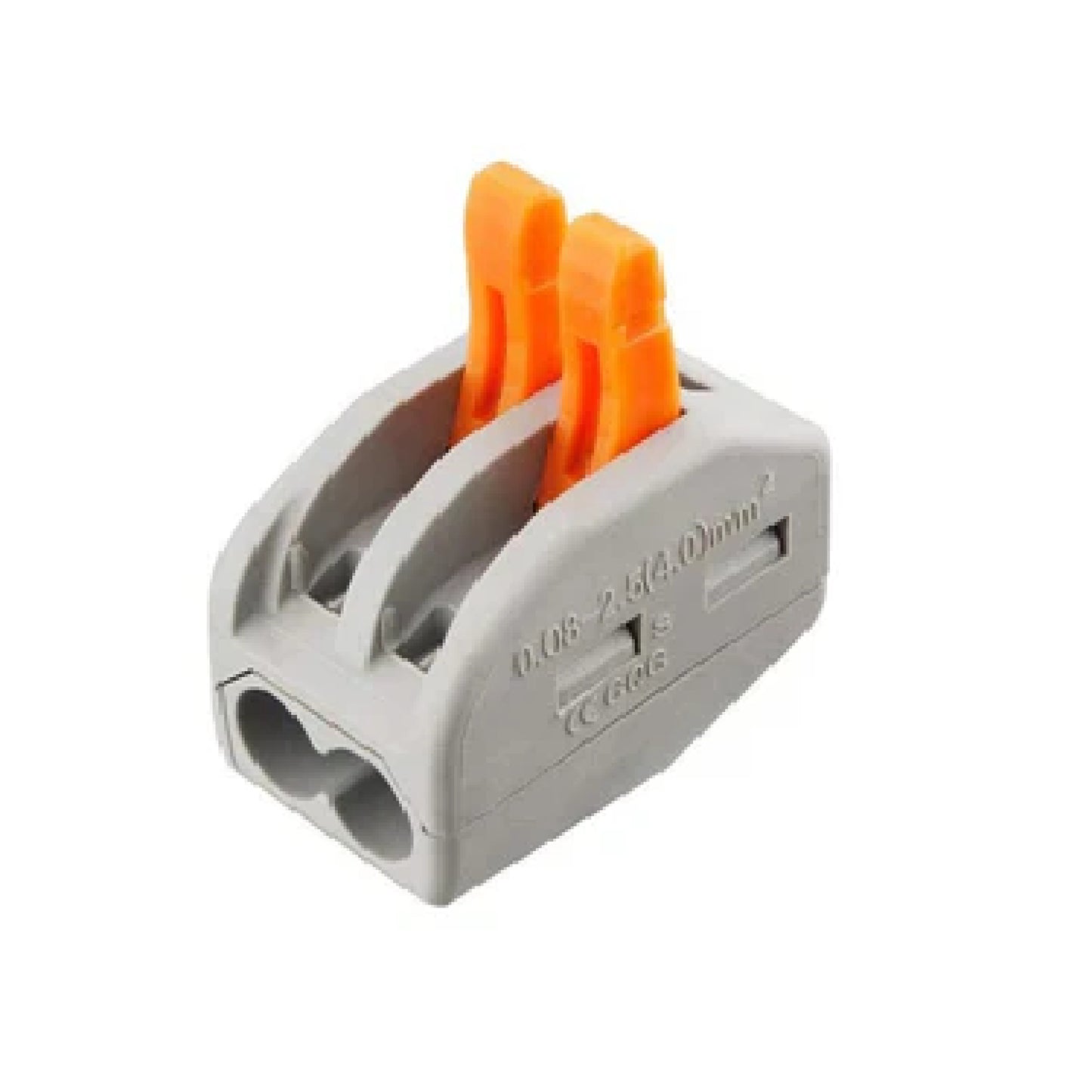

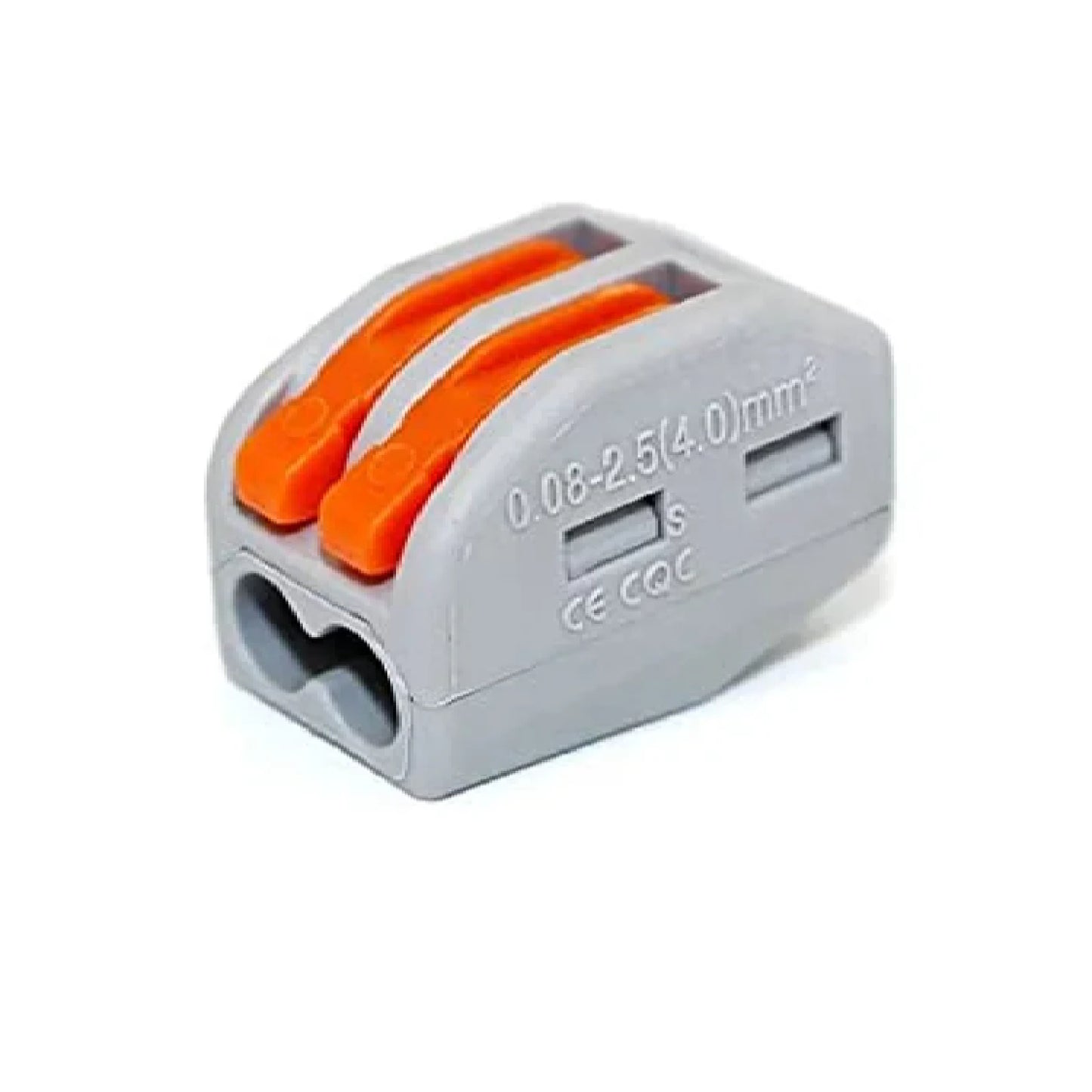

PCT-212 Universal Terminal 0.08-2.5Mm Push-In Electrical Terminals for Cable Connection - RS3605

PCT-212 Universal Terminal 0.08-2.5Mm Push-In Electrical Terminals for Cable Connection - RS3605

SKU:RS3605

In stock

Regular price Rs. 14.00
Regular price Sale price Rs. 14.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Operating Voltage : 250 V
  • Connector Type : Pin
  • Insulation Material Type : Nylon
  • Gauge : 12
  • Terminal Type : Pin Terminal
  • Working Temperature Range (C) : -40 to 85

Description :

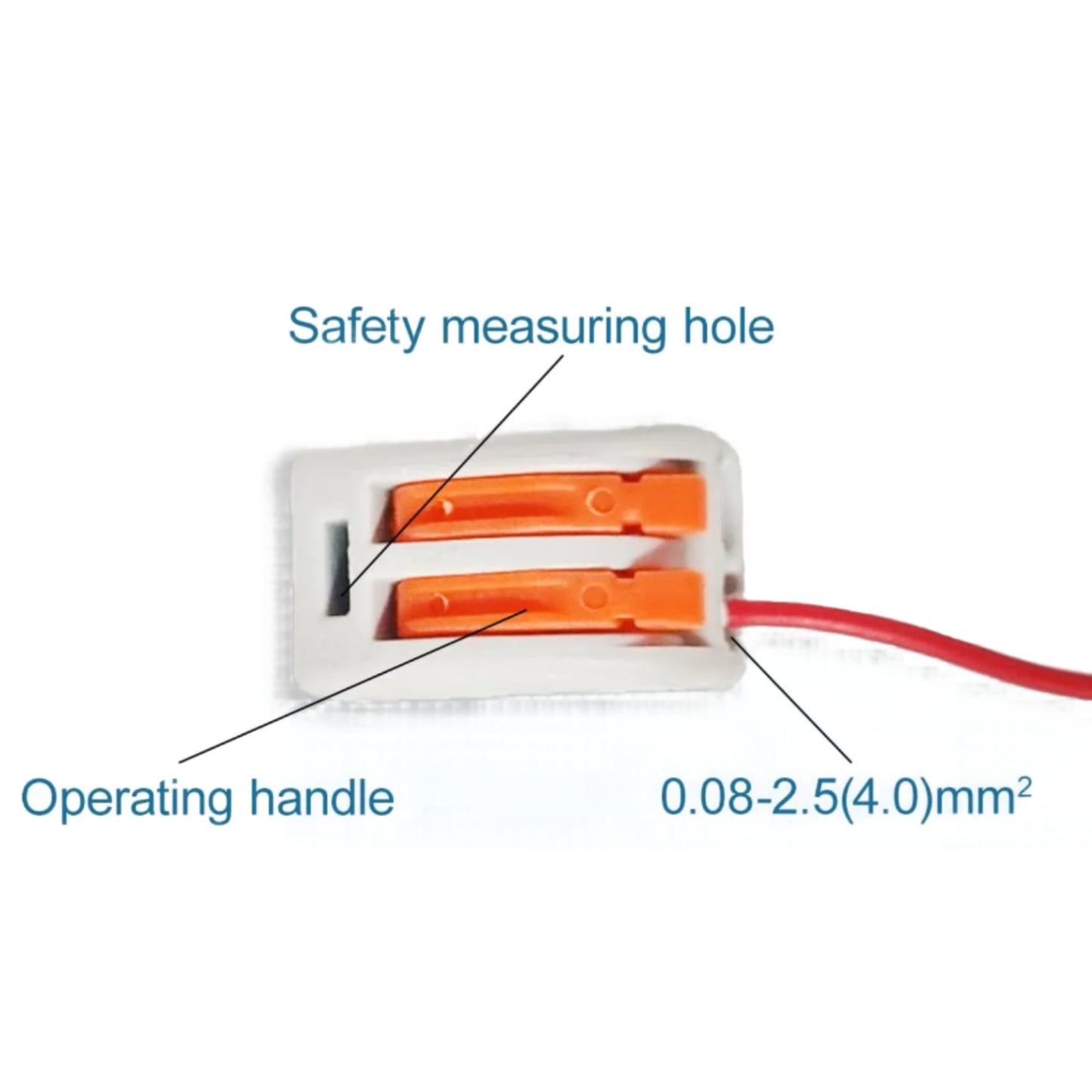

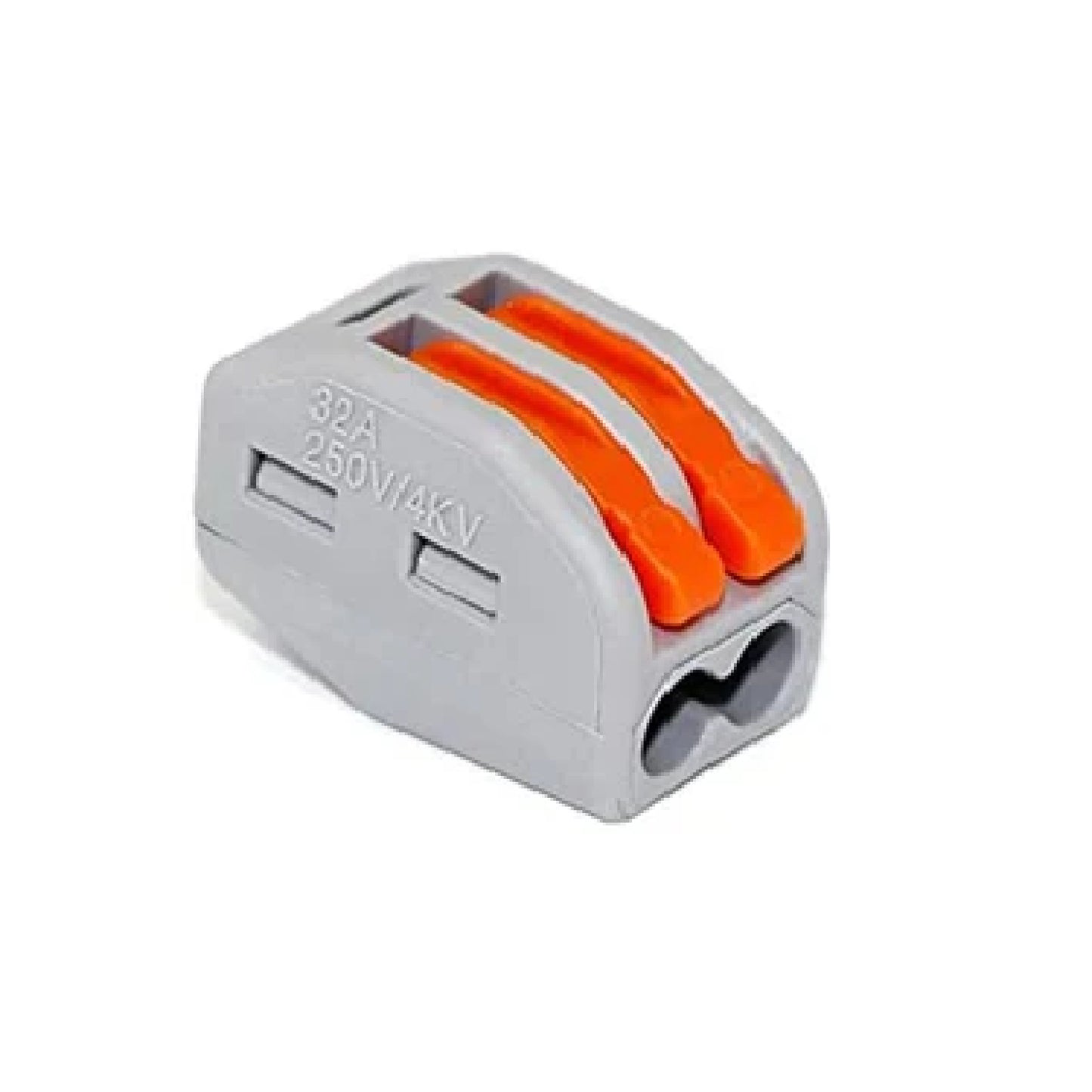

This is a PCT-212 Universal Terminal 0.08-2.5Mm Push-In Electrical Terminals for Cable Connection. PCT Spring Lever Connector PCT-212, 213, 215, 215, 218 and CH-812, 813, 2-4, 2-6, etc. comes with compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm2area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A, result in a maximum of 7KW Power.

Features:

  • High-grade Insulative Nylon Material
  • Strong Spring Locking Lever
  • Nickel Plated Metal Point Inside
  • Good Temperature Resistance
  • Compact Splicing Connector
  • 4-Conductor Terminal Block
  • With Operating Levers
  • Max. Continuous Service Temperature 85C

Specification :

  • Operating Voltage : 250 V
  • Connector Type : Pin
  • Insulation Material Type : Nylon
  • Gauge : 12
  • Terminal Type : Pin Terminal
  • Working Temperature Range (C) : -40 to 85

Package Included:

1 x PCT-212 Universal Terminal 0.08-2.5Mm Push-In Wire Connector
