Description:

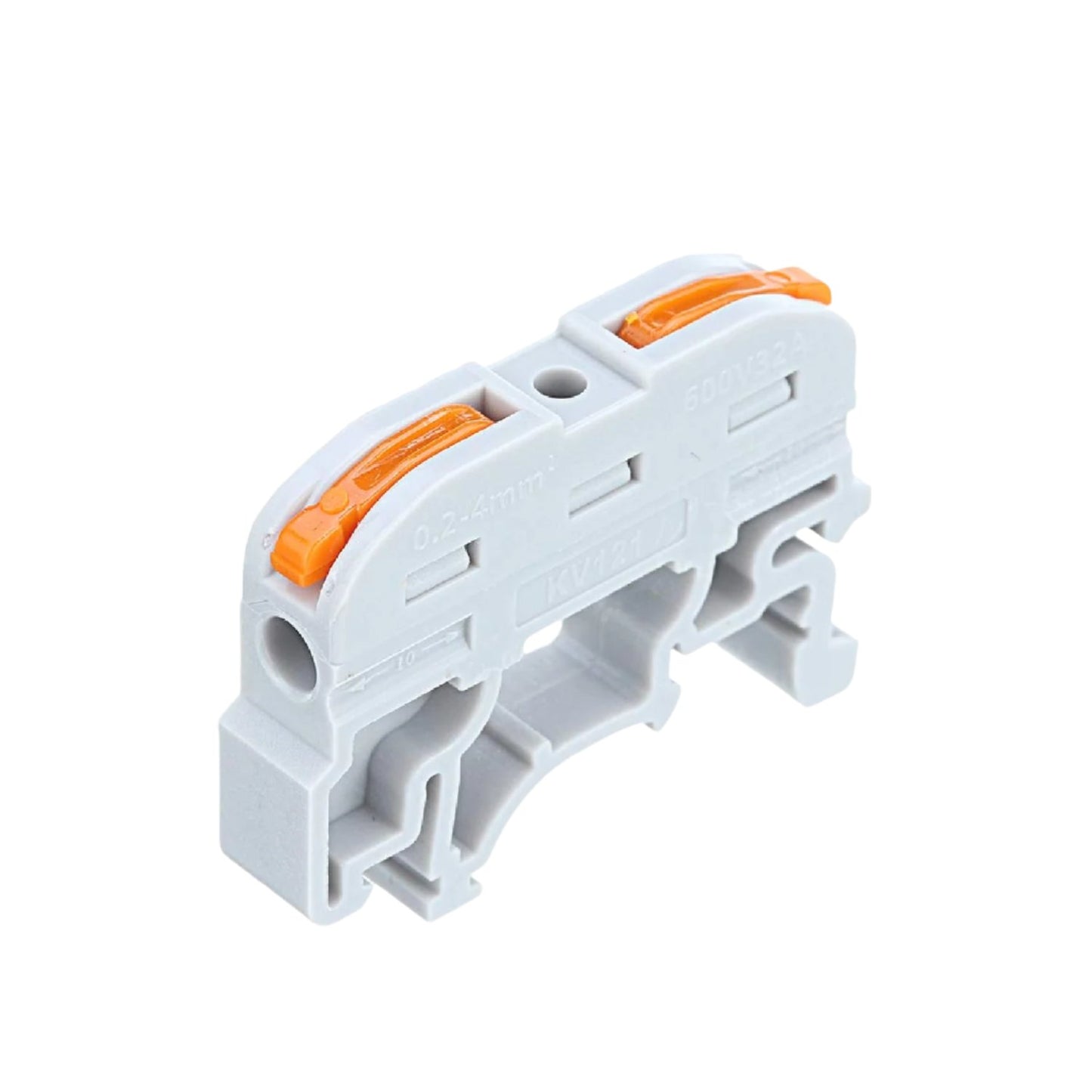

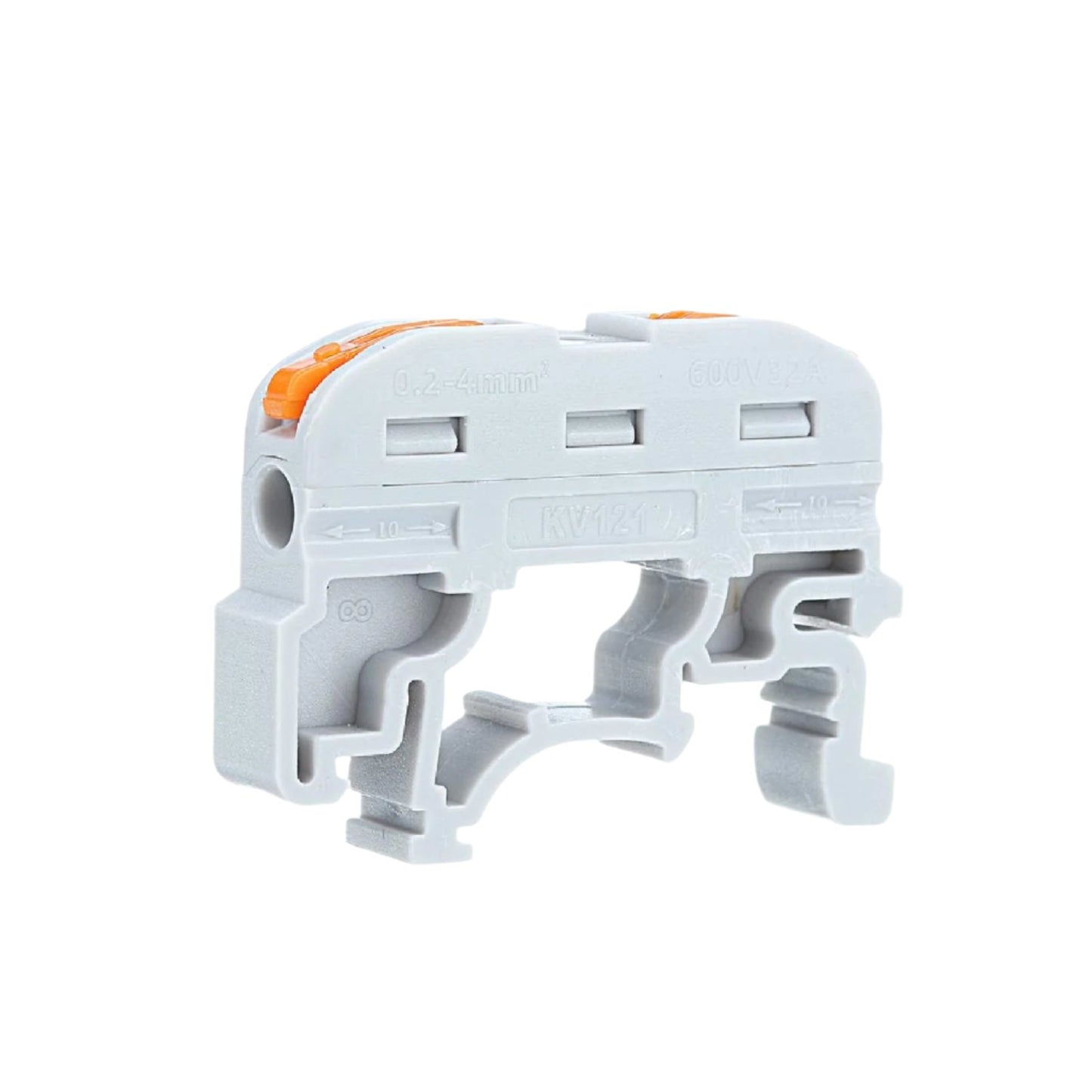

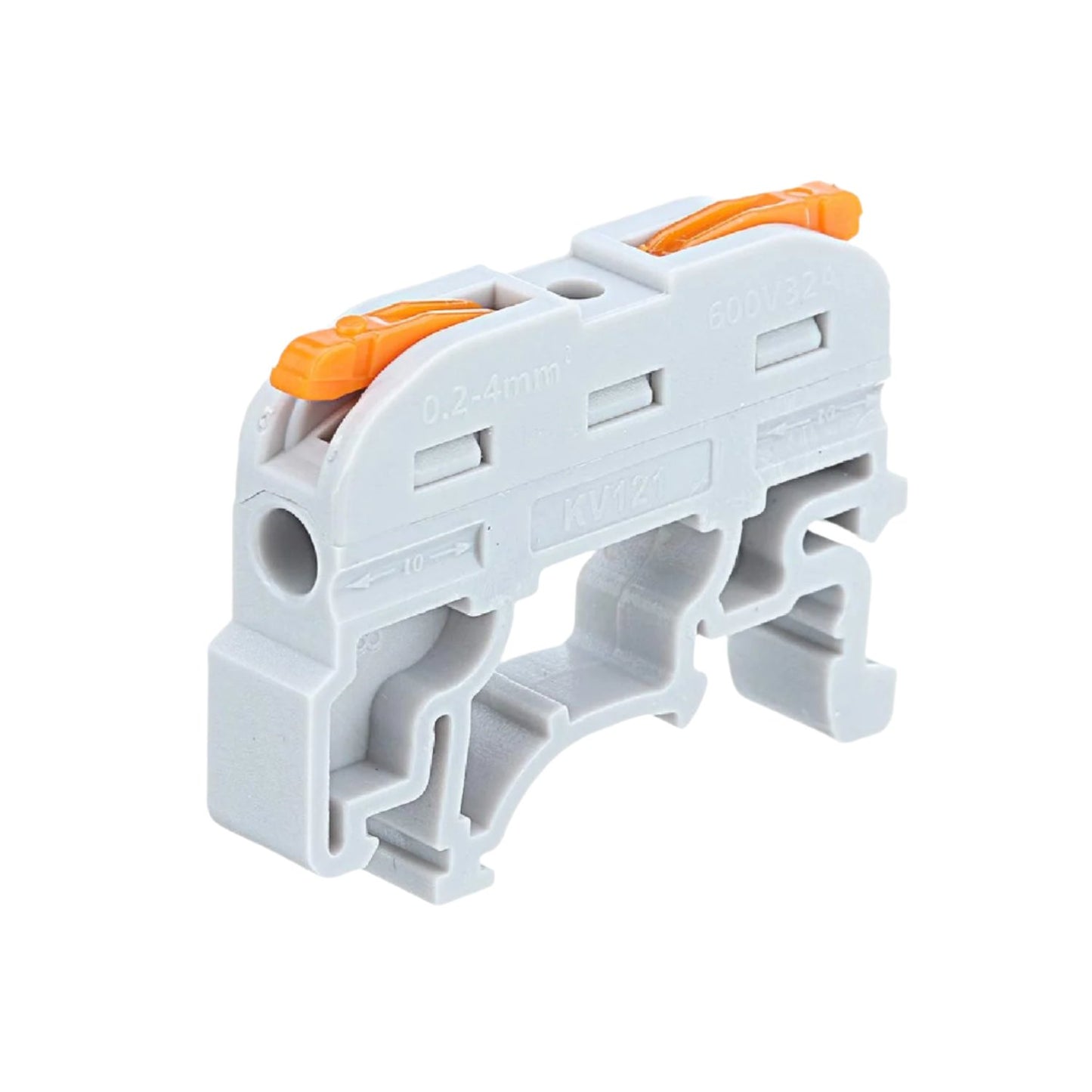

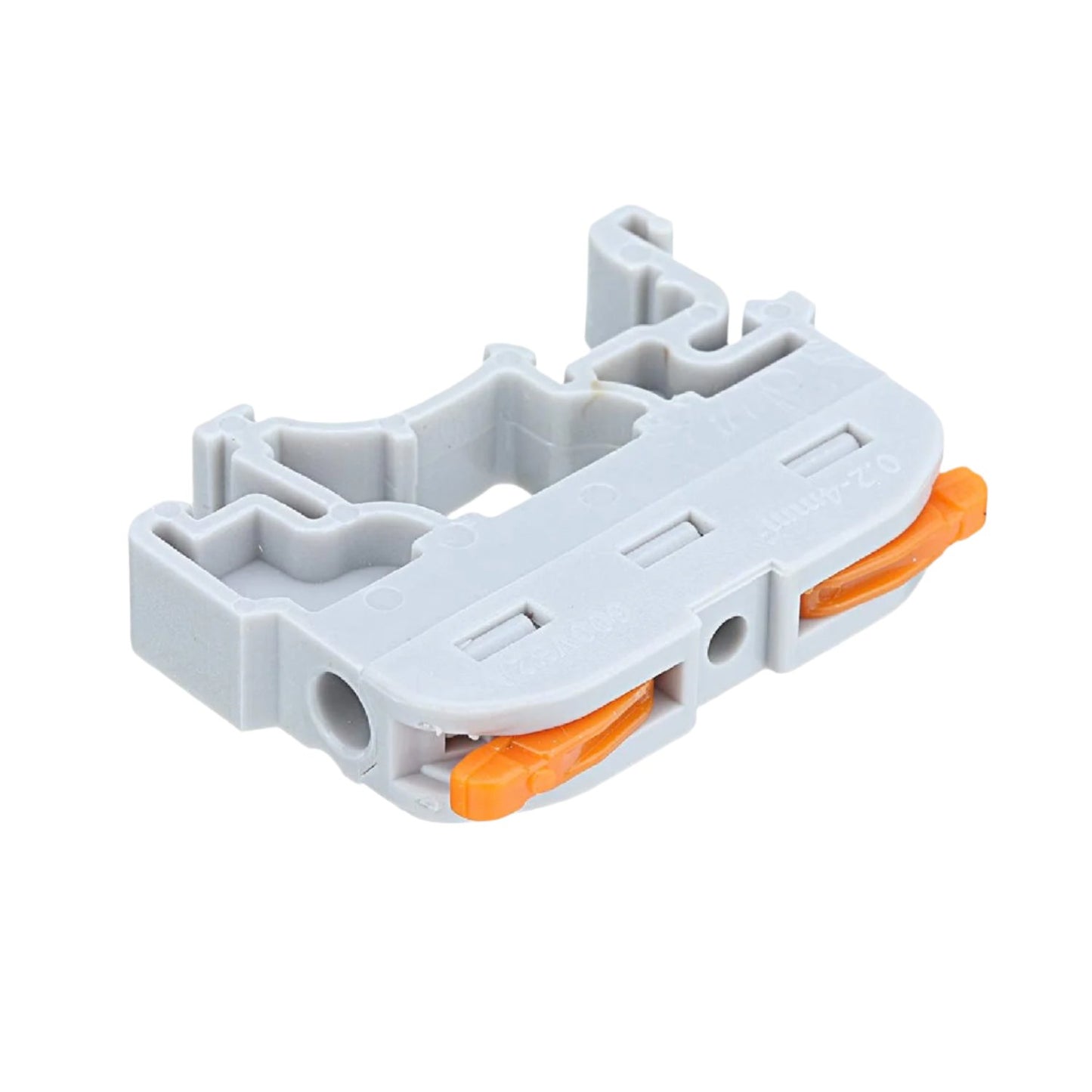

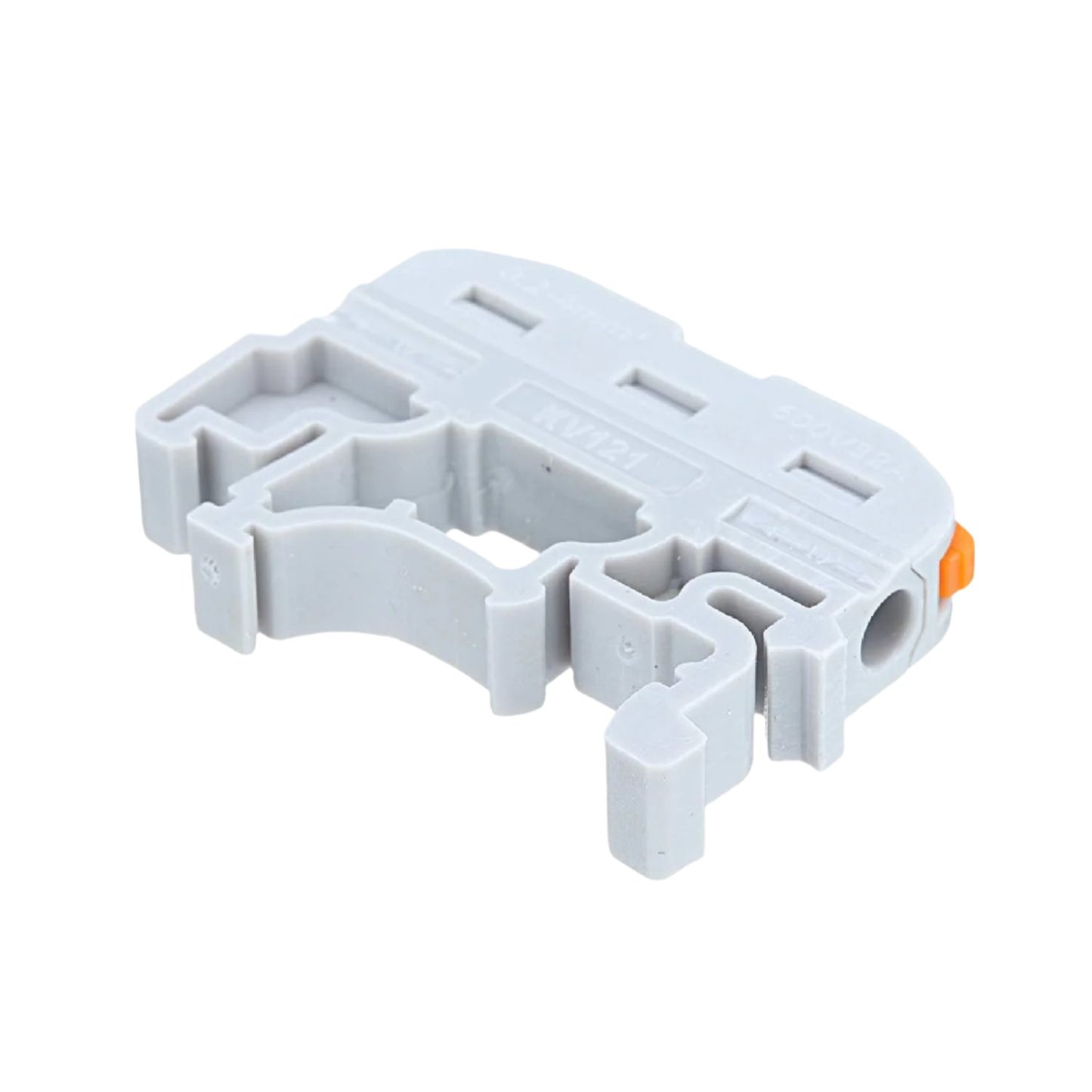

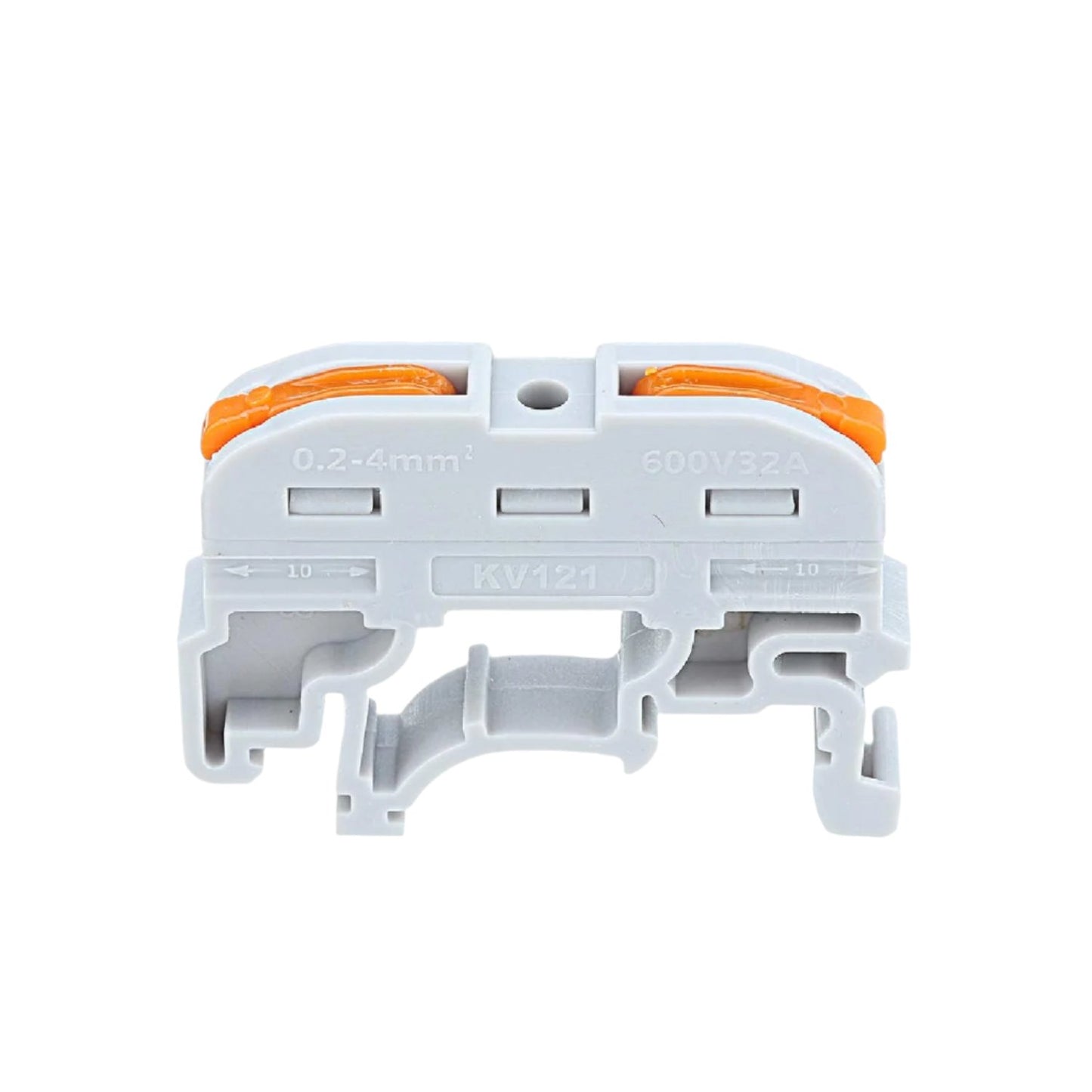

The PCT-211 Single Pole Wire Connector Terminal Block is a compact and efficient solution for quick and reliable wire connections. Designed for use with single-strand hardwire (0.08-4mm) or soft wire (0.08-4.0mm), this terminal block features a spring-loaded lever for easy and secure connections.
Its compact size allows for high wiring density in tight spaces, saving time and valuable space in distribution or junction boxes. With a rated voltage of 400V and a current capacity of 32A, the PCT-211 ensures safe and reliable electrical connections.
Specifications:
- Model: PCT-211
- Rated Voltage (V): 400
- Rated Current(A): 32
- Operating Temperature Range (C): -20 to 85
- Colour: Grey+Orange
Features:
- With Operating Levers
- 4-Conductor Terminal Block
- Compact Splicing Connector
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- High-grade Insulative Nylon Material
- Max. Continuous Service Temperature 85C
Package Included:
1 x PCT-211 Guide Rail Type Quick Connection Terminal
