- IC Chip: PCF8951
- Operating Voltage: 2.5 ~ 6V DC
- Single power supply
- A PCF8591 operating voltage range of 2.5V-6V
- Low standby current
Description:
This is a breakout board/Prototype Board for PCF8591 IC. The PCF8591 is a single-chip, single‑supply low‑power 8‑bit CMOS data acquisition device with four analogue inputs, one analogue output, and a serial I²C‑bus interface. Three address pins A0, A1, and A2 are used for programming the hardware address, allowing the use of up to eight devices connected to the I²C‑bus without additional hardware. Address, control, and data to and from the device are transferred serially via the two-line bidirectional I²C‑bus. The functions of the device include analogue input multiplexing, on-chip track and hold function, 8-bit analogue-to-digital conversion, and an 8‑bit digital-to-analogue conversion. The maximum conversion rate is given by the maximum speed of the I²C-bus.
Specification:
- IC Chip: PCF8951
- Operating Voltage: 2.5 ~ 6V DC
- Single power supply
- A PCF8591 operating voltage range of 2.5V-6V
- Low standby current
Features:
- Single power supply
- A PCF8591 operating voltage range of 2.5V-6V
- Low standby current
- Via I2C bus serial input/output
- PCF8591 by 3 hardware address pins addressing
- PCF8591 I2C bus speed sampling rate decided
- 4 analogue inputs programmable single-ended or differential input
- Automatic incremental channel selection
- PCF8591 analog voltage range from VSS to VDD
- PCF8591 built-in track-and-hold circuit
- 8-bit successive approximation A / D converter
- 1 analog output DAC gain
Package Included:

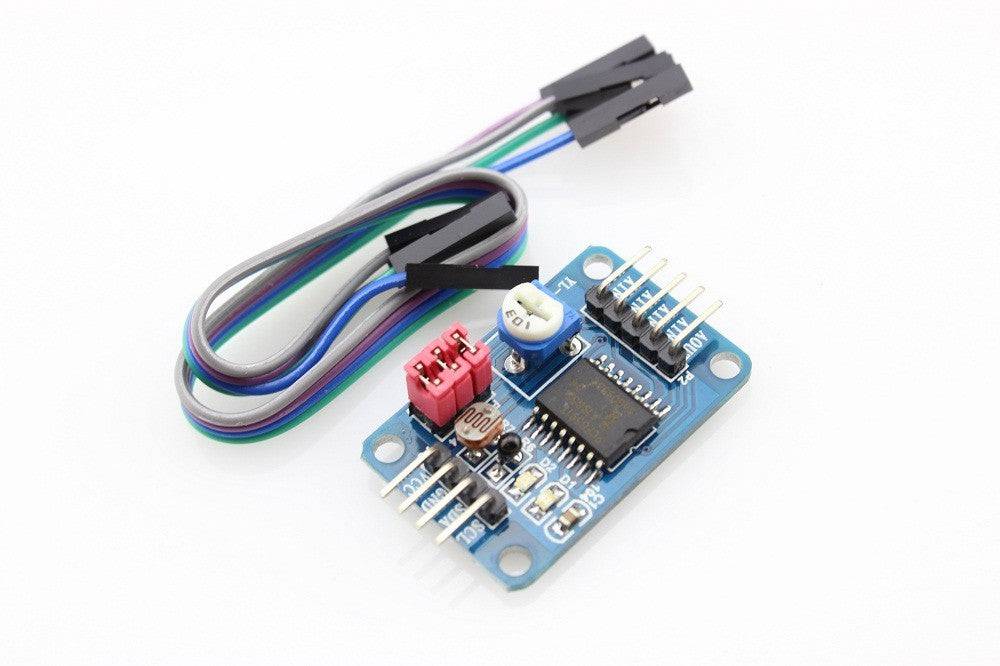

1 x PCF8591 Module Analog to Digital / Digital-Analog Converter Module with F-F Jumper Wire
