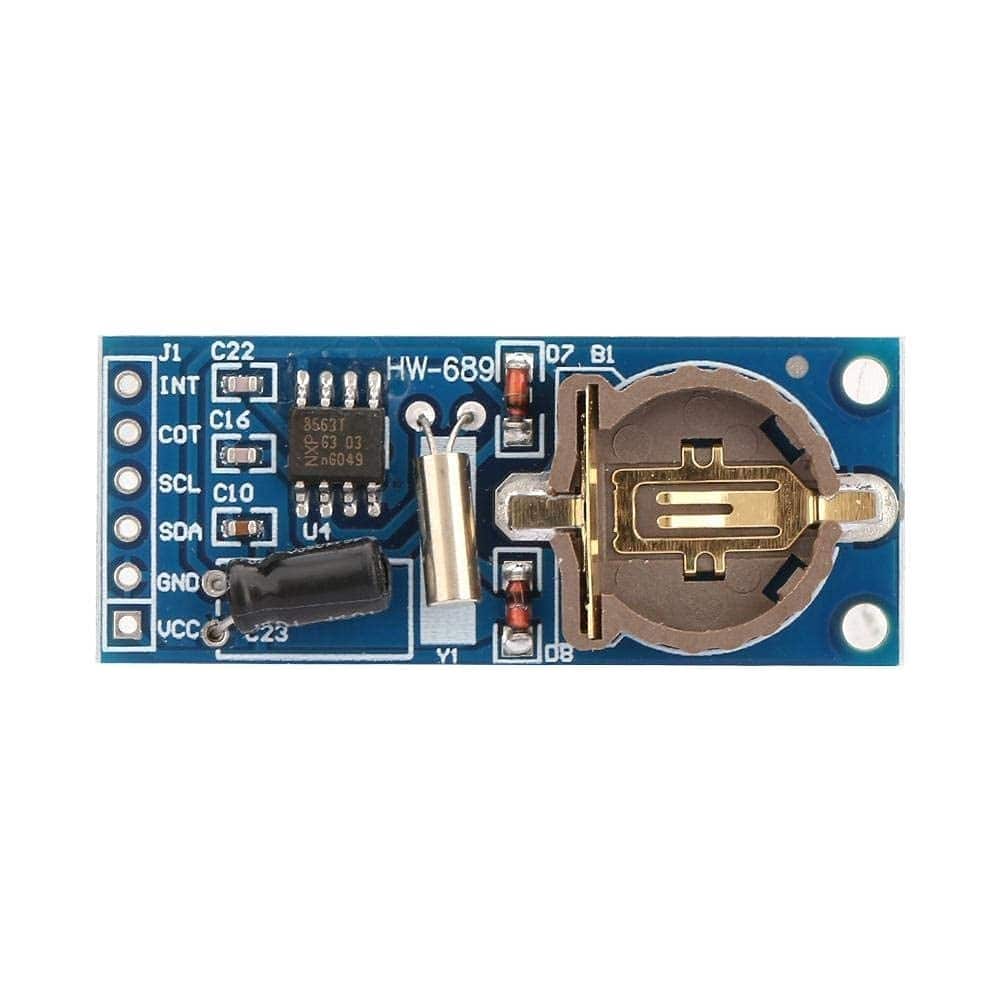

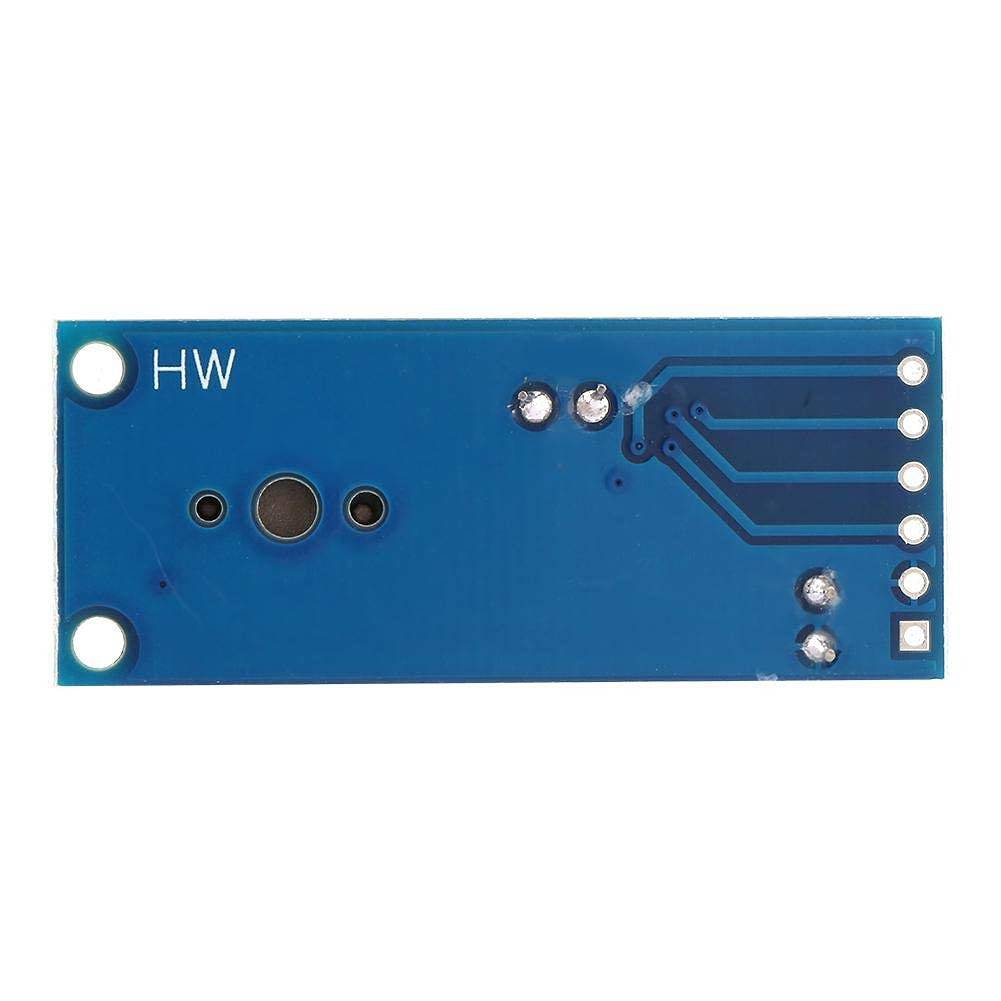

PCF8563 PCF8563T Real Time Clock Module High Accuracy I2C RTC Module Board - NA040

PCF8563 PCF8563T Real Time Clock Module High Accuracy I2C RTC Module Board - NA040

SKU:NA040

18 in stock

Regular price Rs. 269.00
Regular price Sale price Rs. 269.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Supply voltage: from 1.8 V to 5.5 V
  • Chip: PCF8563
  • Mounted battery CR122
  • Soldered goldpin connectors - 2.54 mm raster
  • The ability to cascade connect the next module attached

Description:

The module is equipped with chip PCF8563. Provides accurate and independent intervals. Operating voltage is from 1.8 V to 5.5 V. the Power is steady, round CR1220 battery, which works regardless of the system in which it is located. Communication is performed via the I2C bus. Allows you to read the time in hours, minutes, and seconds date: month, day, year. An additional advantage is a possibility of generating frequencies: 32.768KHz, 1024Hz, 32Hz, 1Hz.

Specification:

  • Supply voltage: from 1.8 V to 5.5 V
  • Chip: PCF8563
  • Mounted battery CR122
  • Soldered gold pin connectors - 2.54 mm raster
  • The ability to cascade connect the next module attached
  • Jumper to select the supply voltage of the external DC or battery power BAT

Features:

  • The PCF8563 RTC Board provides the real-time clock/calendar function
  • It has I2C pin header on one side
  • It has an I2C connector on the opposite side
  • It is more flexible to connect the board to your development system.
  • The board also supports I2C cascading

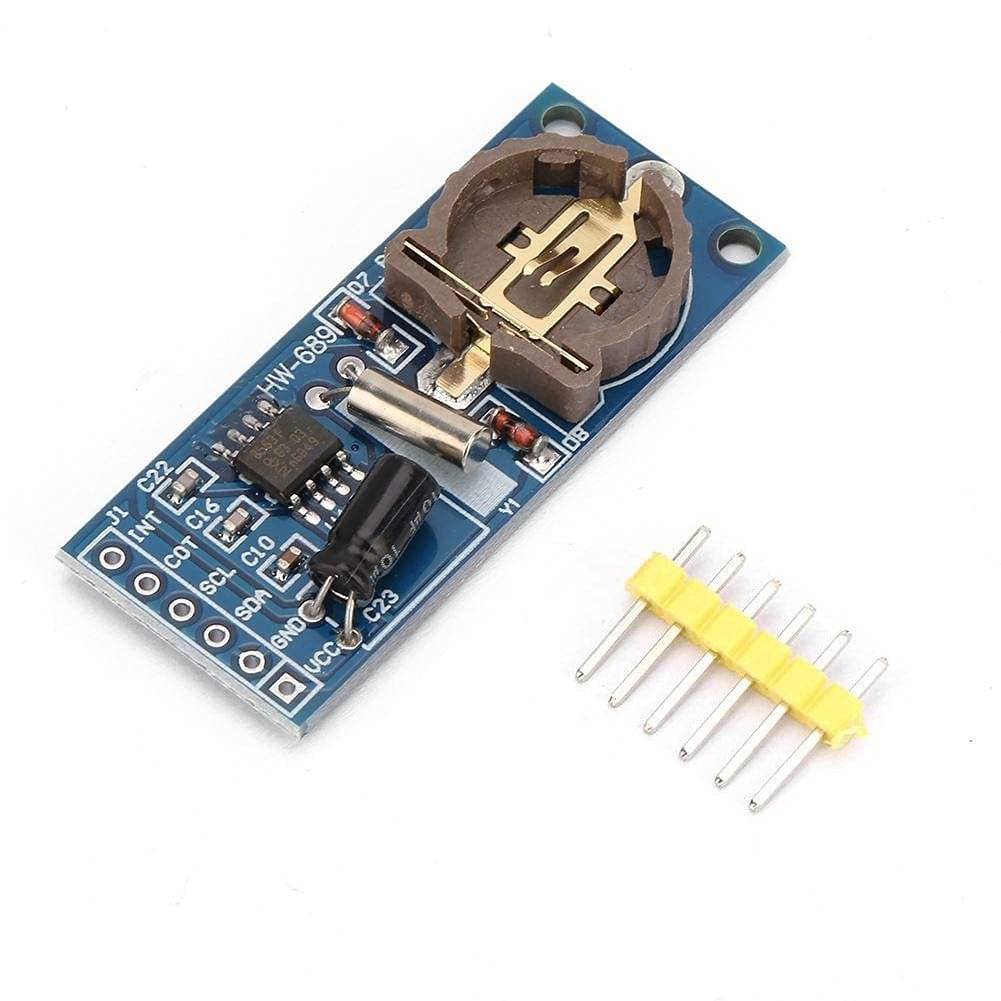

Package Included:

  • 1x PCF8563 RTC Board
  • 1x Pin header
