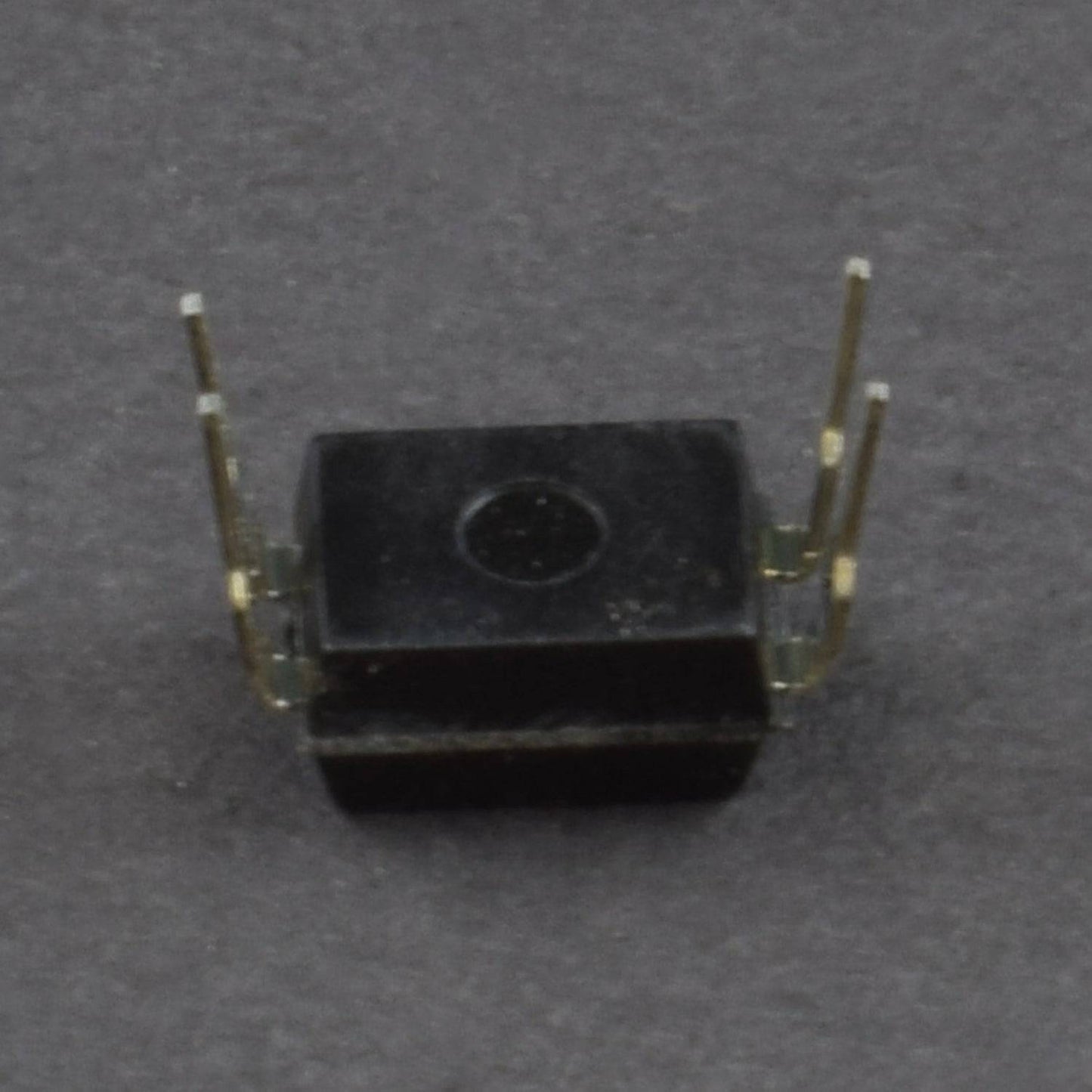

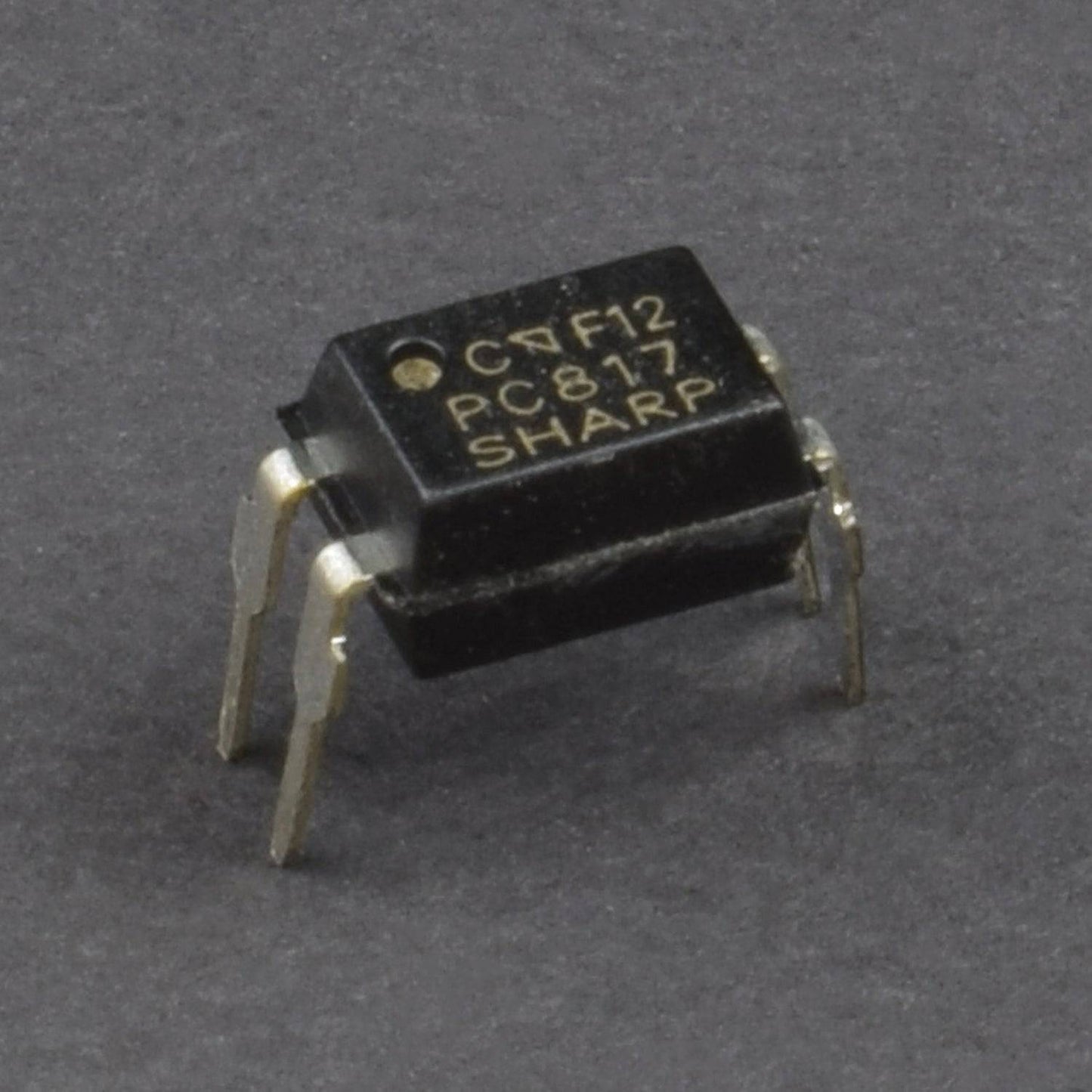

PC817 HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY DIP -AC081

PC817 HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY DIP -AC081

SKU:AC081

In stock

Regular price Rs. 8.00
Regular price Sale price Rs. 8.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Input Type: DC
  • Output Type: Transistor
  • Voltage - Output (Max): 80V
  • Current - Output / Channel: 50mA
  • Voltage - Forward (Vf) (Typ): 1.2V

Description:

This is PC817X Series contains an IRED optically coupled to a phototransistor. It is packaged in a 4pin DIP, available in wide-lead spacing option and SMT gullwing lead-form option. Input-output isolation voltage(rms) is 5.0kV. Collector-emitter voltage is 80V(*) and CTR is 50% to 600% at input current of 5mA.

Specification:

  • Input Type: DC
  • Output Type: Transistor
  • Voltage - Output (Max): 80V
  • Current - Output / Channel: 50mA
  • Voltage - Forward (Vf) (Typ): 1.2V
  • Current - DC Forward (If) (Max): 50mA
  • Vce Saturation (Max): 200mV
  • Operating Temperature: -40°C ~ 100°C
  • Mounting Type: Through Hole
  • Part Status: Active
  • Number of Channels: 1
  • Voltage - Isolation: 5000Vrms
  • Current Transfer Ratio (Min): 200% @ 5mA
  • Current Transfer Ratio (Max): 400% @ 5mA
  • Rise / Fall Time (Typ): 4µs, 3µs

Features:

  • 4pin DIP package
  • Double transfer mold package (Ideal for Flow Soldering)
  • High collector-emitter voltage (VCEO:80V(*)
  • Current transfer ratio (CTR : MIN. 50% at IF=5 mA, VCE=5V)
  • Several CTR ranks available
  • High isolation voltage

Package Included:

1 x PC817 HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY DIP
