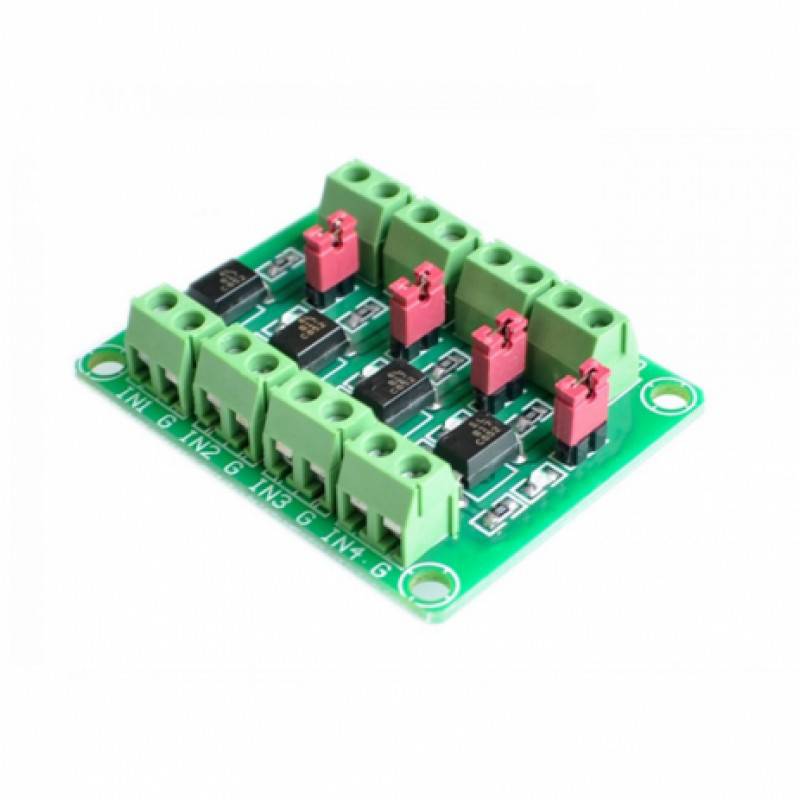

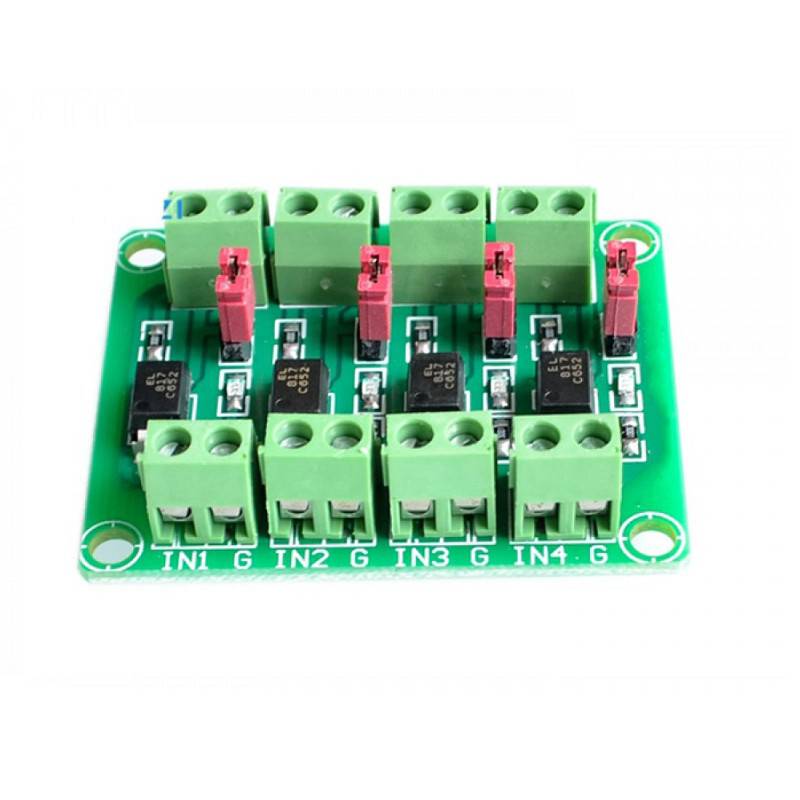

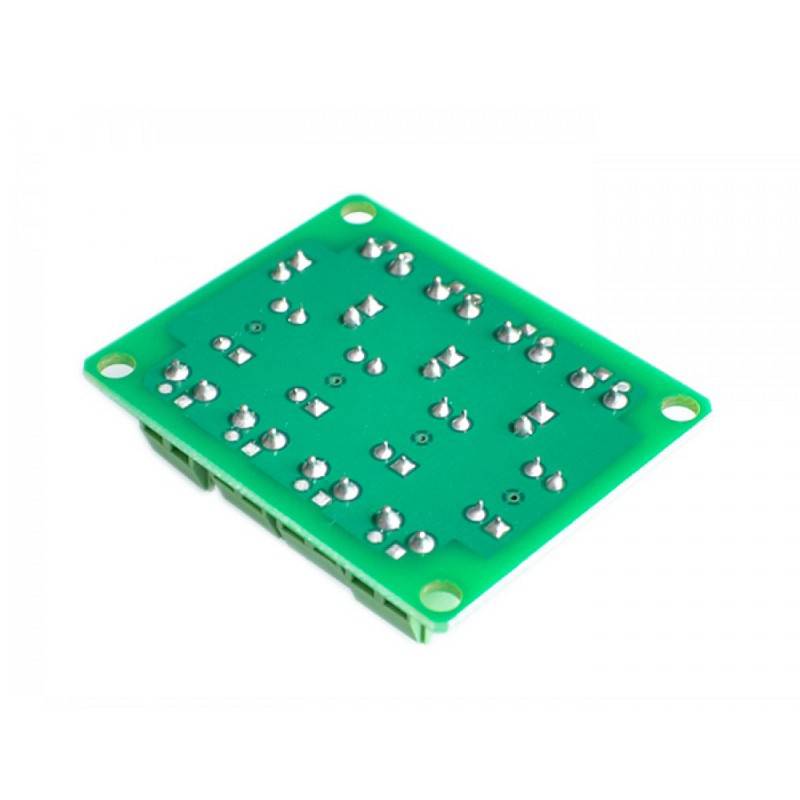

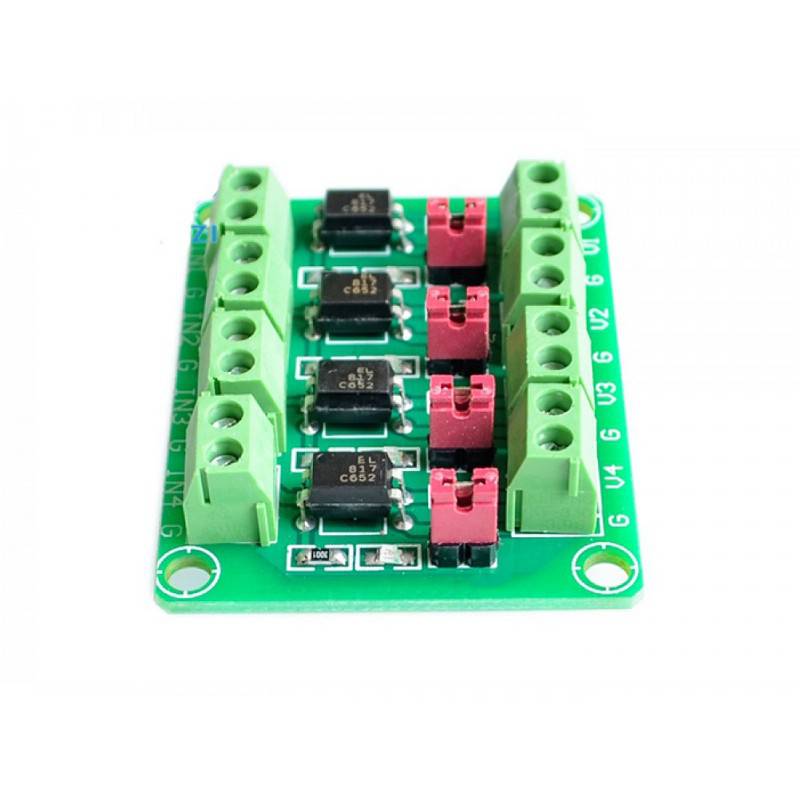

PC817 4 Channel Optocoupler Isolation Module - RS3553

PC817 4 Channel Optocoupler Isolation Module - RS3553

SKU:RS3553

Low stock: 9 left

Regular price Rs. 115.00
Regular price Sale price Rs. 115.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • I/O Isolation for MCUs (Micro Controller Units)
  • Noise Suppression in Switching Circuits
  • Signal Transmission Between Circuits of Different Potentials and Impedances

Description :

This is a PC817 4 Channel Optocoupler Isolation Board. Onboard with 4-Channel 817 are independent, so they can achieve different voltage control at the same time. Using 4-way 817 optocoupler, to achieve the control signal and the control signal isolation, you can directly use the microcontroller or other devices IO port to achieve voltage isolation control, you can achieve a small voltage control, the control side can be an external transistor MOS tube or different voltage levels Of the device interface.

Application:

  • I/O Isolation for MCUs (Micro Controller Units)
  • Noise Suppression in Switching Circuits
  • Signal Transmission Between Circuits of Different Potentials and Impedances

Features:

  • Driving Port Signal Voltage: 3.6-24V
  • Output Port Voltage Port: 3.6-30V
  • Output Can Be Switched From Pull-Up or Pull-Down With Jumpers.

Specification :

  • No. of Channels : 4
  • Input Voltage (V) : 3.6-24DC
  • Output Voltage (VDC) : 3.6-30

Package Included:

1 x PC817 4 CH Optocoupler Isolation Module
