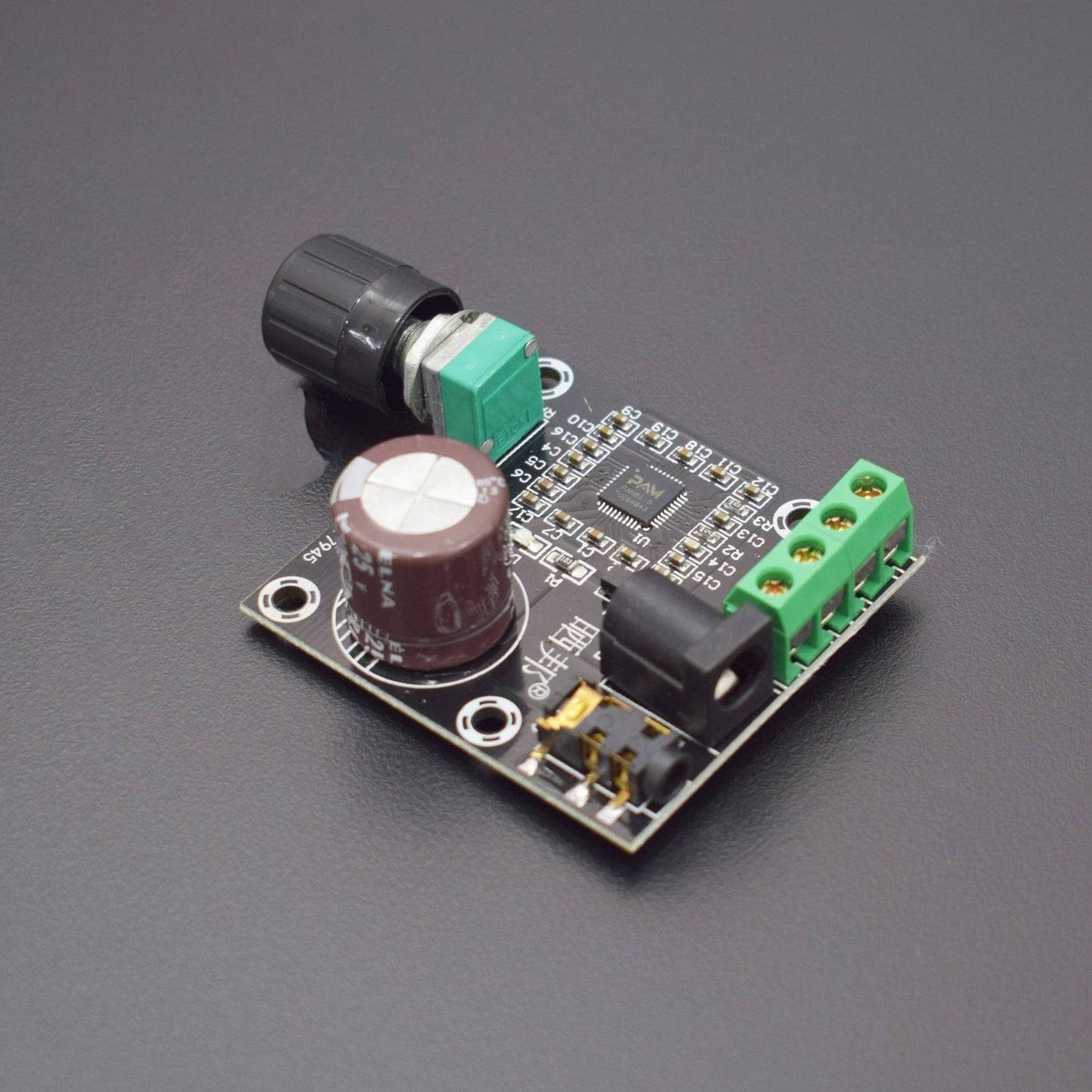

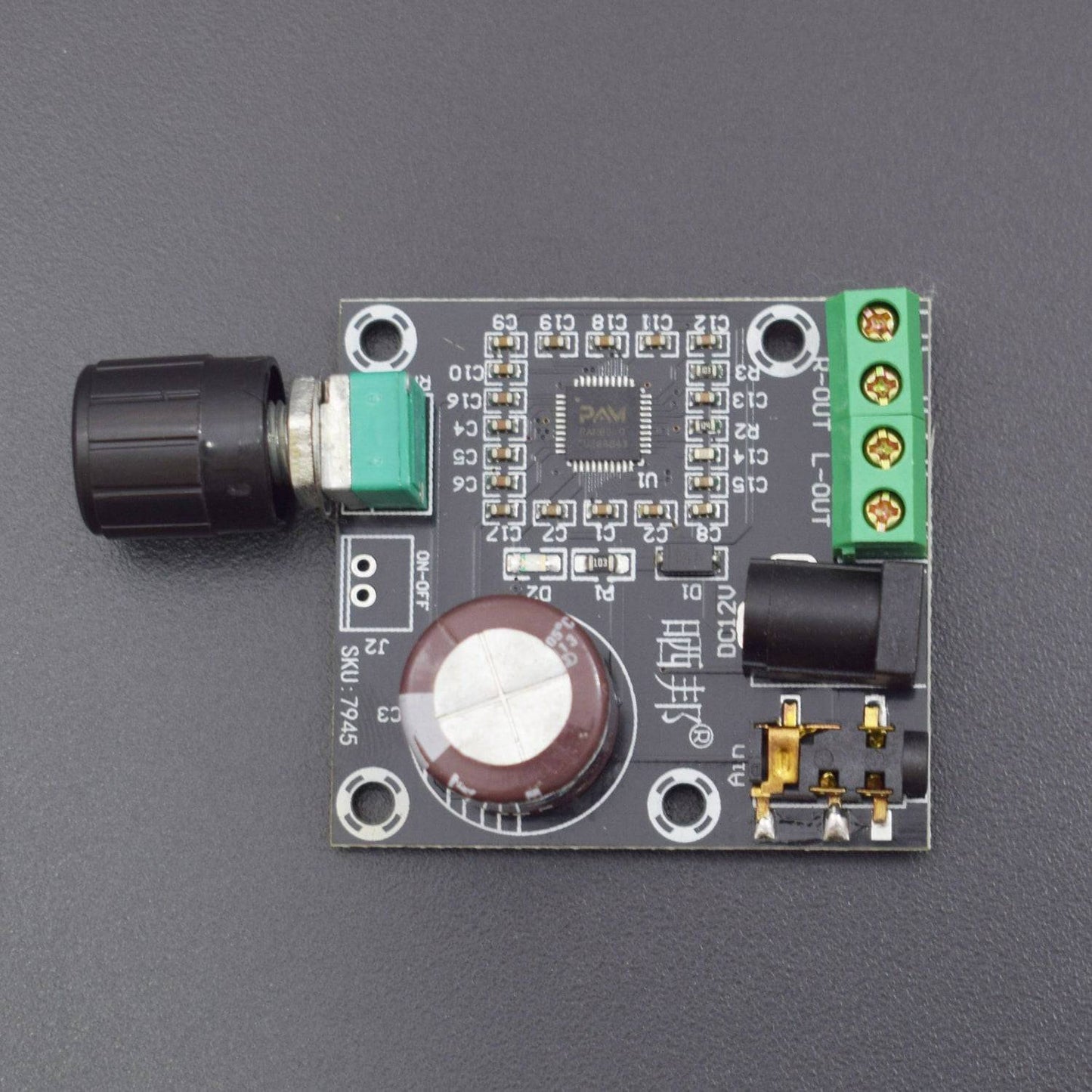

PAM8610 Dual Channel DC 12V 15W x 2 Class D HD Digital Audio Stereo High Power Amplifier Board - RS1204

PAM8610 Dual Channel DC 12V 15W x 2 Class D HD Digital Audio Stereo High Power Amplifier Board - RS1204

SKU:RS1204

86 in stock

Regular price Rs. 450.00
Regular price Sale price Rs. 450.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Model: XH ~ M120
  • Work: Class D (PWM modulation)
  • Chip: PAM8610
  • Scope of Supply: DC6 ~ 15V
  • Keep Pushing Voltage: DC12V

Description:

PAM8610 With Dimmer 12V dual channel digital amplifier board is a new and efficient digital power amplifier. The PAM8610 amplifier board is a 15W and class-D audio amplifier. This amplifier offers high-quality sound reproduction. This amplifier board has a new filterless architecture and this architecture allows the device to drive the speaker directly. There is no requiring no low-pass output filters. This 15W amplifier that’s why save the system cost . If we used the same numbers of external components then the efficiency of the PAM8610 is much better than class-AB. This device is ideal for portable applications. As pure class D amplifier board power requirements is relatively high, the exclusive use of the power amplifier board enthusiast 2200UF capacitor filter, the elimination of exchange voice, without interference, GOOD sound quality.

Specification:

  • Model: XH ~ M120
  • Work: Class D (PWM modulation)
  • Chip: PAM8610
  • Scope of Supply: DC6 ~ 15V
  • Keep Pushing Voltage: DC12V
  • Output Power: 15W x 2
  • Channel Type: Dual Channel
  • SNR: 90dB
  • Frequency Response: 20Hz-15KHZ
  • Quiescent Current: 20MA(DC 12V)
  • Recommend Speaker: 10-100W
  • Input Impedance: 20M
  • Harmonic Distortion: <0.1 percentage

Features:

  • Original PAM8610 chip as amplifier chip, power can reach 10W + 10W.
  • Using automatic placement machine production, the board is more beautiful.
  • Strip 5.5X2.5 standard power outlet, power input is very convenient. (Positive outside and negative inside)

Package Included:

1 x PAM8610 Dual Channel DC 12V 15W x 2 Class D HD Digital Audio Stereo High Power Amplifier Board
