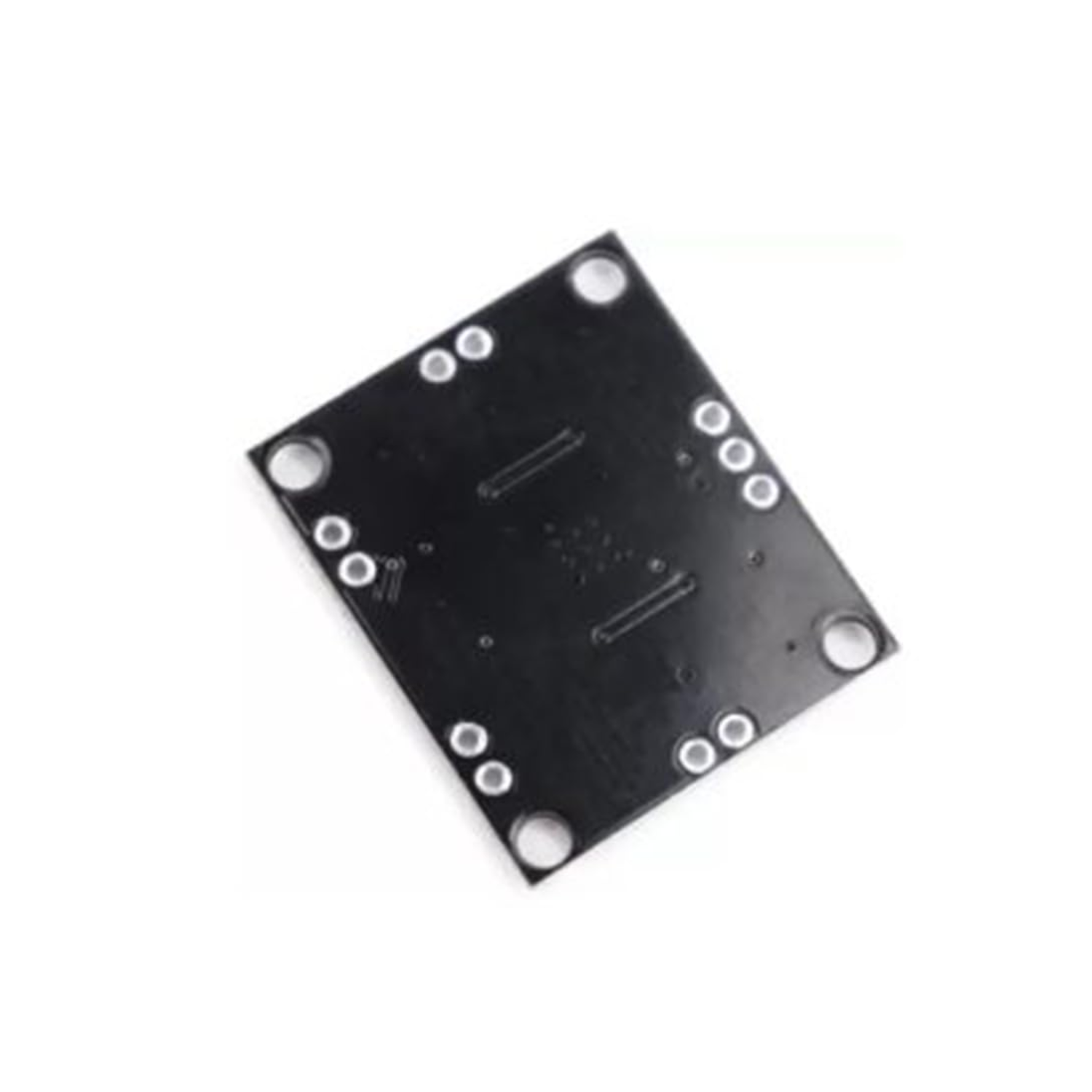

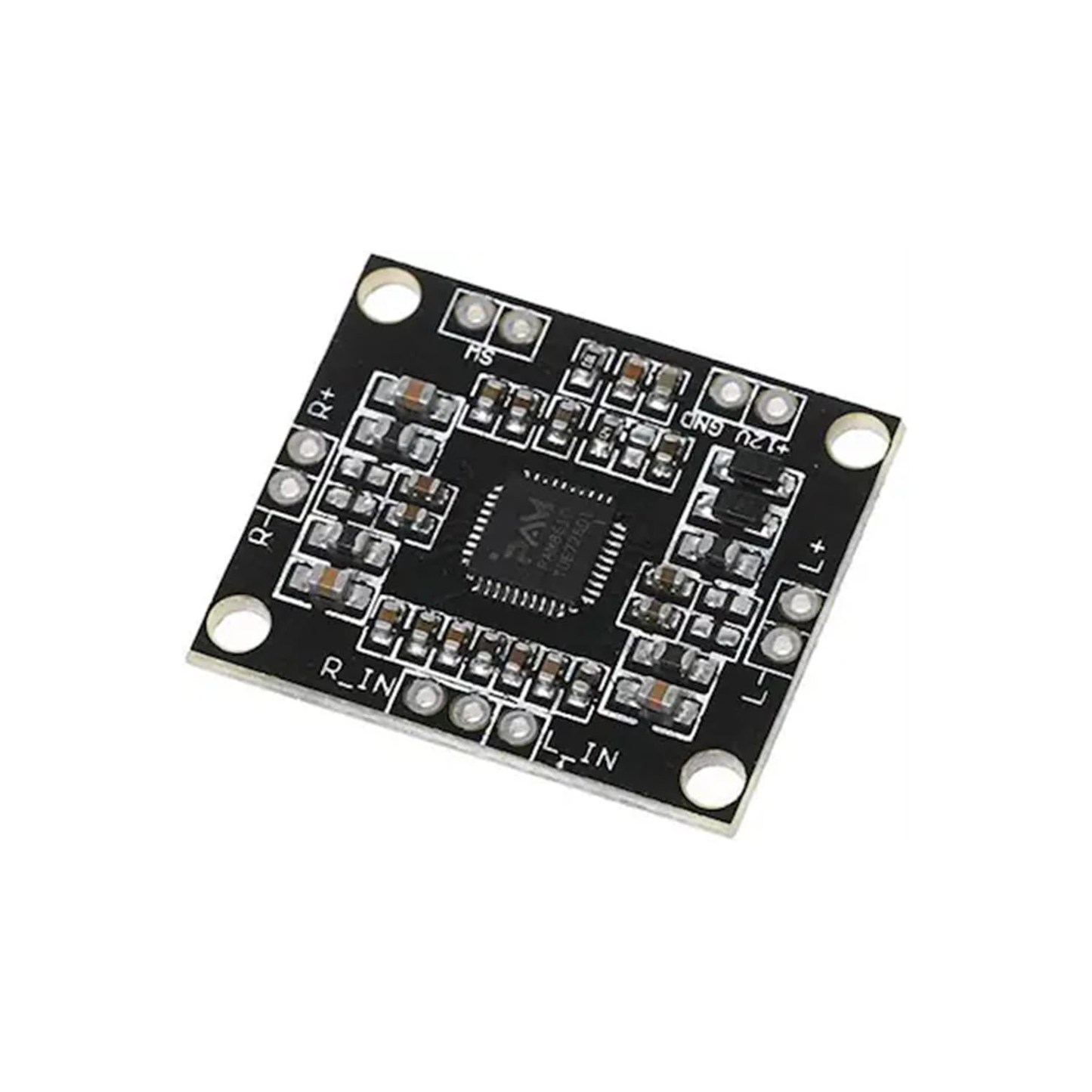

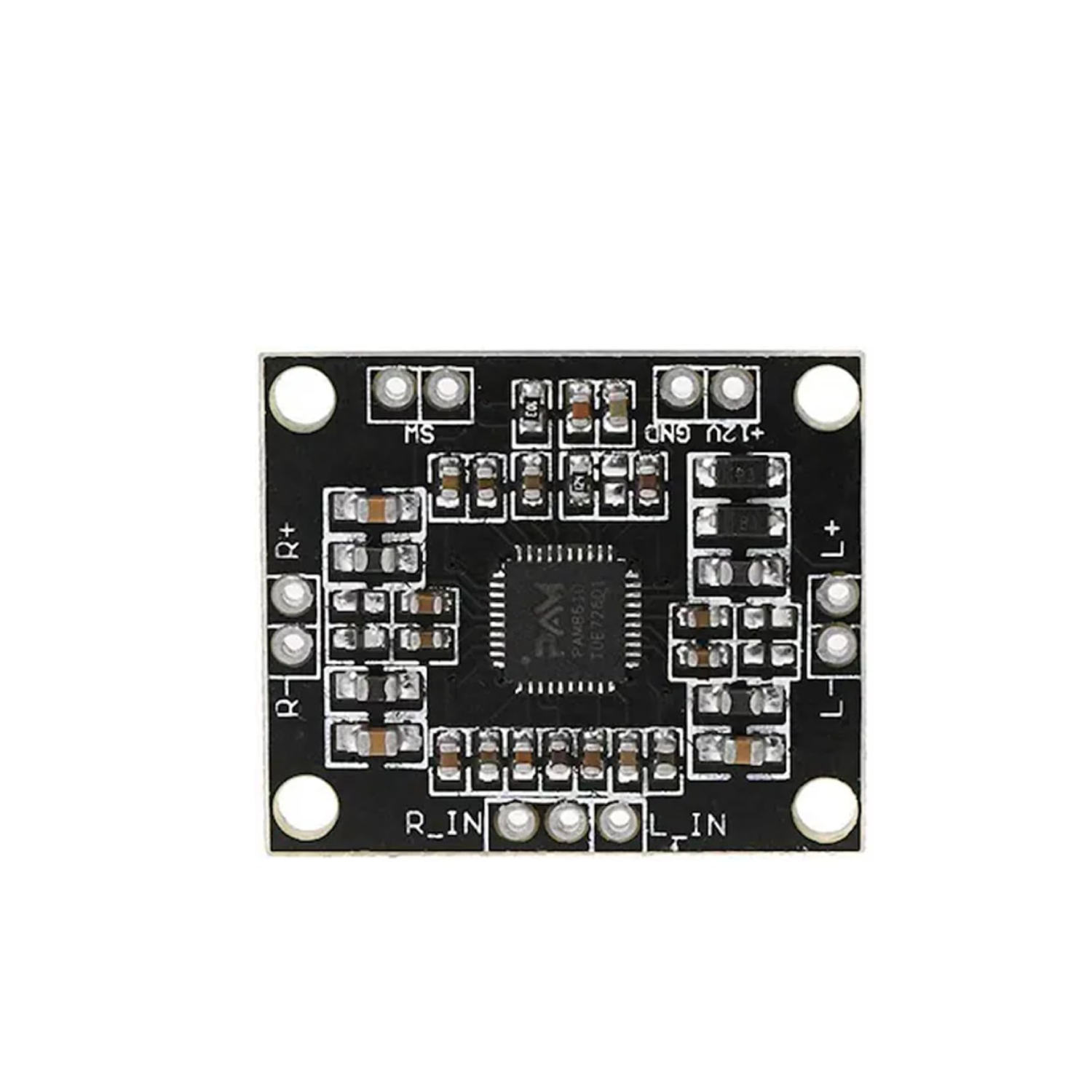

PAM8610 Amplifier Module Digital Stereo Class D Amplifier Module 2x15W Audio Board With Low Distortion & High Efficiency - RS5499

PAM8610 Amplifier Module Digital Stereo Class D Amplifier Module 2x15W Audio Board With Low Distortion & High Efficiency - RS5499

RS5499

25 in stock

Rs. 94.00
Rs. 94.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The PAM8610 is a powerful 2x15W stereo Class-D audio amplifier designed for exceptional sound. It features DC volume control with a wide range, low distortion (0.1% THD+N), and excellent noise rejection (PSRR), ensuring high-quality audio. Operating efficiently from a 7V to 15V supply, it requires minimal external components, saving space and cost. It comes in a compact 40-pin QFN 6x6 mm package.

Specifications:

  • Operating Voltage: 7 to 15V
  • Model No.: PAM 8610
  • Driver Working Mode: Class D (PWM modulation type)
  • Power Rating: 15W

Features:

  • SW Short for Power Off
  • Class-D (PWM) Operation

How to use:

  • The power supply voltage limit is 16.5V; do not use more than this voltage.
  • The power supply is recommended for a 12V, 3A power supply filter.
  • 4-8 inch stereo speakers recommended.
  • Do not short-circuit the audio output to each other or ground.
  • Carefully check before electricity, ensure the wiring is correct before electricity.

Package Included:

1 x PAM8610 Digital Stereo Class-D Amplifier Module 2x15W Output
