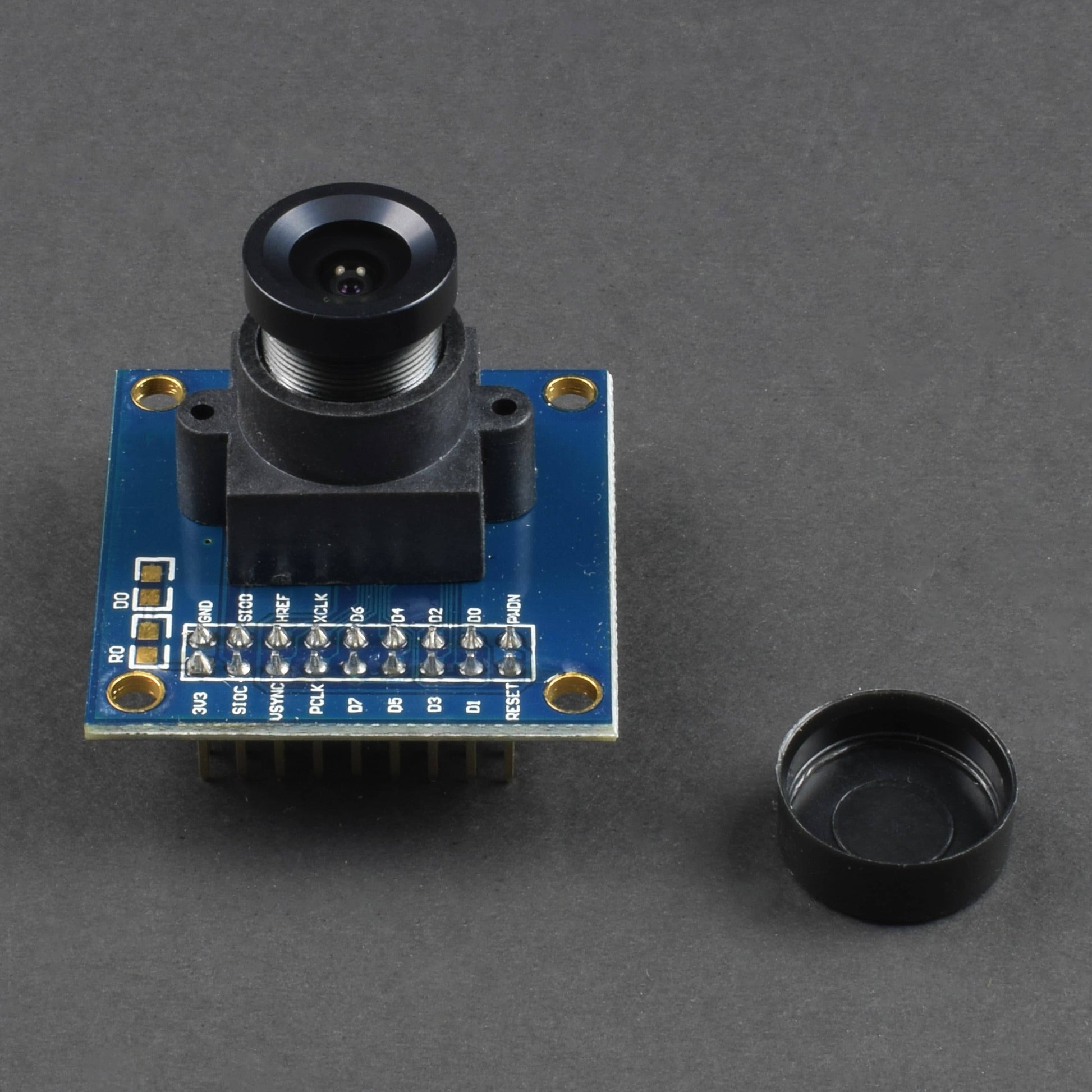

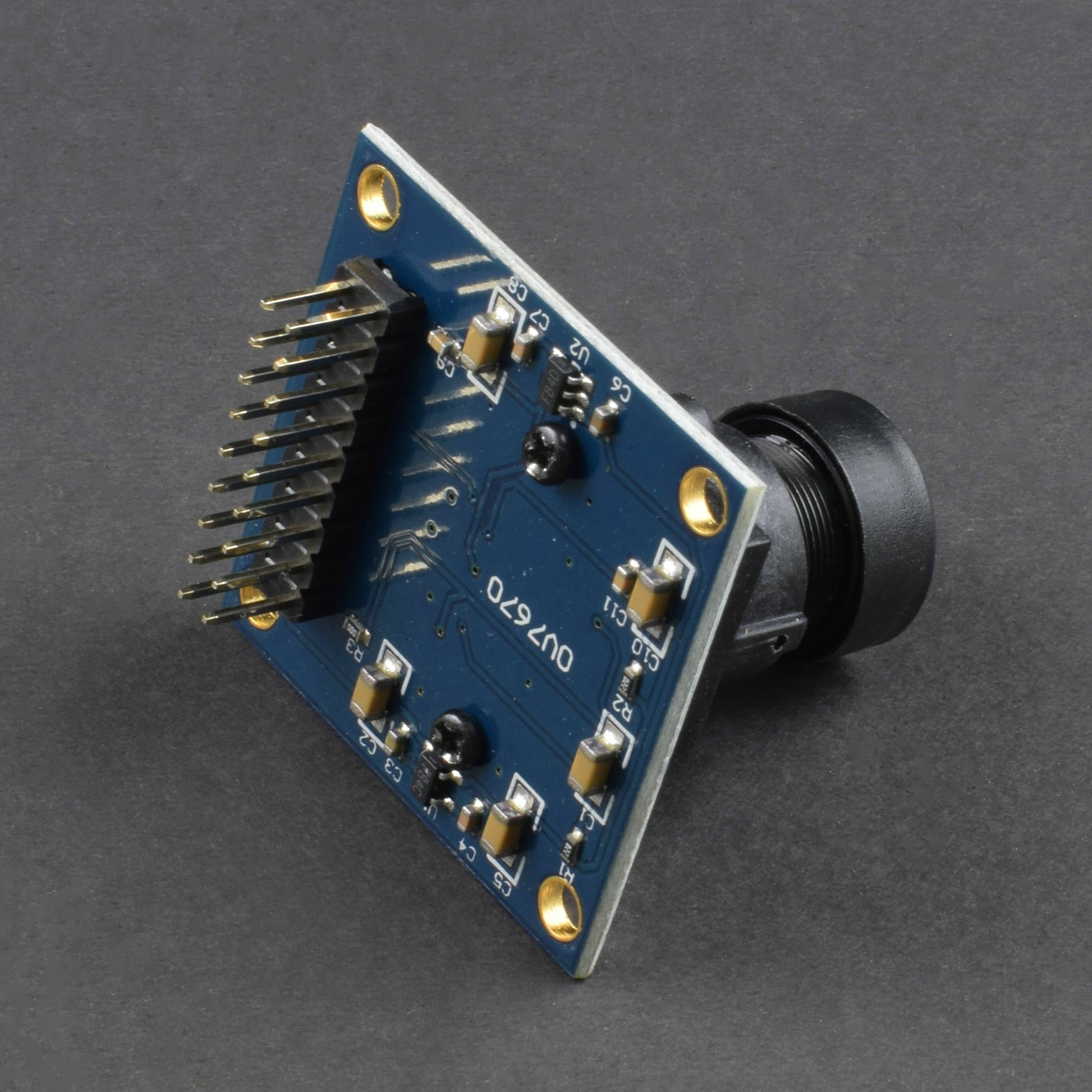

OV7670 VGA Camera Module Lens Cmos 640x480 Sccb W/ I2C Interface Auto Exposure Control -OV7670 Camera Module For Arduino - WR002

OV7670 VGA Camera Module Lens Cmos 640x480 Sccb W/ I2C Interface Auto Exposure Control -OV7670 Camera Module For Arduino - WR002

SKU:WR002

45 in stock

Regular price Rs. 90.00
Regular price Sale price Rs. 90.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Model: OV7670 640X480 VGA CMOS CAMERA
  • Operating Power: 60mW/15fpsVGAYUV
  • Sleeping Mode: <20 uA
  • Lens Size: 1/6″

Description:

OV7670 640X480 VGA CMOS Module is a low-cost image sensor module, DSP that can operate at a maximum of 30 fps and 640 x 480 (“VGA”) resolutions, equivalent to 0.3 Megapixels. The captured image can be pre-processed by the DSP before sending it out. This pre-processing can be configured via the Serial Camera Control Bus (SCCB). OmniVision OV7670 CMOS VGA (640×480) CAMERA-CHIP Sensor with OmniPixel technology 3.3V DC Input Voltage. working Temp. 0-50 Degree Celsius All Glass Lenses, Lens(including seat) is Magnesium Alloy material. The focal length of the lens is 3.6 mm 650 nm Bands Black FR-4 PCB, Quality Heavy Gold Plate, effectively prevents the PCB from light leak issues and prevents shadow in images 2×10 0.1″ output connector for convenient insertion into Prototype Board, Bread Board, MCU Onboard Connectors This Camera module is very powerful and easy-to-interface with 8/16/32 bit Micro-controller. OV7670 640X480 VGA CMOS CAMERA IMAGE SENSOR MODULE will provide vision to your small embedded systems and will be useful for plenty of applications in Robotics.

Specification:

  • Model: OV7670 640X480 VGA CMOS CAMERA
  • Operating Power: 60mW/15fpsVGAYUV
  • Sleeping Mode: <20 uA
  • Lens Size: 1/6″
  • Max. Frame Rate: 30fps VGA
  • Sensitivity: 1.3V / (Lux-sec)
  • Dynamic Range: 52 dB
  • Electronic Exposure: 1 to 510 row
  • Pixel Coverage: 3.6um x 3.6um
  • Duck Current: 12 mV/s at 6’C

Features:

  • Support VGA, CIF and from CIF to 40 x 30 format;
  • Vario Pixel method for sub-sampling; Auto Image Control: AEC, AGC, AWB, ABF, ABLC;
  • Image Quality Control: Color saturation, hue, gamma, sharpness, and anti-blooming;
  • ISP includes noise reduction and defect correction; Support image scaling; Lens shading correction;
  • Flicker 50/60Hz auto-detection;
  • Colour saturation level auto adjust;
  • Edge enhancement level auto adjust;
  • De-noise level auto-adjust
  • High sensitivity for low-light applications
  • Low voltage suitable for embedded applications
  • Standard scab interface, compatible with i2c interface

Package Included:

1 x OV7670 VGA Camera Module Lens Cmos 640x480 Sccb W/ I2C Interface Auto Exposure Control -OV7670 Camera Module For Arduino

How To Use It:

https://rees52.com/diy-arduino/971-connect-cmos-ov7670-camera-with-arduino-uno-wr002?search_query=ov7670&results=1
