OV7670 CMOS Camera Module VGA 640x480 Image Sensor For Arduino - WR002
OV7670 CMOS Camera Module VGA 640x480 Image Sensor For Arduino - WR002
SKU:WR002
202 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

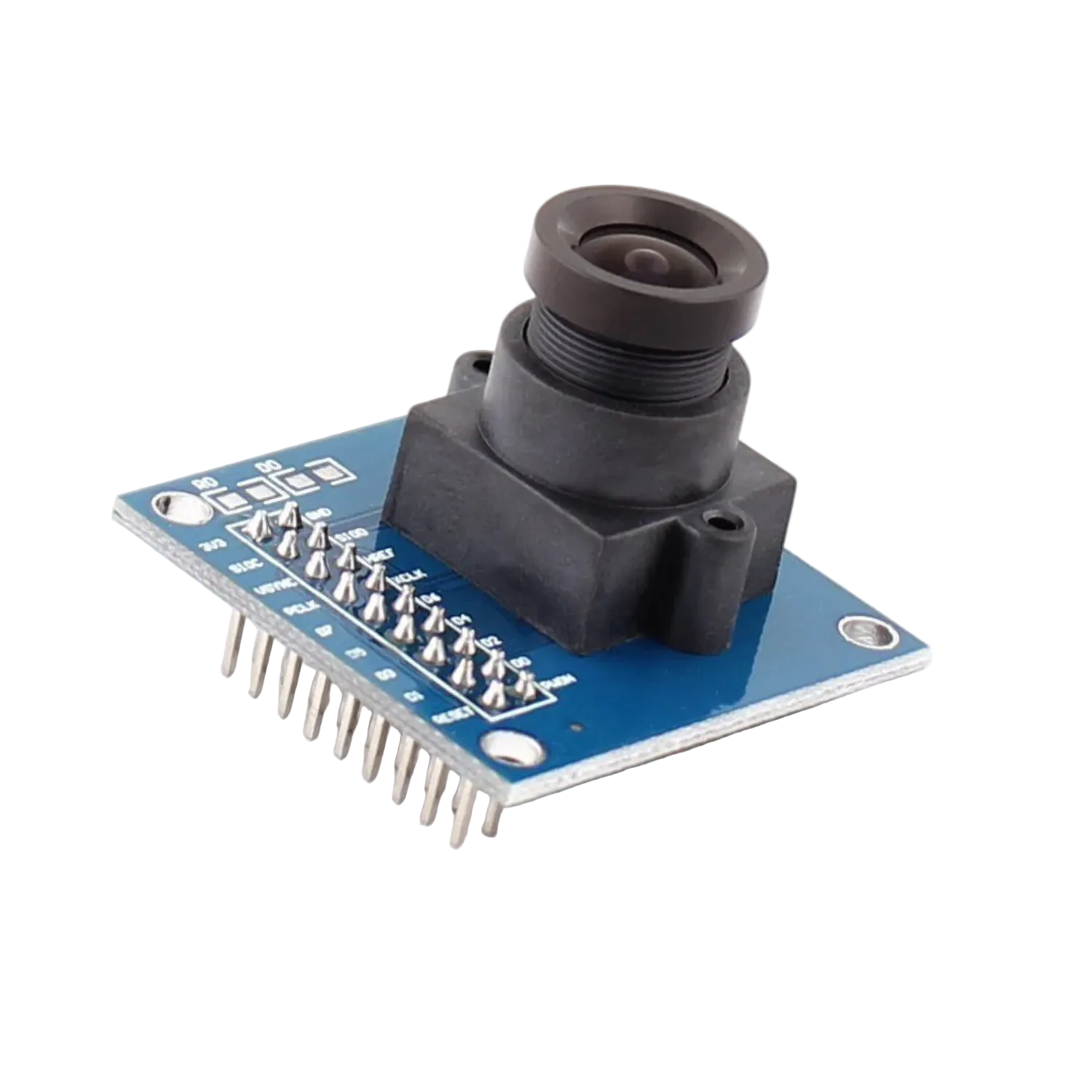

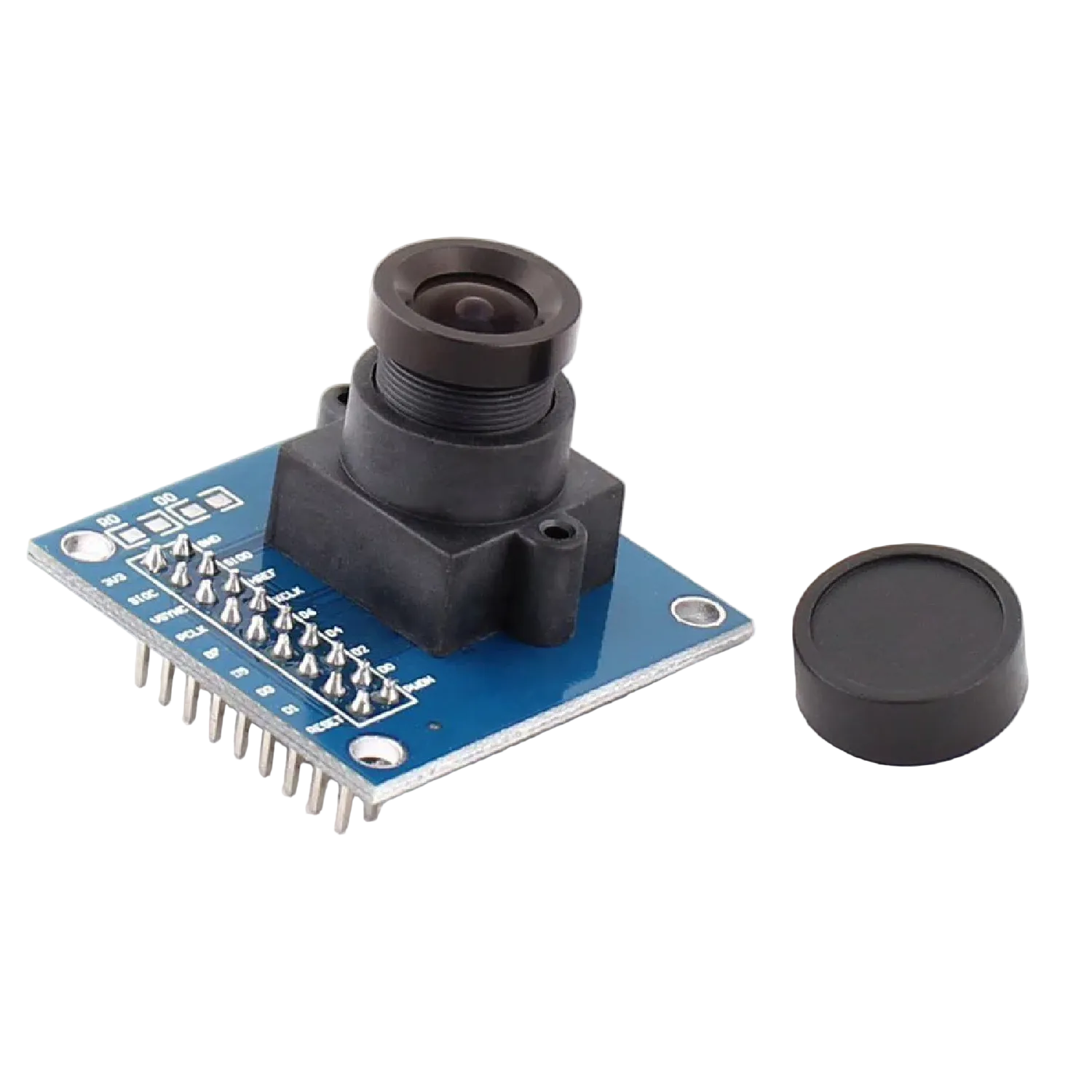

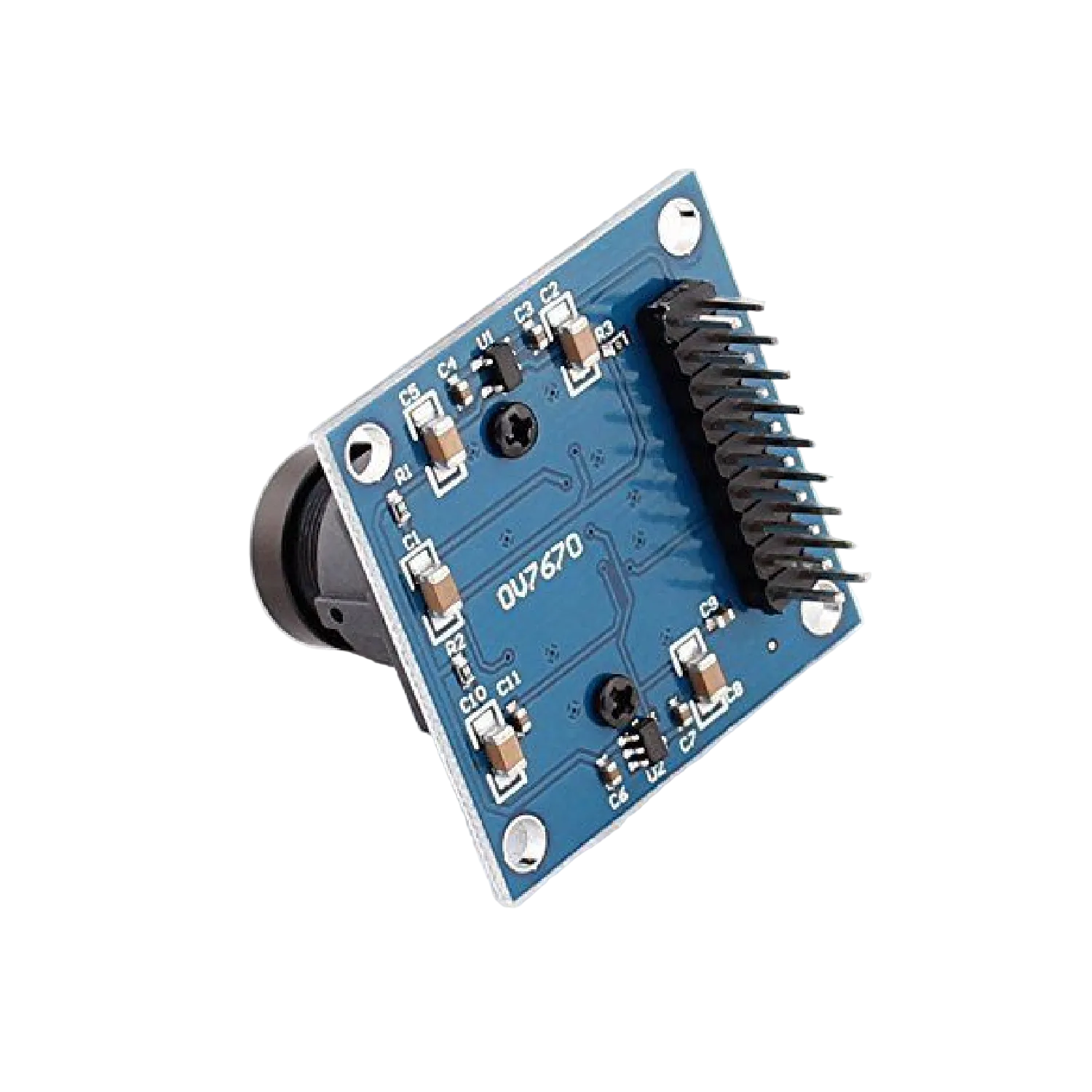

The OV7670 CMOS Camera Module is a compact and cost-effective VGA image sensor designed for embedded electronics, robotics, and DIY vision-based projects. It provides 640×480 (VGA) resolution image capture with low power consumption, making it ideal for real-time image processing applications using microcontrollers like Arduino, ESP32, and other embedded systems.
This camera module uses the OV7670 image sensor with SCCB interface, allowing easy integration with various development boards. It is widely used in robotics vision systems, surveillance prototypes, object detection projects, and STEM learning kits where basic image capturing and processing are required.
With its small form factor and reliable performance, the OV7670 module is perfect for beginners and developers exploring computer vision concepts and embedded camera applications.
Specifications:
- Item Type: Camera Module
- Model: OV7670 640X480 VGA CMOS CAMERA
- Operating Power: 60 mW
- Sleeping Mode: 20 uA
- Lens Size: 1/6″
- Max. Frame Rate: 30fps VGA
- Sensitivity: 1.3V / (Lux-sec)
Features:
- VGA resolution image sensor (640 × 480)
- Low-power CMOS image processing technology
- Built-in image processing functions (color correction, gamma, etc.)
- Supports YUV, RGB, and RAW output formats
- Adjustable frame rate for flexible applications
- Integrated FIFO buffer for easy data handling
- I2C interface for configuration control
- Compact and lightweight camera module design
- Suitable for Arduino, ESP32, and embedded vision projects
- Ideal for robotics, surveillance, and image processing applications
Package Included:
1 x OV7670 CMOS CAMERA
