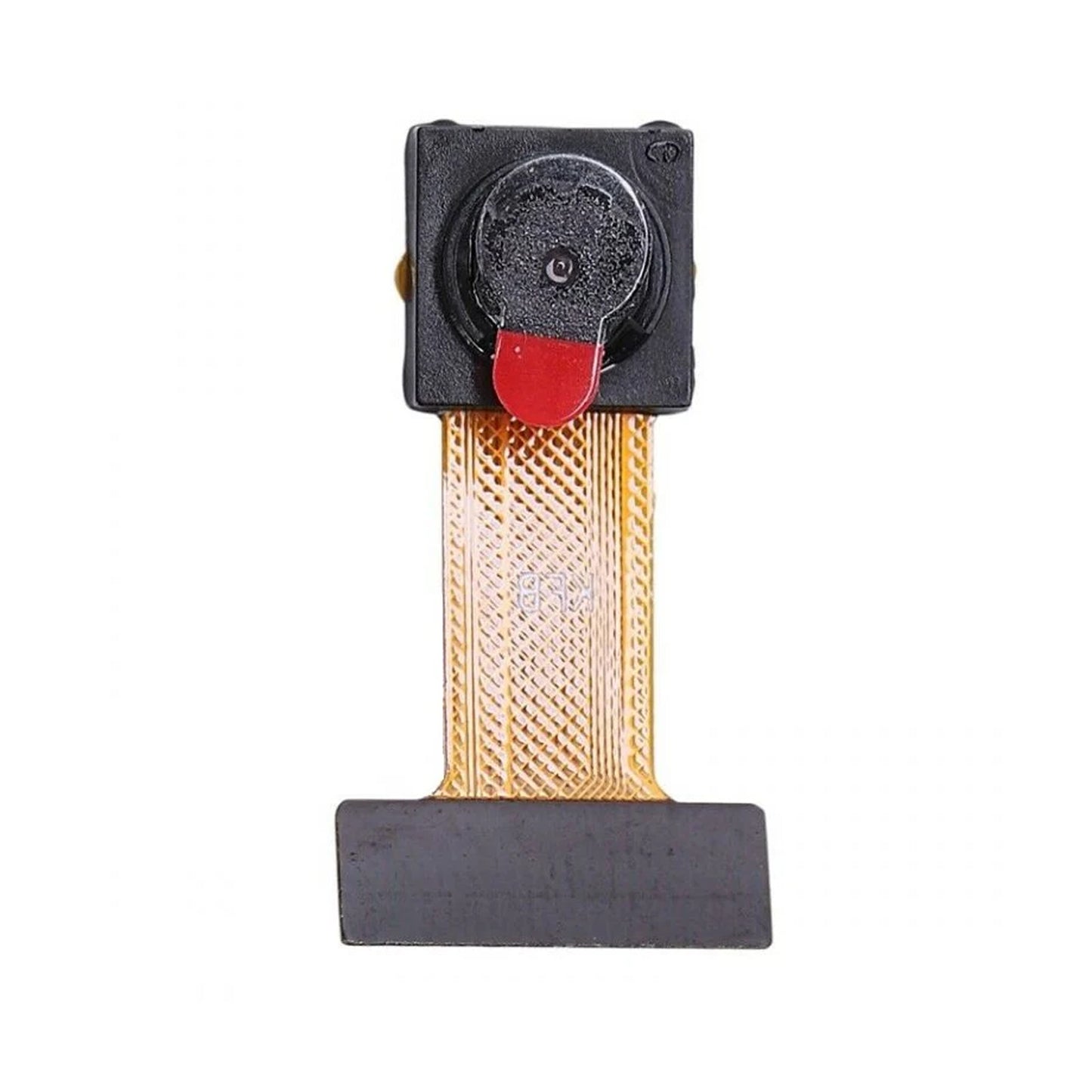

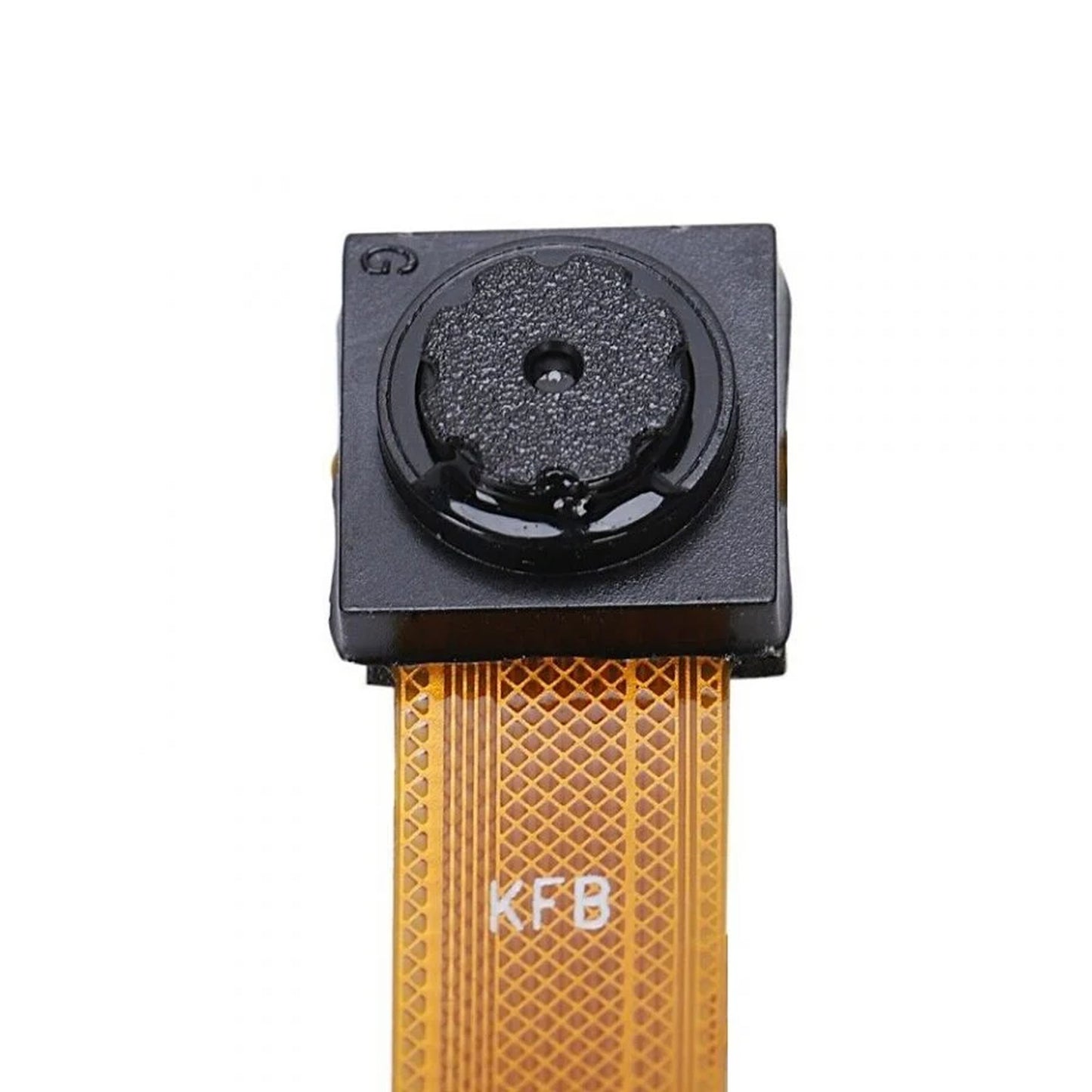

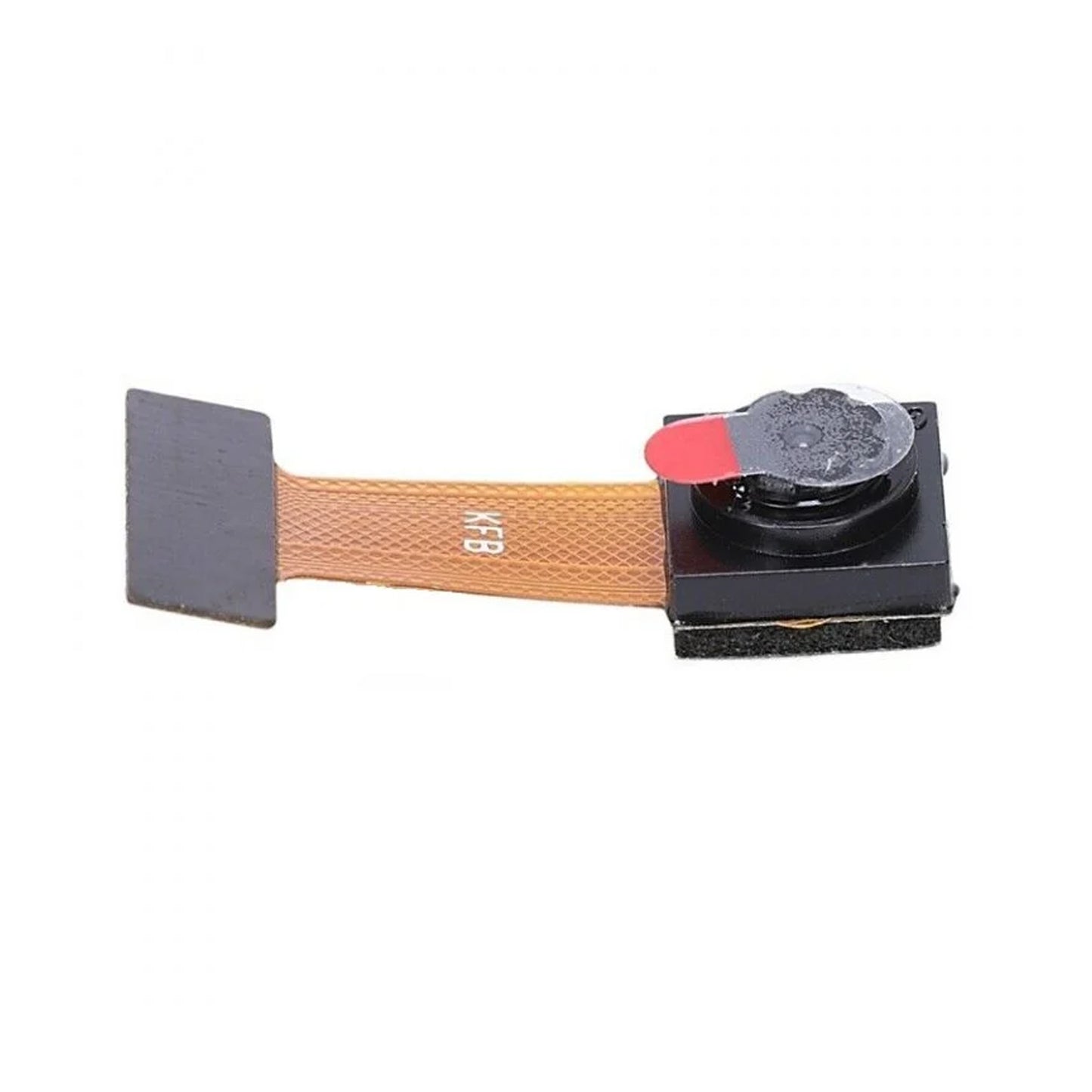

OV7670 Camera Module 640 x 480 CMOS Camera Module OV7670 with 24 pin Socket 2.5V-3.0V 0.3 Mega Pixel Lens - RS4816

OV7670 Camera Module 640 x 480 CMOS Camera Module OV7670 with 24 pin Socket 2.5V-3.0V 0.3 Mega Pixel Lens - RS4816

SKU:RS4816

Low stock: 3 left

Regular price Rs. 145.00
Regular price Sale price Rs. 145.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

The 0.3MP OV7670 Camera Module with High-Quality SCCB Connector is a low voltage CMOS image sensor; that provides the full functionality of a single-chip VGA(Video Graphics Array) camera and image processor in a small footprint package. The OV7670/OV7171 provides full-frame, sub-sampled or windowed 8-bit images in a wide range of formats; controlled through the Serial Camera Control Bus (SCCB) interface.

This 0.3MP OV7670 Camera Module has an image array capable of operating at up to 30 frames per second (fps) in VGA; with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance; colour saturation, hue control and more, are also programmable through the SCCB interface.

In addition, OV7670 CAMERA CHIPs use proprietary sensor technology to improve image quality by reducing; or eliminating common lighting/electrical sources of image contamination; such as fixed pattern noise (FPN), smearing, blooming, etc., to produce a clean, fully stable colour image.

Specifications:

  • Operating Voltage: 2.5 – 3.0V
  • Pixel Resolution: 0.3MP
  • Photosensitive Array: 640 x 480
  • Optical Size: 1.6inch
  • Angel of View: 67 Degrees
  • Maximum Frame Rate: 30fps VGA
  • Sensitivity: 1.3V/(Lux-sec)
  • Dormancy: Less than 20A
  • Power Consumption: 60mW/15fpsVGA YUV
  • Temperature Operation Range: -30 ° C ~ 70 ° C
  • Pixel Area: 3.6 x 3.6 μm
  • Signal-to-noise Ratio (SNR): 46 dB
  • Dynamic Range: 52 dB

Features:

  • High sensitivity for low-light operation.
  • Low operating voltage for embedded portable apps.
  • The standard SCCB interface is compatible with the I2C interface.
  • Supports VGA, CIF, and resolutions lower than CIF for RGB (GRB 4:2:2, RGB565/555), YUV (4:2:2) and YCbCr (4:2:2) formats.
  • VarioPixel® method for sub-sampling.
  • Automatic image control functions include Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC).
  • Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming.
  • ISP includes noise reduction and defect correction.
  • Supports LED and flash strobe mode.
  • Sleep Power consumption: <20μA.
  • Stable operation: 0 ° C to 50 ° C.
  • Supports scaling.
  • Lens shading correction.
  • Flicker (50/60 Hz) auto-detection.
  • Saturation level auto adjust (UV adjust).
  • Edge enhancement level auto-adjust.
  • De-noise level auto-adjust.
  • Browse mode line by line.
  • Electronic exposure 1 line to 510 lines.
  • Output format: (8-bit) YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data.

Package Included:

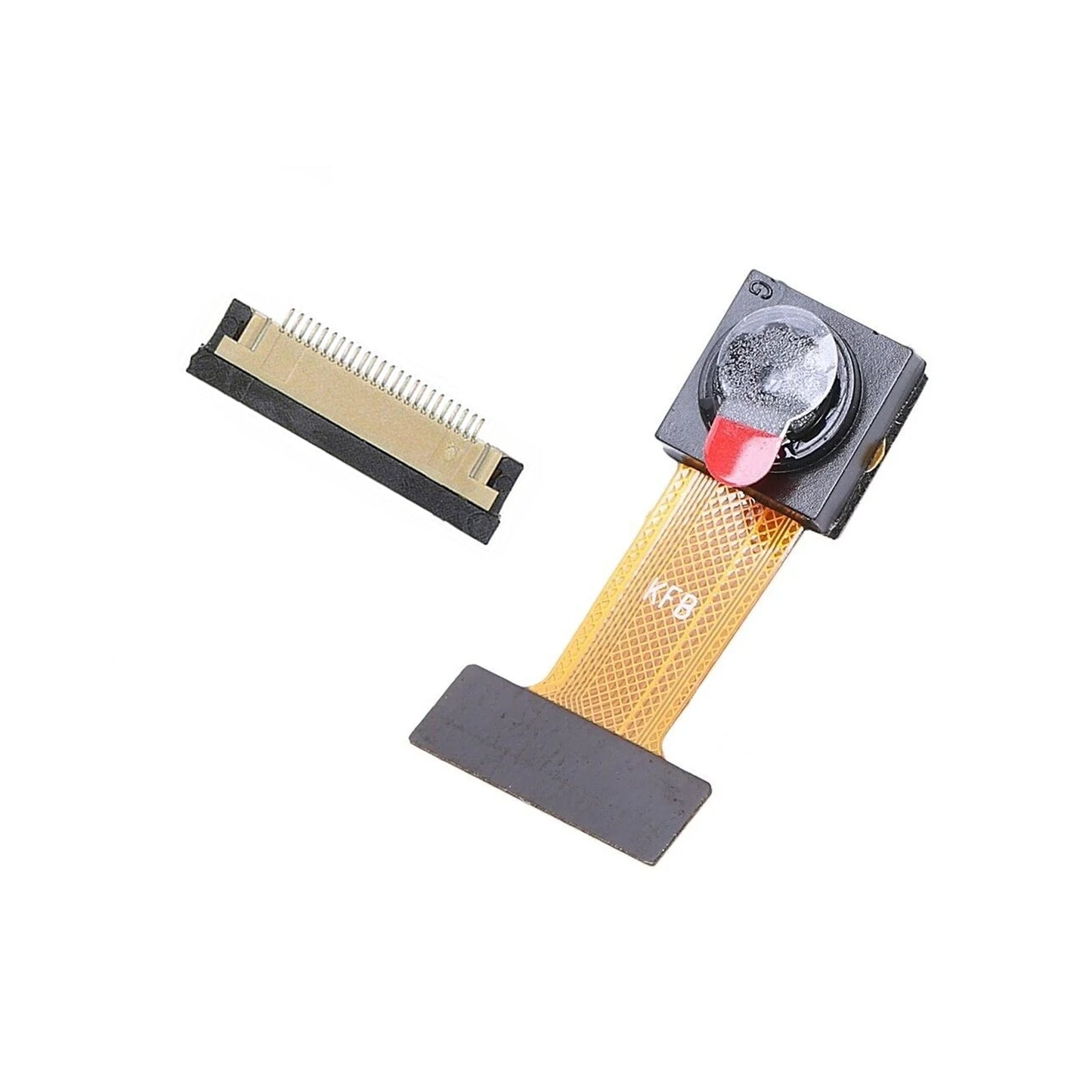

1 x OV7670 Camera Module 640 x 480 CMOS Camera Module OV7670 with 24 pin Socket 2.5V-3.0V 0.3 Mega Pixel Lens
