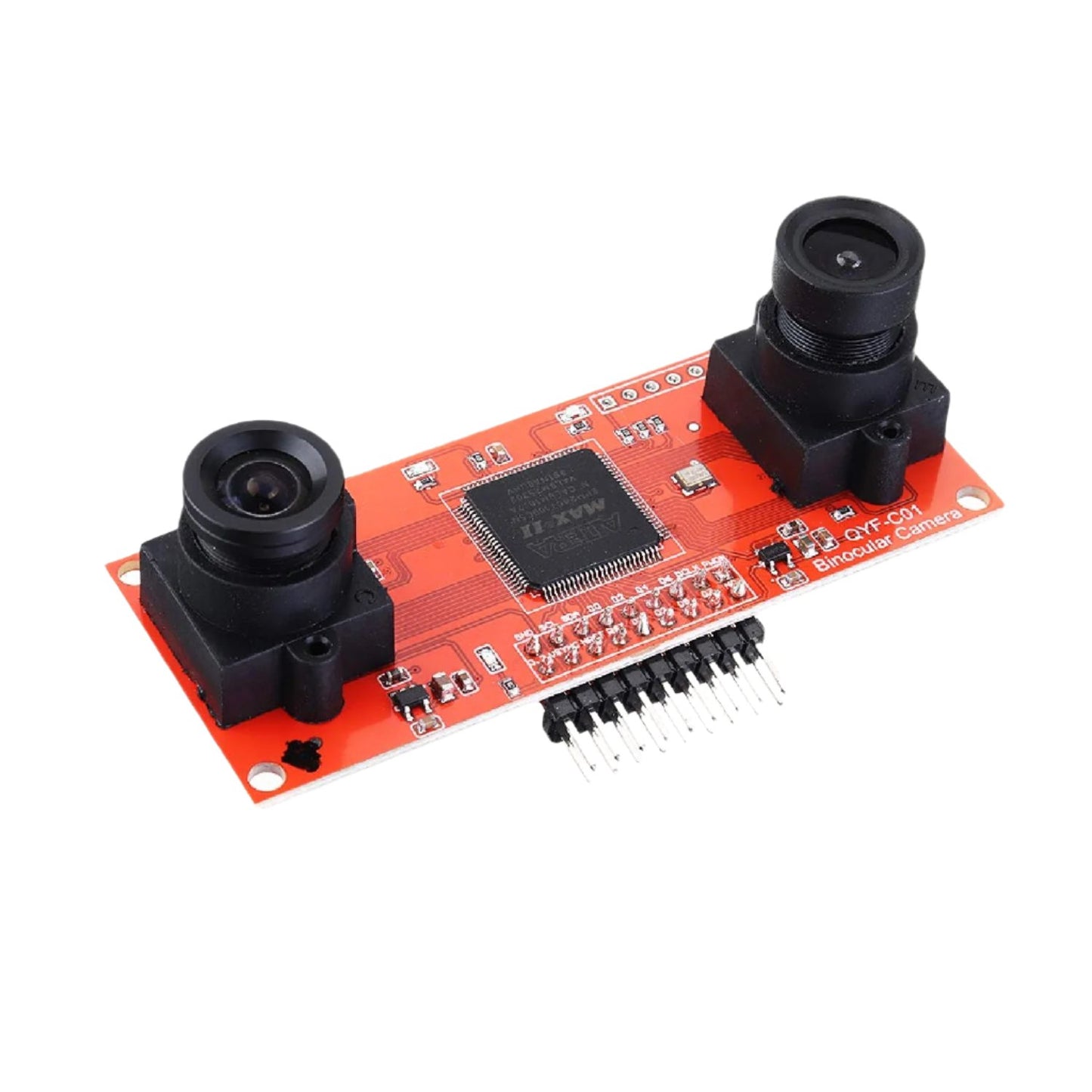

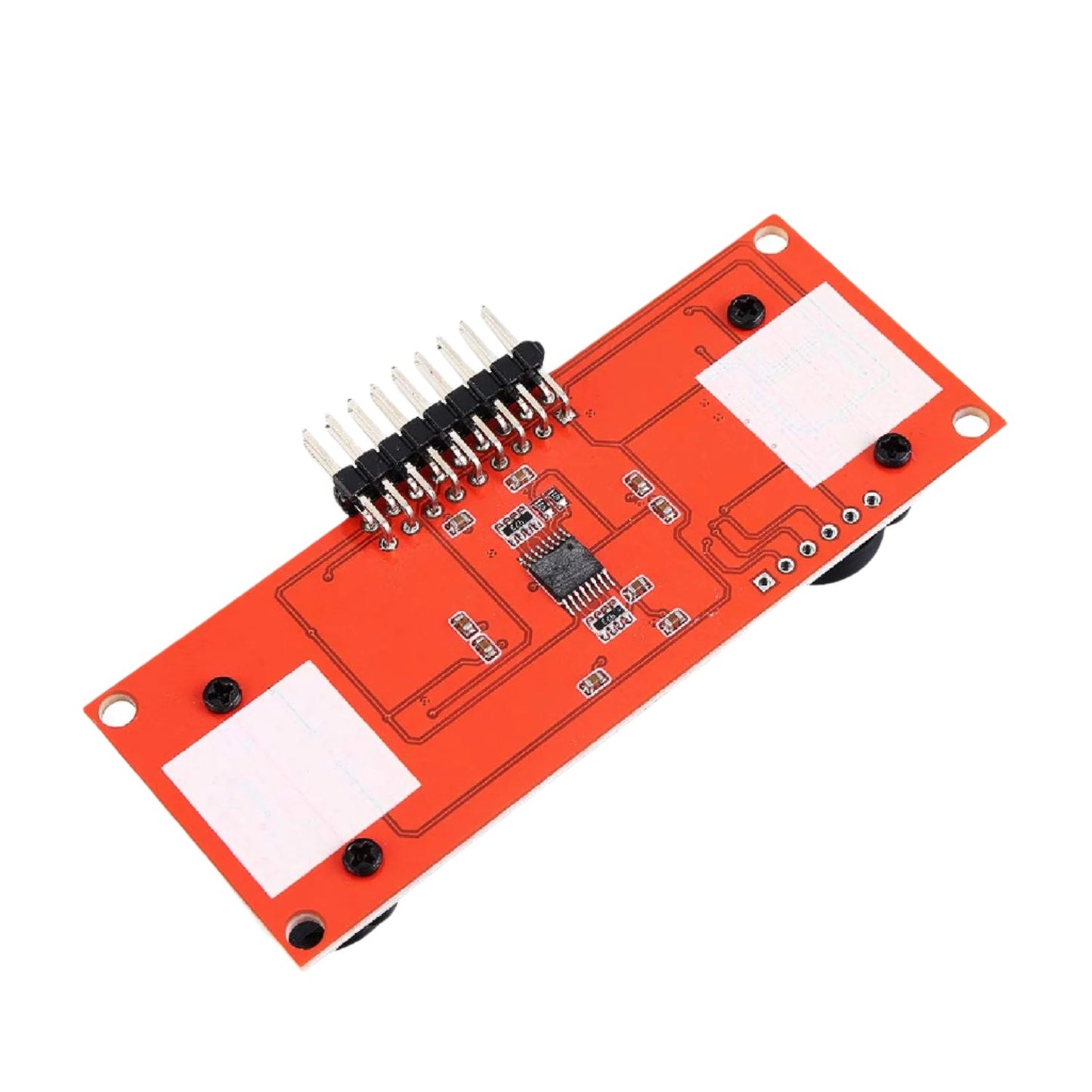

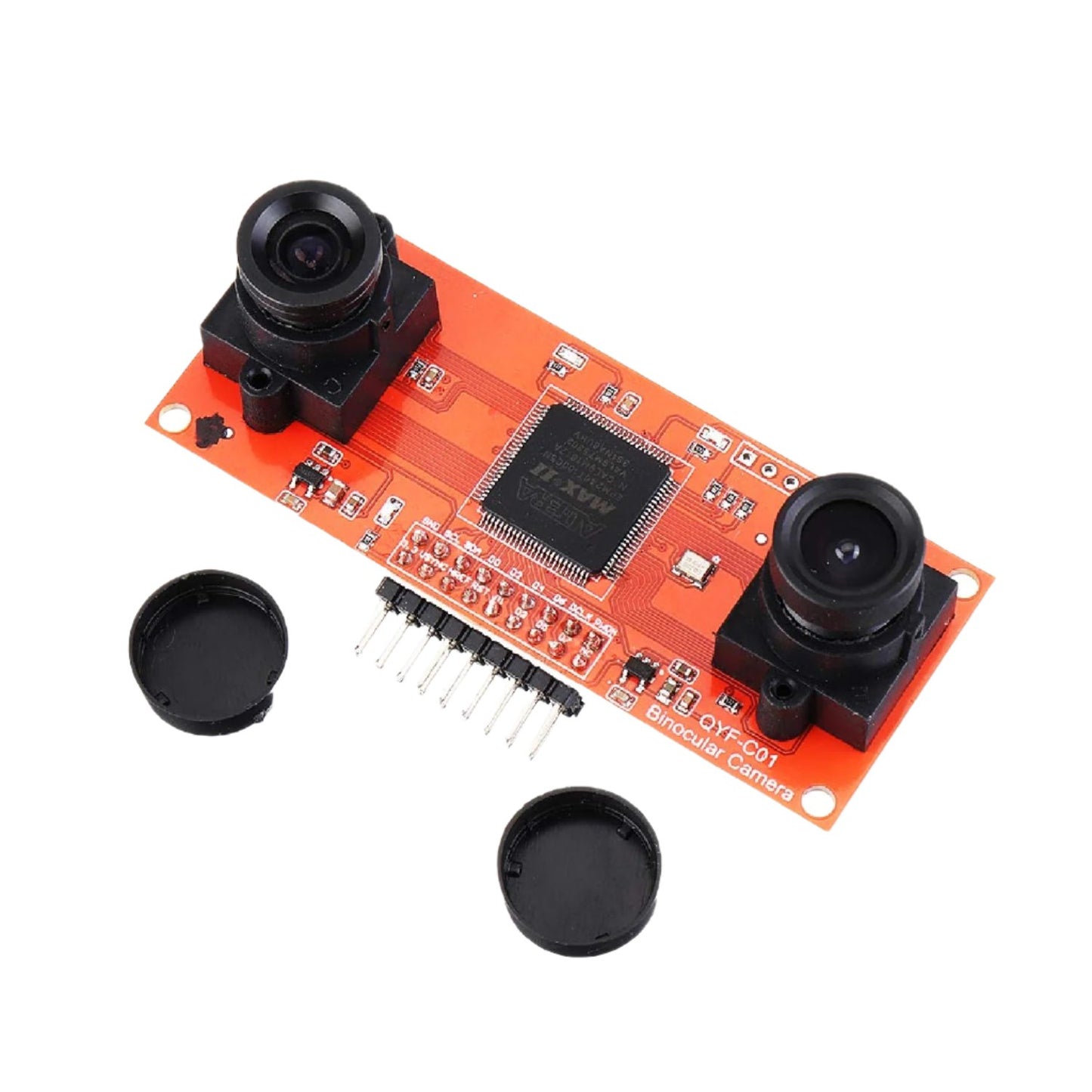

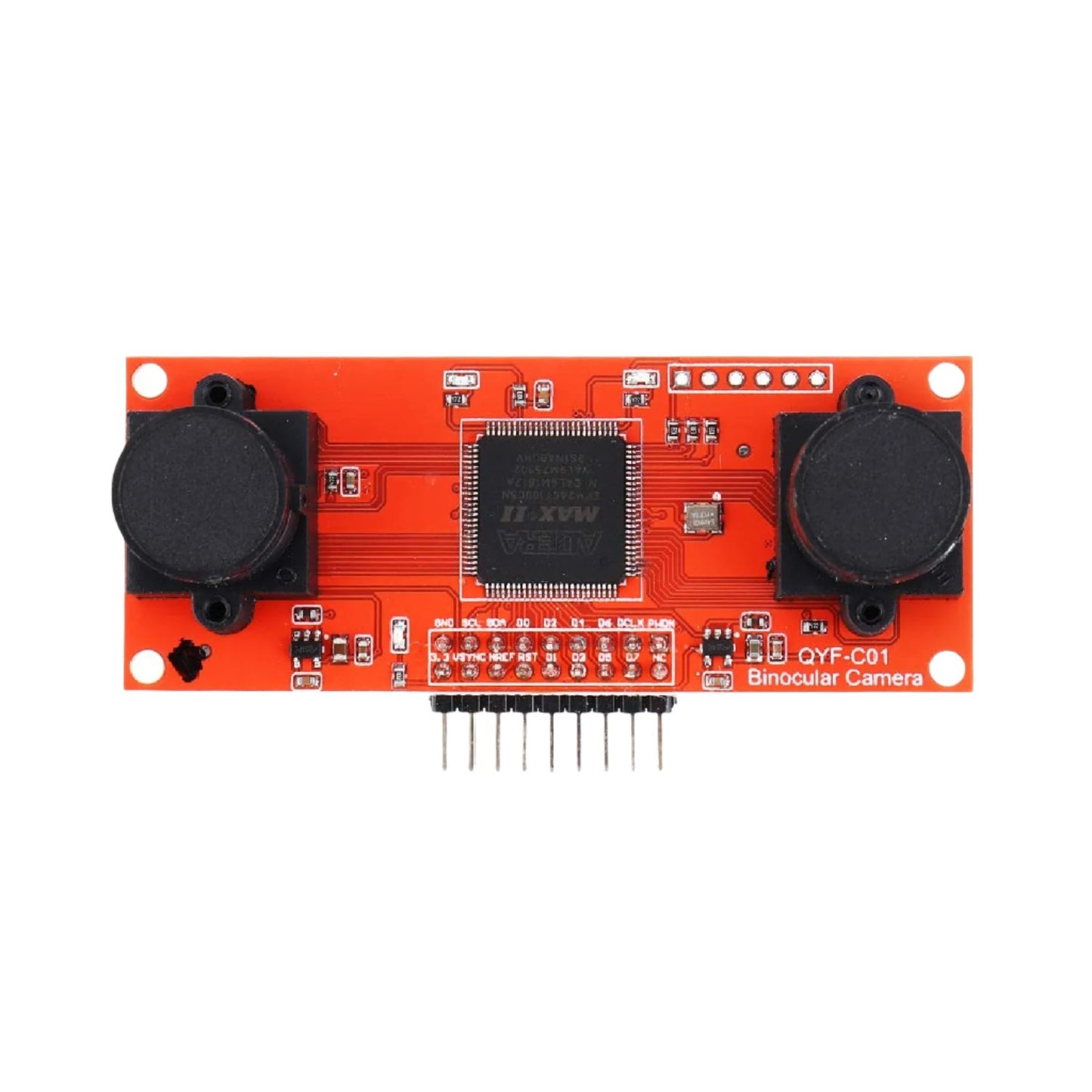

1 x OV2640 Binocular Camera Module CMOS STM32 Driver 3.3v 1600*1200 for 3D Measurement with SCCB Interface.
Description:
The OV2640 3D Measurement Camera Module is made with two 1/4-inch OV2640 million HD CMOS sensors. It has high sensitivity, high flexibility, and support for JPEG output. It can work in the same way as binocular camera, and can be applied to many occasions such as binocular ranging, 3D measurement and so on.
The 3D Stereo Camera Module can be driven by STM32, which is very convenient to use, and the camera configuration can be freely carried out, which greatly increases the flexibility of the application.
Specifications:
- Sensor size: 1/4 inch
- Pixel: 1600*1200 (200W)
- Control interface: SCCB
- Working voltage: 3.3V
- Module size: 27mmX27mm
- Output format: RGB565/JPEG/YUV/YCbCr, etc.
- Sensitivity: 0.6V/Lux-sec
- Signal-to-noise ratio: 40dB
- Dynamic range: 50dB
- Lens aperture: F2.0
- Lens filter: 850nm, infrared filter
- Working temperature: -30~+70
- Power consumption: 40mA
- IO port level: 2.8v LVTTL, compatible with 3.3V
- Output bit width: 8 bits
- Data interface: 8-bit data
- Control interface: SCCB (Class IIC protocol)
- Output format: RawRGB, RGB (RGB565/RGB555), GRB422, YUV (422/420), YCbCr (422), JPEG data
Features:
- Built-in embedded microprocessor
- Support for image scaling, panning, and window settings
- Support image compression to output JPEG image data
- Integrated active crystal 12M, no external clock required
- Integrated LDO, only need to supply 3.3V to work properly
- Support UXGA, SXGA, VGA, QVGA, QQVGA, CIF, QCIF and various sizes up to 40x30 size
- High sensitivity, low voltage for embedded applications
- Standard SCCB interface, compatible with I2C interface
- RawRGB, RGB (GRB4: 2: 2, RGB565/555/444)
- YUV (4:2:2) and YCbCr (4:2:2) output formats
