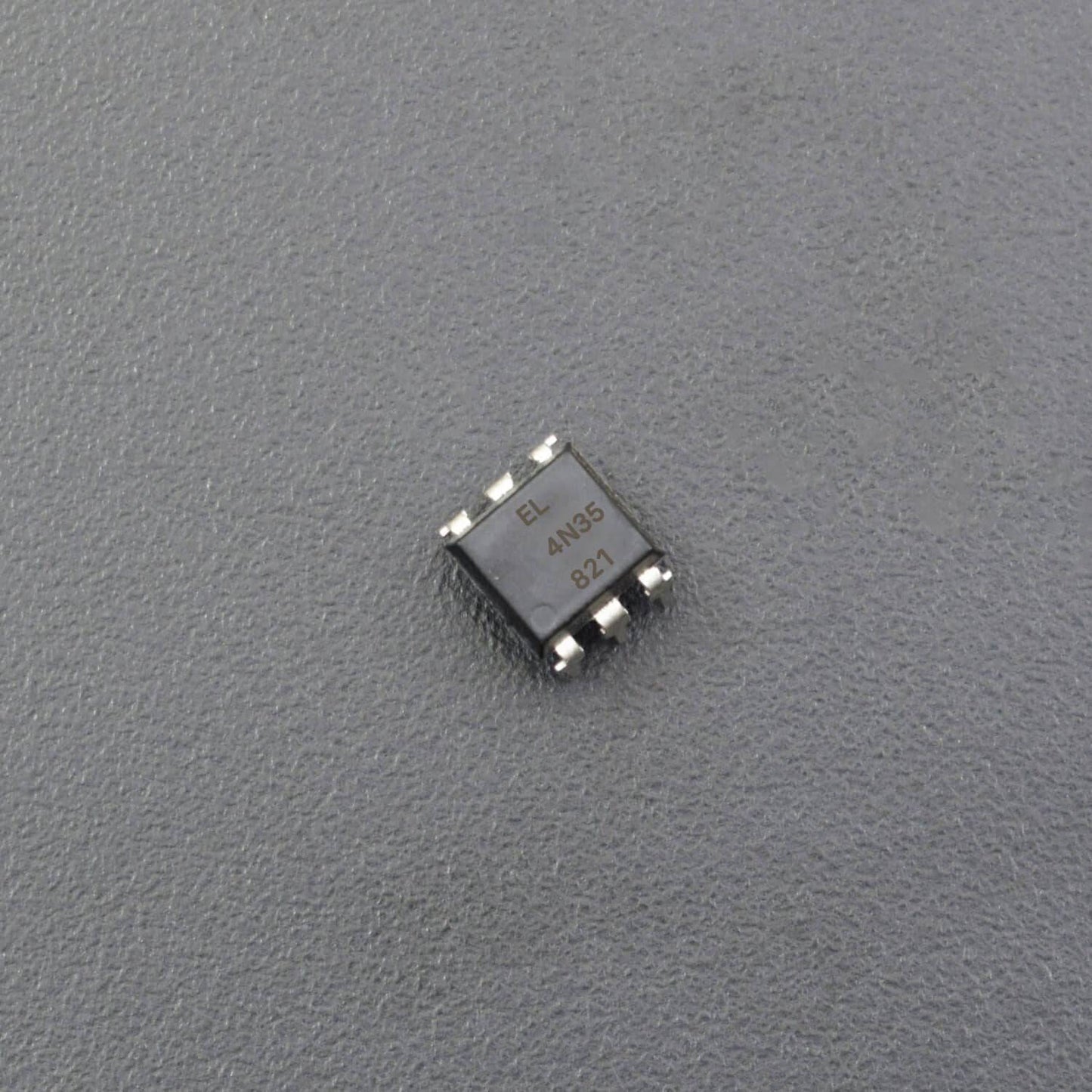

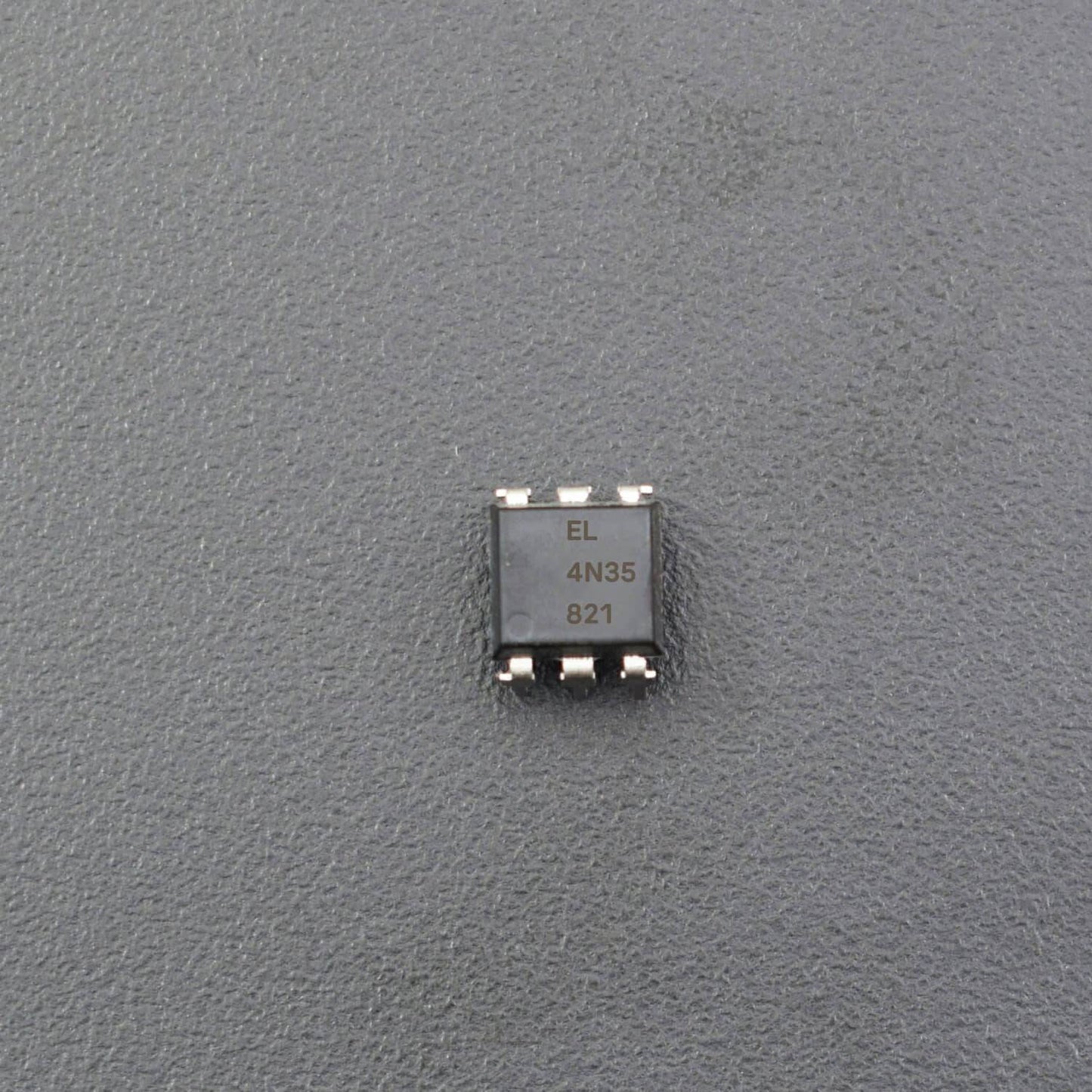

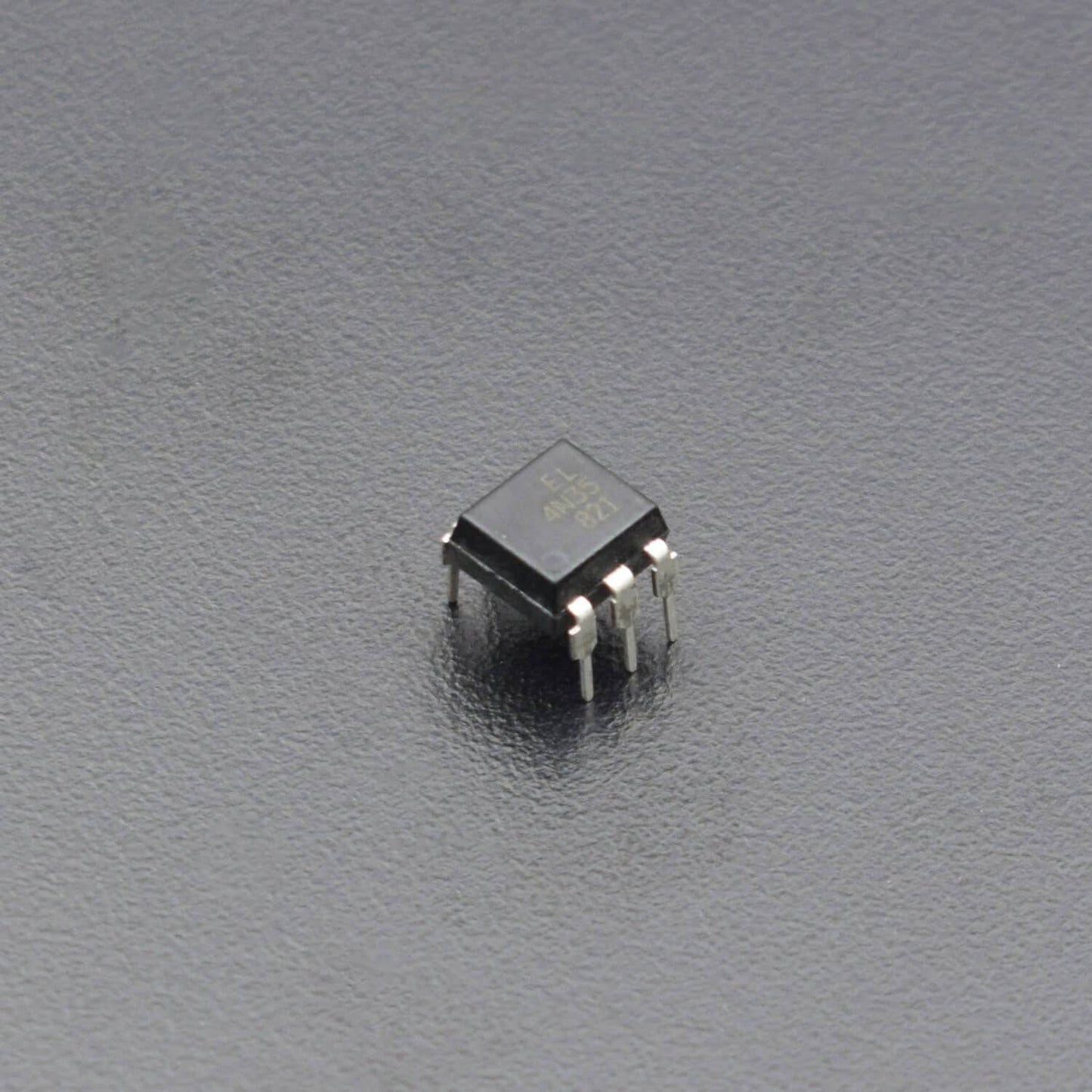

OPTOCOUPLER 4N35 IC for Replacement or DIY Projects - RS544

OPTOCOUPLER 4N35 IC for Replacement or DIY Projects - RS544

SKU:RS544

81 in stock

Regular price Rs. 20.00
Regular price Sale price Rs. 20.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • High-Speed Switching tr: 7 µs, tf: 7 µs Typical
  • Input-to-output peak voltage (8-ms half sine wave)4N35: 3.55 kV
  • Input-to-output root-mean-square voltage (8-ms half sine wave)4N35: 2.5 kV
  • Collector-emitter voltage: 30 V
  • Input-diode reverse voltage: 6 V
  • Input-diode forward current: Continuous 60 mA

Description:

Opto-coupler is an electronic component that transfers electrical signals between two isolated circuits. Optocoupler also called Opto-isolator, photo coupler or optical isolator. Often in circuits, especially low voltage or highly noise sensitive circuits, Optocoupler is used to isolate circuitry to prevent electrical collision chances or to exclude unwanted noises. In present commercial market, we can buy Opto-coupler with 10 kV to 20 kV input to output withstand voltage capacity, with a specification of 25 kV / uS voltage transients.

Specification:

  • High-Speed Switching tr: 7 µs, tf: 7 µs Typical
  • Input-to-output peak voltage (8-ms half sine wave)4N35: 3.55 kV
  • Input-to-output root-mean-square voltage (8-ms half sine wave)4N35: 2.5 kV
  • Collector-emitter voltage: 30 V
  • Input-diode reverse voltage: 6 V
  • Input-diode forward current: Continuous 60 mA

Features:

  • Interfaces with common logic families
  • Input-output coupling capacitance < 0.5 pF
  • Isolation test voltage 5000 VRMS
  • The 4N35 is a general purpose 6 pin phototransistor optocoupler.
  • This optocoupler consists of an infrared emitting diode driving a silicon phototransistor.

Package Included:

1 x OPTOCOUPLER 4N35 IC for Replacement or DIY Projects
