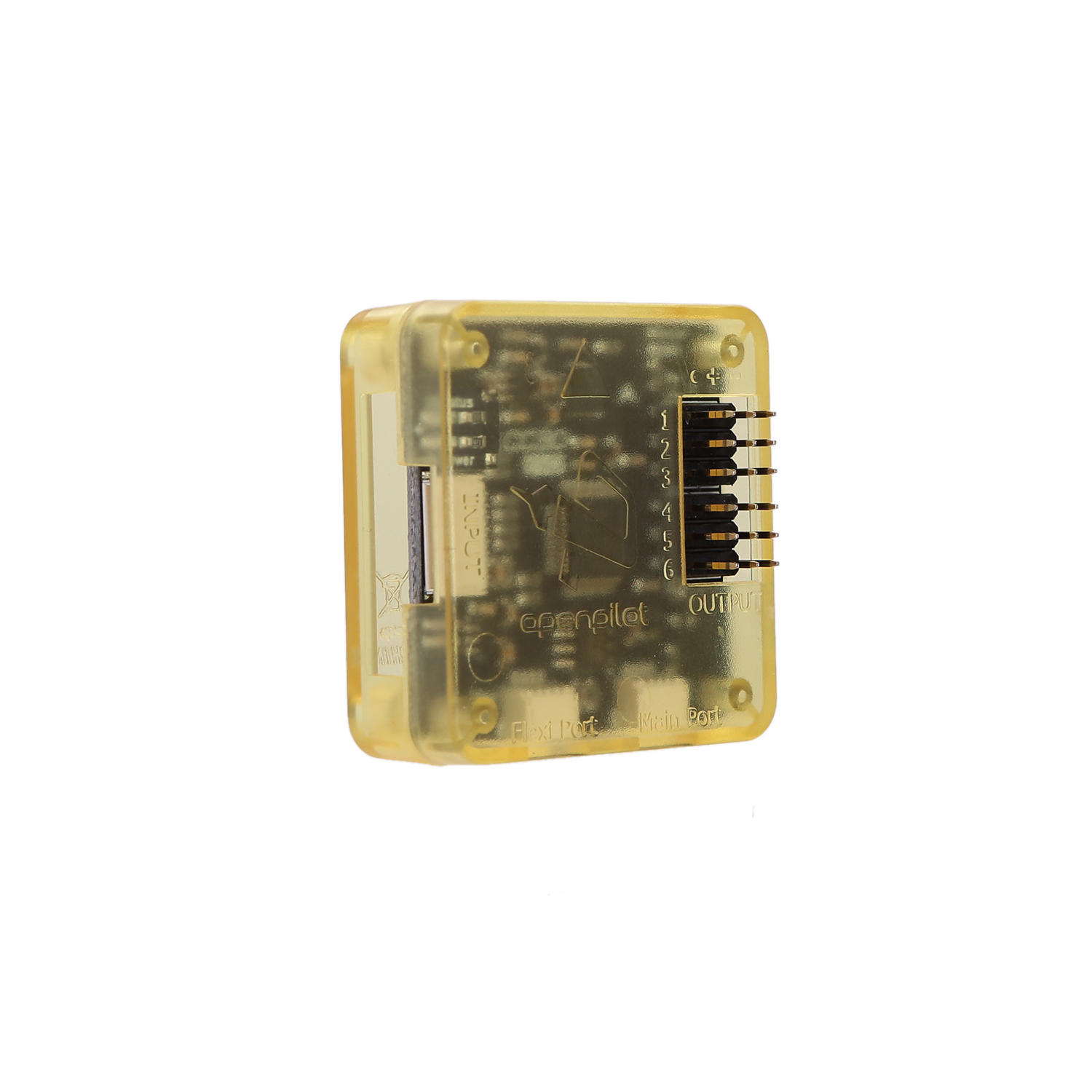

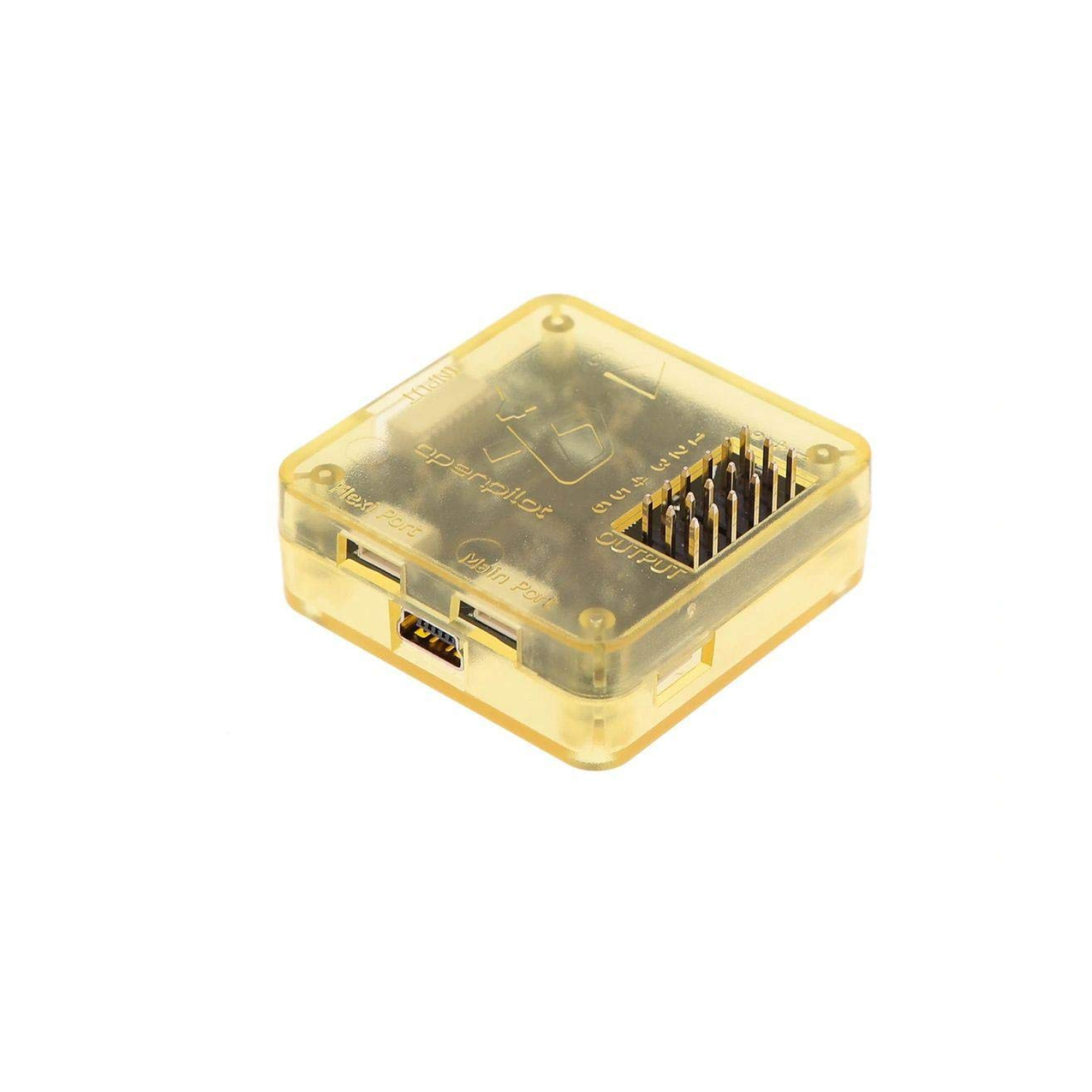

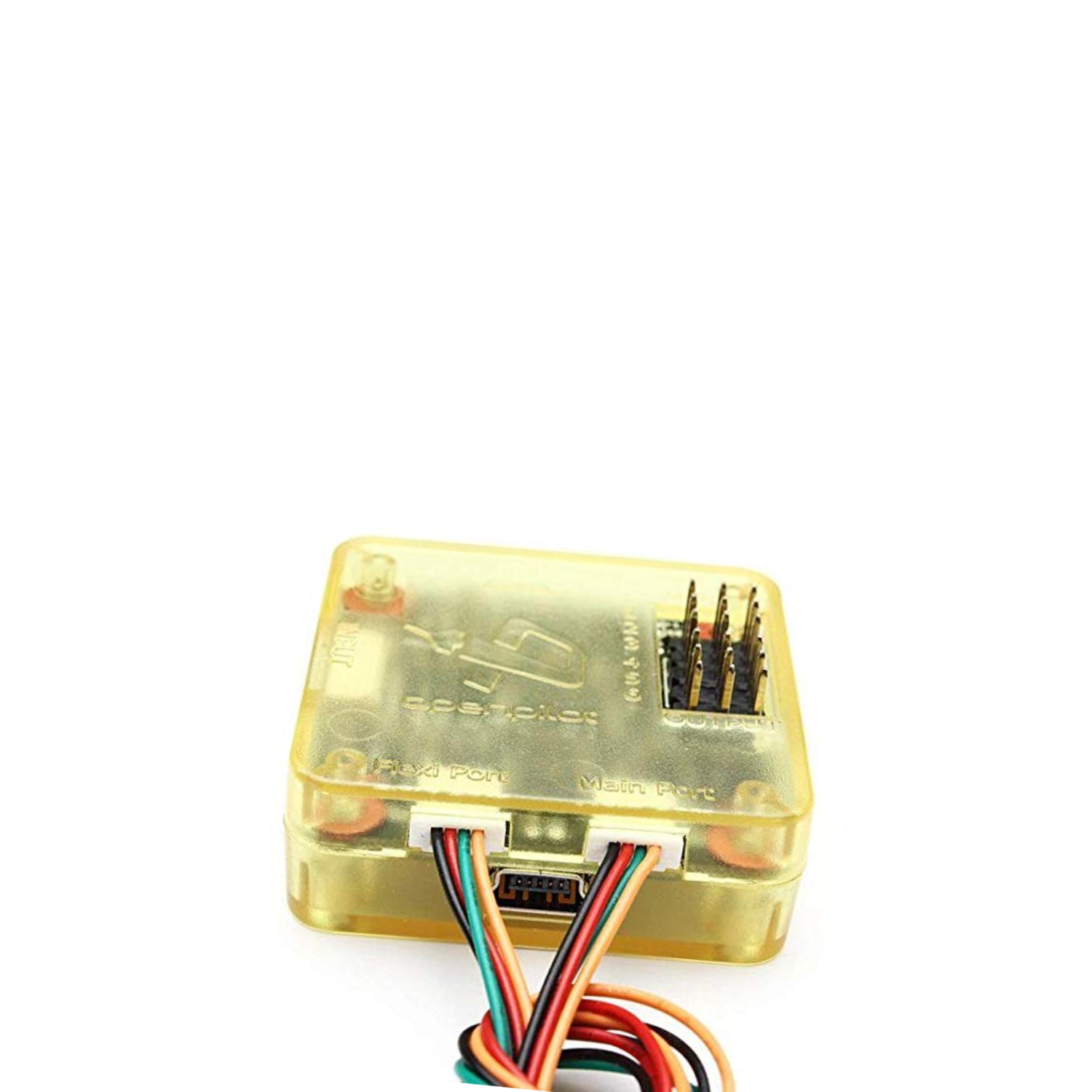

OpenPilot CC3D EVO Flight Controller Straight Pin Flight Controller Board For RC Drones & Multirotors - RS4596

Description:

OpenPilot CC3D EVO Flight Controller Experience effortless flight with the OpenPilot CC3D EVO Flight Controller Straight Pin card. This advanced controller boasts a smooth, direct compatibility with satellite receivers, eliminating the need for extra cables and streamlining your setup. For enhanced connectivity, it also offers S.BUS support.

At its core, the Evo is powered by a 32-bit STM32 processor, featuring a generous 128K of Flash memory and 20KB of RAM This ensures rapid and reliable performance. Precision is paramount, which is why both the gyro and accelerometer utilize cutting-edge 3-axis MEMS technology highly accurate flight data.

Specifications:

• Item Type: Flight Controller
• Model Name: OpenPilot CC3D EVO Straight Pin
• Input Voltage: 5 VDC
• Sensor: 3-Axis Gyrometer, Accelerometer, High-performance Barometer
• Processor: Micro-Controller STM32, Sensor IC: MPU6000
• Micro SD Card Slot: No

Features:

CC3D EVO Hardware Features :

• Direct Satellite Receiver Plug-in
• High-Performance Processor
• Advanced MEMS Sensors
• Compact Design
• Cross-Platform Software Support
• Driver-Free USB Connectivity
• Receiver Compatibility
• Flexi-port Technology
• Onboard Configuration Storage

Flexiport :

• Copter Control also offers the innovative Flexiport which provides either I2C connectivity or a second serial port. Flexiport gives Copter Control the flexibility to use either I2C and a single serial port or dual serial port, according to your connectivity needs.

Superior user experience :

• OpenPilot has tried to make your experience with the CC3D as easy and trouble-free as possible. Naturally, for a high-end product, the hardware is complete; there is nothing to solder. The included RC  harness allows you to connect any standard PWM receiver.  All CopterControl boards are tested before shipping and come with bootloader already flashed.
• A standard mini USB  cable (not includes) is used to load the latest firmware and configure everything for your unique airframe. The OpenPilot project, whilst still young, it trying to make Open Source much more user-friendly.
• OpenPilot software is designed to be used by everybody! All major operating systems are supported and install packages are provided.
• The software is all Free software under the GPLv3 license and not only are you welcome to hack it, but we encourage it.

Sensors and Components:

• 3 axis Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2,
• Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2,  DSMJ, DSMX satellites, and Futaba S.Bus receivers.
• Simultaneous support for multiple receivers.
• ReceiverPort functions (configurable): 6 PWM input channels or combined PPM stream, 4 PWM output channels
• MainPort functions (configurable): serial telemetry (default), GPS, S.Bus, Spektrum/JR satellites
• FlexiPort (configurable): serial telemetry, GPS, Spektrum/JR satellites, or I2C peripherals (under  development)
• 10 PWM outputs to servos or ESC’s, or for camera stabilization
• Camera stabilization supports up to 3axis  camera mounts with stabilization and manual control from any of configured receivers.
• Onboard USB connectivity for easy configuration.
• USB and serial telemetry and configuration
• Supported by powerful OpenPilot GCS
• 4 Mbit onboard memory
• 3C Quaternion based complementary filter running at 500Hz

Package Included:

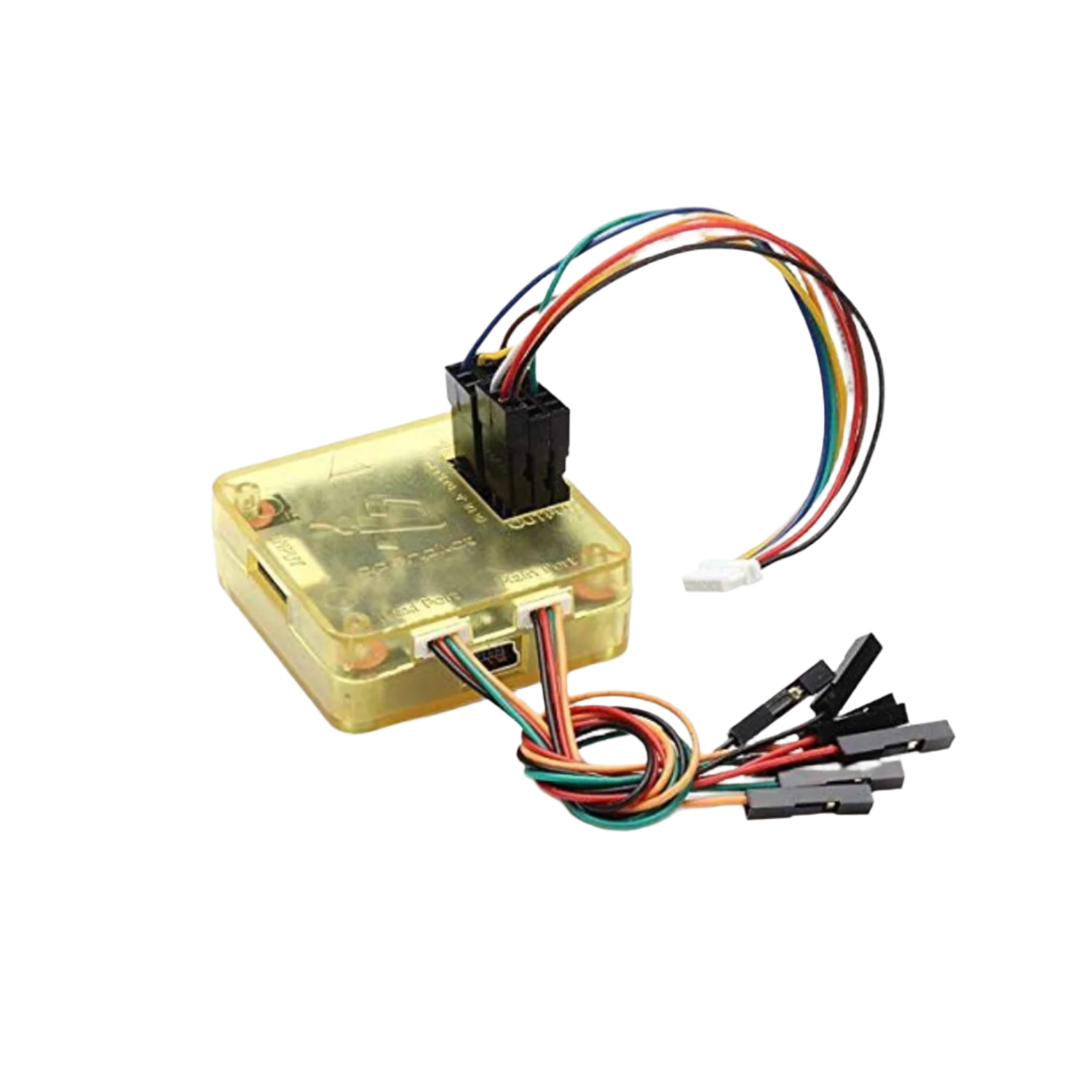

• 1 x OpenPilot CC3D EVO Flight Controller Straight Pin
• 2 x Connecting Wires
• 1 x PC plastic shell
