Description:

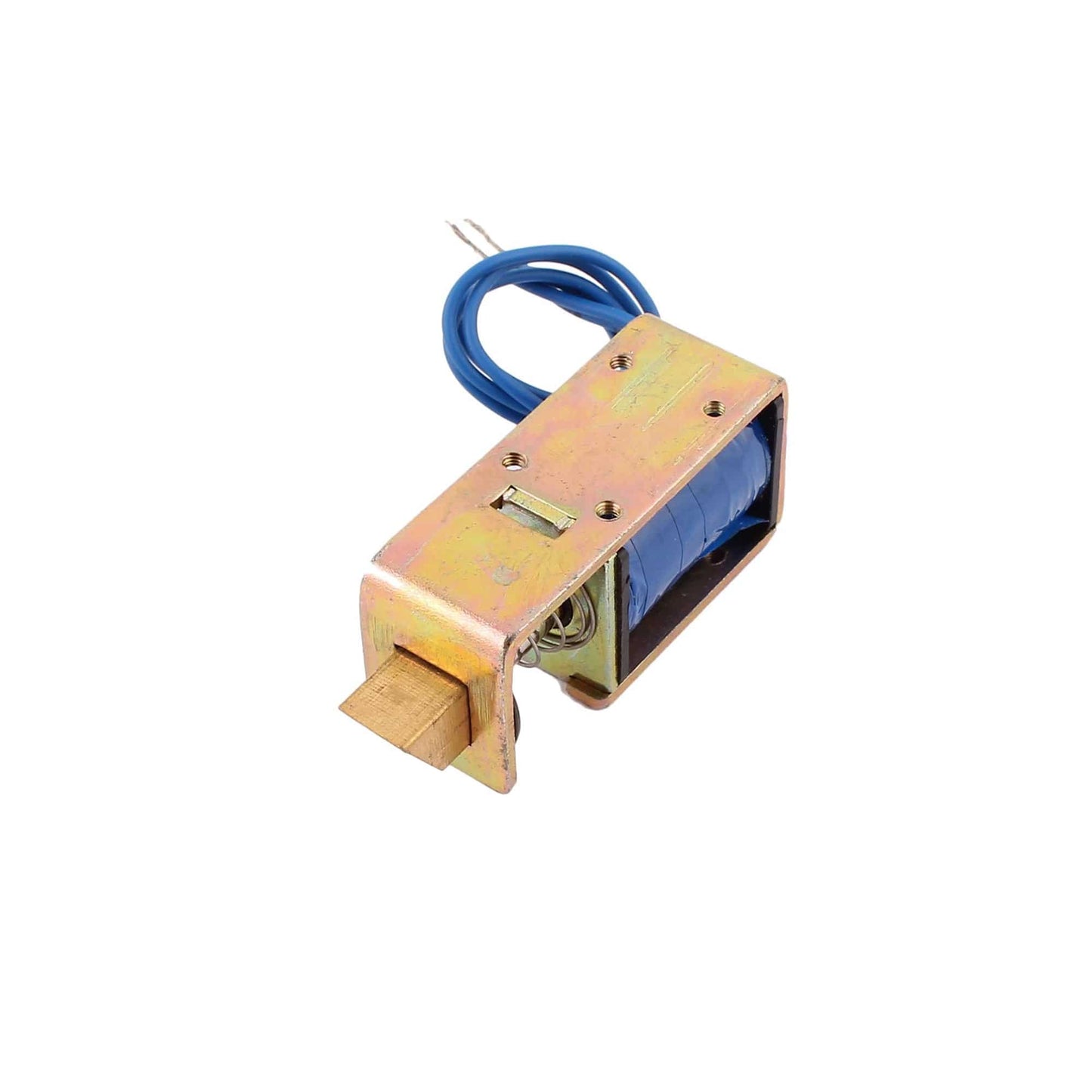

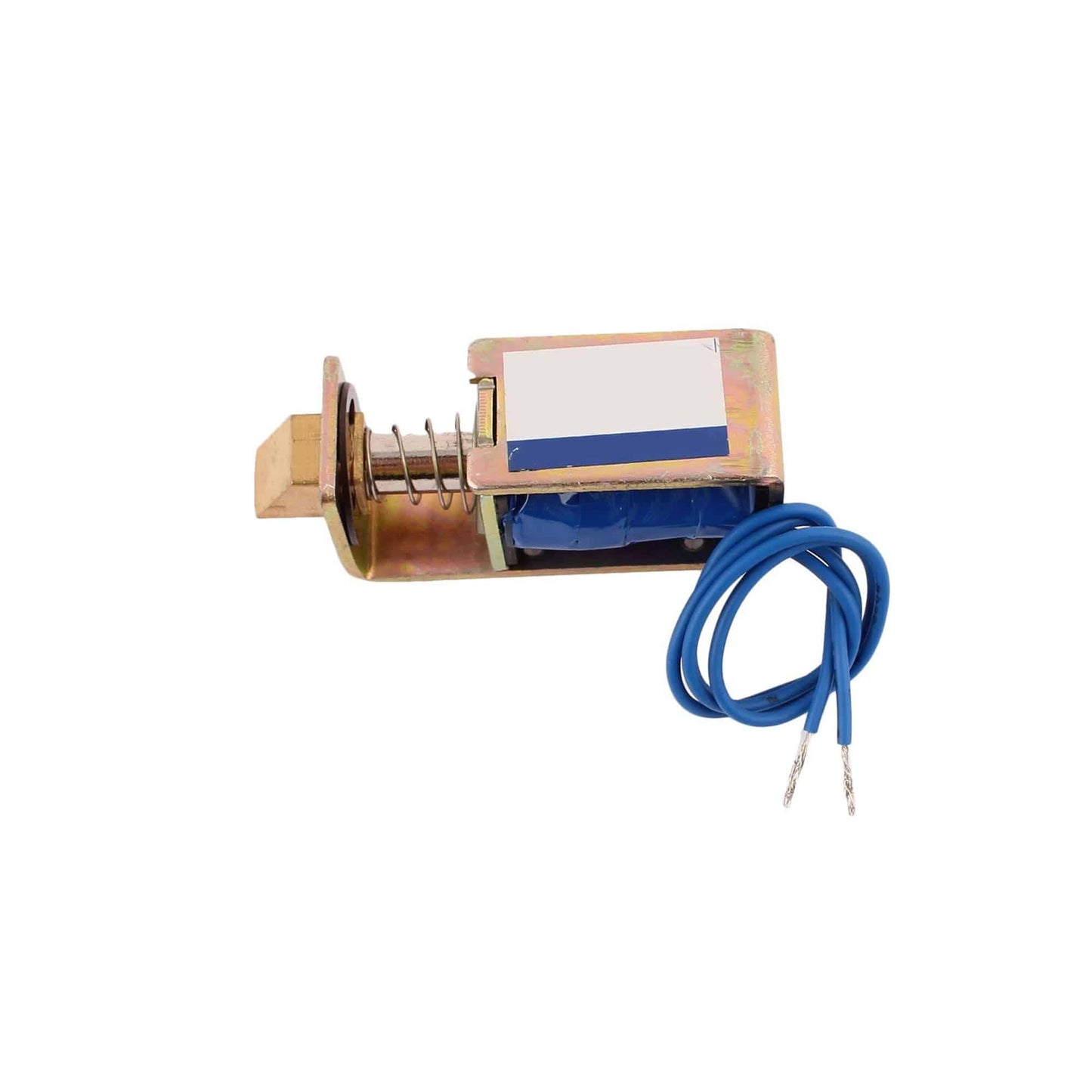

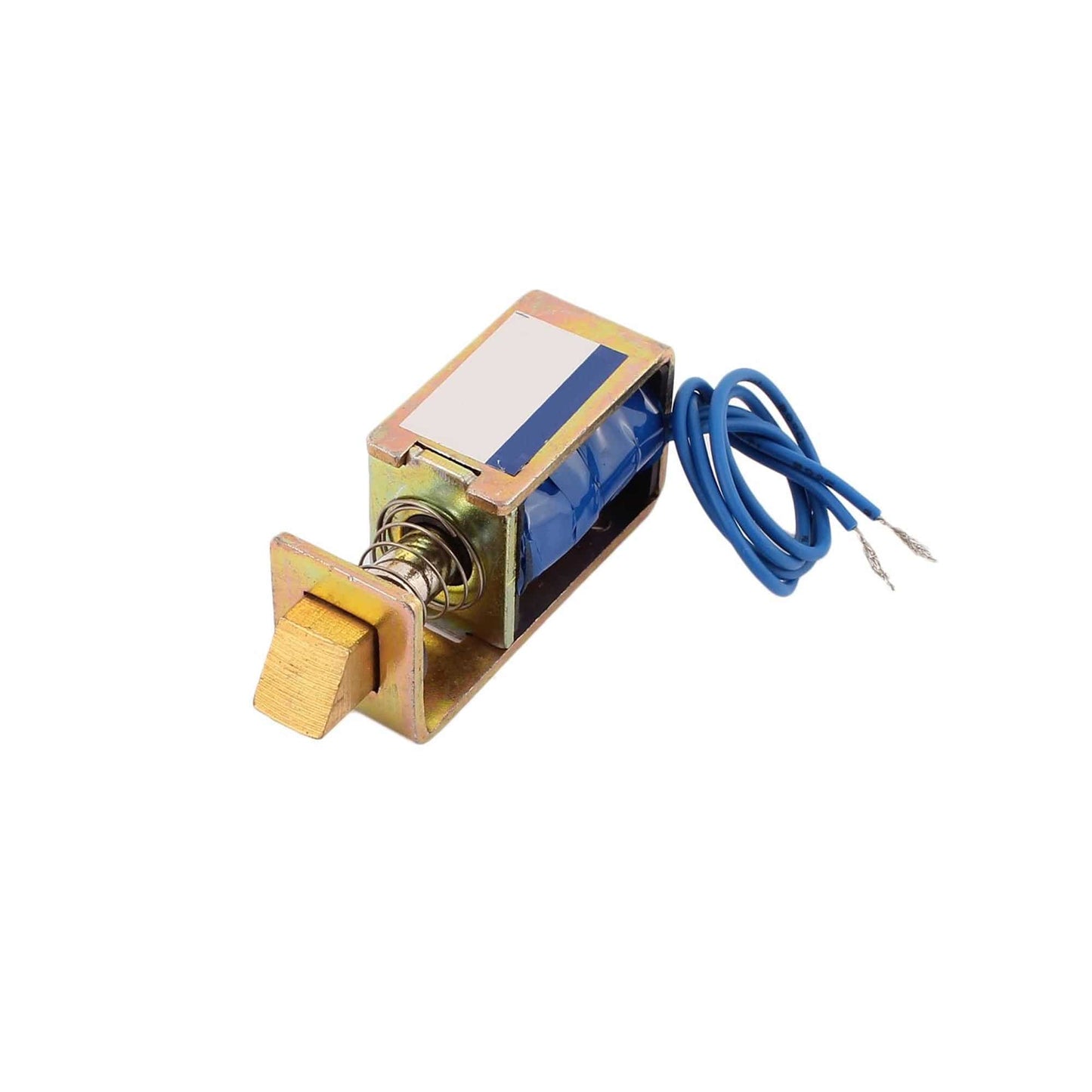

This DC 12V 1A 10mm Stroke 19N Force Open Frame Solenoid Door Lock can be used for locking a sell-machine, storage shelf, file cabinet, etc. The hidden way of unlocking can be used for an emergency. The Open Frame Solenoid Door Lock works as the circuits disconnect and will unlock as the instant power-on. It is steady, durable energy-saving and has a long lifespan. In the anti-theft and shockproof design, the lock is better than other locks. The Open Frame Solenoid Door Lock can control the doors opening and closing after connecting the wires and when the current is available.
Note: Take care of polarity while making the connection without a connector (i.e. the Red wire should be connected to the positive and the Black wire to the negative.)
Specifications:
- Model: DC 12V 1A Solenoid Door Lock
- Rated Operating Voltage: 12VDC
- Stroke: 10 mm
- Rated Current: 1A
- Holding Force: 19N
- Energized Forms: Intermittent
- Operation Mode: Normally Closed
Features:
- Iron Body Material, high-quality ultra-compact electric lock.
- Open Frame Solenoid Door Lock is rustproof, durable, safe, and convenient to use.
- Suction which tightly sucks the iron, thus locking the door.
- Open Frame Solenoid Door Lock is designed with the open frame type and mount board, high power.
- Easy to install for the electric door lock or other automatic door lock systems with the mounting board
- Applicable for being installed in the escape door or fire door electronic controlled system.
- Adopts the principle of electric magnetism, when the current is through the silicon, the electromagnetic lock will achieve a strong.
Package Included:
1 x Open Frame Solenoid Door Lock DC 12V 1A 10mm Stroke 19N Force Open Frame Solenoid Door Lock
