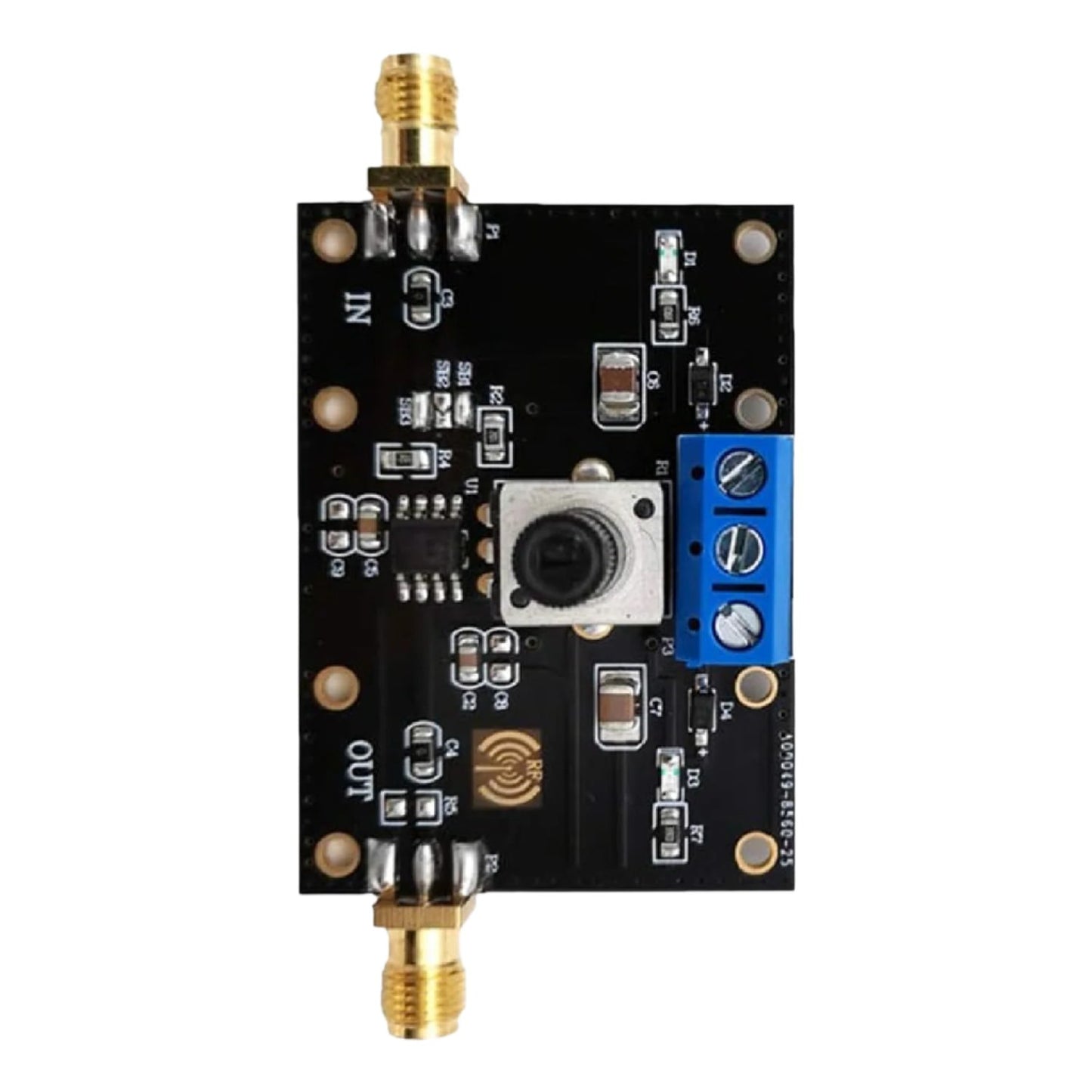

Description:
OPA627 Precision Op Amp Module is a single-channel amplifier module designed for SOP 8 package single op-amp. The module function and chip model are highly compatible. It is basically suitable for most single-op-amp chips of the SOP8 series on the market, and it is very convenient to use. The input and output of the signal adopt the coaxial SM high-frequency connector
High-Speed High Impedance Op Amp input and output of the signal adopts the coaxial high-frequency wire connector, which can reduce the signal loss and shield the interference of other signals. At the same time, the on-board operational amplifier can freely change the function according to the needs of users. Function
It can be changed to the sa 3, and can be changed to shoot with the output; me phase. Amplifier 2, can be changed into an inverting amplifier; 3, can be changed to shoot with the output;
Specifications:
- Module Model: OPA627
- Module Type: Precision Operational Amplifier
- Input Signal Form: Single-Ended
- Input Voltage Range: 2Vpp (MAX), Generally Within The Power Supply
- Module Input Impedance: 1KΩ
- Module Power Supply Voltage: ±18V (MAX),
- Module Power Supply Current: <100mA, For Reference Only, This Parameter Will Be
- Different Depending On The Op Amp Chip (subject to the chip data manual), the
- General Module quiescent current is about a few milliamperes
- Module output impedance: low impedance
- Output voltage range: ±15V (MAX)
- Output current: ±45mA (MAX)
- Gain bandwidth product: 16MHz, bandwidth decreases as gain increases
- Module gain range: 100 times (MAX)
- Chip input offset voltage: 500uV(MAX)
- Chip input offset drift: 2.5uV/°C (MAX)
- Chip input bias current: 5pA(MAX)
- Chip input voltage noise: 5.2nV/Hz (1KHz )
- Module protection: Yes, diode anti-reverse connection protection
- Module weight: 16g

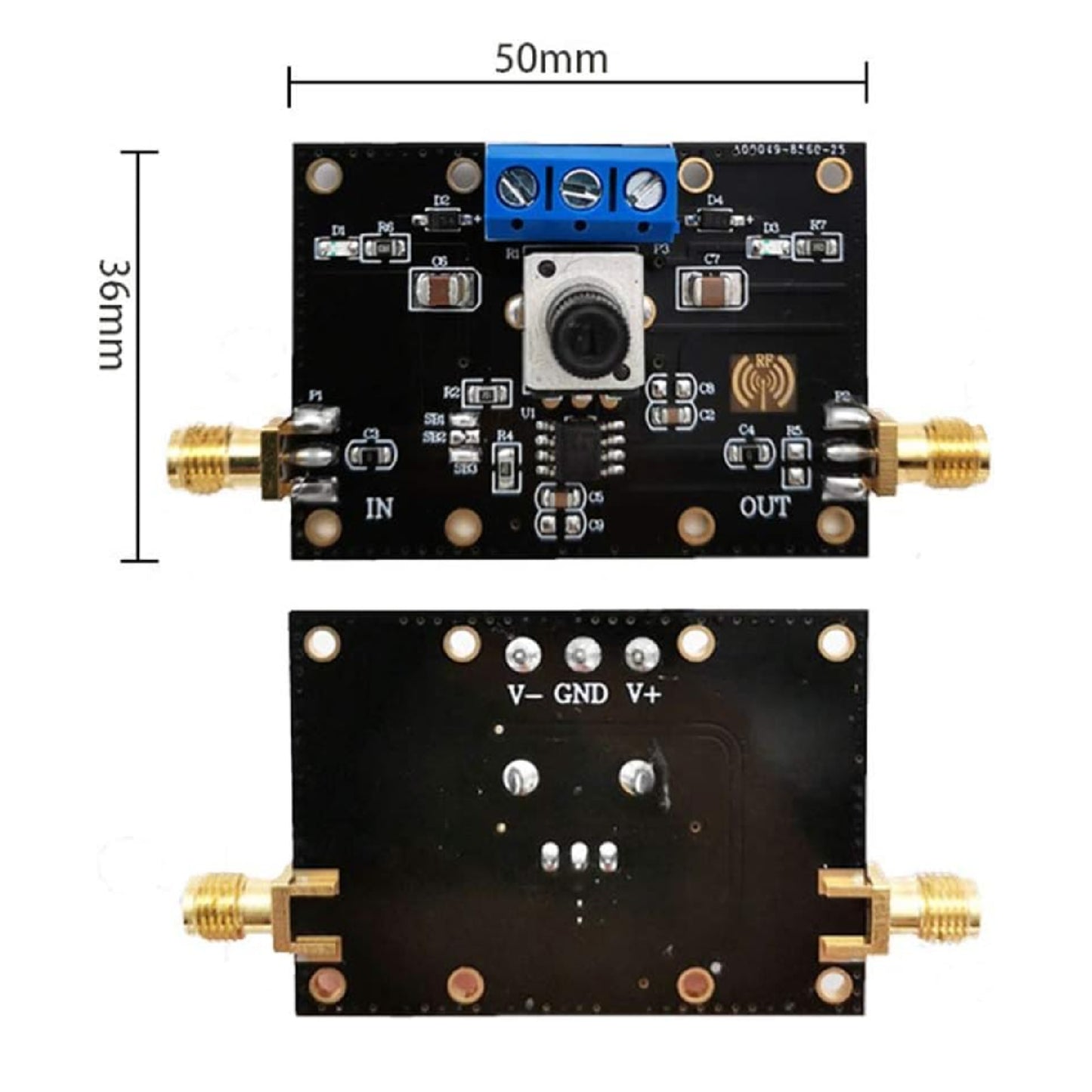

- Module specification: 50*36*23mm, length*width*height-PCB size
- Module heating: no heat sink, low power consumption, no need for heat dissipation
-
Module heating factor: the input and output voltage is too large or the module chip is damaged
- Module working temperature: -40℃~+75℃, industrial grade

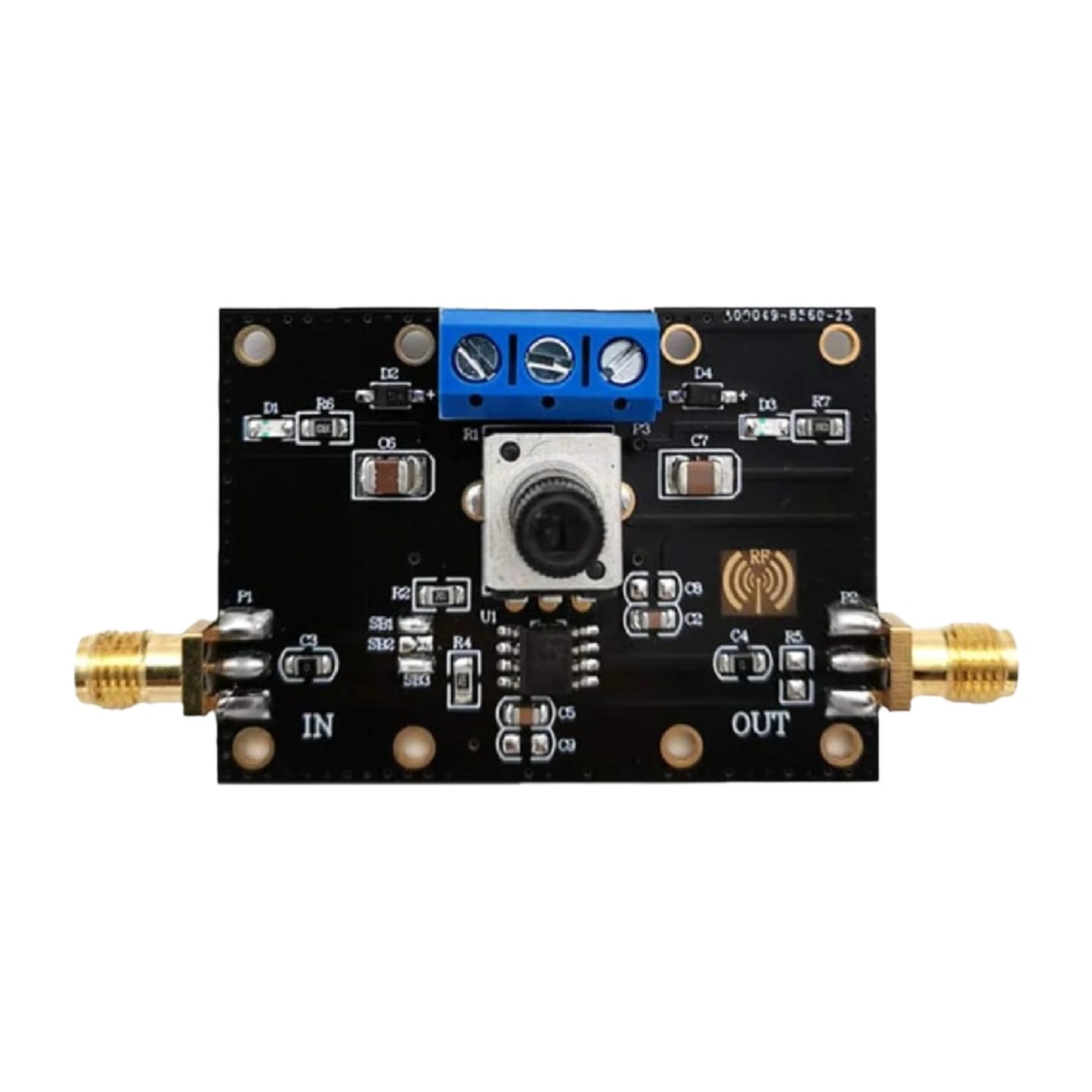

Features:
- positive and negative power LED indication.
- potentiometer adjustable magnification
- Application range: weak signal amplification, acquisition front-end amplification, etc.
- Module interface type: SMA signal signal input and output, 5. 08 blue power card line seat

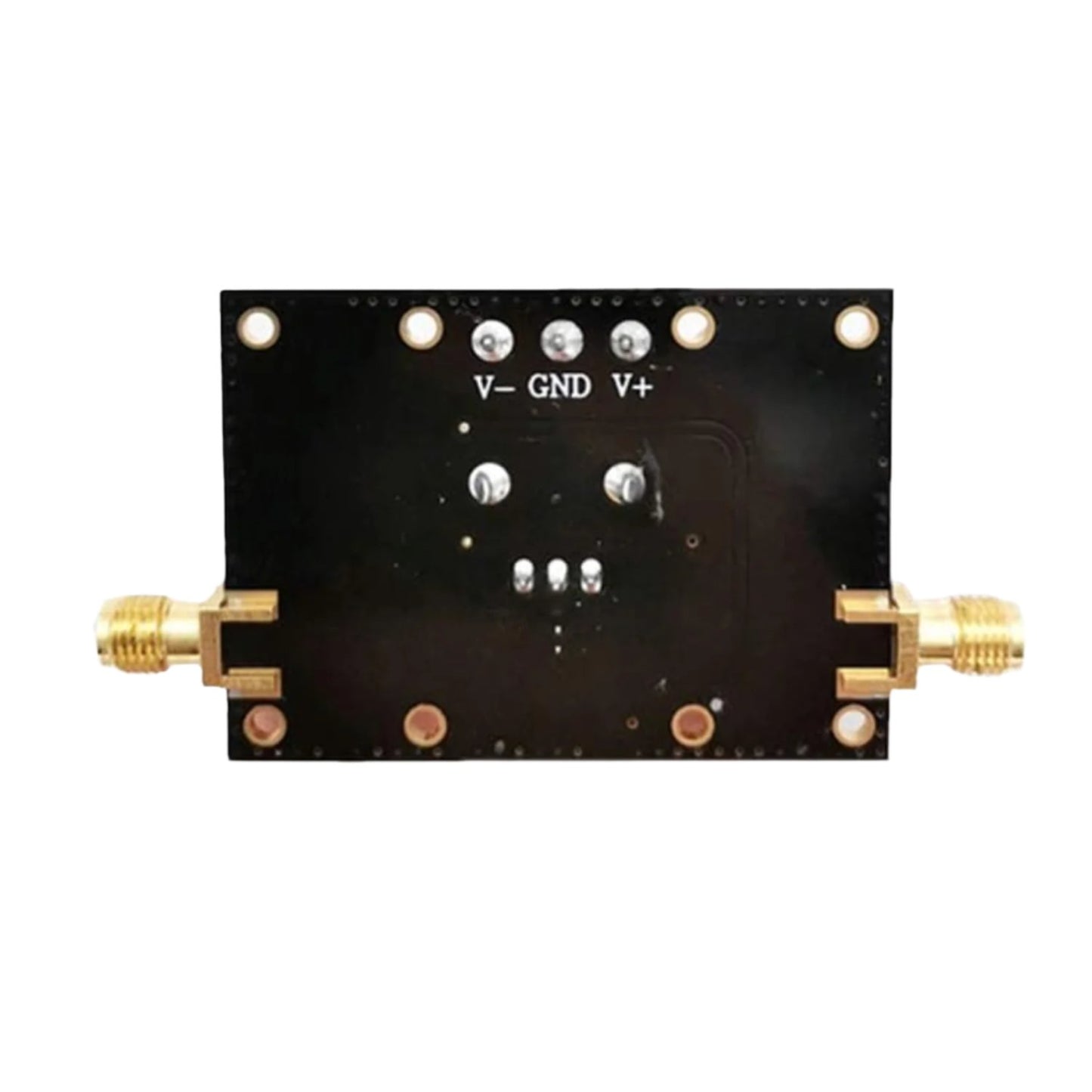

Pin Description:
Package Included:
1 x OPA627 Precision Op Amp Module
