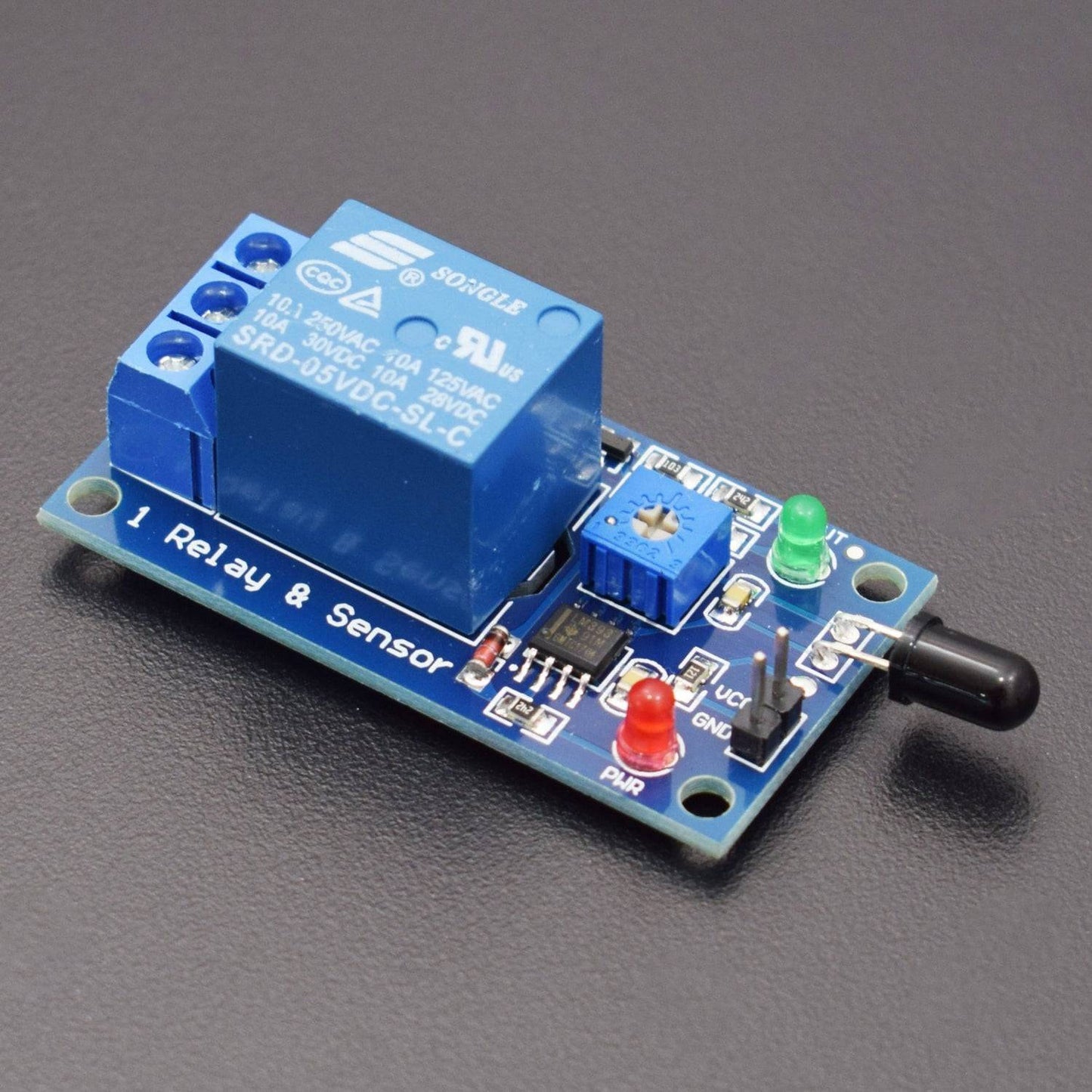

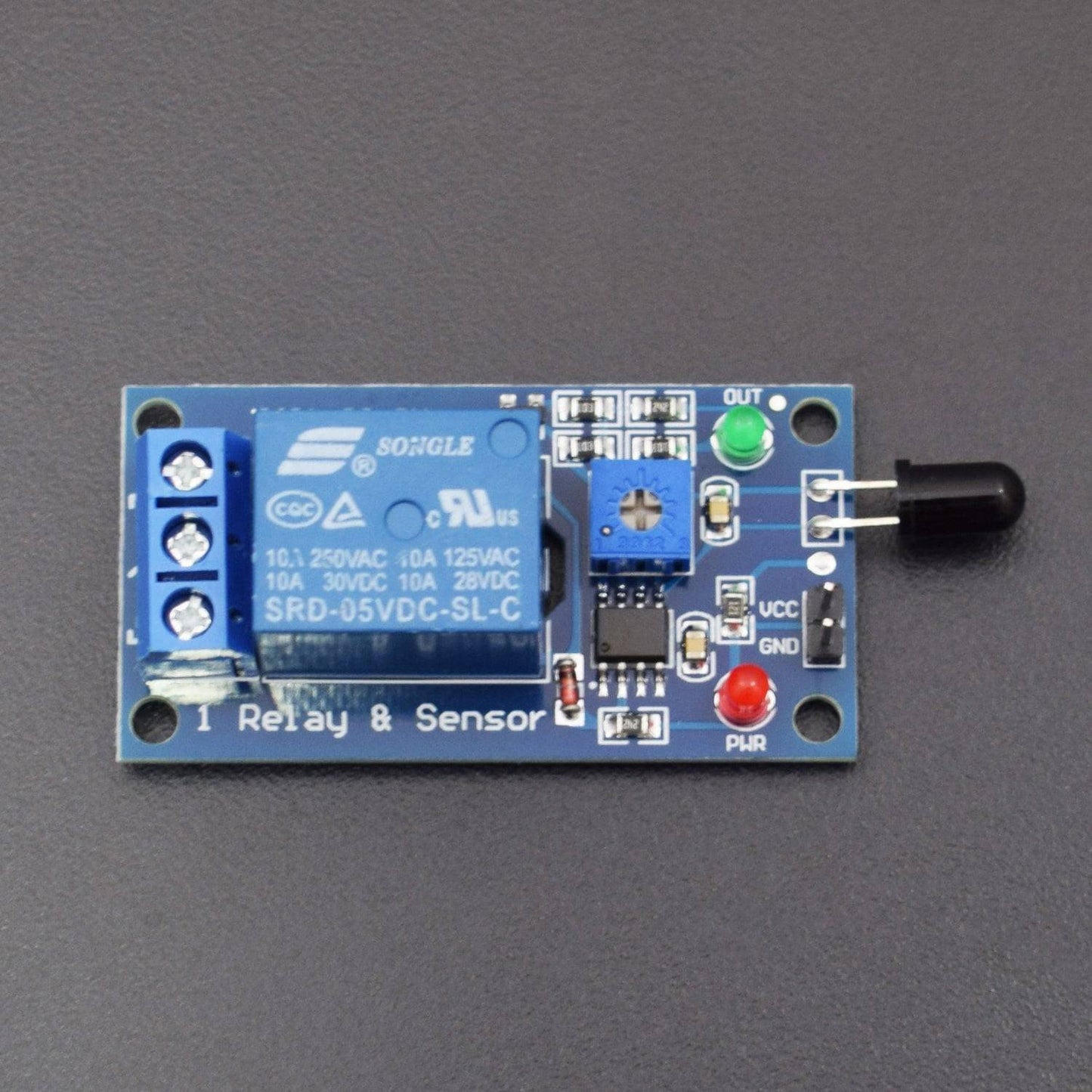

One Way 12V Flame Sensor Relay Module Fire Sensor Flame Detection Sensor Fire Detector Sensor with Relay - RS1162

One Way 12V Flame Sensor Relay Module Fire Sensor Flame Detection Sensor Fire Detector Sensor with Relay - RS1162

SKU:RS1162

15 in stock

Regular price Rs. 195.00
Regular price Sale price Rs. 195.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Operating Voltage: 3.3 ~ 5V DC
  • Maximum Voltage: 250V AC
  • Maximum Operating Current: 10A
  • Supply Current: 15A
  • Operating Temperature: -40 to 80℃

Description:

It is a Flame Sensor Relay Module. The flame sensor can detect the flame or the wavelength at 760 nm to 1100 nm range of the light source, the test flame lighters distance of 80cm, the larger the flame, the greater the distance test. The detection angle of 60 degrees, the flame spectrum particularly sensitive Sensitivity adjustable (shown in blue digital potentiometer adjustment). The comparator output directly triggers the relay.

Specification:

  • Operating Voltage: 3.3 ~ 5V DC
  • Maximum Voltage: 250V AC
  • Maximum Operating Current: 10A
  • Supply Current: 15A
  • Operating Temperature: -40 to 80℃
  • Opt. Relative Humidity: 20% 85%RH
  • Operating Distance Range: 0.8 Meter

Features:

  • The detection angle of 60 degrees, the flame spectrum particularly sensitive
  • Sensitivity adjustable (shown in blue digital potentiometer adjustment)
  • The comparator output directly triggers the relay
  • External dimensions: 50x26mm, thickness 19mm, with fixed bolt hole for easy installation
  • The output bluish Terminal Block Terminal convenient

Module for use:

  • The flame sensor most sensitive to sunlight is also a reaction, generally used as fire alarm and other purposes.
  • By adjusting the potentiometer, you can set the intensity of the flame sensor senses when the flame exceeds a set threshold, the relay, normally open end and connected to the public, when the flame is below the set threshold, the relay is switched off, the common and normally closed terminal connected;
  • Common, normally open, normally closed three ports are equivalent to a dual-control switch, relay coil power, often beginning with common terminal conduction, no electricity, the common and normally closed terminal conduction;
  • The sensor and the flame to maintain a certain distance, so as not to damage the sensor temperature of the test flame lighters distance 80cm, the larger the flame, the greater the distance test.

Application:

  • Various flame Fire detection
  • Relay output
  • Can be accessed 220V high current electrical equipment.

Package Included:

1 x One Way 12V Flame Sensor Relay Module Fire Sensor Flame Detection Sensor Fire Detector Sensor with Relay
