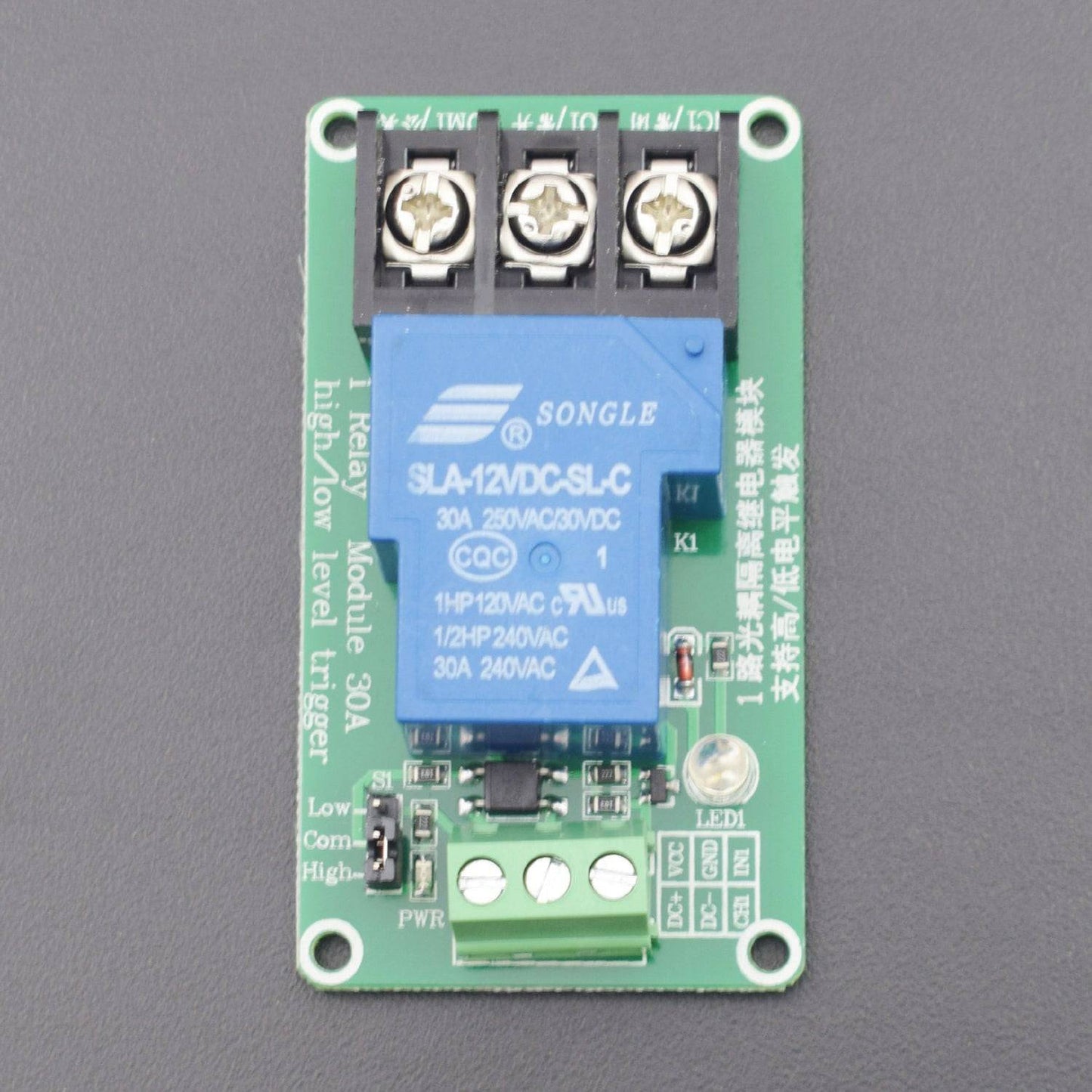

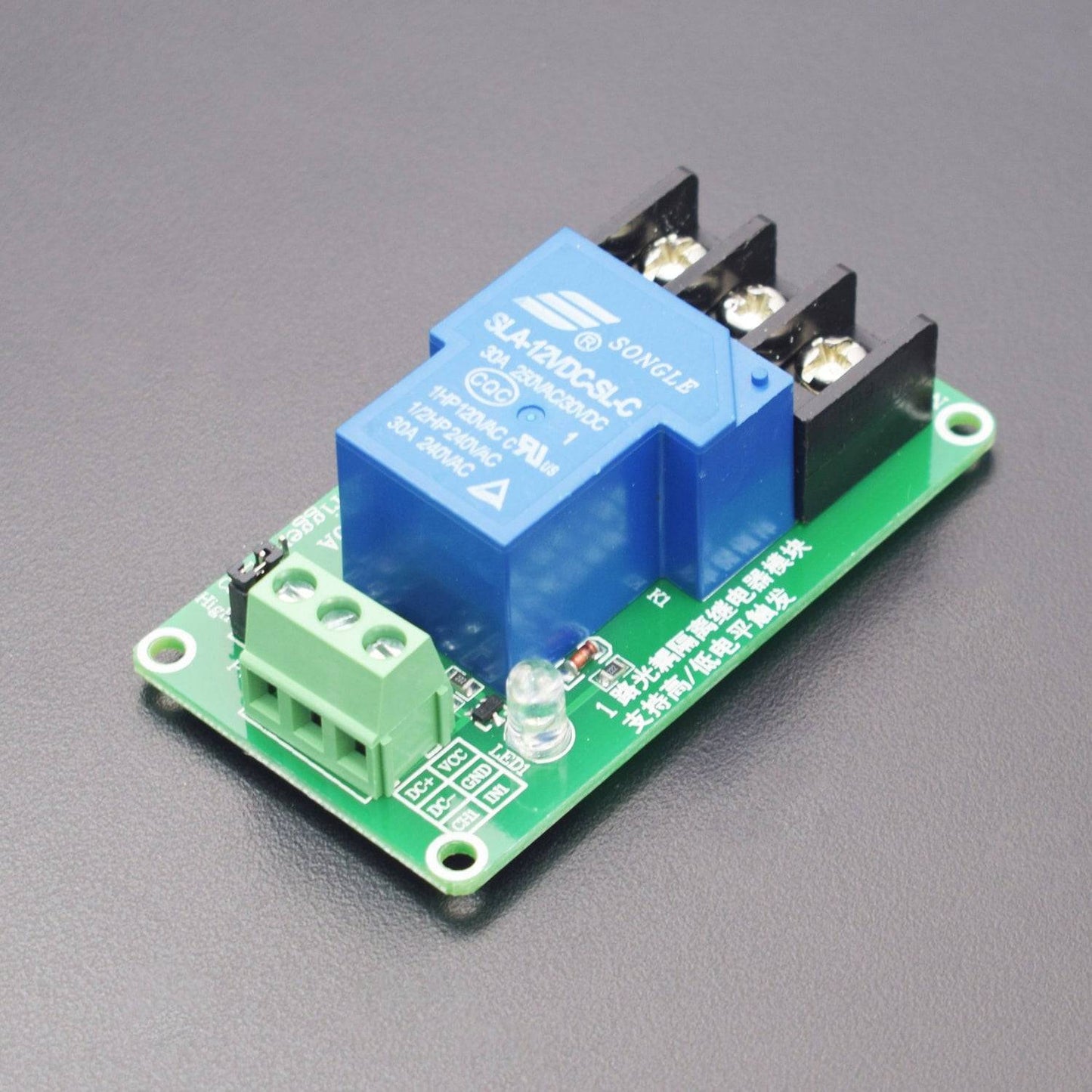

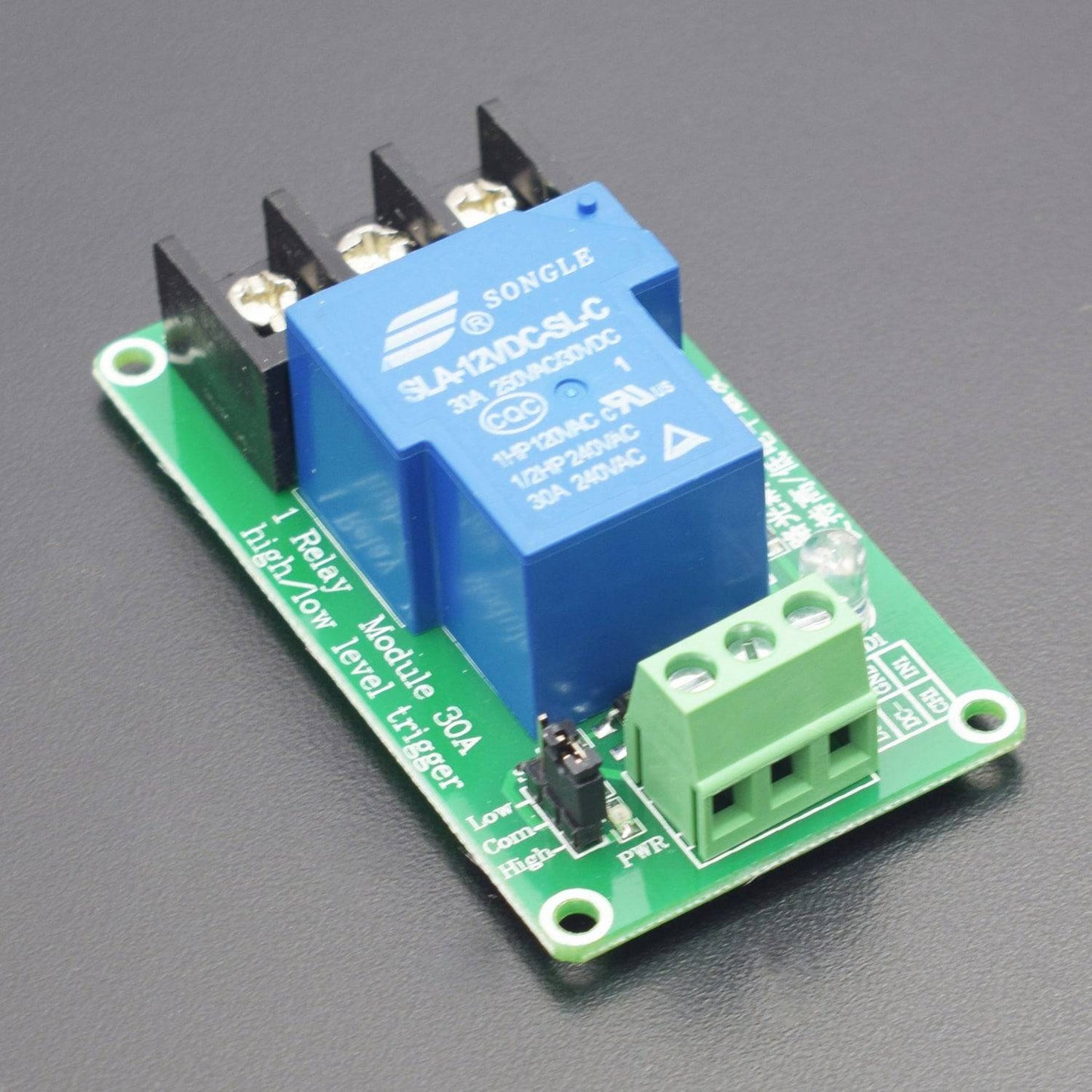

1-Channel 30A Relay Module With Optocoupler Isolated 12V High/Low Trigger Relay For DIY Electronics & Robotics - RS1825

1-Channel 30A Relay Module With Optocoupler Isolated 12V High/Low Trigger Relay For DIY Electronics & Robotics - RS1825

SKU:RS1825

Low stock: 10 left

Regular price Rs. 225.00
Regular price Sale price Rs. 225.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This One Channel 30A Relay Module Optocoupler Isolation 12V High/Low-Level Trigger is using optocoupler isolation, strong anti-jamming capability and stable performance. The module can be installed with a high or low trigger. With power indicator and operating indicator. To ensure stability, an industrial-grade PCB and 9.5 mm barrier terminals are used. It is suitable for PLC automation equipment control and industrial field.

Specification:

  • Type: 1-channel
  • Relay Voltage: 12 V
  • Output Capacity: within DC 30 V 30A or AC 250 V 30A
  • Quiescent Current: 5mA
  • Maximum Current: 12V: 80mA
  • Starting Current: 5mA

Features:

  • Using optocoupler isolation, strong anti-jamming capability, and stable performance.
  • The module can be installed with a high or low trigger.
  • With power indicator and operating indicator.
  • To ensure stability, an industrial-grade PCB and 9.5 mm barrier terminals are used.
  • All interfaces can be connected directly via terminal wiring, very convenient.

Module Interface:

  • DC +: DC power supply is positive
  • DC-: DC power module is negative
  • V: terminal input signal (support high/low-level switch freely)
  • Normally open (no): relay normally open
  • Common Terminal (COM): common relay terminal
  • Normally closed terminal (NC): relay normally closed terminal

Package Included:

1 x One Channel 30A Relay Module
