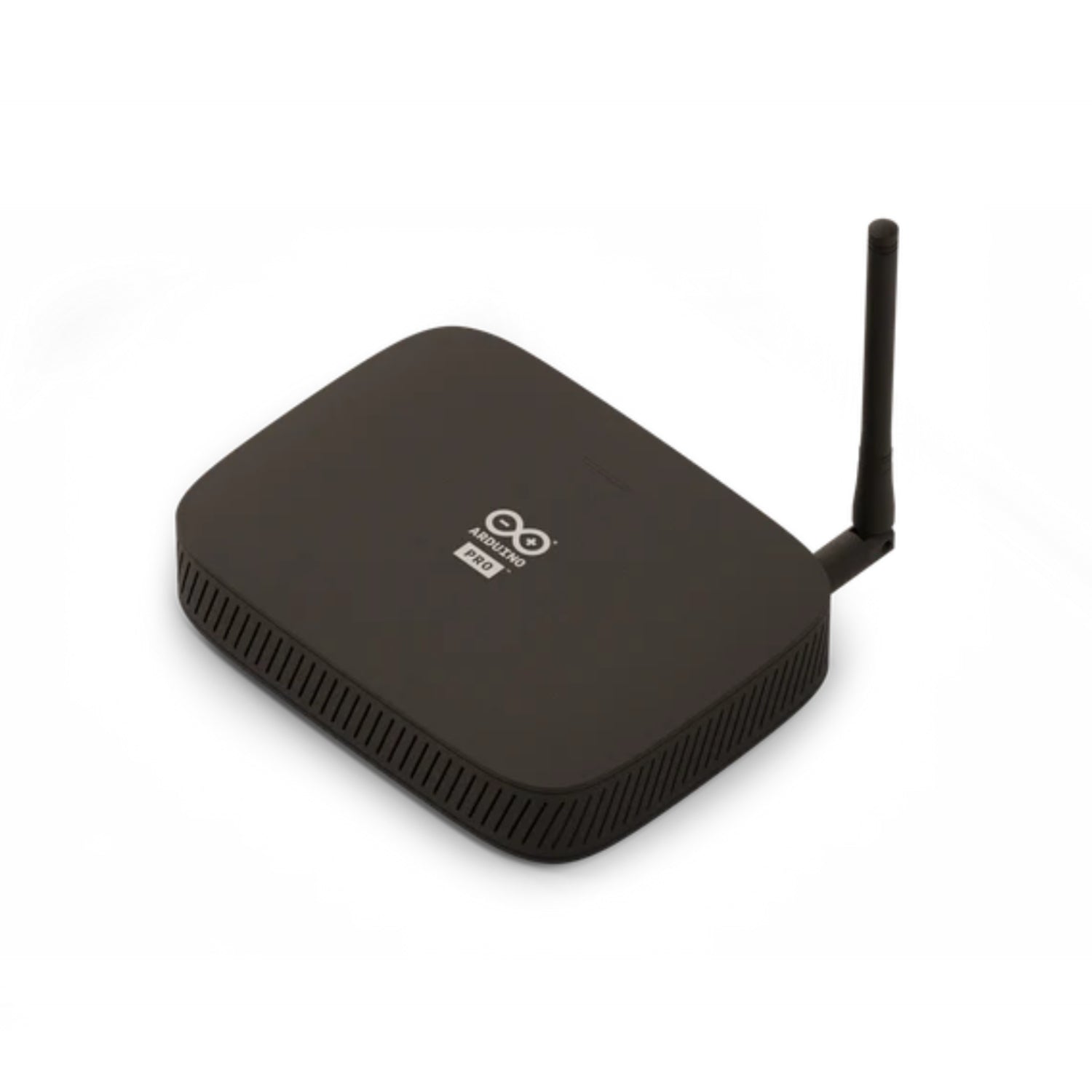

Official Arduino WisGate Edge Lite 2 - EU 8 Channels Industrial-Grade LoRaWAN Gateway Built-in Network Server For IoT

Description:

The Arduino WisGate Edge Lite 2, developed with RAKwireless™, is a powerful LoRaWAN gateway designed for secure, reliable connectivity in professional settings. This robust IoT edge device is perfect for creating medium to wide area network coverage, especially in challenging industrial environments.

It excels at providing deep indoor coverage, making it ideal for multi-story buildings, large parking facilities, and factories where consistent communication is crucial. You'll find it incredibly easy to set up and diagnose right out of the box, with comprehensive tutorials and documentation to guide you.

This gateway seamlessly integrates with the Arduino ecosystem, including MKR and Portenta SOM boards and the Arduino IoT Cloud platform. This empowers you to build and deploy complete industrialized IoT/IIoT and Industry 4.0 applications.

Connectivity options are versatile, featuring Ethernet, Wi-Fi, and LTE backhaul, alongside 8 configurable LoRa channels. Running on WisGateOS (a customizable OpenWRT-based OS), it supports Power over Ethernet (PoE) for simpler installation, an SD card slot for backups and data logging, and an optimized enclosure for efficient cooling with wall or DIN rail mounting options.

Specifications:

• Processor: MT7628, DDR2 RAM 128 MB
  32 MB flash memory
• LoRa:
  • EU868/US915/AS923/AU915
  • LoRaWAN 1.03 stack
  • LoRa® Packet Forwarder
  • Basic Station
  • Network Server
  • Max Transmit Power 27 dBm
  • Min Receiver Sensitivity -139 dBm

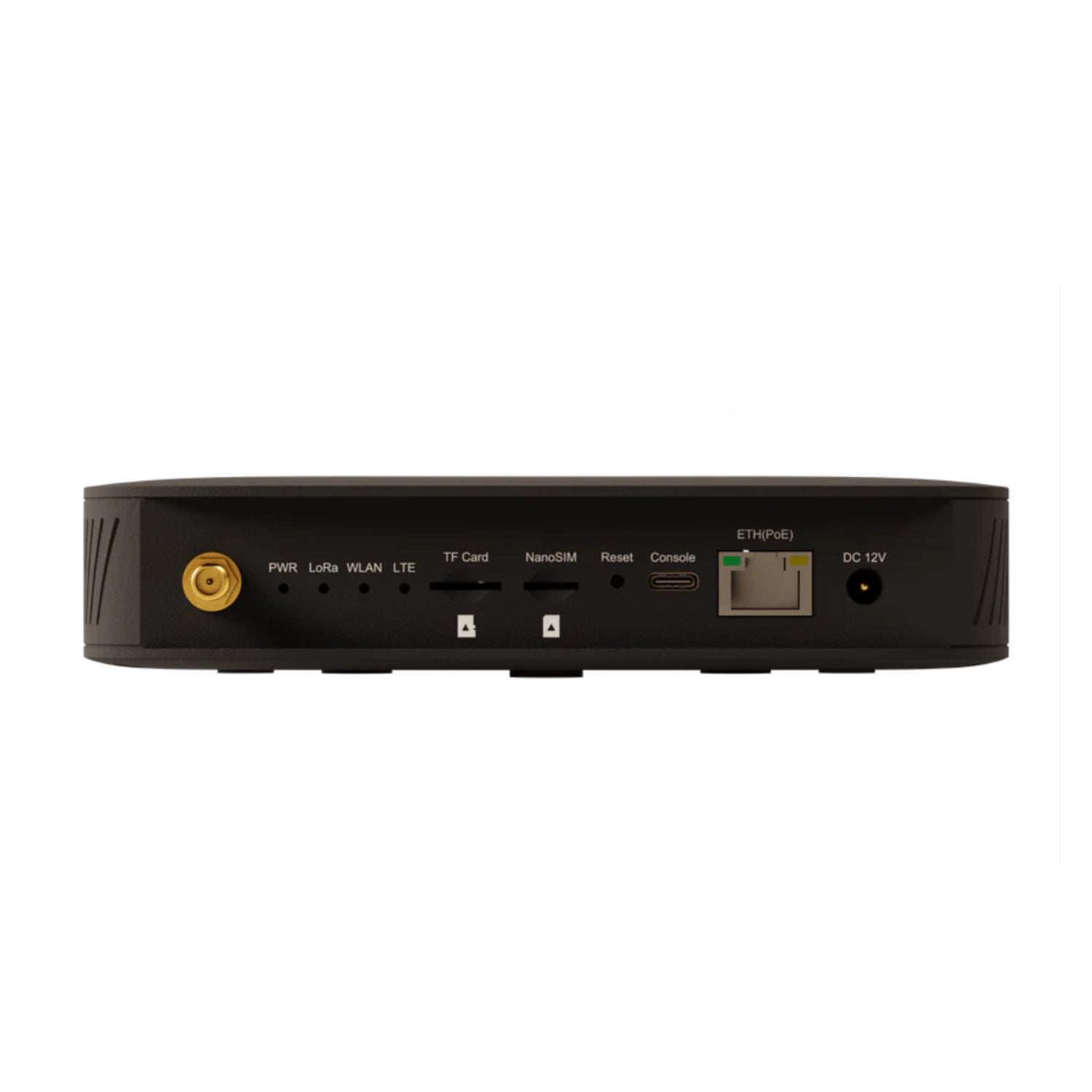

• Interfaces:
  • Ethernet RJ45 10/10 Mbps
  • USB
  • SD-CARD and SIM slots
• Connectivity:
  • IEEE 802.11b/g/n Wi-Fi
  • LTE (EMEA)
  • LTE FDD: B1/B3/B7/B8/B20/B28A
  • WCDMA: B1/B8
  • GSM/EDGE: B3/B8
  • LTE (USA)
  • LTE FDD: B2/B4/B5/B12/B13
  • WCDMA: B2/B4/B5
• Software Features:
  • OpenVPN, Ping Watch Dog
  • SSH2
  • NTP
  • Router module NAT
  • Firewall
  • Wi-Fi AP mode
  • DHCP Server/Client
  • MQTT/S Bridging
  • LoRa® Data Logger
  • LoRa® Statistics
  • LoRa® Frame Filtering
• Antennas:
  • LoRa® with RP-SMA connector
  • LTE Internal antenna
  • Wi-Fi Internal antenna

Features:

• High-Performance Core: Powered by a robust MT7628 processor with 128MB RAM and 32MB flash storage.
• Powerful LoRa®: Features an 8-channel SX1302 module, offering exceptional sensitivity and strong 27dBm transmit power.
• Flexible Connectivity: Includes Ethernet, Wi-Fi (2.4GHz), and optional LTE for versatile networking.
• Dual Power Options: Supports both a standard 12V DC adapter and Power over Ethernet (PoE).
• Optimized Antennas: External antenna for LoRa® and internal antennas for Wi-Fi, GPS, and LTE.
• Customizable OS: Runs on a flexible WisGateOS (OpenWRT-based) for full customization.
• Comprehensive Software: Built-in features like OpenVPN, NTP, Firewall, and Wi-Fi AP mode.
• Local Storage: MicroSD card slot for data logging and frame buffering.

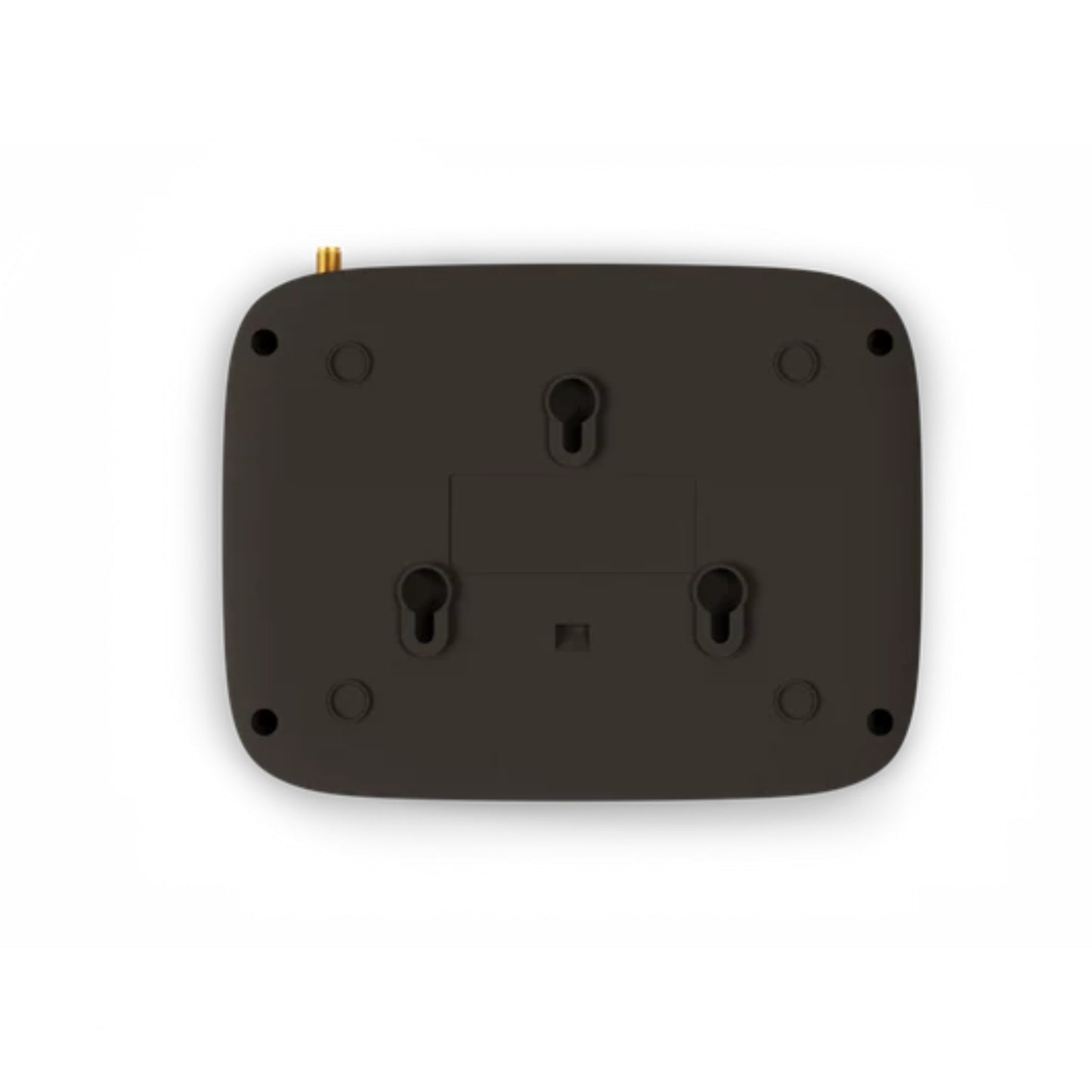

• Durable & Compact: IP30-rated plastic enclosure, designed for wall or DIN rail mounting.
• Secure & Reliable: Supports TLS encryption and a built-in LoRaWAN® network server.
• User-Friendly: Easy management and setup via an intuitive web interface.
• Certified & Ready: Region-specific certifications including CE, FCC, and UKCA.
• Wide Temperature Range: Operates reliably from -10°C to +55°C.

Package Included:

1 x Official Arduino WisGate Edge Lite2 - EU
