Description:

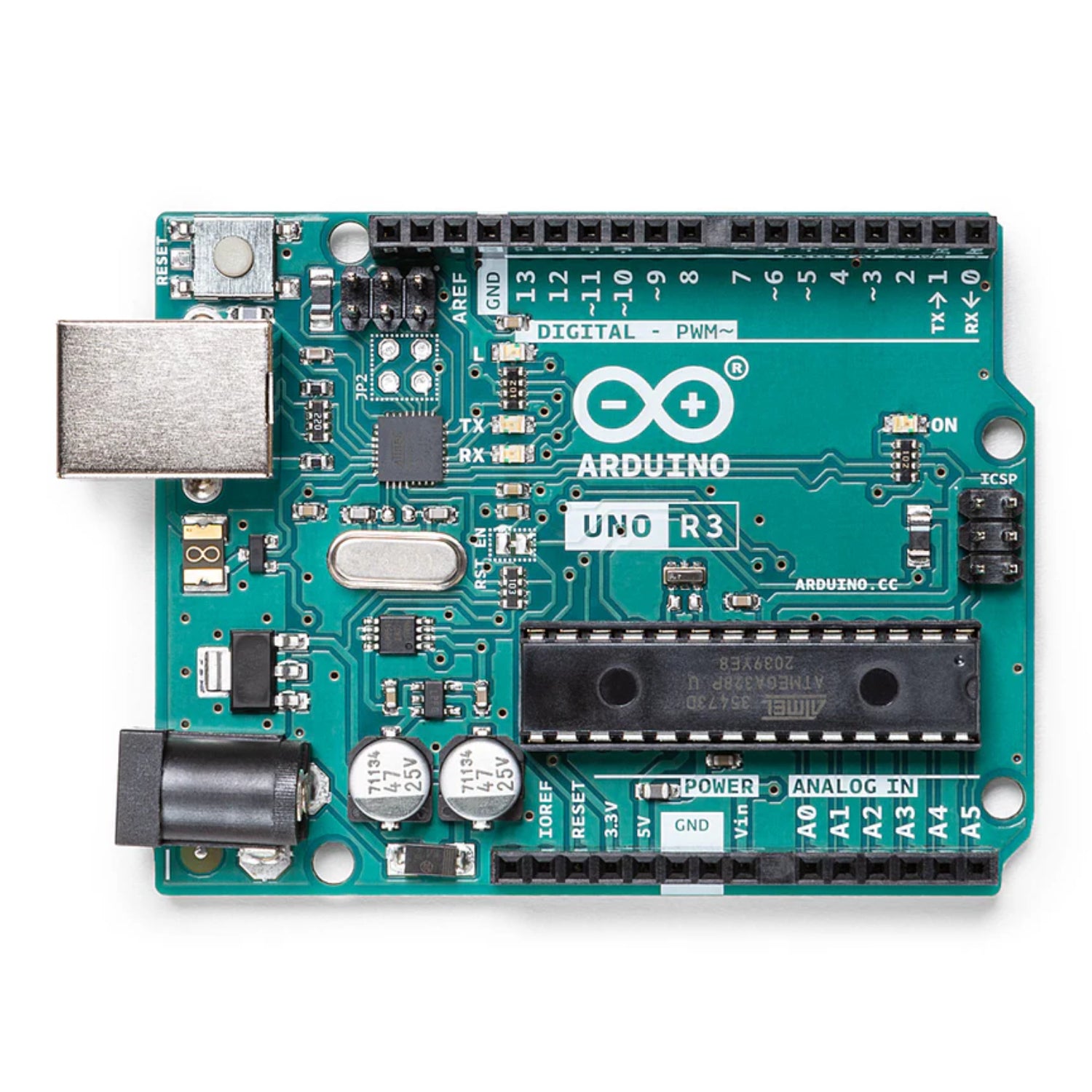

Arduino Uno is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
Specifications:
- Microcontroller: ATmega328P
- Operating Voltage: 5V
- Supply Voltage: 7-12V
- Maximum supply voltage: 20V
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- Analog Input Pins: 6
- USB Interface: Standard USB Type-B
- DC Current per I/O Pin: 40mA
- DC Current for 3.3V Pin: 50mA
- Flash Memory: 32 KB of which 0.5 KB is used by the bootloader
-
SRAM: 2KB
- EEPROM: 1KB
- Clock Speed: 16MHz
Features:
- This Arduino UNO R3 is a original board made in Italy by Arduino Officials
- This Arduino microcontroller board is the first in a series of USB Arduino boards
- Arduino platforms helps students empower in their journey of learning
- With this board you can start controlling the world around you

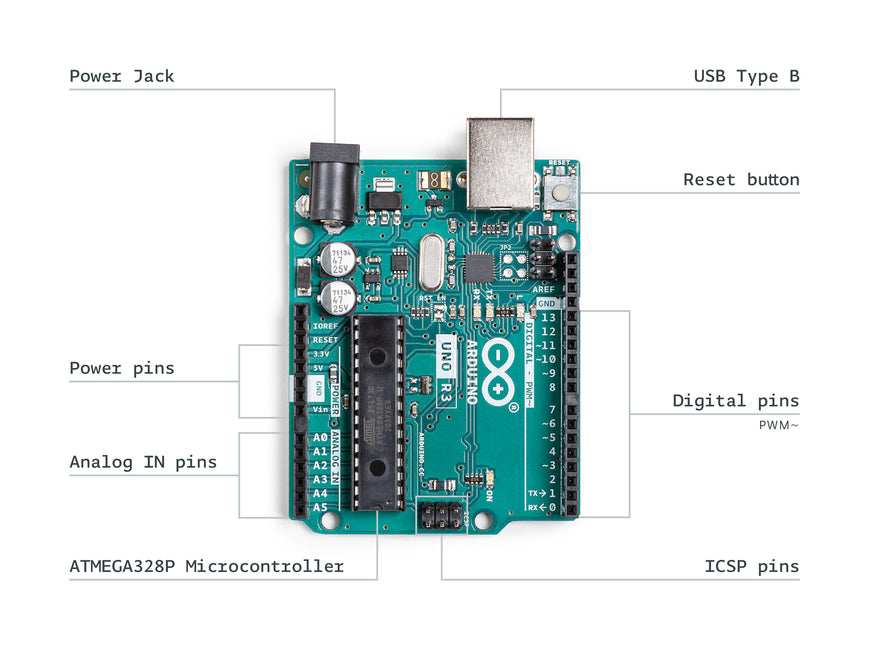

Pin Description:
Useful Link:
Package Included:

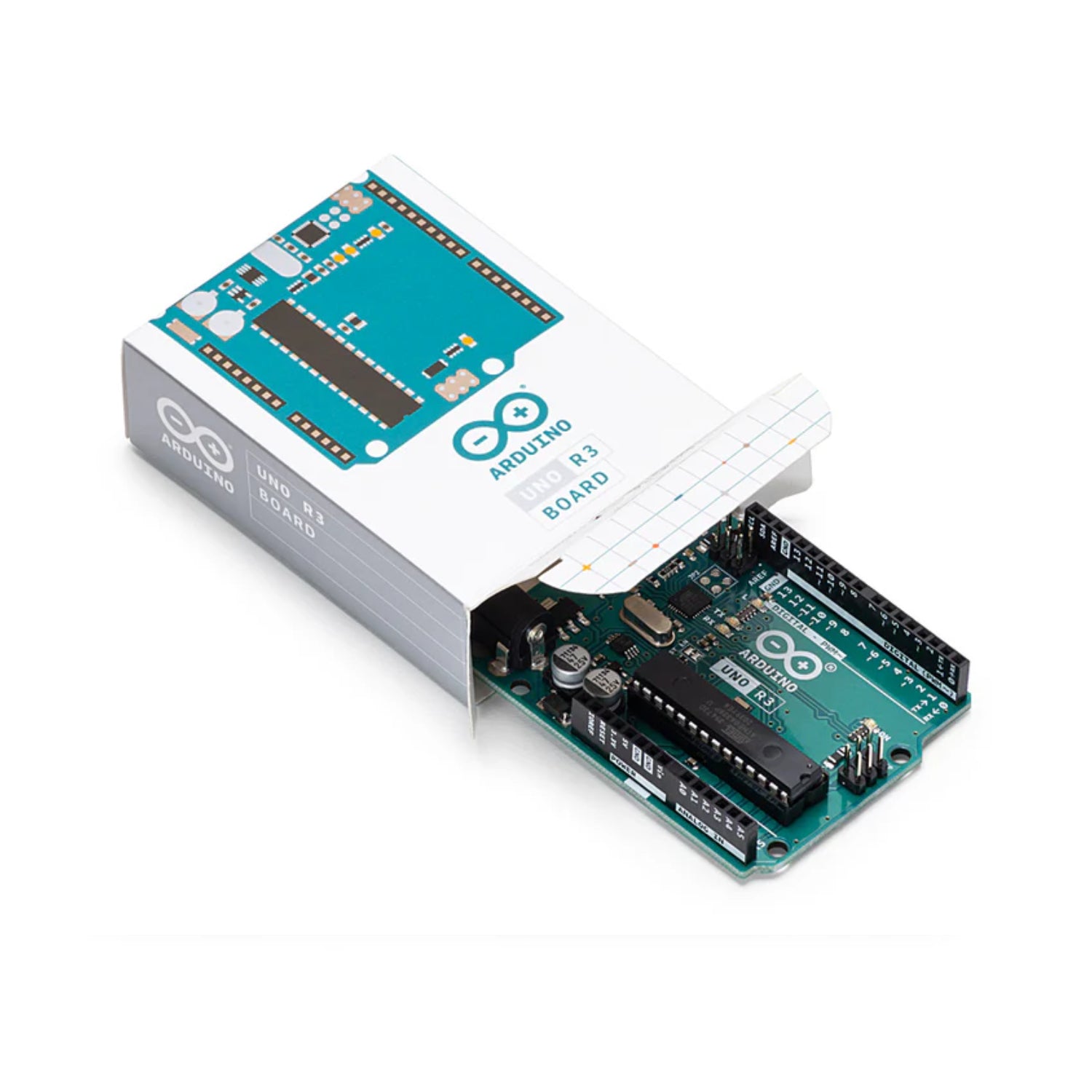

1 x Official Arduino Uno R3 Development Board
