• ABX00162
  • Official Arduino UNO Q SBC
  • Arduino UNO Q
  • Official Arduino UNO Q
  • Arduino UNO Q - ABX00162
1 6

Arduino

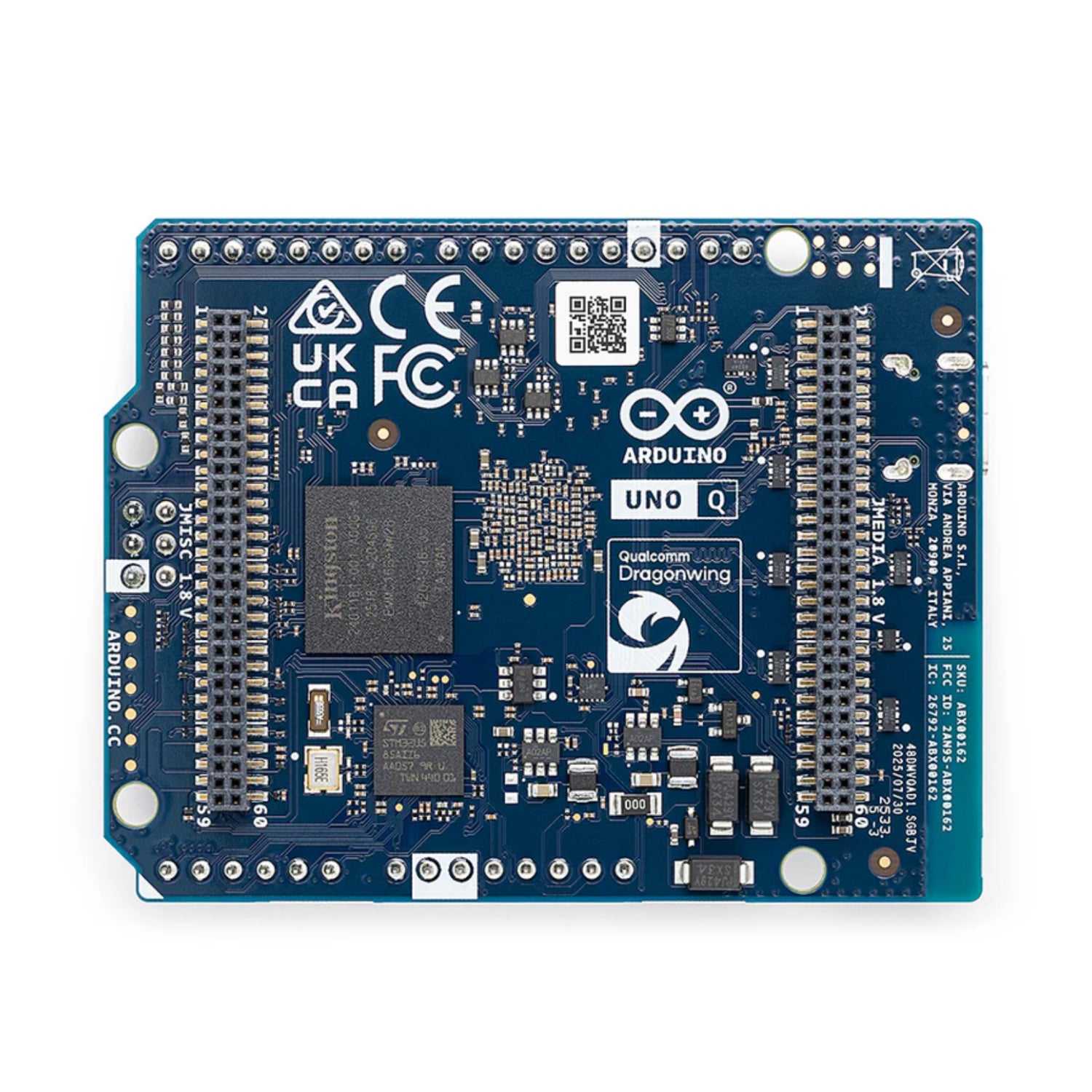

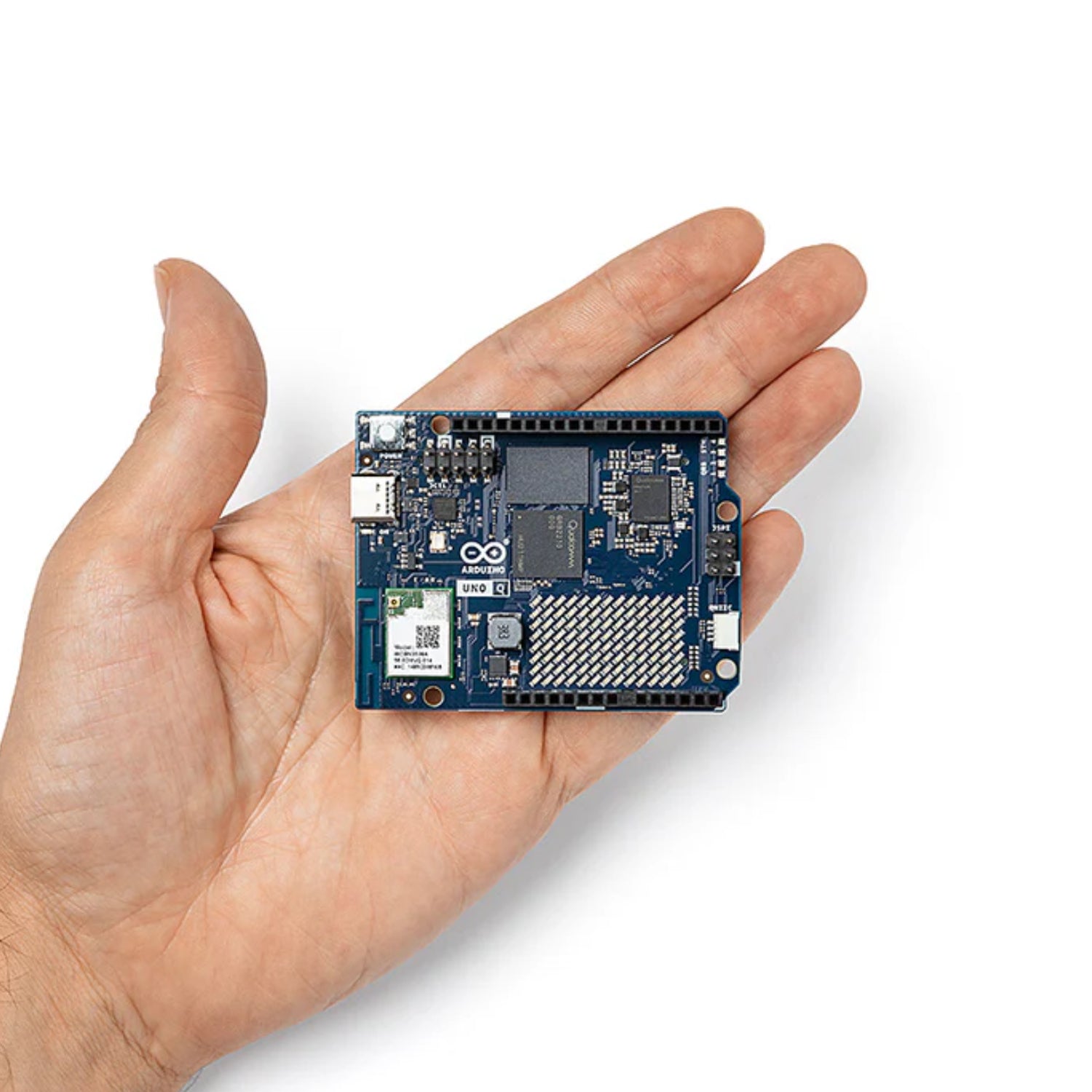

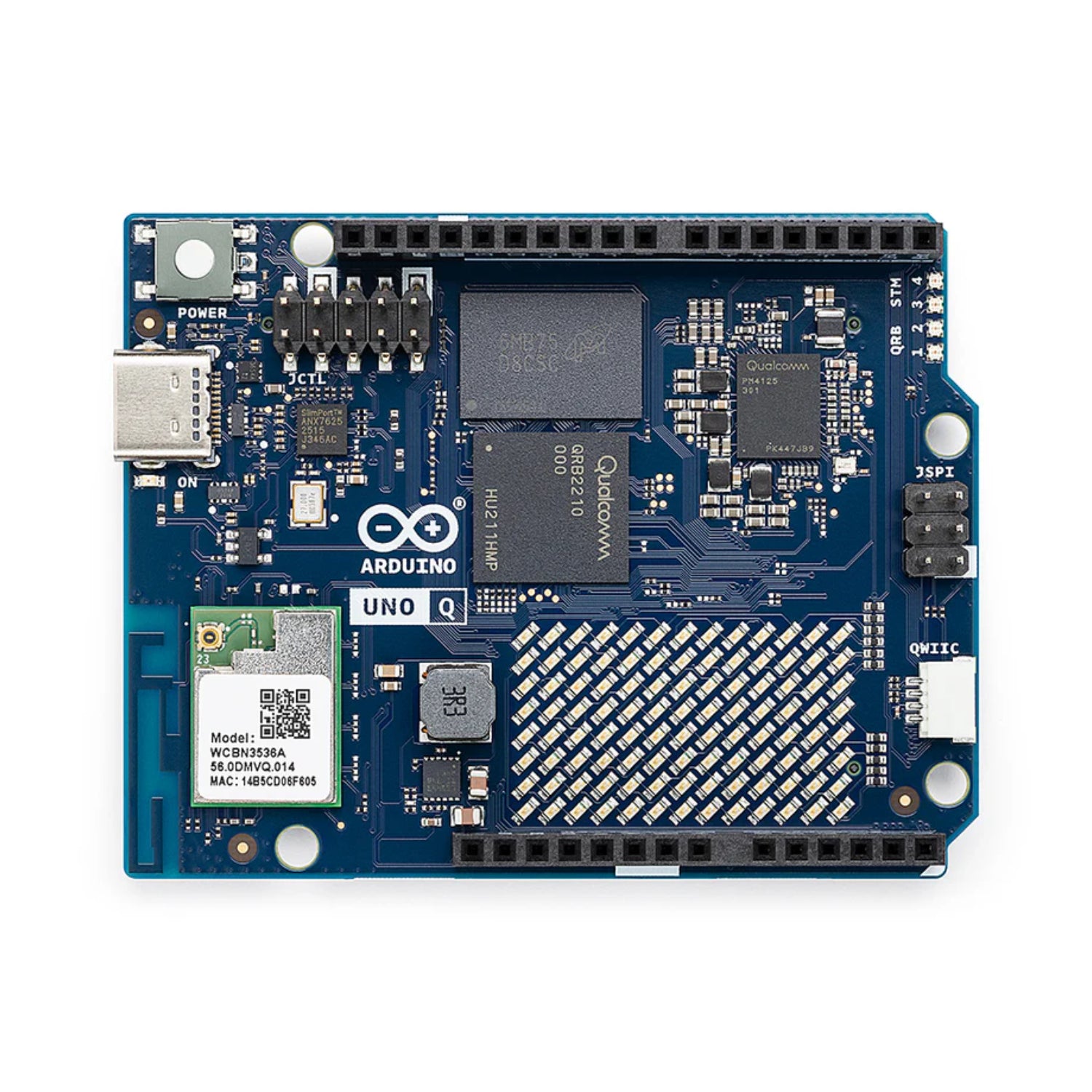

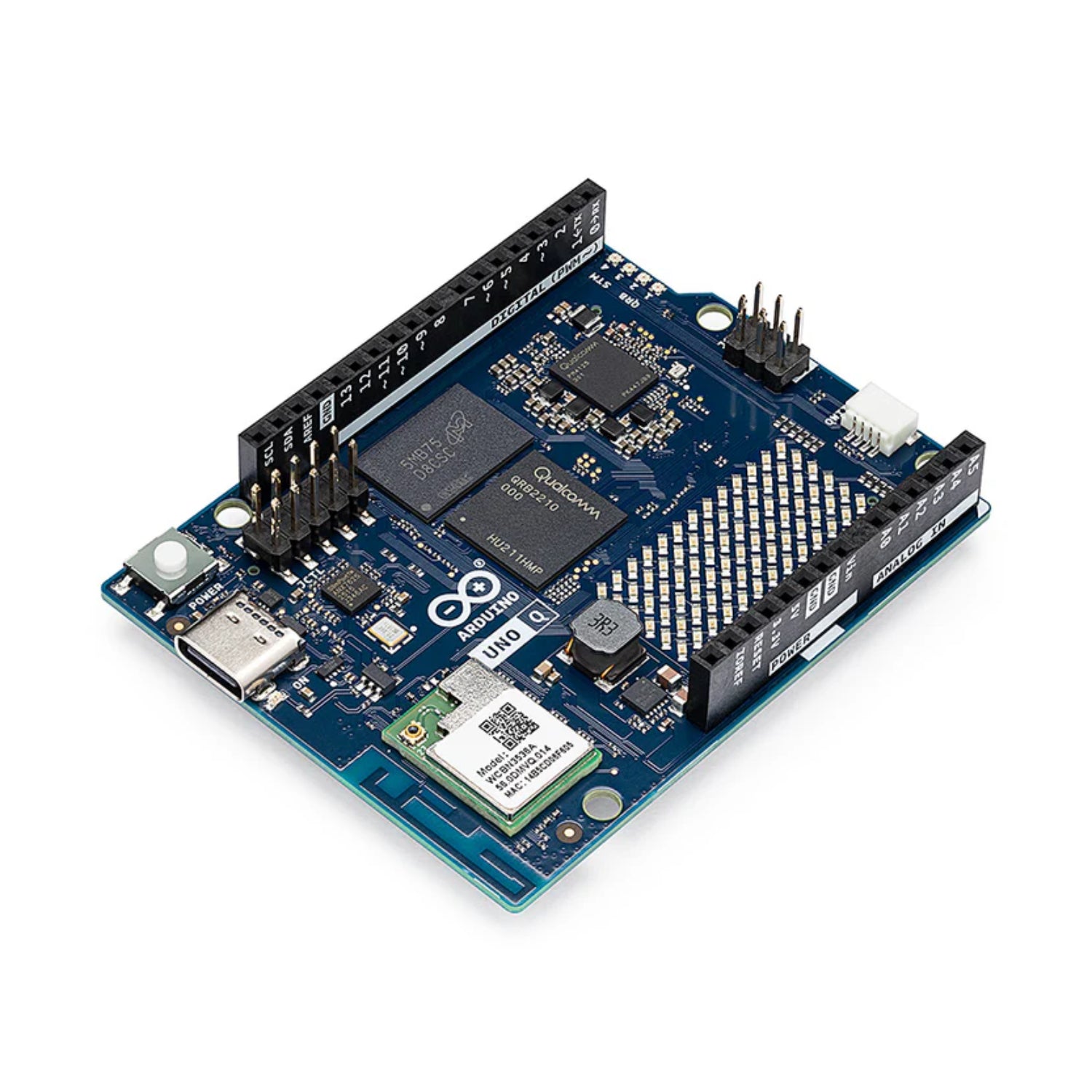

Official Arduino UNO Q Single Board Computer Dual-Core MPU + MCU Hybrid Processor with Linux Debian OS & Docker Support - RS8953

Official Arduino UNO Q Single Board Computer Dual-Core MPU + MCU Hybrid Processor with Linux Debian OS & Docker Support - RS8953

RS8953

Low stock: 4 left

Rs. 3,939.00
Rs. 3,939.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Arduino UNO Q’s hybrid design makes it the perfect dual-brain platform for your next innovation. It combines a Linux® Debian-capable Qualcomm® Dragonwing™ QRB2210 microprocessor with a real-time STM32U585 microcontroller (MCU). It’s Arduino, it’s a computer, it’s anything you want to build.

Specifications:

Microcontroller:

STM32U585 Arm Cortex-M33 up to 160 MHz 2 MB flash memory 786 KB SRAM
Microprocessor

Qualcomm Dragonwing QRB2210: Quad-core Arm Cortex-A53 @ 2.0 GHz ,Adreno GPU 3D graphics accelerator ,2x ISP (13 MP + 13 MP or 25 MP) @ 30 fps
Operating systems

Linux Debian + Zephyr RTOS
Power Supply

From USB-C connector 5 VDC max at 3 A, Input Voltage (VIN): 5 VDC
Connectivity

Wi-Fi 5 2.4/5GHz with onboard antenna, Bluetooth 5.1 with onboard antenna
Clock Speed

160 MHz (MCU), 2.0 GHz (MPU)
RAM:

2GB LPDDR4
Storage

16GB eMMC
GPU

Adreno 3D Graphics Accelerator
Supported Operating Systems

Debian Trixie (64-bit), For Arduino App Lab:, Linux: Ubuntu 22.04 or later, macOS: macOS 11 or later (64-bit), Windows: Windows 10 or later (64-bit)
USB

1× USB-C port with host/device role switching, power role switch and video output
Interface:

UART, ADC, CAN, GPIO, I2C/I3C, JTAG, PSSI, PWM, SPI
Video

MIPI DSI pins on JMEDIA header, Video output support via USB-C
Audio

Microphone IN / Headphone OUT / Line OUT on JMISC
Length (mm):

68.85
Width (mm):

53.34

Features:

  • Hybrid Dual-Core Performance: Fuses a powerful Qualcomm MPU (QRB2210) with an STM32 Microcontroller (U585) for simultaneous, high-speed task execution.
  • Integrated AI Platform: AI-ready out-of-the-box, supporting real-time recognition of objects, sound, and motion with pre-loaded models.
  • Simultaneous Coding: Run Arduino Sketches and Python code concurrently using the unified Arduino App Lab development environment.
  • Robust Wireless Connectivity: Built-in Dual-band Wi-Fi 5 (2.4/5 GHz) and Bluetooth 5.1 for reliable, high-speed networking.
  • Advanced Visual Feedback: Features an 8×13 LED matrix and supports external video output via the USB-C port.
  • Maximum Compatibility: Fully compatible with classic UNO shields, Qwiic modules, and Modulino nodes for easy expansion.
  • Efficient Power & Data: Simple USB-C power input (5V/3A) with support for fast data transfer.
  • Pro-Developer Tools: Includes an onboard Linux Debian OS and Docker support for powerful, containerized application development.
  • Rich Onboard Hardware: Includes 4 RGB user LEDs, a dedicated LED matrix, Qwiic I2C connector, and user push-buttons for immediate prototyping.

Useful Link:

Datasheet

Package Included:

  • 1 x Official Arduino UNO Q Single Board Computer
  • 1 x Quick Start Guide (English)
