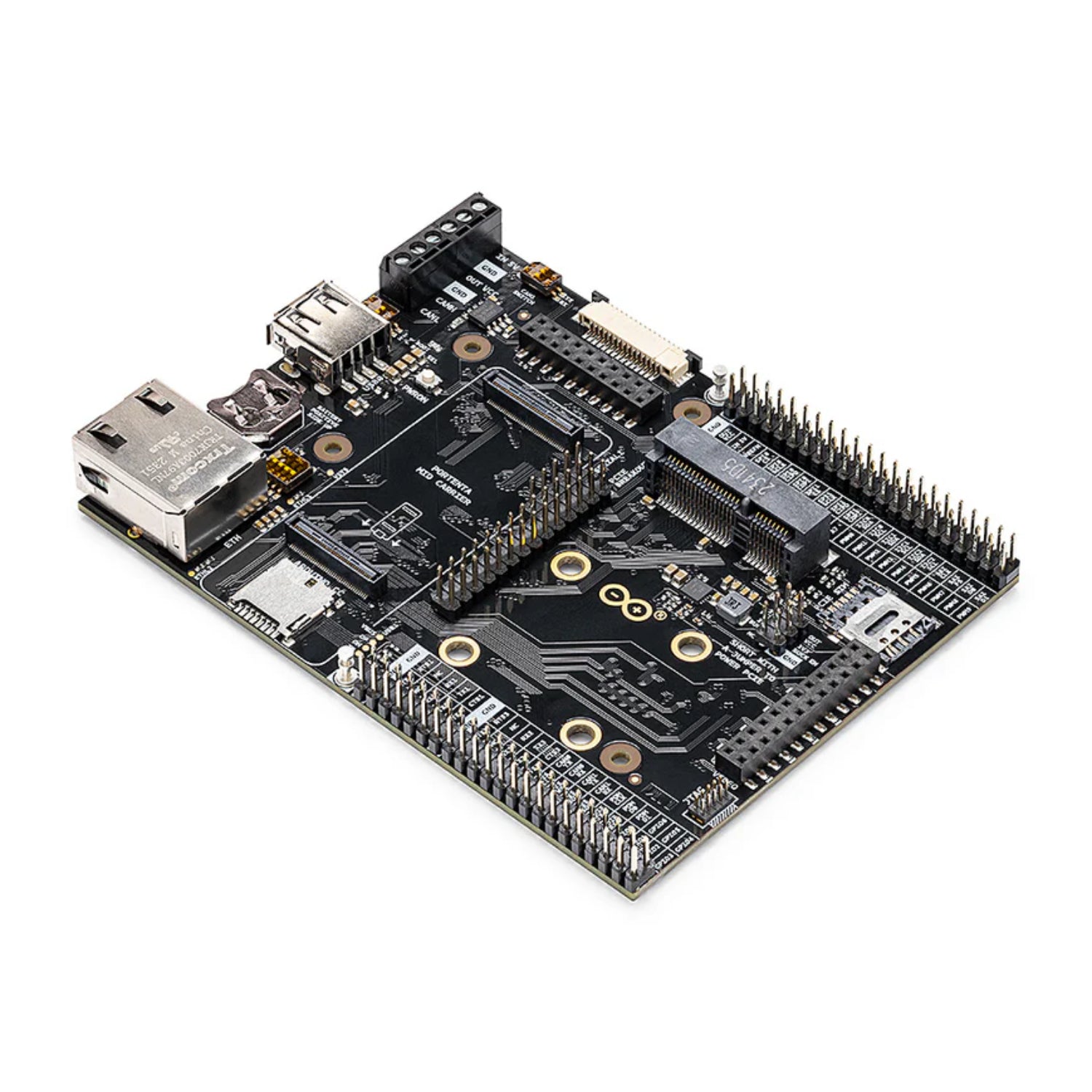

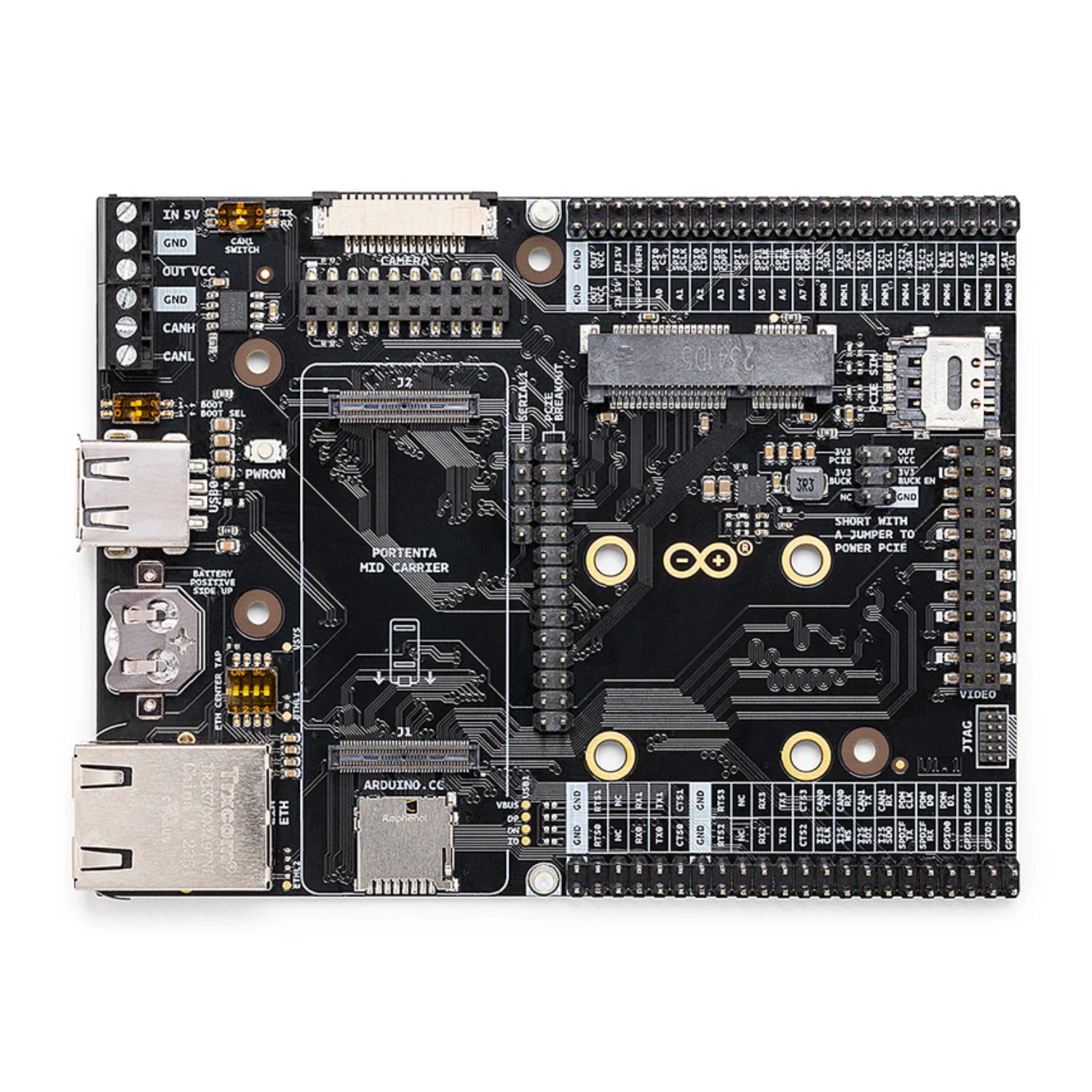

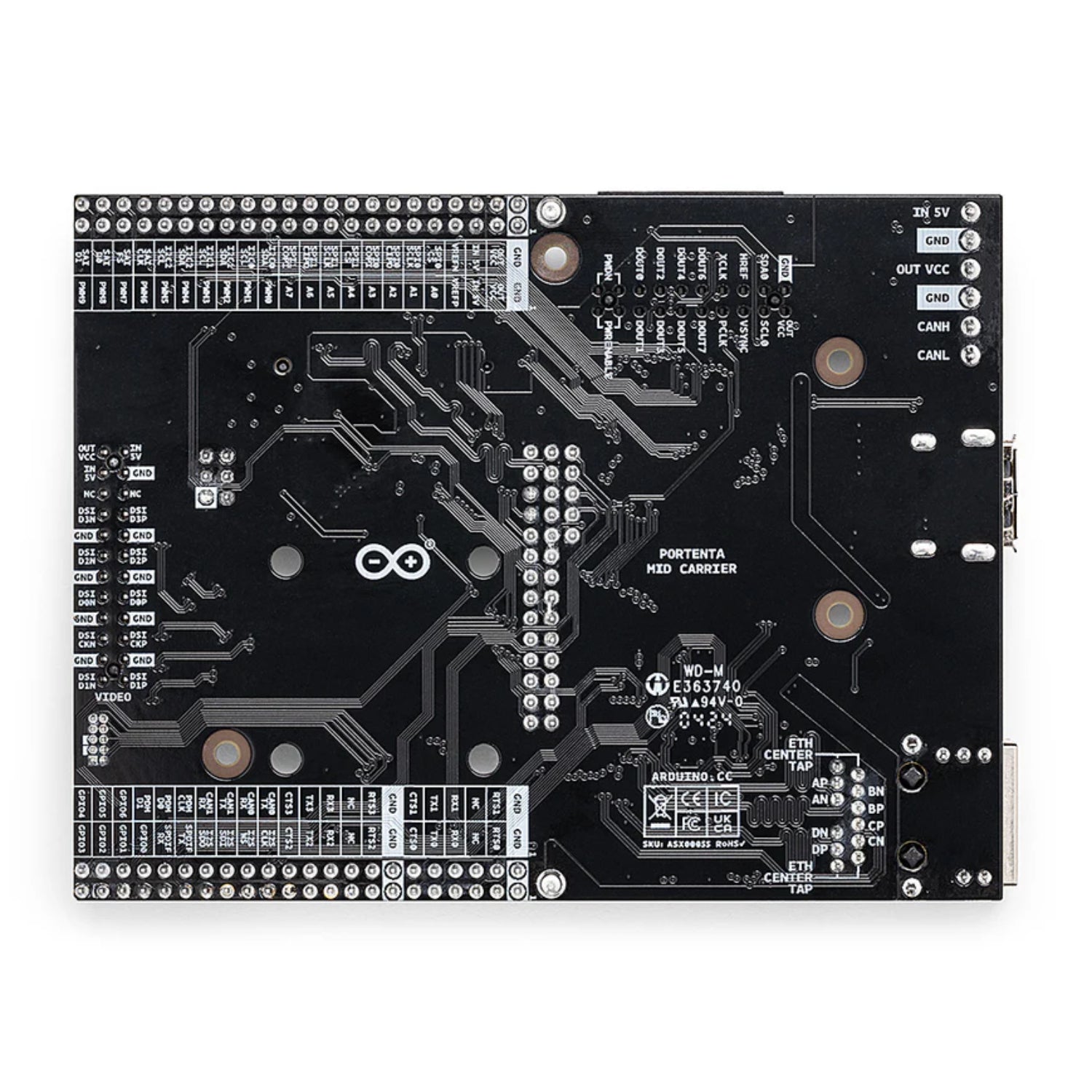

Official Arduino Portenta Mid Carrier Board for Portenta C33, H7, & X8 Modules - Accelerate Prototyping

Official Arduino Portenta Mid Carrier Board for Portenta C33, H7, & X8 Modules - Accelerate Prototyping

In stock

Rs. 5,249.00
Rs. 5,249.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Arduino Portenta Mid Carrier is your all-in-one solution for accelerating development with Portenta System on Modules. This board provides immediate access to all high-density signals via clearly marked headers, streamlining your prototyping process. It comes fully equipped with a mini PCIe connector, two CAN interfaces (one with an onboard transceiver), a Gigabit Ethernet port, a microSD slot, a USB-A port, and dedicated camera connectors for MIPI and Arducam. For advanced development, it includes dedicated JTAG debug pins and an RTC with a battery backup socket. This mid carrier board is an ideal tool for rapid prototyping and serves as a robust reference design for custom hardware.

Specifications:

  • Operating Temperatures: -40° C to +85° C (-40° F to 185 °F)
  • SOM Socket: Portenta high-density connectors ×2
  • USB: USB Type-A connector
  • Ethernet: Gigabit Ethernet on RJ45
  • Interfaces: UART, I²C, SPI, PDM, SAI, GPIO, PWM, and Analog I/O
  • mPCIe: mini PCIe connector
  • CAN Interfaces: CAN and FD-CAN
  • Debugging: Onboard JTAG pins

Features:

  • Broad Compatibility: Supports Portenta C33, H7, and X8 System on Modules.
  • Integrated Connectivity: Features Gigabit Ethernet, USB-A, dual CAN, and a microSD card slot.
  • Prototyping Ready: Access all Portenta high-density signals via dedicated headers.
  • Flexible Expansion: A mini PCIe slot allows for cellular modems and other modules.
  • Advanced Tools: Includes a JTAG debug interface and an RTC with battery backup.
  • Multiple Power Options: Power the board via USB-C, headers, or a screw terminal.

 Useful Link:

Datasheet

 Package Included:

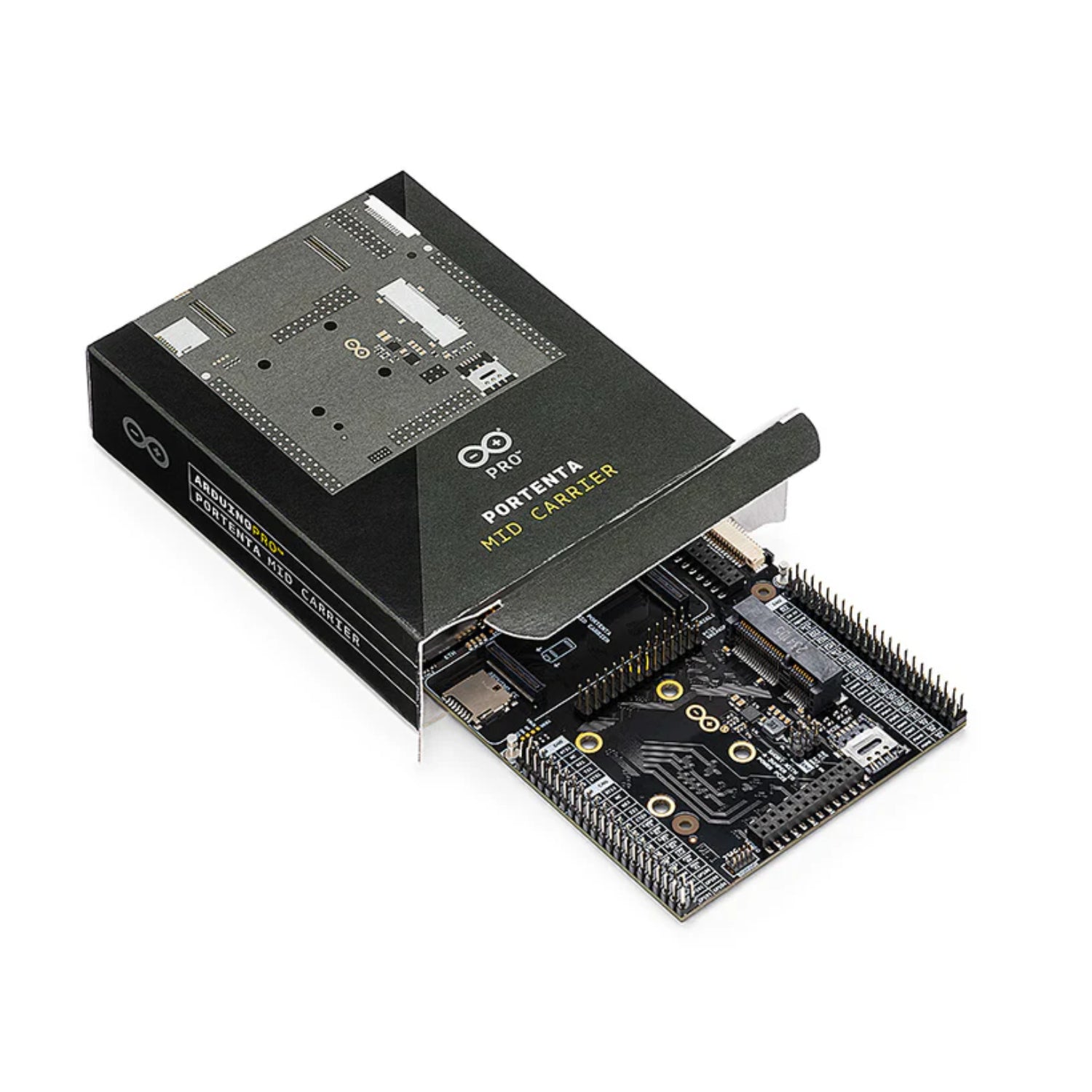

1 x Official Arduino Portenta Mid Carrier Development Board
