Description:

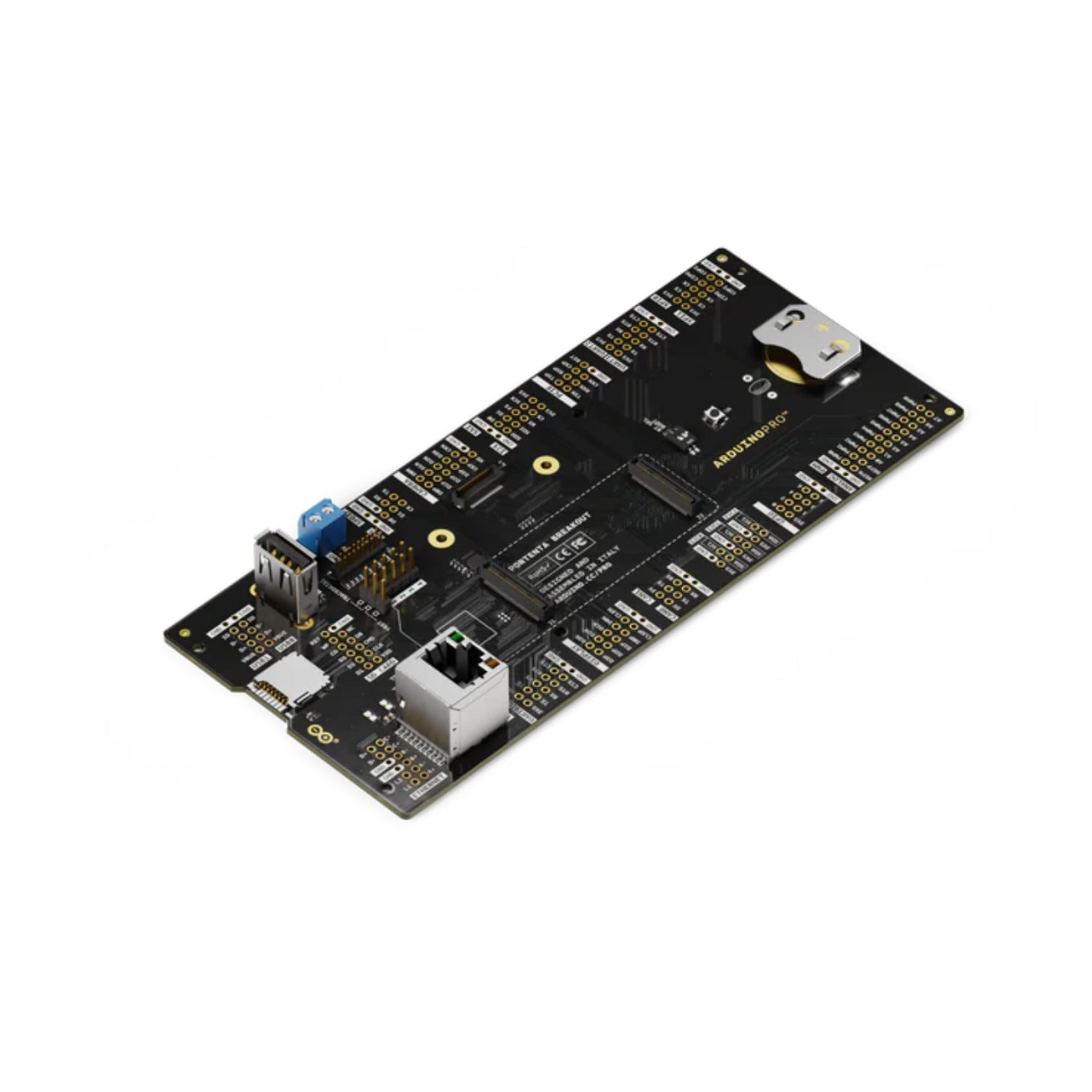

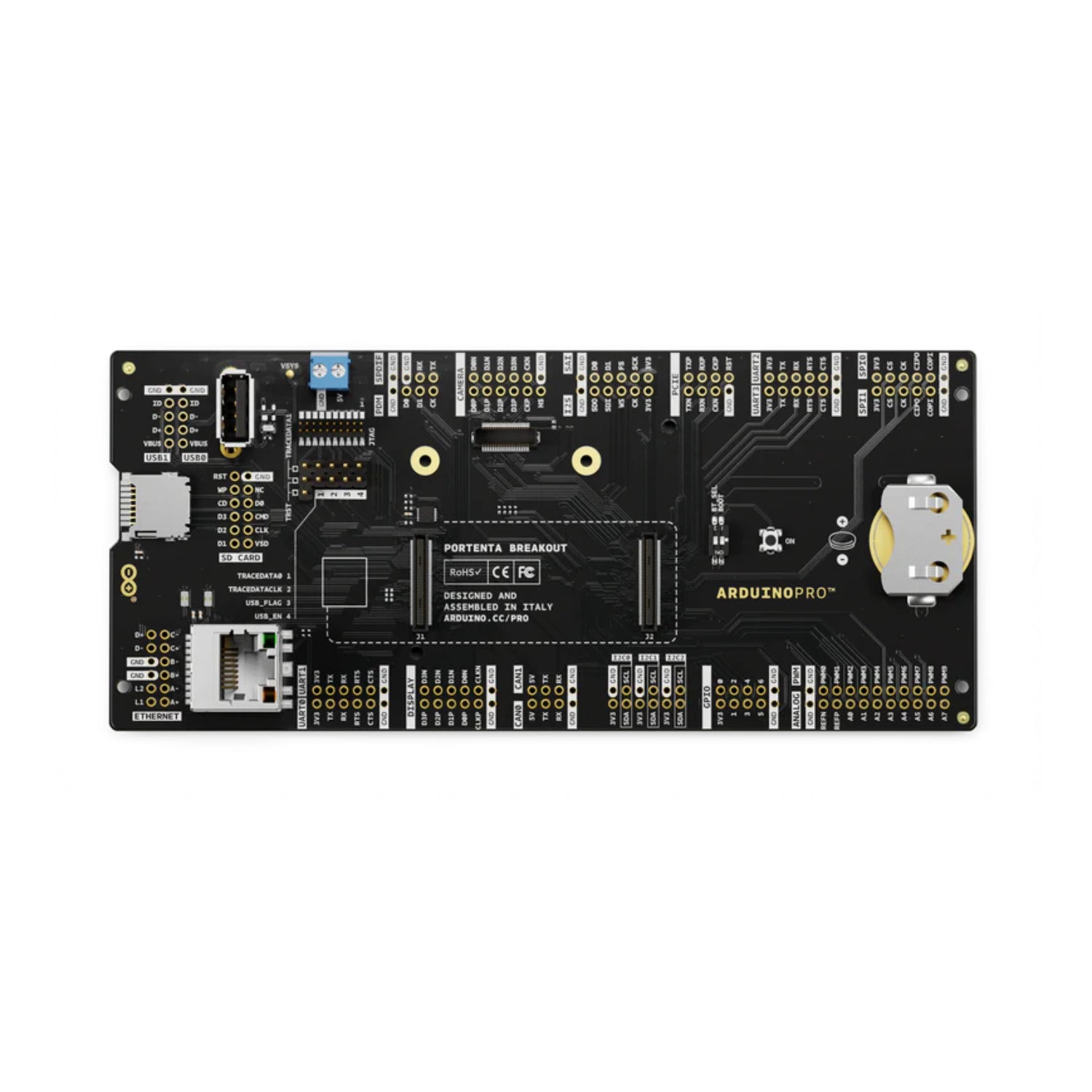

The Arduino Portenta Breakout board simplifies the prototyping and testing of circuits connected to Arduino Portenta boards. It provides individual access to all signals from the Portenta's high-density connectors, enabling straightforward connection and testing of external hardware. This board is engineered to reduce development cycles for industrial solutions and serve as a robust platform for embedded systems education. Functional features include a power ON button, a boot mode DIP switch, and RTC battery backup. Its unique design also allows it to be interposed between a Portenta board and a shield for on-the-fly signal debugging and analysis.

Specifications:

  • Ethernet: RJ45 up to 1Gb/s (Supported on Portenta X8 only)
  • Memory Slot: Micro SD card
  • Debug: MIPI 20T JTAG with trace capability
  • Connectors: HD male/female
  • RTC Power Battery: CR2032

Features:

  • Easy Control: An integrated power ON button for quick, convenient startup.
  • Simple Configuration: A boot mode DIP switch for straightforward board configuration.
  • Connectivity: Onboard USB, Ethernet (up to 1Gb/s), and a Micro SD card slot for versatile connections.
  • Continuous Timekeeping: CR2032 RTC battery backup to maintain accurate time.
  • Simplified Prototyping: All Portenta signals are broken out for effortless access and connection to external hardware.

Pin Description:

Useful Link:

Datasheet

Package Included:

1 x Official Arduino Portenta Breakout board
