Description:

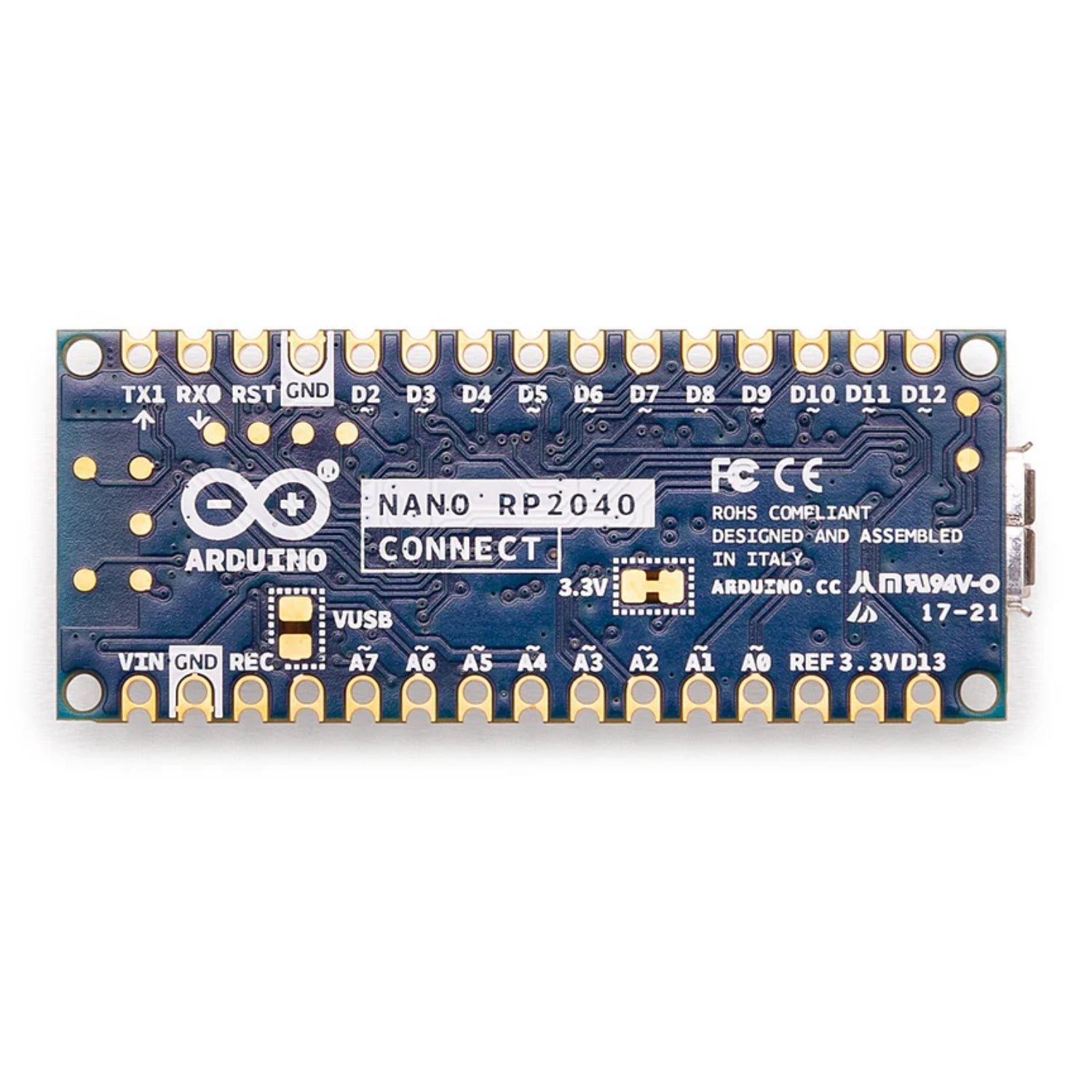

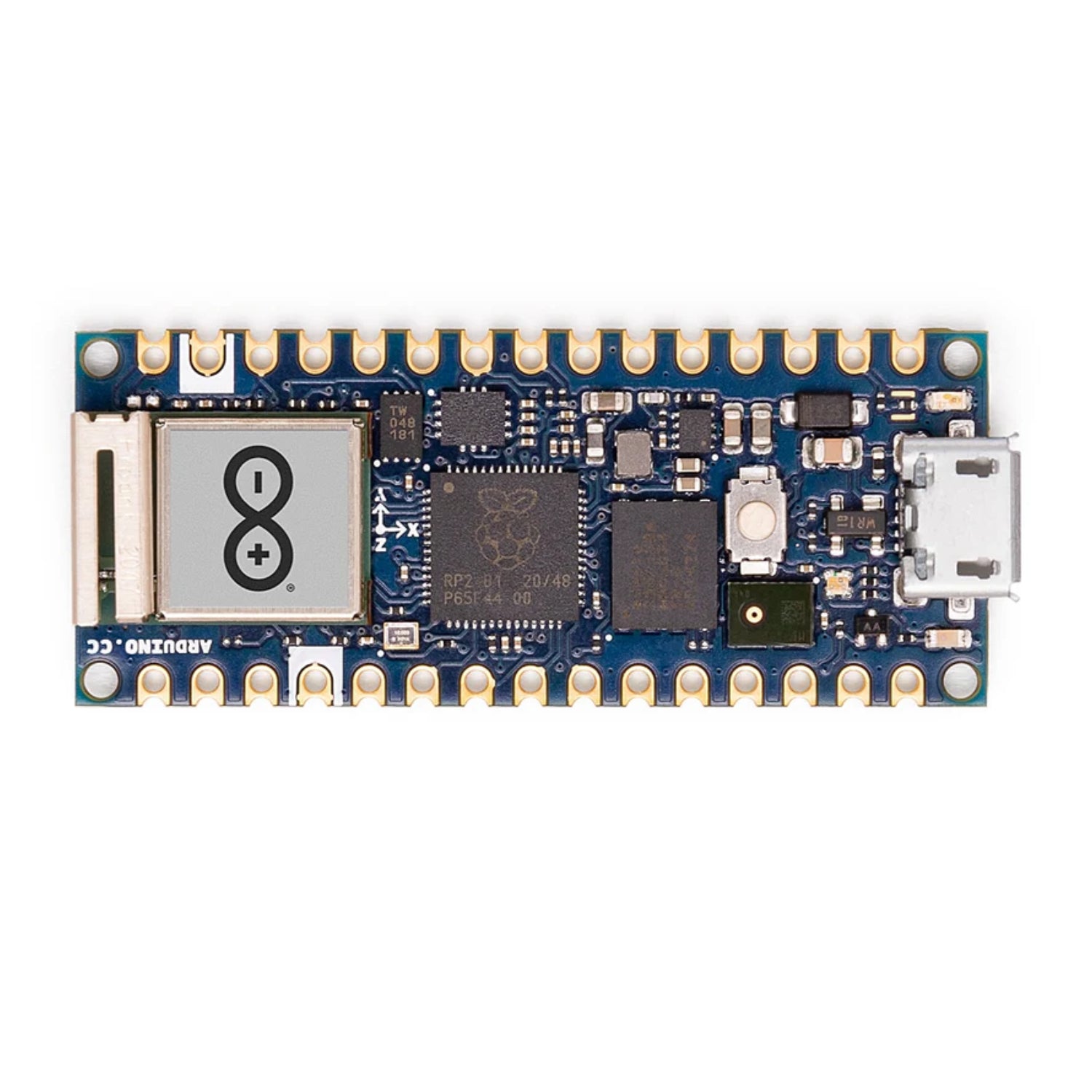

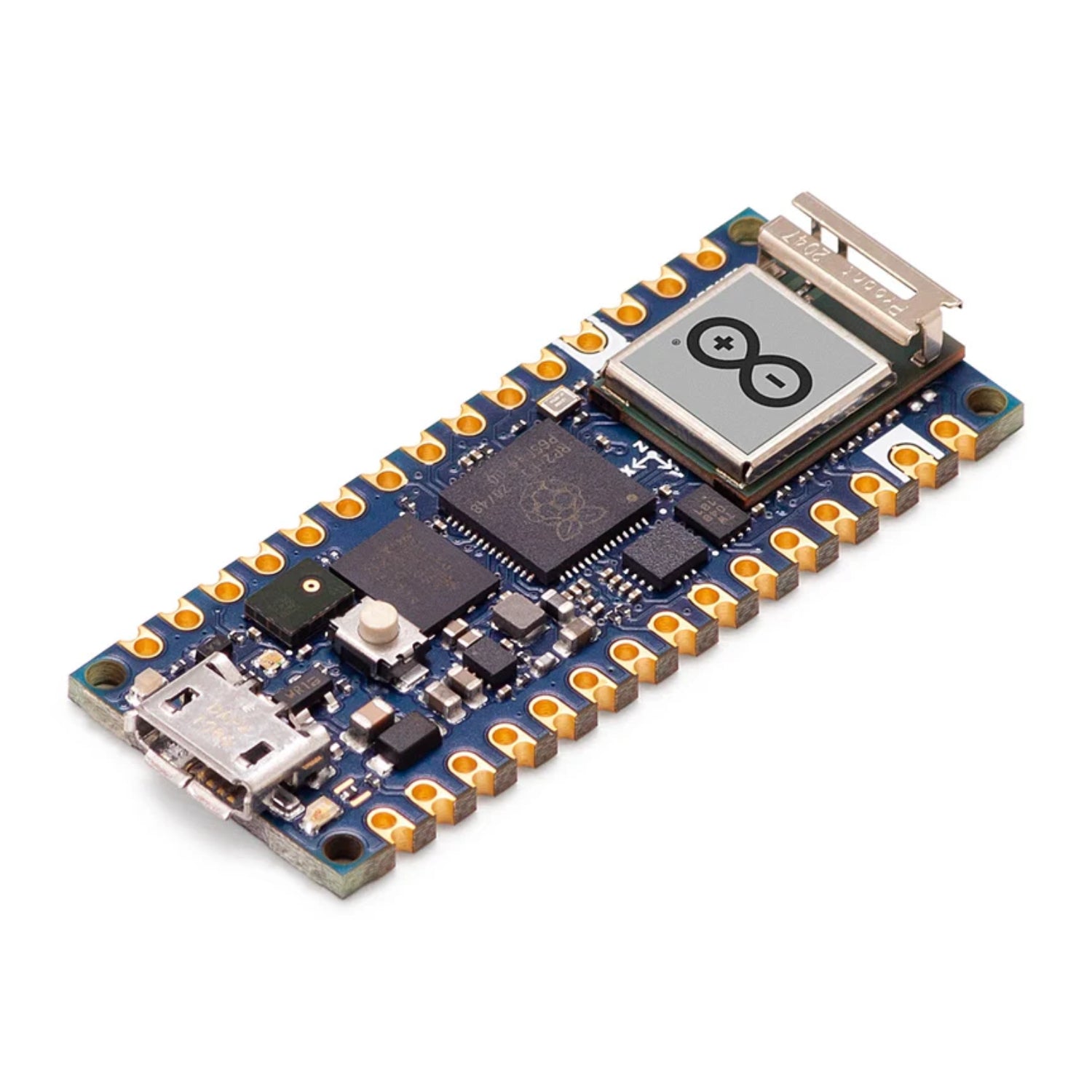

Meet the Arduino Nano RP2040 Connect, the only connected RP2040 board that packs BIG features into a compact Arduino Nano form factor. Powered by the dual-core Raspberry Pi RP2040 (133MHz, 264KB SRAM, 16MB Flash), its true strength lies in its onboard WiFi and Bluetooth connectivity via the u-Blox NINA-W102. Full Arduino Cloud compatibility, a 9-axis IMU, and a built-in microphone transform your projects into powerful, connected creations. It's the premium choice for upgrading or unlocking new IoT possibilities.
Specifications:
|
Board
|
Nano RP2040 Connect |
|
|
SKU: ABX00052 |
||
|
Microcontroller |
Raspberry Pi® RP2040 |
|
|
USB connector |
Micro USB |
|
|
Pins |
Built-in LED pin |
13 |
|
Digital I/O Pins |
20 |
|
|
Analog Input Pins |
8 |
|
|
PWM pins |
20 (Except A6, A7) |
|
|
External interrupts |
20 (Except A6, A7) |
|
|
Connectivity
|
Wi-Fi |
Nina W102 uBlox module |
|
Bluetooth® |
Nina W102 uBlox module |
|
|
Secure element |
ATECC608A-MAHDA-T Crypto IC |
|
| Sensors |
IMU |
LSM6DSOXTR (6-axis) |
| Microphone | MP3DT06JTR | |
|
Communication |
UART |
Yes |
|
I2C |
Yes |
|
|
SPI |
Yes |
|
|
Power |
Circuit operating voltage |
3.3V |
|
Input Voltage (VIN) |
4-20V |
|
|
DC Current per I/O pin |
8 mA |
|
|
Clock speed |
Processor |
133 MHz |
|
Memory |
AT25SF128A-MHB-T |
16MB Flash IC |
|
Nina W102 uBlox module |
448 KB ROM, 520KB SRAM, 16MB Flash |
|
|
Dimensions |
Weight |
6 g |
|
Width |
18 mm |
|
|
Length |
45 mm |
|
Features:
Raspberry Pi RP2040 Microcontroller:
- 133MHz 32bit Dual Core Arm Cortex-M0+
- 264kB on-chip SRAM
- Direct Memory Access (DMA) controller
- Support for up to 16MB of off-chip Flash memory via a dedicated QSPI bus
- USB 1.1 controller and PHY, with host and device support
- 8 PIO state machines
- Programmable IO (PIO) for extended peripheral support
- 4-channel ADC with internal temperature sensor, 0.5 MSa/s, 12-bit conversion
- SWD Debugging
- 2 on-chip PLLs to generate USB and core clock
- 40nm process node
- Multiple power mode support
- USB 1.1 Host/Device
- Internal Voltage Regulator to supply the core voltage
- Advanced High-performance Bus (AHB)/Advanced Peripheral Bus (APB)
U-blox® Nina W102 WiFi/Bluetooth Module:
- 240MHz 32bit Dual Core Xtensa LX6
- 520kB on-chip SRAM
- 448 Kbyte ROM for booting and core functions
- 16 Mbit FLASH for code storage including hardware encryption to protect programs
and data - 1 kbit EFUSE (non-erasable memory) for MAC addresses, module configuration,
- Flash-Encryption, and Chip-ID
- IEEE 802.11b/g/n single-band 2.4 GHz WiFi operation
- Bluetooth 4.2
- Integrated Planar Inverted-F Antenna (PIFA)
- 4x 12-bit ADC
- 3x I2C, SDIO, CAN, QSPI
Memory:
- AT25SF128A 16MB NOR Flash
- QSPI data transfer rate up to 532Mbps
- 100K program/erase cycles
Useful Link:
Arduino Nano RP2040 Connect datasheet
Package Included:

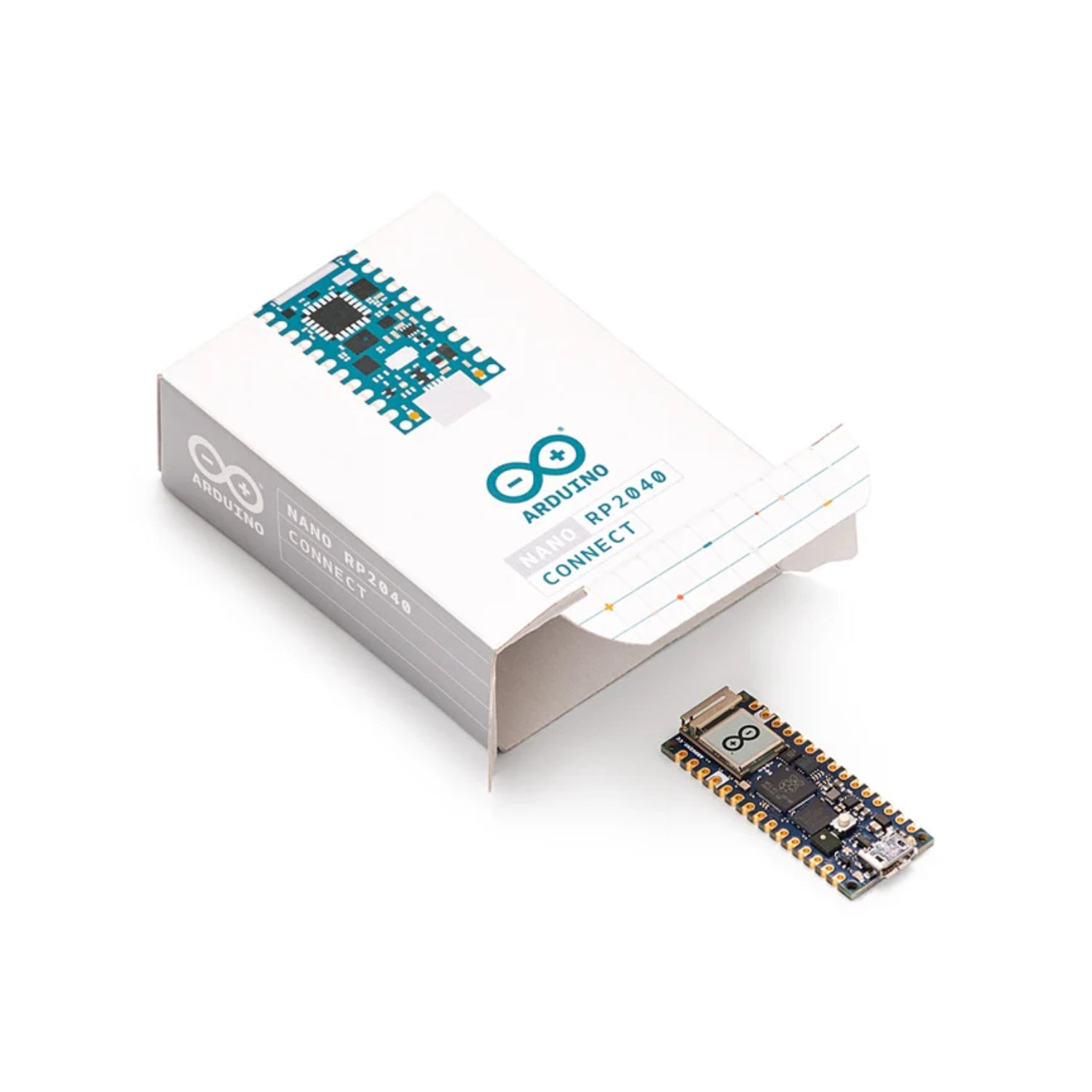

1 x Arduino Nano RP2040 Connect without Header
