Description:

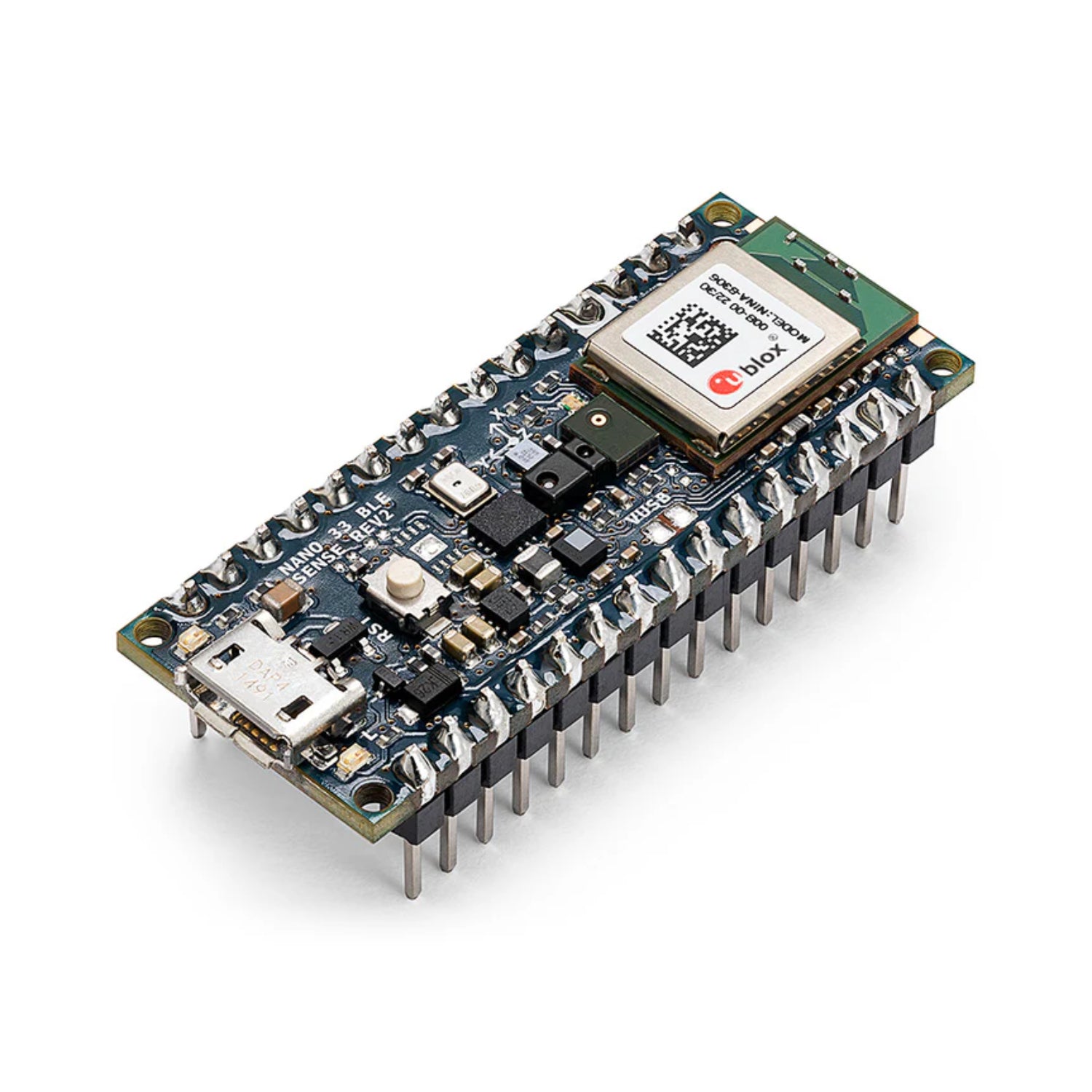

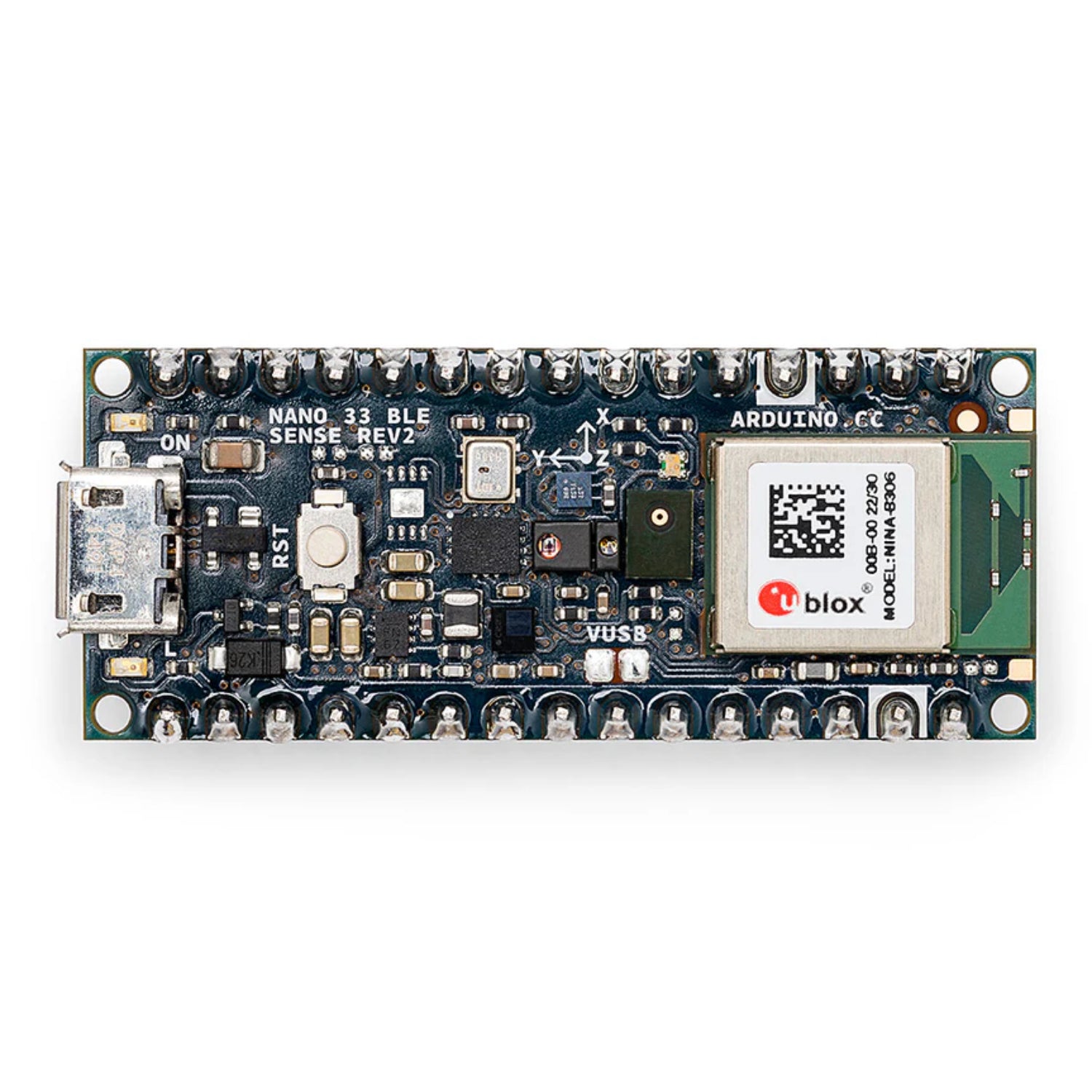

The Arduino Nano BLE Sense Rev2 is a compact, AI-enabled powerhouse. Featuring a Nordic nRF52840 (Cortex M4F) and a 9-axis IMU (BMI270 & BMM150), it's perfect for tiny machine-learning projects. Mount it with pin headers or directly solder for ultimate flexibility. Enjoy broad compatibility with Windows 10 S/IoT, Android 7+ (via USB OTG), and CircuitPython for rapid prototyping and seamless firmware deployment.
Specifications:
- Microcontroller: nRF52840(datasheet)
- Operating Voltage: 3.3V
- Input Voltage: 21V
- DC Current per I/O Pin: 15mA
- Clock Speed: 64MHz
- CPU Flash Memory: 1MB (nRF52840)
- SRAM: 256KB (nRF52840)
- EEPROM: none
- Digital Input / Output Pins: 14
- PWM Pins: all digital pins
- UART: 1
- SPI: 1
- I2C: 1
- Analog Input Pins: 8 (ADC 12-bit 200 k samples)
- Analog Output Pins: Only through PWM (no DAC)
- External Interrupts: all digital pins
- LED_BUILTIN: 13
- USB: Native in the nRF52840 Processor
- IMU: BMI270 (datasheet) and BMM150 (datasheet)
- Microphone: MP34DT06JTR (datasheet)
- Gesture, Light, Proximity, Color:APDS9960 (datasheet)
- Barometric Pressure: LPS22HB (datasheet)
- Temperature, Humidity: HS3003 (datasheet)
Features:
- Features the nRF52840 from Nordic Semiconductors.
- Offers 1MB of program memory and 128 times larger RAM.
- Ensures efficient operation and longer battery life.
- Includes 9-axis inertial sensor, humidity, temperature, barometric, microphone, and gesture/proximity/light sensors.
- Enables Edge Computing applications using TinyML.
- Supports Bluetooth pairing via NFC.
- Can function as both a BLE and Bluetooth client and host device.
- Humidity, temperature, and barometric sensors provide highly accurate measurements.
- Gesture, proximity, light color, and light intensity sensors provide information about luminosity and movement.
- A microphone allows for capturing and analyzing sound in real time.

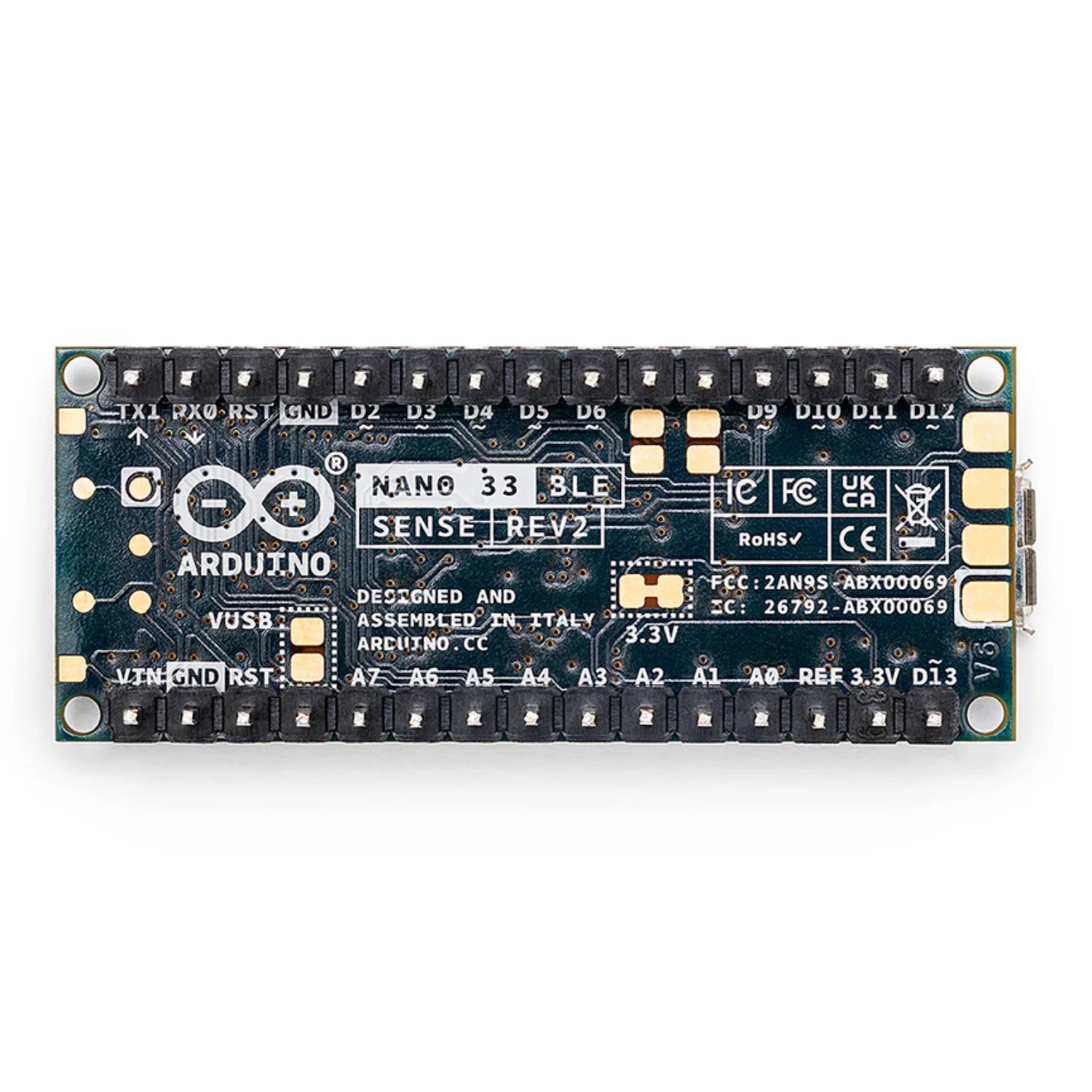

Pin Description:
Useful Links:
Package Included:

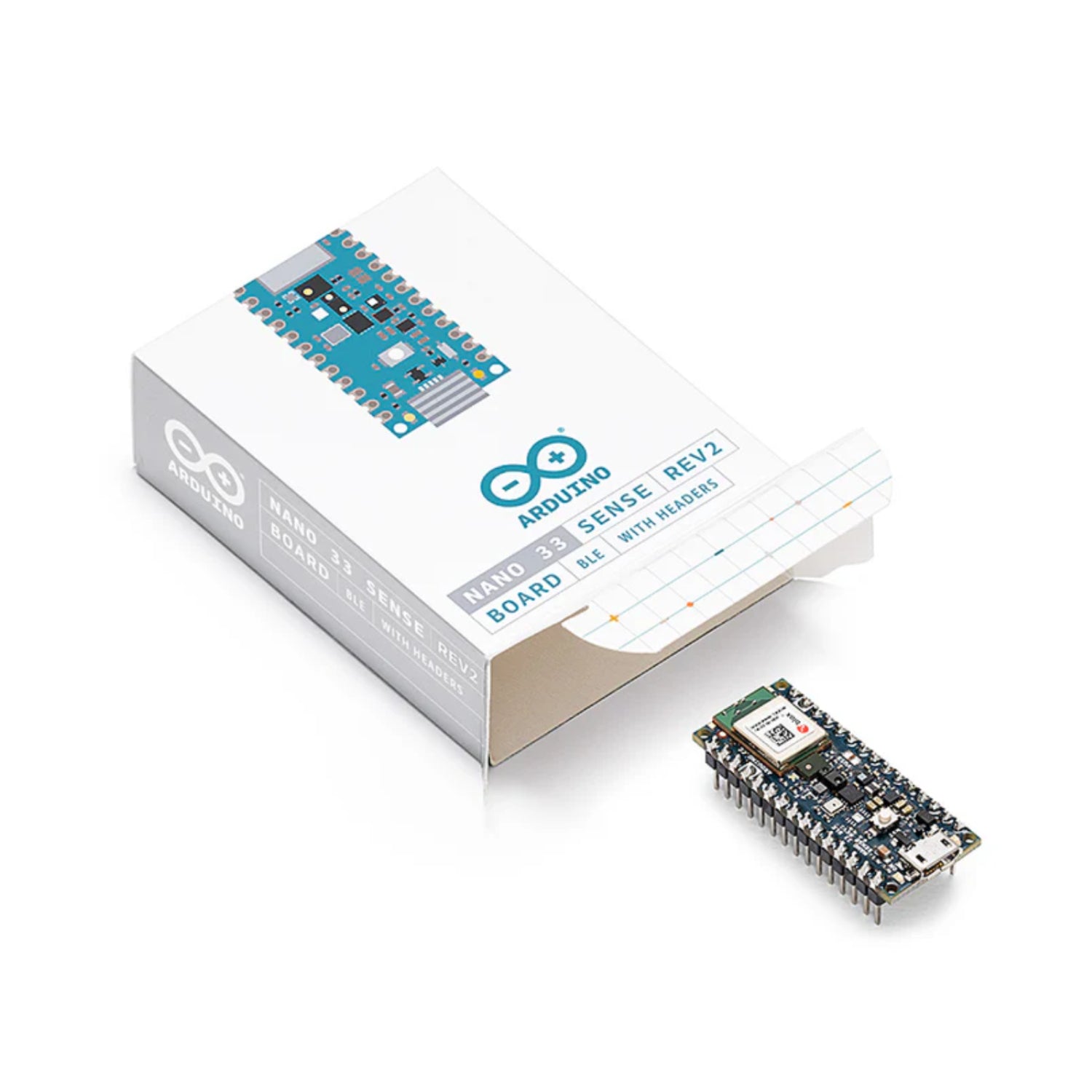

1 x Official Arduino Nano 33 BLE Sense Rev2 with Headers
