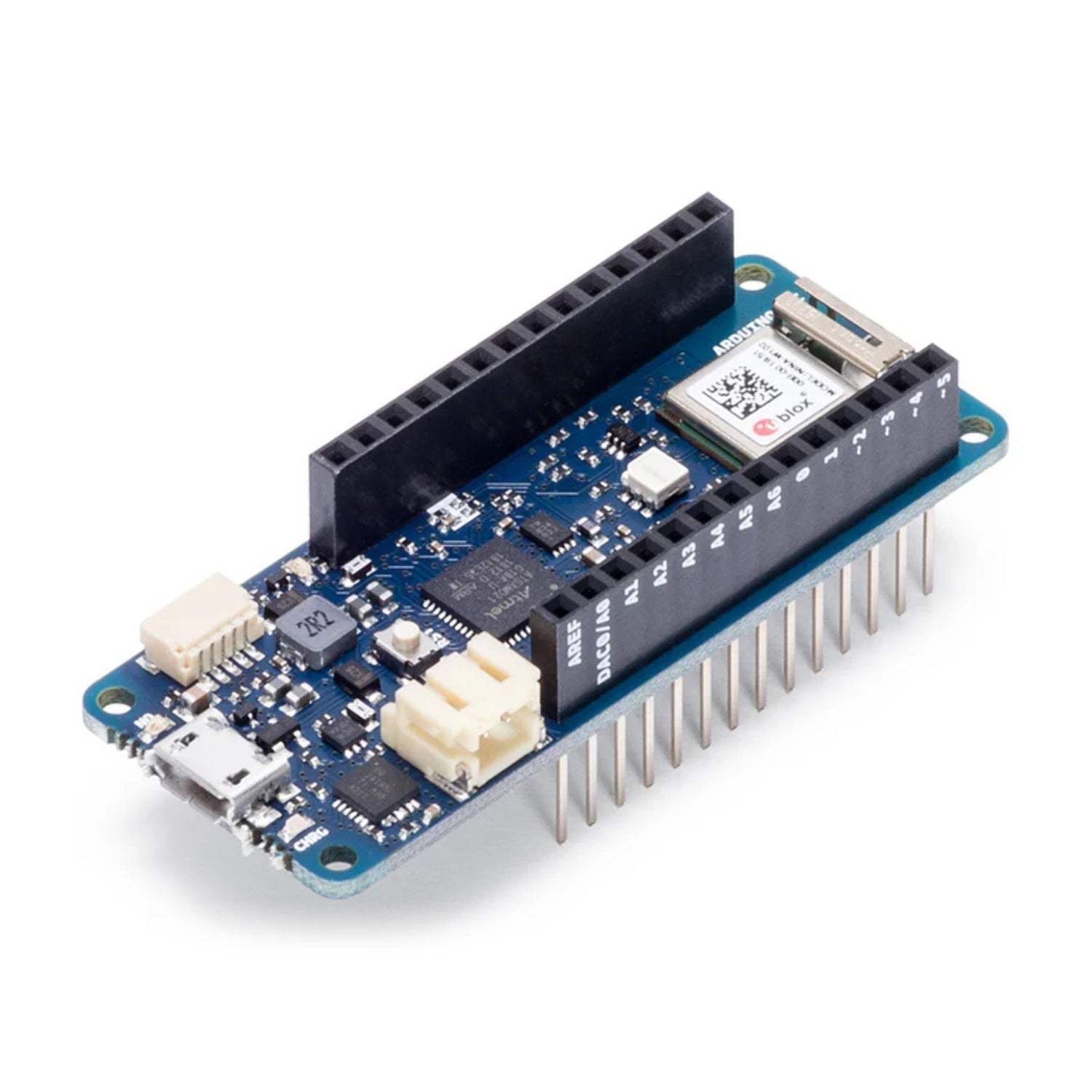

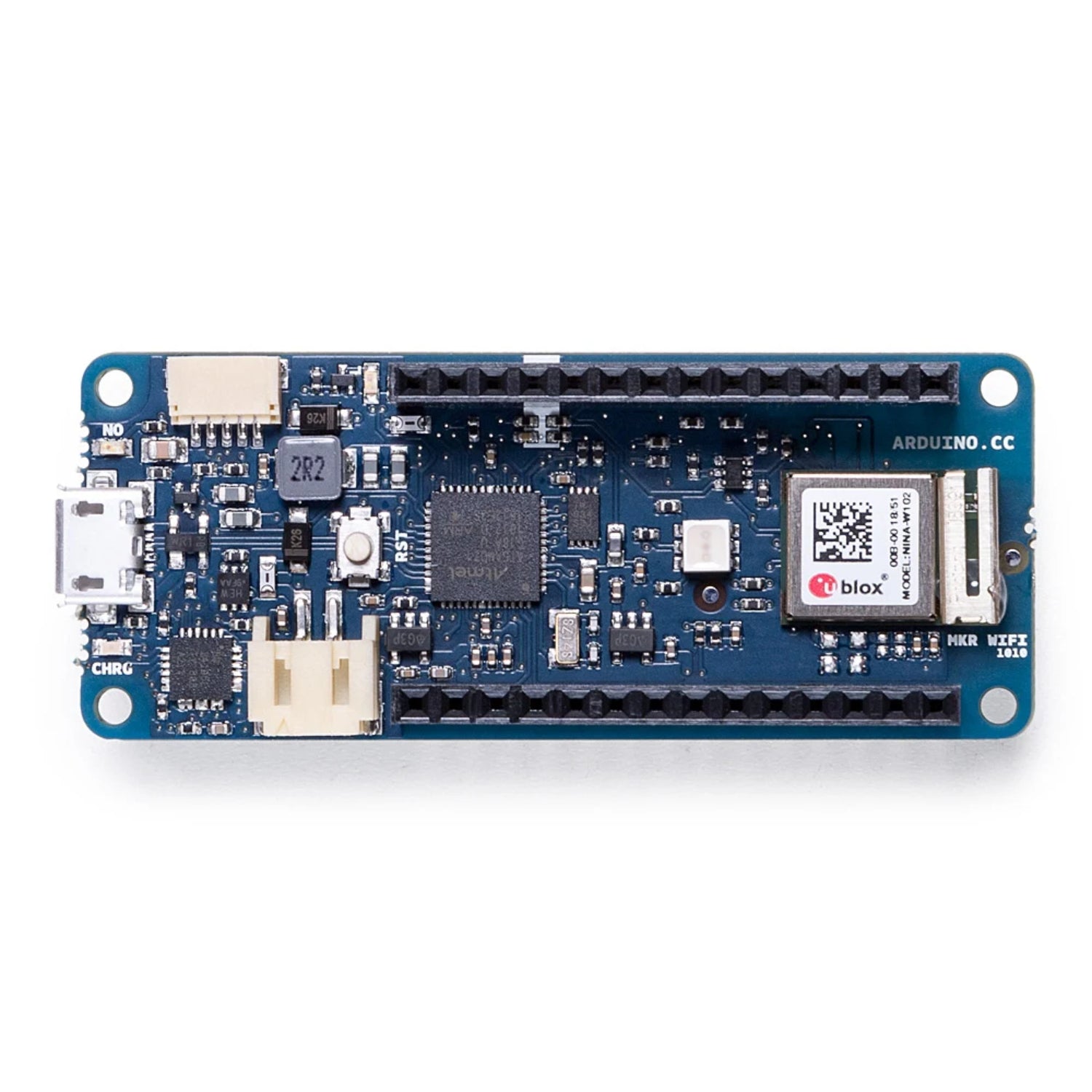

Official Arduino MKR WIFI 1010 Development Board ESP32 U-BLOX NINA W102 Module For IoT & Cloud Connectivity

Description:

The Official Arduino MKR WiFi 1010 is your ultimate starting point for IoT and pico-network application design. This versatile development board simplifies connecting your projects to the internet or creating local wireless networks. Whether you're building a sensor network for your home or office, integrating devices with your router, or developing a Bluetooth Low Energy (BLE) device to send data to a smartphone, the MKR WiFi 1010 is engineered to be your all-in-one solution. Its robust design and seamless connectivity make it perfect for a wide range of basic IoT application scenarios, allowing you to bring your connected projects to life with ease.

Specifications:

• Microcontroller: SAMD21 Cortex®-M0+ 32bit low power ARM® MCU
• Radio Module: U-blox NINA-W102
• Board Power Supply: 5V
• Secure Element: ATECC508
• Supported Battery: Li-Po Single Cell, 3.7V, 1024mAh Minimum
• Circuit Operating Voltage: 3.3V
• Digital I/O Pins: 8
• PWM Pins: 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)
• UART: 1
• SPI: 1
• I2C: 1
• Analog Input Pins: 7 (ADC 8/10/12 bit)
• Analog Output Pins: 1 (DAC 10 bit)
• External Interrupts: 10 (0, 1, 4, 5, 6, 7, 8,9, 16 / A1, 17 / A2)
• DC Current per I/O Pin: 7mA
• CPU Flash Memory: 256 KB (internal)
• SRAM: 32 KB
• EEPROM: No
• Clock Speed: 32.768 kHz (RTC), 48 MHz
• LED_BUILTIN: 6
• USB: Full-Speed USB Device and embedded Host

Features:

• Powerful & Efficient Core: Features a low-power Arm® Cortex®-M0 32-bit SAMD21 processor, consistent with the high-performance Arduino MKR family of boards.
• Integrated Wireless Connectivity: Equipped with the u-blox NINA-W10 module, providing seamless Wi-Fi and Bluetooth® capabilities. This low-power 2.4GHz chipset ensures reliable wireless communication for your projects.
• Offers easy connectivity to the office or home routers.

• Ideal for basic IoT and pico-network applications.

• Supports building sensor networks and BLE devices.

• Features an ESP32 module by U-BLOX for improved performance and lower power consumption.

• Designed to streamline and accelerate WiFi-based IoT prototyping.

• It has a SAMD21 Cortex-M0+ 32bit low power ARM MCU Microcontroller.

• Supports power input via USB or VIN at 5V.

• Compatible with Li-Po single-cell batteries (minimum 3.7V, 1024mAh).

• Offers 256 KB of internal flash memory for storing program code and data

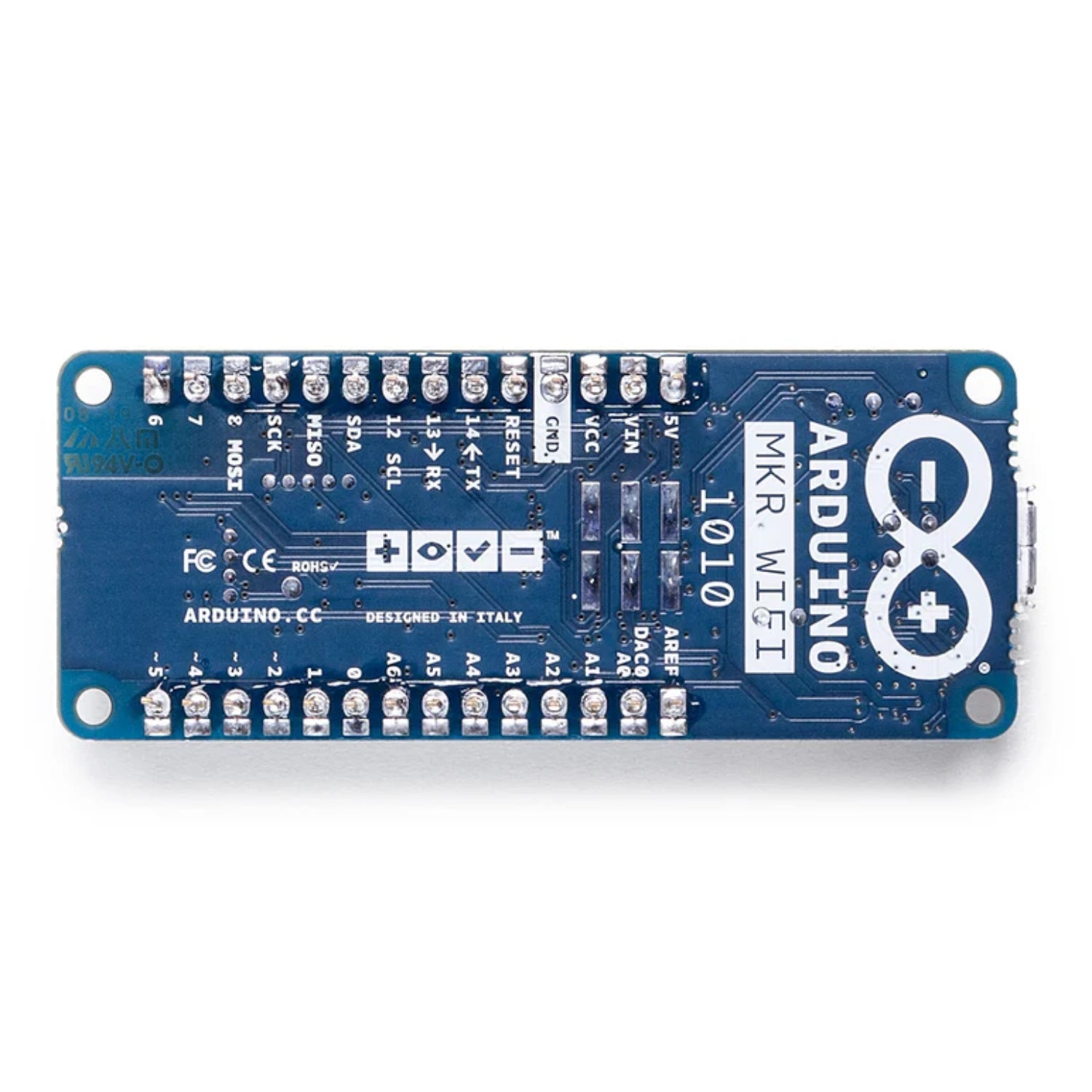

Pin Description:

Useful Links:

• Datasheet
• Schematic Diagram

Package Included:

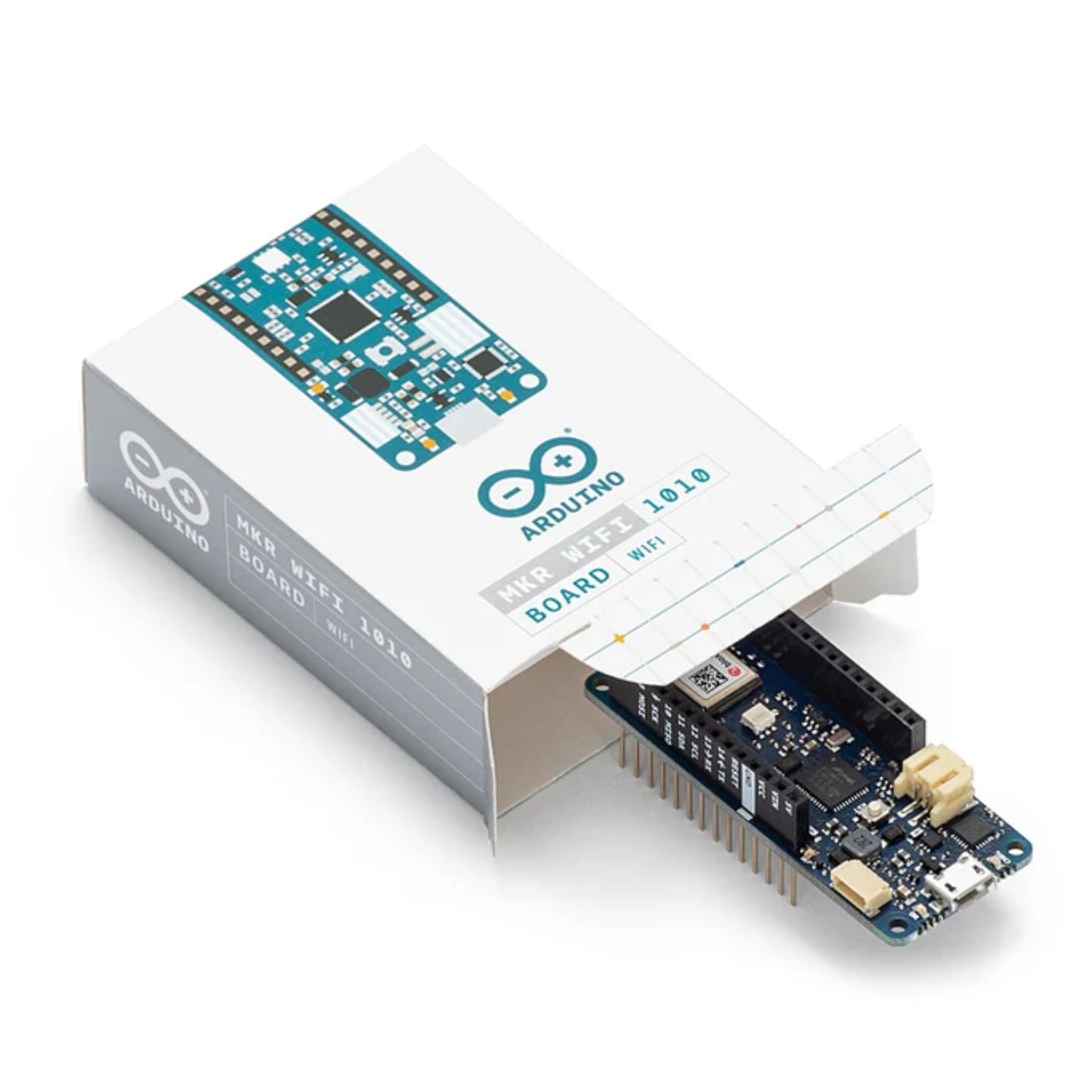

1 x ARDUINO MKR WIFI 1010 Board
