Description:

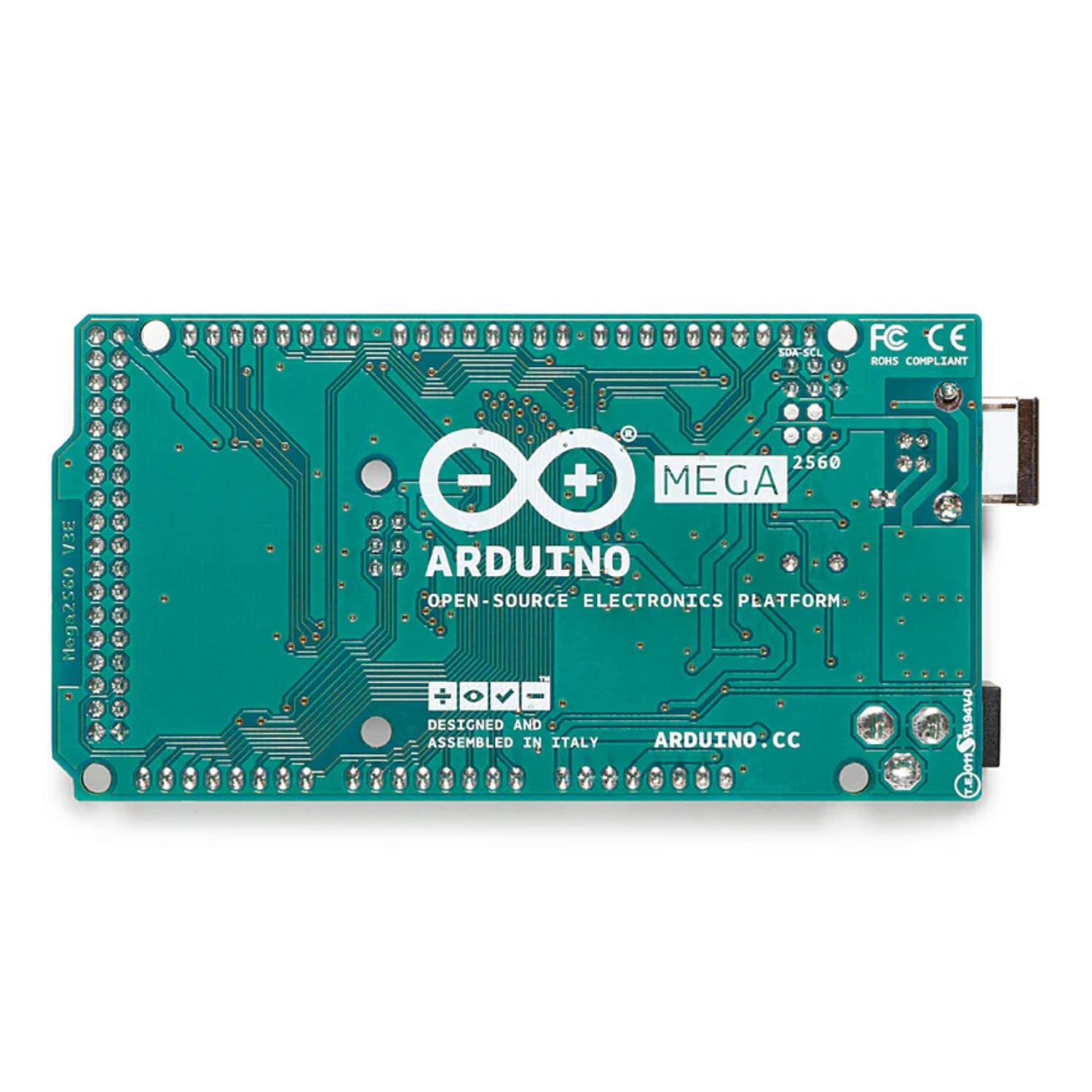

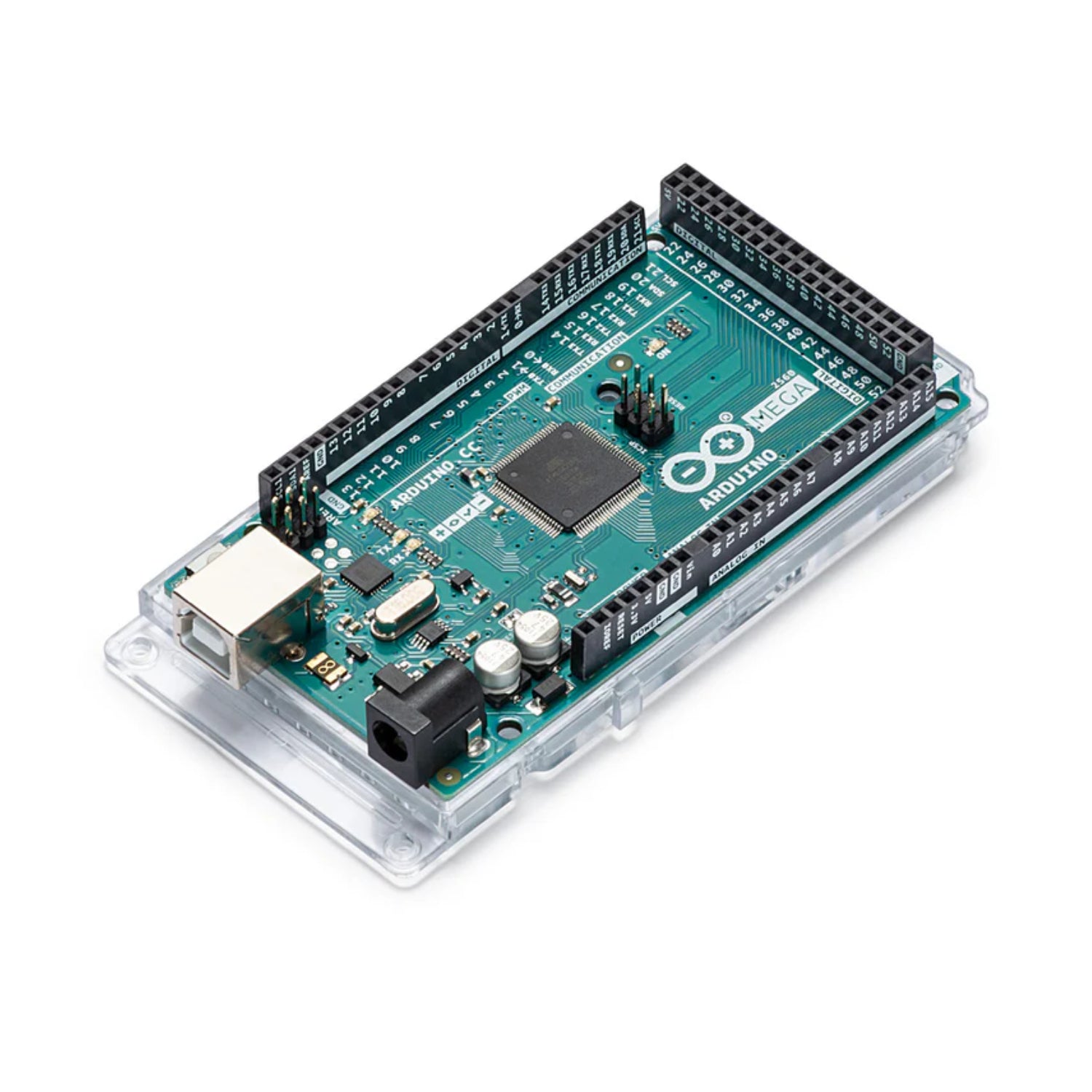

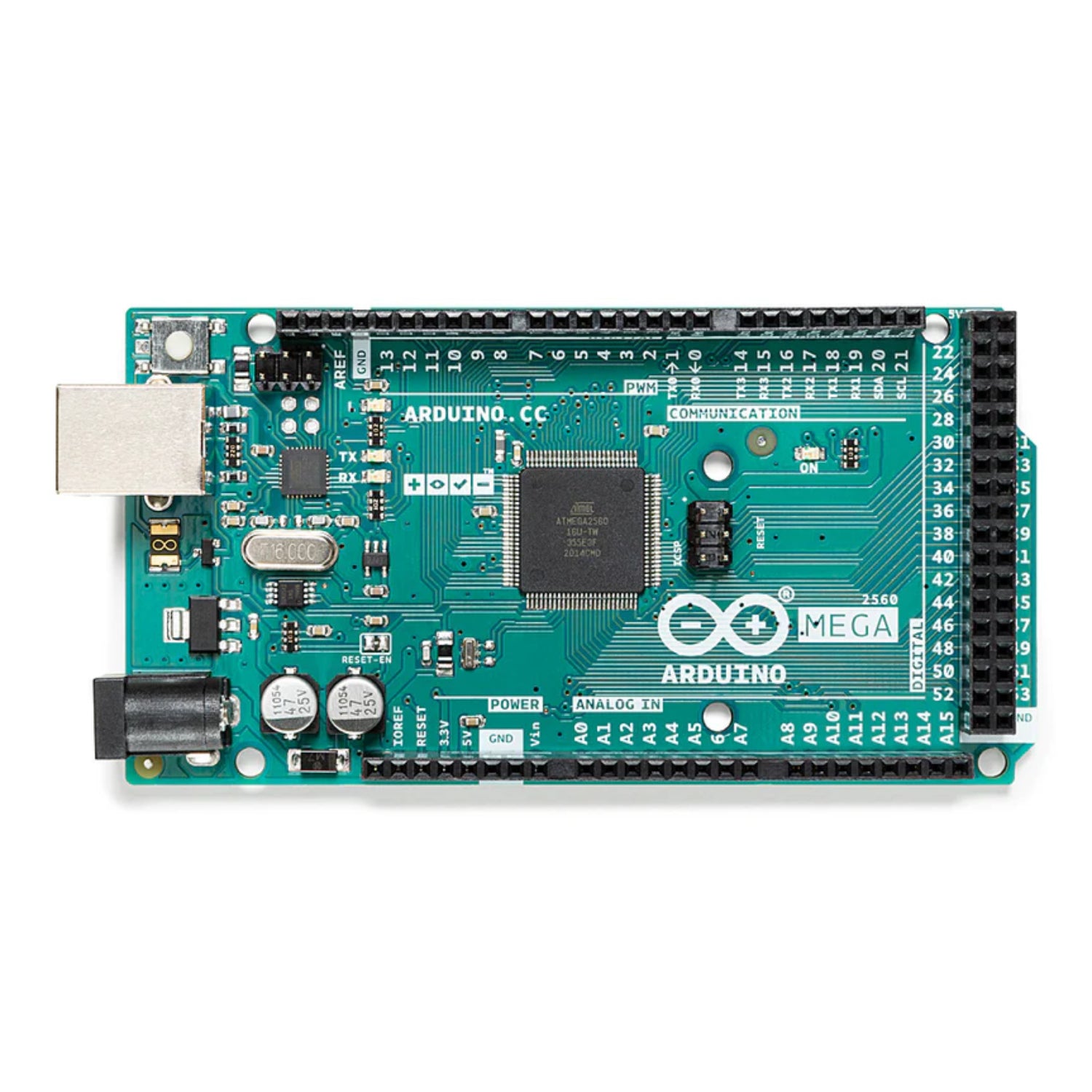

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.
Specifications:
- Model No.: A000067
- Processor: ATmega16U2
- Operating Voltage: 5VDC
- DC Current per I/O Pin: 4mA DC
-
Memory:
- 256KB flash memory of which 8KB used by bootloader
- 8KB SRAM
- 4KB EEPROM
- Input Voltage: range from 7V to 12V
- Input Voltage(limit): Range from 6V to 20V
Features:
- ATmega16U2 instead 8U2 as USB to serial converter
- Stronger RESET circuit
- 5V operating voltage
- 40mA DC current per I/O pin
- 256KB flash memory of which 8KB used by bootloader
- 8KB SRAM and 4KB EEPROM
Pin Description:
Useful Link:
Package Included:

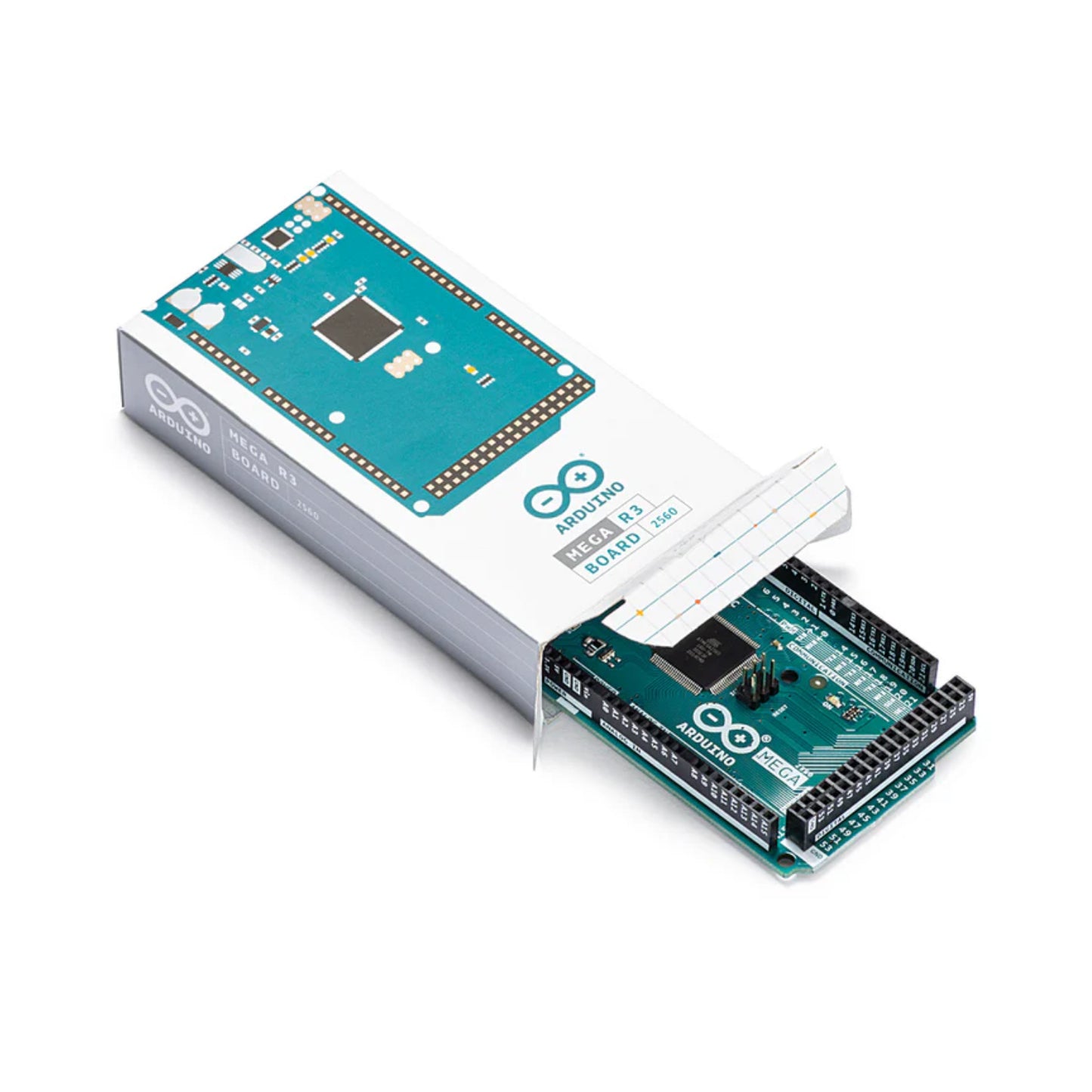

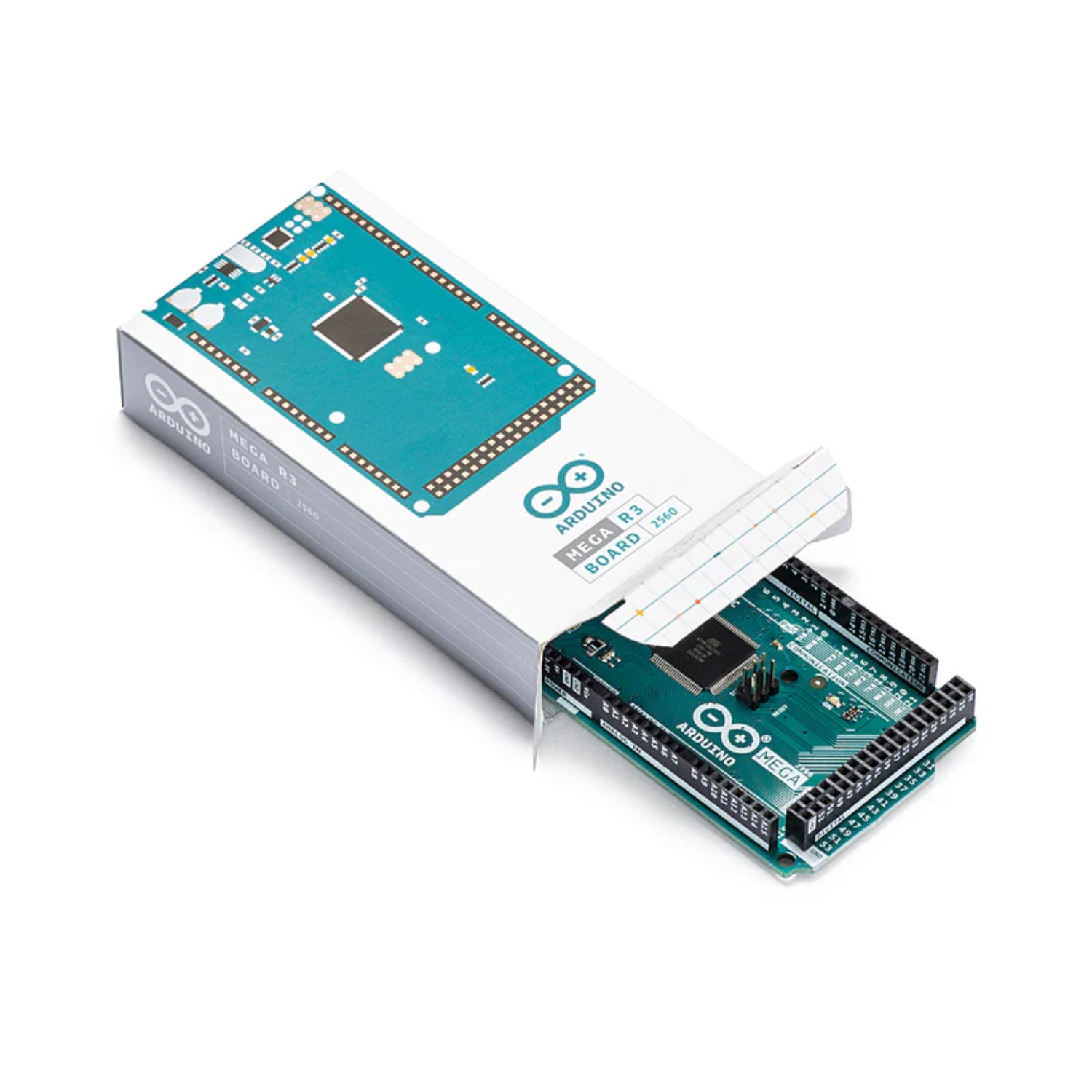

1 x Official Arduino Mega 2560 ATmega2560 MCU Rev3 A000067
