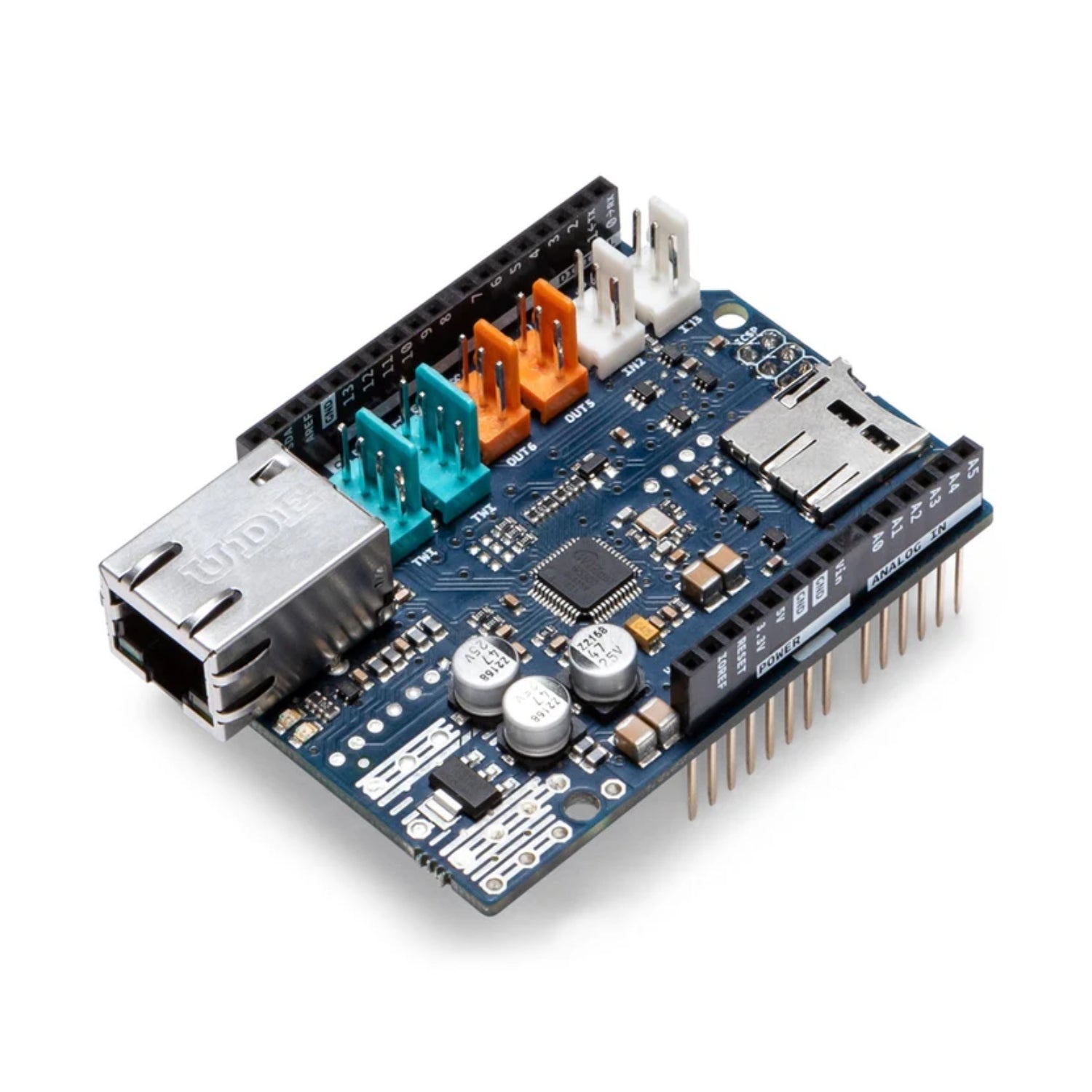

Official Arduino Ethernet Shield 2 Board With PoE & W5500 Controller For Fast 10/100Mb Internet Connectivity

Description:

Get your Arduino online effortlessly with the Official Arduino Ethernet Shield 2. This plug-and-play shield features a W5500 Ethernet controller for fast, stable 10/100Mb connections, communicating via SPI. It's now compatible with all Arduino boards thanks to an integrated reset controller, eliminating past manual resets. A significant upgrade includes Power over Ethernet (PoE), allowing you to power your project directly through the network cable. True to Arduino's open-source ethos, it's the perfect robust solution for any internet-connected project or IoT application.

Specifications:

• Model No.: A000024
• Input Voltage: 36 ~ 57V
• Output Voltage: 12V
• Connection Speed: 10/100Mb
• Main Chip: W5500 with internal 32K buffer

Features:

• Integrated Power: Operates efficiently on 5V, drawing power directly from your Arduino board.
• Reliable Ethernet: Features the W5500 chip with a 32KB buffer for stable and efficient data handling.
• Fast Connectivity: Supports 10/100Mb Ethernet speeds for quick and reliable network communication.
• Seamless Communication: Utilizes the SPI port for high-speed, direct connection to your Arduino.

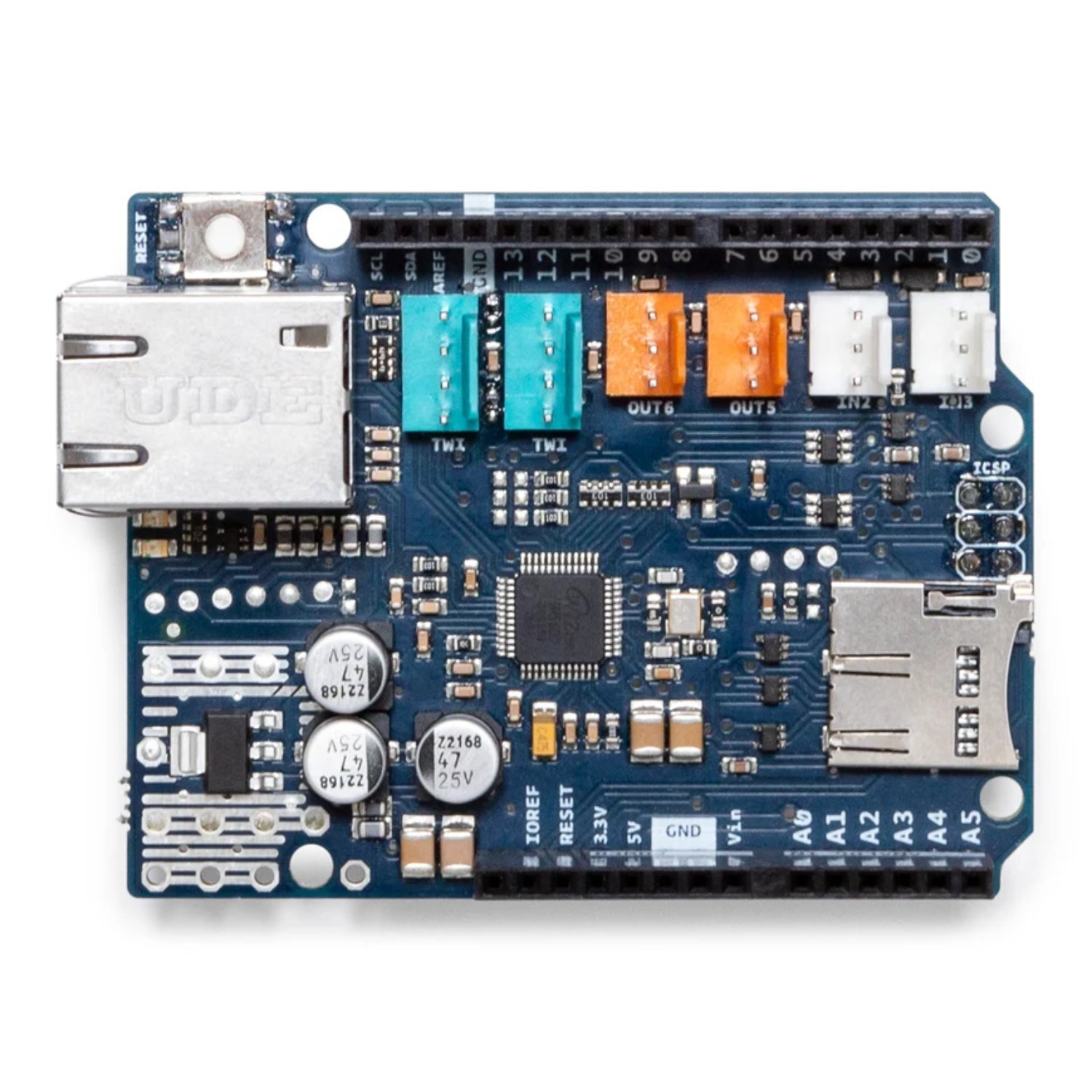

Pin Description:

This shield also hosts Tinkerkit-compatible connectors as follows:

• 2 TinkerKit connectors for two Analog Inputs (in white), connected to A2 and A3.
• 2 TinkerKit connectors for two Aanlog Outputs (in orange in the middle), connected to PWM outputs on pins D5 and D6.
• 2 TinkerKit connectors for the TWI interface (in white with 4 pins), one for input and the other one for output.

Useful Link:

Schematic Diagram

Package Included:

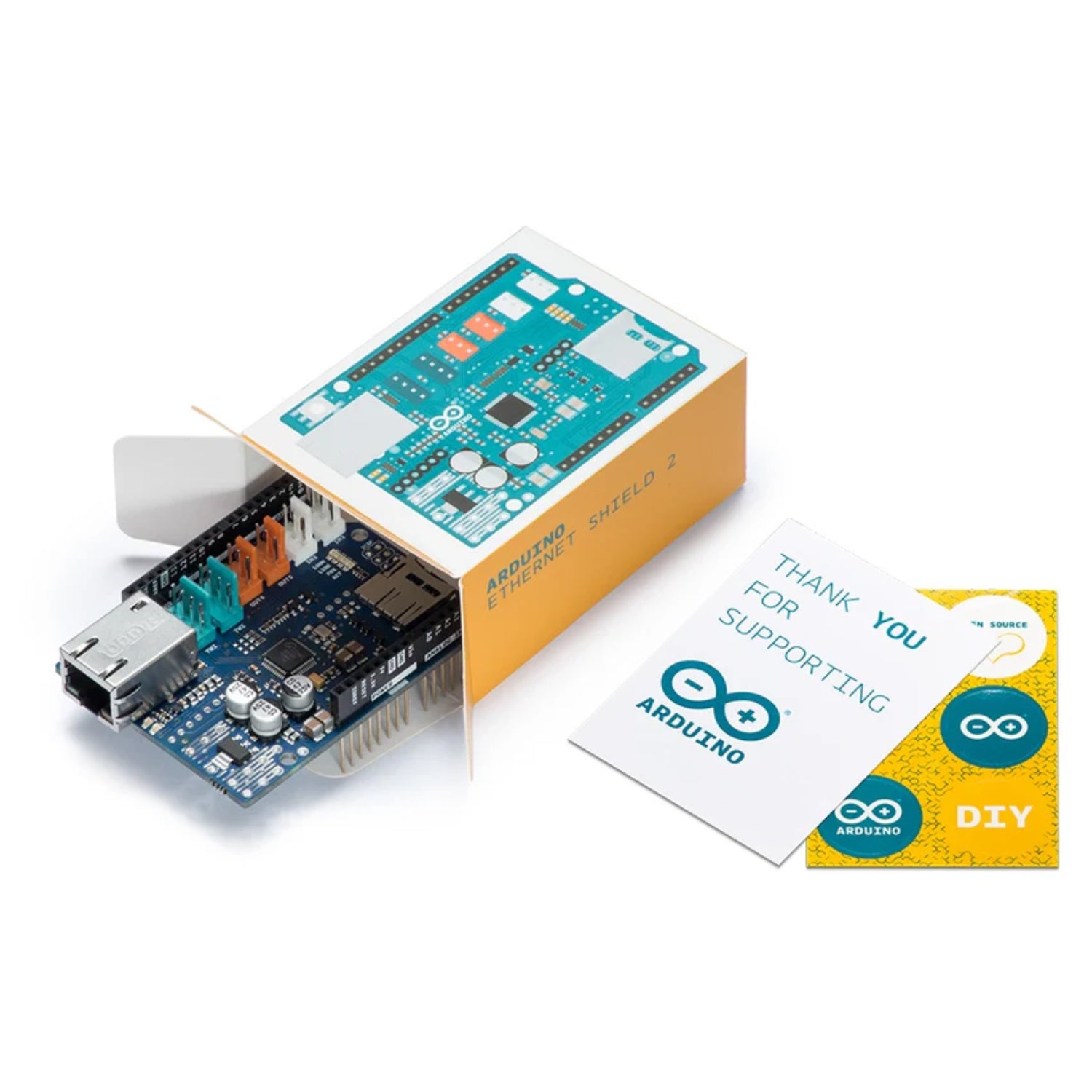

1 x Official ARDUINO Ethernet SHIELD 2 Board
