Description:
This NY-D08 spot welding machine controller is integrated with temperature fan pneumatic control and cascade control strong and powerful. Large colorful display simple structure showing clear. Pneumatic parameters can be changed to continuous pneumatic spot welding points 1-10 adjustable and can be changed according to machine characteristics.
Features:
- Large size colour display, simple structure and clear display.
- Imported STM32 single-chip microcomputer, with fast running speed, strong anti-interference ability, stability and reliability.
- Pneumatic parameters can be changed, continuous pneumatic spot welding point 1-10 can be adjusted, and can be changed according to machine characteristics.
- The temperature detection fan control has a temperature protection upper limit function, and the fan has normally open, normally closed, and intelligent control modes.
- Support personalization: name, rated voltage, secondary voltage, rated power, address, etc.
- Bilingual optional, English interface and Chinese interface for your choice.
Terminal Description:
- Footswitch terminal, connected to mechanical switch
- Control board power supply, connect AC 9 to 12V power supply, must be AC
- Temperature sensor terminal
- Status terminal, controller welding status, output during welding
- Fan terminal, connected to DC12V fan
- Solenoid valve terminal, connected to DC12V pneumatic solenoid valve

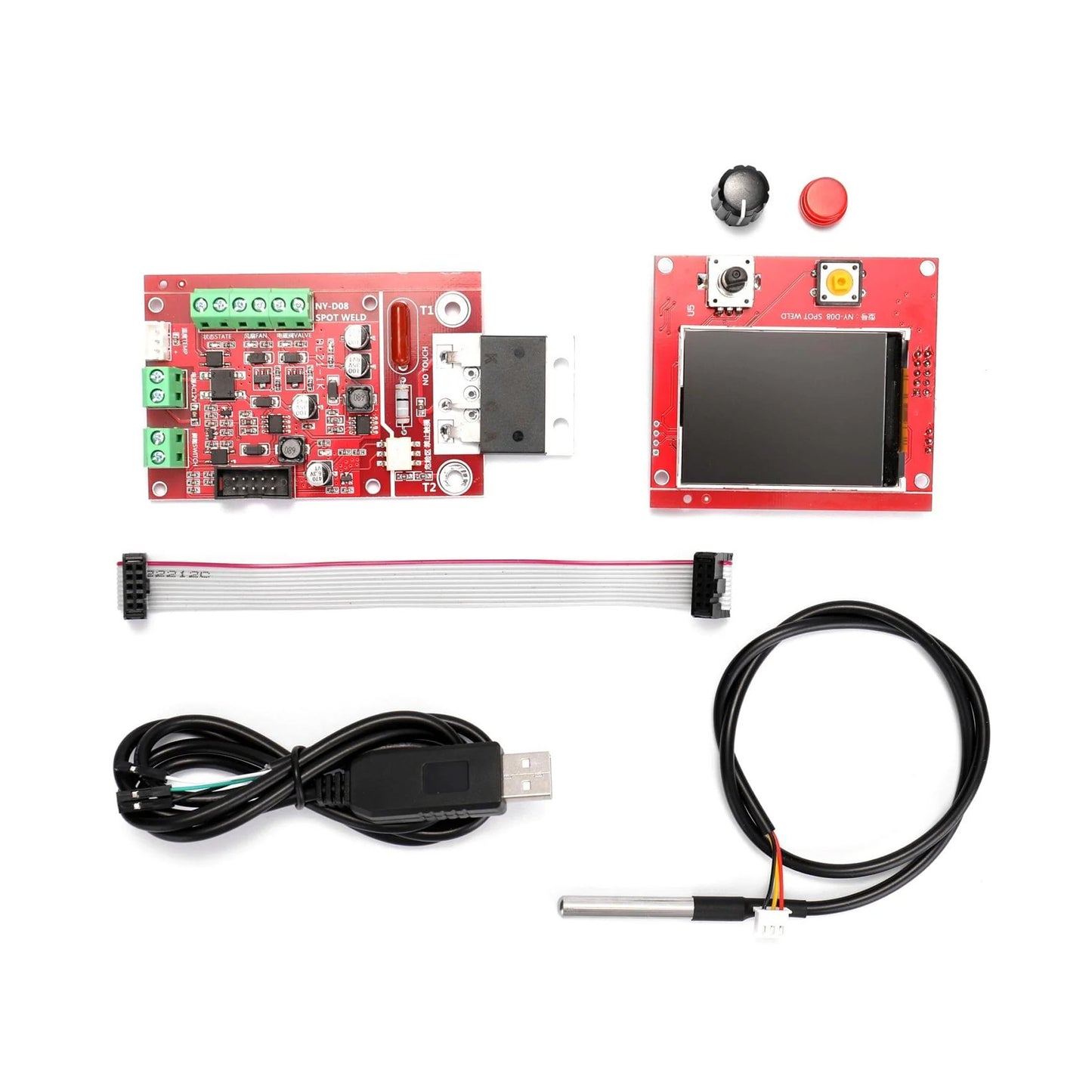

Package Included:
1 x NY-D08 100A Spot Welder Controller Welding Machine Pneumatic Color LCD Display Multi-point Personalization with Temperature Sensor
