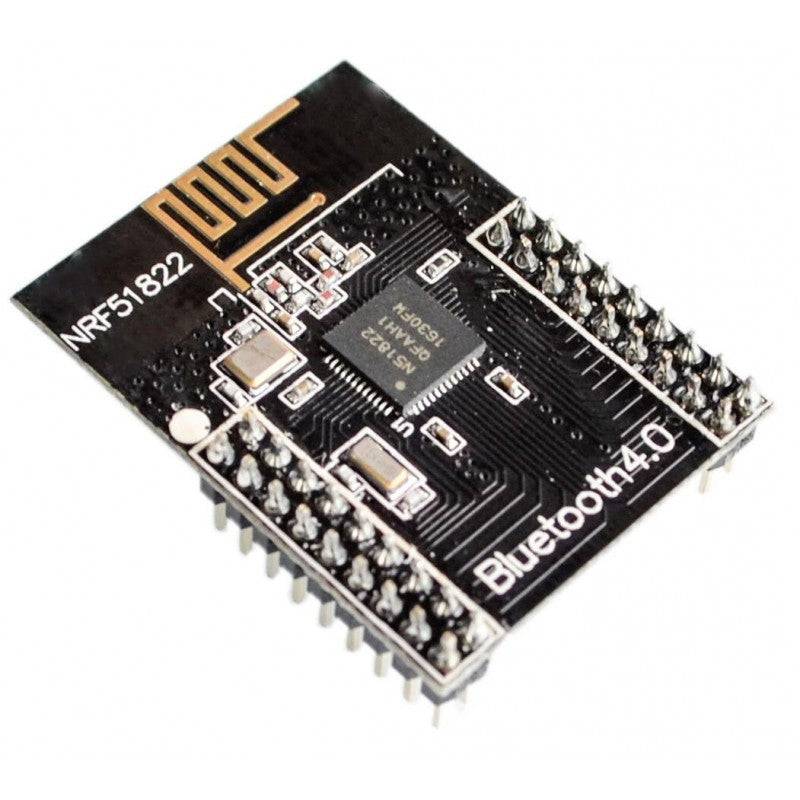

NRF51822 Bluetooth BLE4 2.4GHz Wireless Communication Module - RS4891

NRF51822 Bluetooth BLE4 2.4GHz Wireless Communication Module - RS4891

SKU:RS4891

50 in stock

Regular price Rs. 240.00
Regular price Sale price Rs. 240.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Onboard chip: nRF51822
  • Communication distance (open outdoor@1M data rate): 30 m
  • Frequency range: 2.4GHz
  • Operating voltage: 2.0 Volts to 3.6 volts
  • Operating temperature: -40° ~ 85°

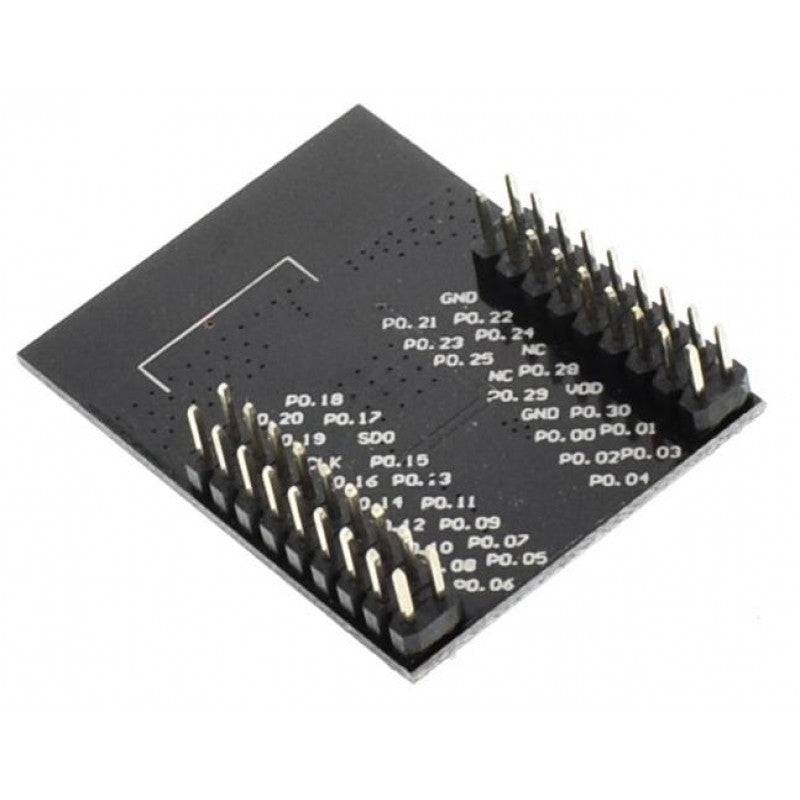

  • Expansion pin header: all the I/Os except P0.26 and P0.27
  • Pinheader pitch: 2.00 mm
  • Spacing between pin headers on the left side and the right side: 18.00mm
  • Antenna: onboard antenna

Description:

The NRF51822 IC from Nordic Semiconductor is a powerful, highly flexible multiprotocol SoC ideally suited for Bluetooth® Low Energy and 2.4GHz ultra-low-power wireless applications. The nRF51822 is built around a 32-bit ARM® Cortex™ M0 CPU with 256kB/128kB flash + 32kB/16kB RAM for improved application performance. The embedded 2.4GHz transceiver supports both Bluetooth LE and the Nordic Gazell 2.4 GHz protocol stack which is on air compatible with the nRF24L series products from Nordic Semiconductor.

Specifications:

  • Onboard chip: nRF51822
  • Communication distance (open outdoor@1M data rate): 30 m
  • Frequency range: 2.4GHz
  • Operating voltage: 2.0 Volts to 3.6 volts
  • Operating temperature: -40° ~ 85°
  • Expansion pin header: all the I/Os except P0.26 and P0.27
  • Pinheader pitch: 2.00 mm
  • Spacing between pin headers on the left side and the right side: 18.00mm
  • Antenna: onboard antenna

Features:

  • 2.4 GHz multiprotocol RF transceiver
  • 128-bit AES HW encryption
  • 256kB flash & 16kB RAM
  • Programmable Peripheral Interconnect (PPI)
  • Digital interfaces: SPI, I2C, UART
  • 10 bit ADC
  • Programmable output power: -20 to +4 dBm
  • Independent application development and protocol stack
  • Fully compatible with NRF24L series
  • Pinout compatible with NRF51xxx series
  • Global separate power management
  • Operating voltage: 1.8 V ~ 3.6 V

Applications:

  • Wearable devices
  • Bluetooth intelligent application
  • Mobile phone accessories
  • RFID labels
  • Smart home appliances
  • Industry control
  • Data acquisition system

Package Included:

1 x NRF51822 Bluetooth BLE4 2.4GHz Wireless Communication Module
