Description:
The NRF24L01 is a highly popular and widely adopted low-power 2.4 GHz wireless transceiver module, renowned for its simplicity, affordability, and robust performance in short-range wireless communication applications. It serves as a complete RF front-end solution, integrating all necessary components for bidirectional data transmission, making it an ideal choice for a vast array of hobbyist projects, educational endeavors, and professional embedded systems.
At its core, the NRF24L01 operates within the globally recognized 2.4 GHz ISM (Industrial, Scientific, and Medical) band, offering a license-free spectrum for communication. This allows it to coexist with other common 2.4 GHz devices like Wi-Fi routers, Bluetooth devices, and microwave ovens, though intelligent channel selection is crucial for optimal performance in crowded environments.
Specifications:
- Operating Frequency: 2.4 GHz ISM
- Operating Voltage: 1.9V to 3.6V
- Power Consumption: Ultra-low power operation.
Features:
- Achieve data rates up to 2 Mbps with efficient GFSK modulation and strong anti-interference capabilities.
- Operates universally in the 2.4- 2.5GHz frequency range, ideal for industrial control.
- Features include built-in hardware CRC error detection and multipoint communication address control.
- Includes a built-in voltage regulator and a 2.4GHz antenna.
- Offers 125 channels for multipoint communication with frequency hopping, ensuring diverse communication needs are met.
- Operates on 1.9- 3.6V, consuming only 1uA in power-down mode.
- Connects seamlessly via hardware SPI or MCU I/O ports, with an internal FIFO for various microprocessors.
- Software-addressable for local data reception (with interrupt instruction), allowing for convenient programming with microcontrollers.
- Standard DIP pitch interface for straightforward embedded applications.
Package Included:

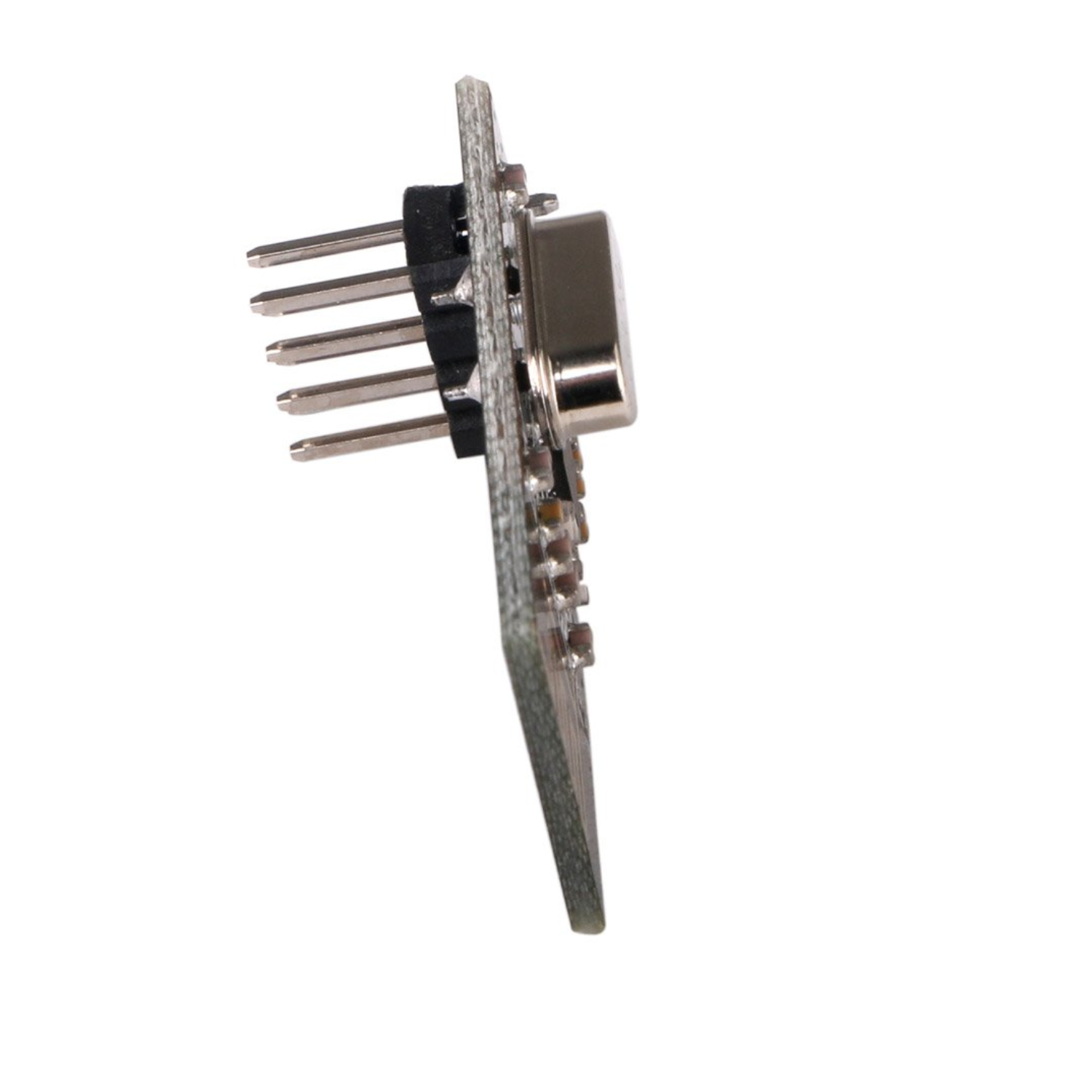

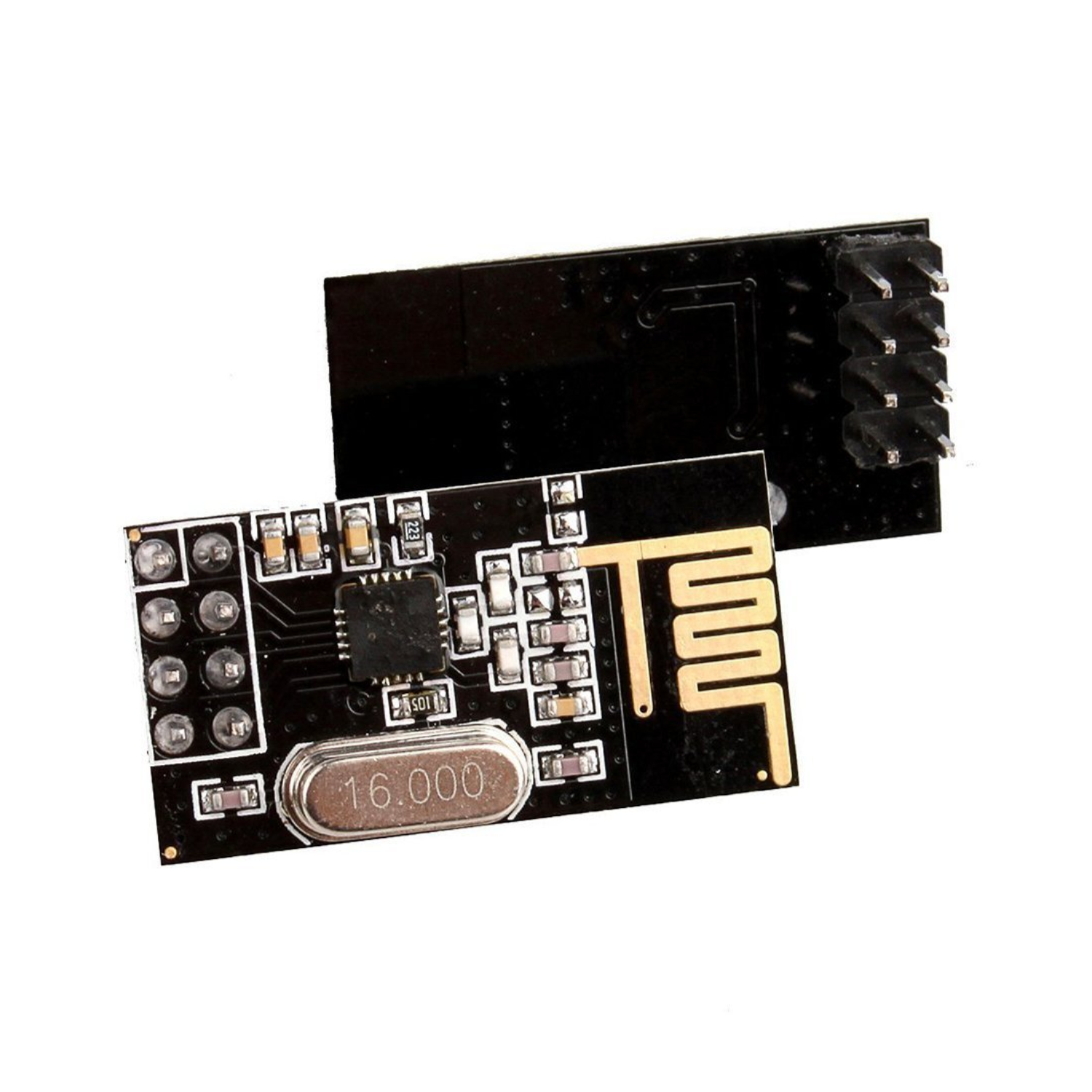

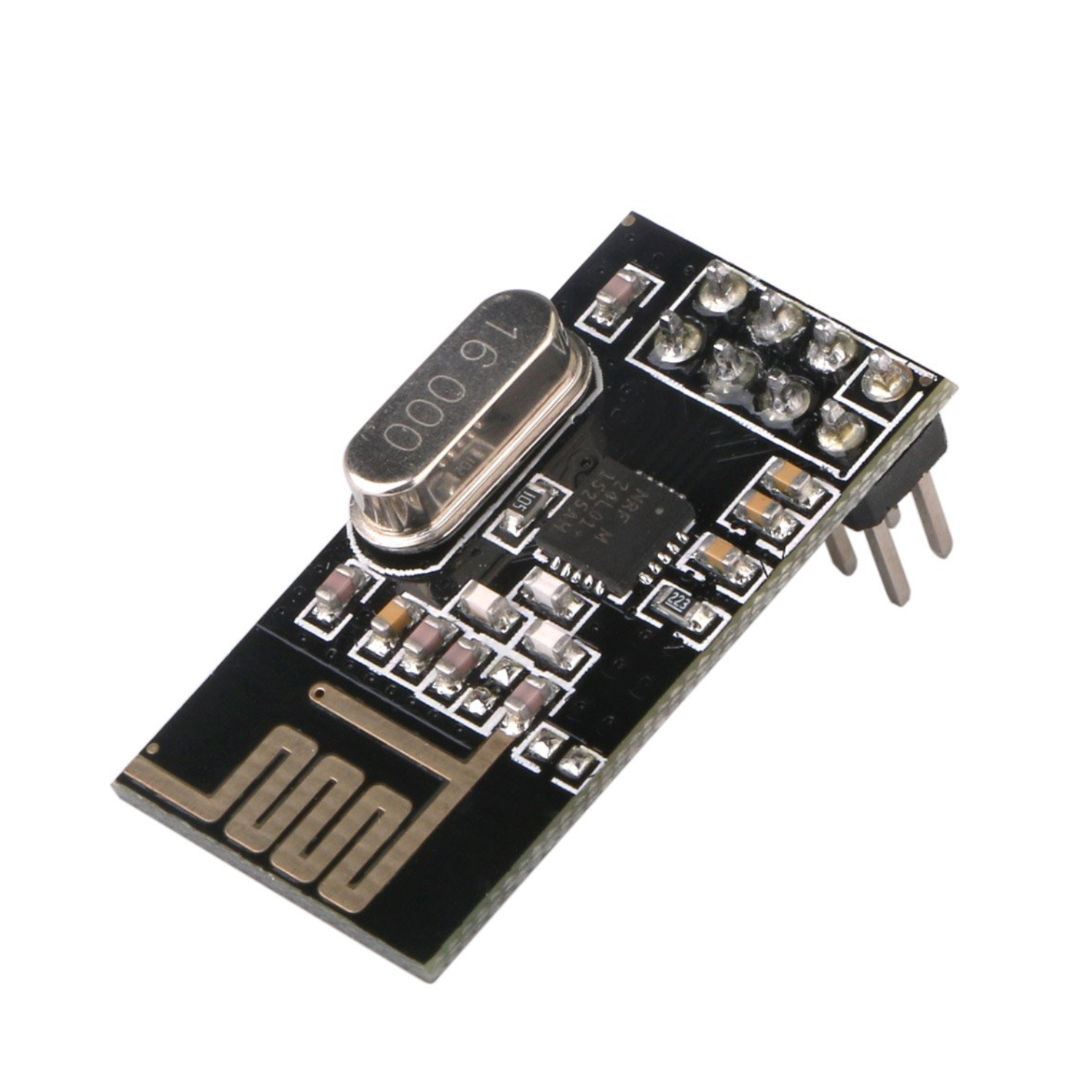

1 x NRF24L01 2.4GHz RF Transceiver Module
