Description:
The SDS011 is a high-precision laser dust sensor that employs the principle of laser scattering to detect and quantify airborne particulate matter. By directing a laser beam through the sampled air, it accurately measures the concentration of particles ranging from 0.3 to 10 micrometers (µm) in diameter, which includes the critical PM2.5 fraction.
This sensor offers versatile output options, providing real-time data through a digital serial interface at 9600 baud for straightforward integration with microcontrollers and other systems. Additionally, it features two Pulse Width Modulation (PWM) channels, enabling flexible data acquisition and control.
Specifications:
- Model No.: SDS011
- Item Type: Air Quality Sensor
- Working Current (mA): 100 mA
- Power Supply Voltage (V): 5V
- Operating Temperature (°C): -20 to 55
- Sleep Mode Current: 2 mA
Features:
- Easy integration: UART output (or IO output can be customized), fan built-in.
- High resolution: the resolution of 0.3ug/m3.
- Accurate and Reliable: laser detection, stable, good consistency.
- Quick response: response time is less than 10 seconds when the scene changes.
Package Included:

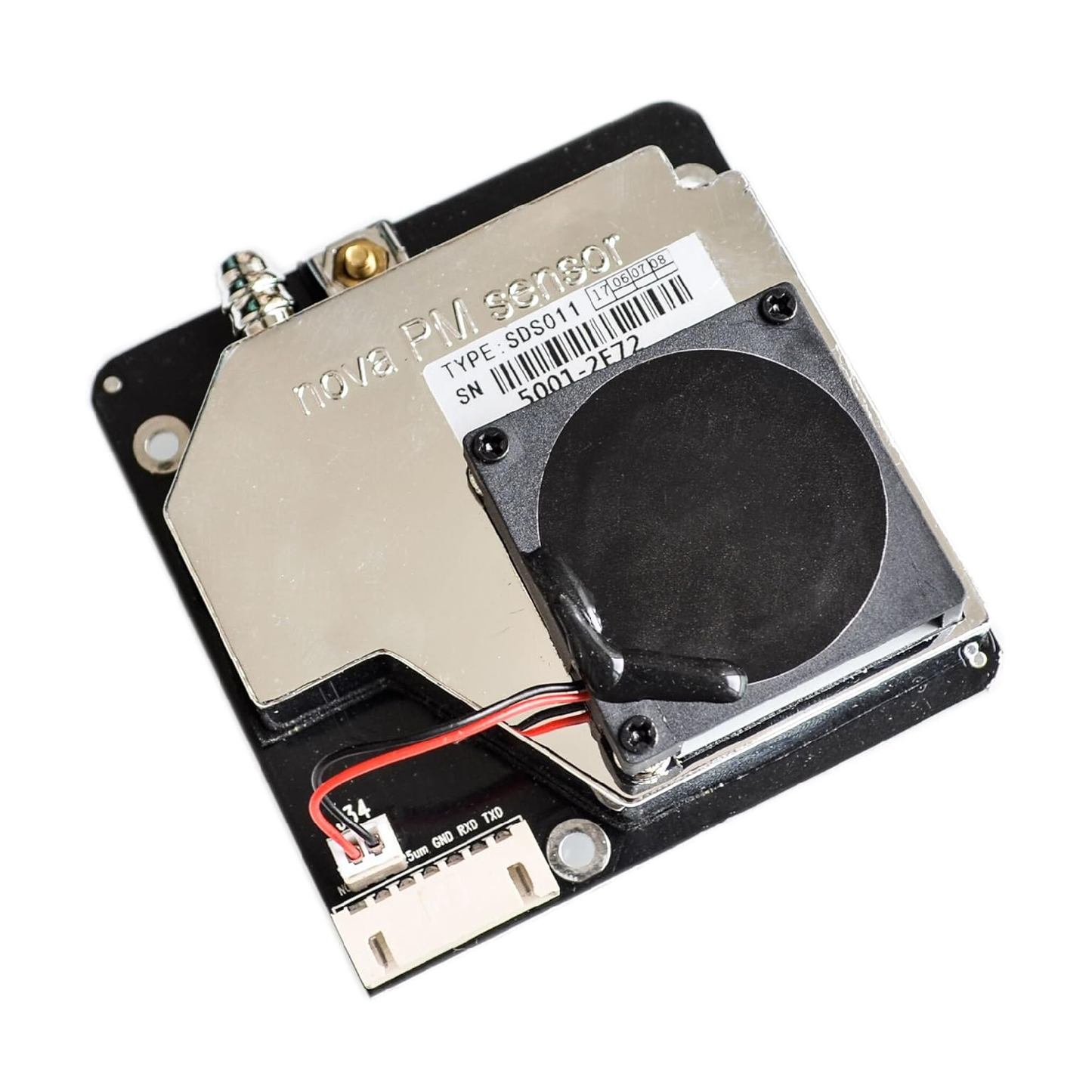

1 x Nova SDS011 PM2.5 High-Precision Laser Air Quality Sensor
