Nokia 5110 LCD Module Red Backlight - Arduino, ARM and other MCU - LD231

Nokia 5110 LCD Module Red Backlight - Arduino, ARM and other MCU - LD231

SKU:LD231

45 in stock

Regular price Rs. 210.00
Regular price Sale price Rs. 210.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

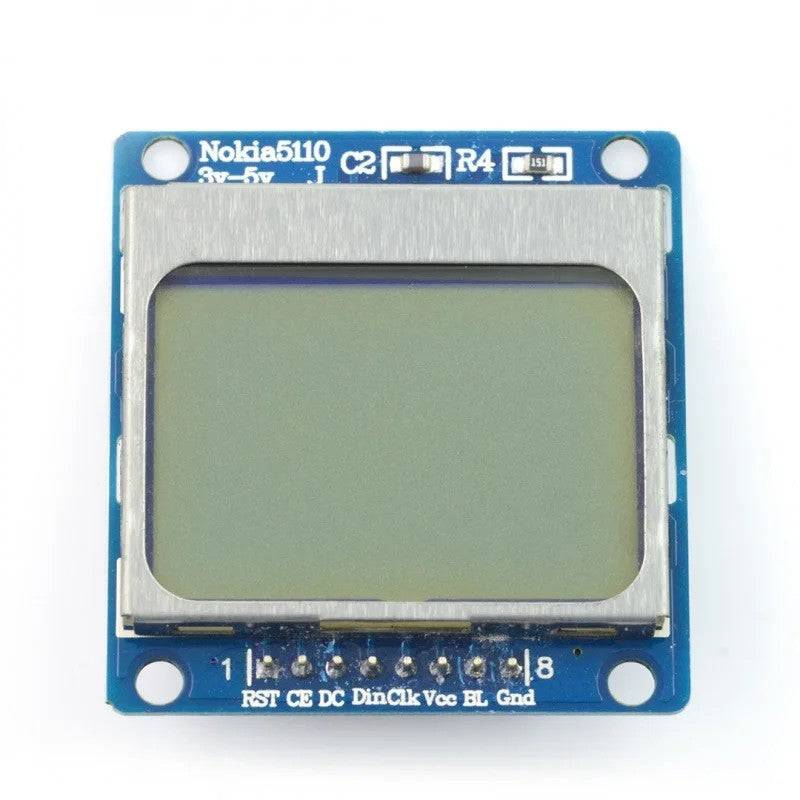

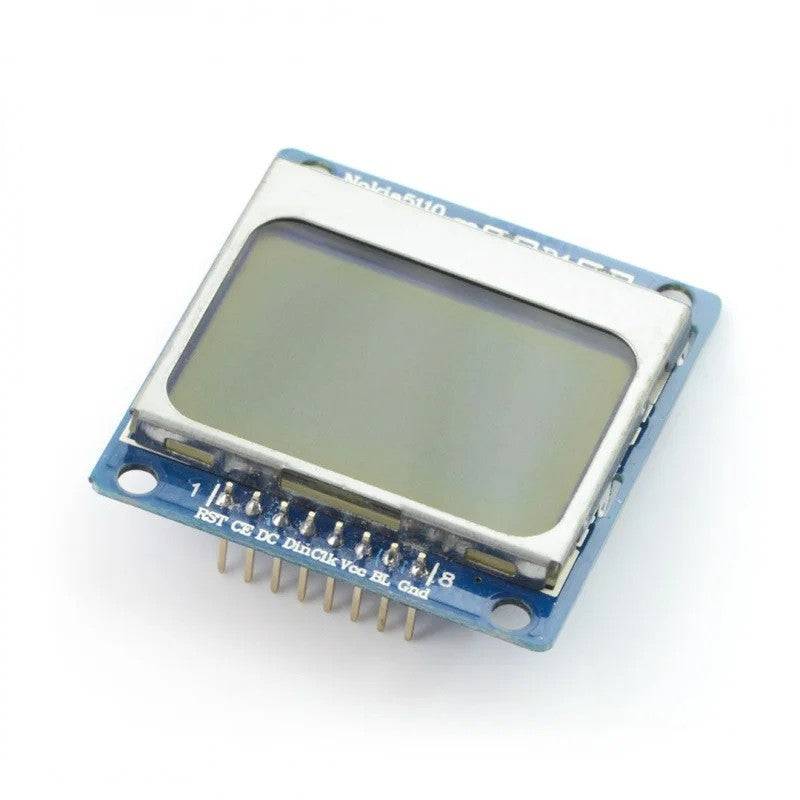

The name of this product itself is enough to explain its origin. Yes of course !!! this LCD module was used in old Nokia 5110/3310 cell phones. Now its been widely used by hobbyists for graphics, text etc.

Though it’s an industrial module, this LCD display is extremely easy to use. The Nokia 5110 is a basic graphic LCD screen for lots of applications. It was originally intended for as a cell phone screen.

This Nokia 5110 LCD Display Module is mounted on an easy to solder PCB. The Nokia 5110 LCD Module uses a Philips PCD8544 LCD driver, which is designed for mobile phones.

Specifications:

  • Power supply voltage: 2.7V- 3.3V
  • Backlight Power Supply Voltage: 3.3V MAX
  • 43.6mm x 43.1mm(width X height)
  • 84 x 84 dot matrix LCD, can show 4 lines of characters, 12 Characters Per Line

Pin Description:

Pin No: Pin Name: Description
1 Reset This pin resets the module. It an active low pin (resets when 0V is provided)
2 Chip Enable (CE) This pin is made low (0V) to select this particular display when more than one SPI peripherals are used.
3 Data/Command (DC) This pin is used to switch between Data mode (high) and Command mode (low)
4 Serial Input (DIN) This is the input pin (MOSI) through which serial instructions are sent
5 Clock (CLK) All SPI modules require a common clock, this clock source is supplied to this pin
6 Power (Vcc) This pin is used to power the display the supply voltage is from 5V to 7V
7 Back Light (BL) Connects to the ground of the circuit.
8 Ground (GND) Connects to the ground of the circuit.

Package included:

1 x Nokia 5110 LCD Module Red Backlight
