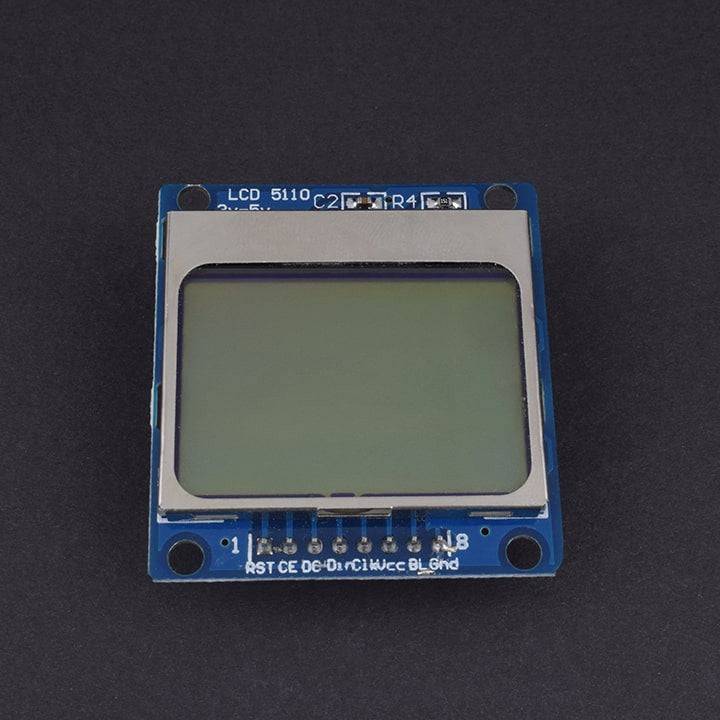

Nokia 5110 LCD Module Blue Backlight Adapter PCB for Arduino (84*48 LCD) - LD230

Nokia 5110 LCD Module Blue Backlight Adapter PCB for Arduino (84*48 LCD) - LD230

SKU:LD230

In stock

Regular price Rs. 180.00
Regular price Sale price Rs. 180.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Power Supply Voltage: 2.7V-3.3V
  • Data Interface Level: 2.7-3.3V
  • Backlight Power Supply Voltage: Highest 3.3V
  • Module Size: 43.6mm x 43.1mm(width X height)
  • Installation Diameter: 2mm

Description:

This is a quick tutorial for our 84x48 pixel monochrome LCD display. These displays are small, only about 1.5" diameter, but very readable due and comes with a backlight. This display is made of 84x48 individual pixels, so you can use it for graphics, text or bitmaps. These displays are inexpensive, easy to use, require only a few digital I/O pins and are fairly low power as well. To drive the display, you will need 3 to 5 digital output pins (depending on whether you want to manually control the chip select and reset lines). Another pin can be used to control (via on/off or PWM) the backlight. To make things easy for you, we've written a nice graphics library that can print text, pixels, rectangles, circles and lines! The library is written for the Arduino but can easily be ported to your favourite microcontroller.

Specification:

  • Power Supply Voltage: 2.7V-3.3V
  • Data Interface Level: 2.7-3.3V
  • Backlight Power Supply Voltage: Highest 3.3V
  • Module Size: 43.6mm x 43.1mm(width X height)
  • Installation Diameter: 2mm

Features:

  • Brand new and high-quality product
  • Low-cost monochrome graphical display
  • Blue backlight
  • Built-in PCD8544 Lcd controller
  • 84 X 48 dots matrix
  • Serial interface maximum of 4.0 Mbits/s
  • CMOS compatible inputs
  • Low power consumption suitable for battery operated systems
  • Working voltage: 3V to 5V

Interfacing With Arduino:

Arduino Pro Mini 3.3V
Olimexino-32U4 (Jumper 3.3V!)

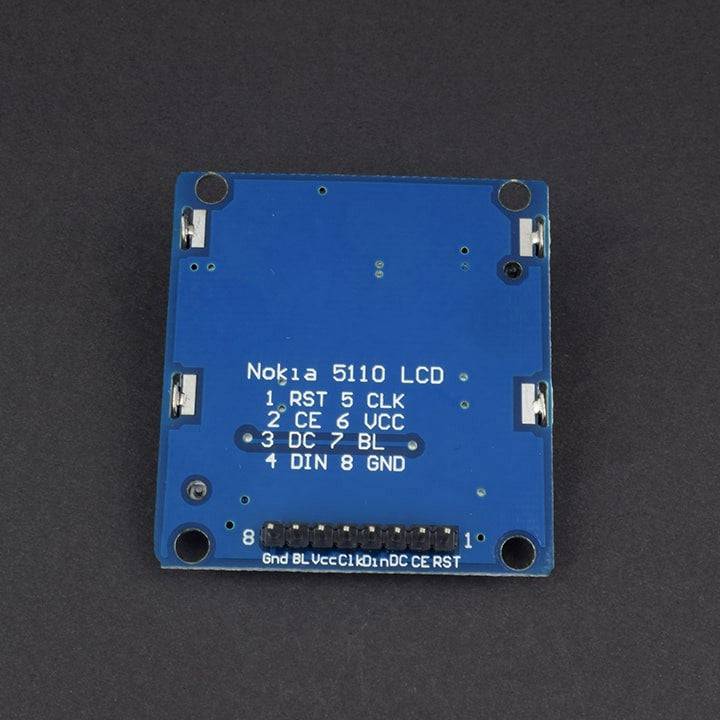

Nokia 5110 display
D3 RST
D4 CE
D5 DC
D6 DIN
D7 CLK
VCC (3.3V) VCC
GND LIGHT
GND GND

Package Included:

1 x Nokia 5110 LCD Module
