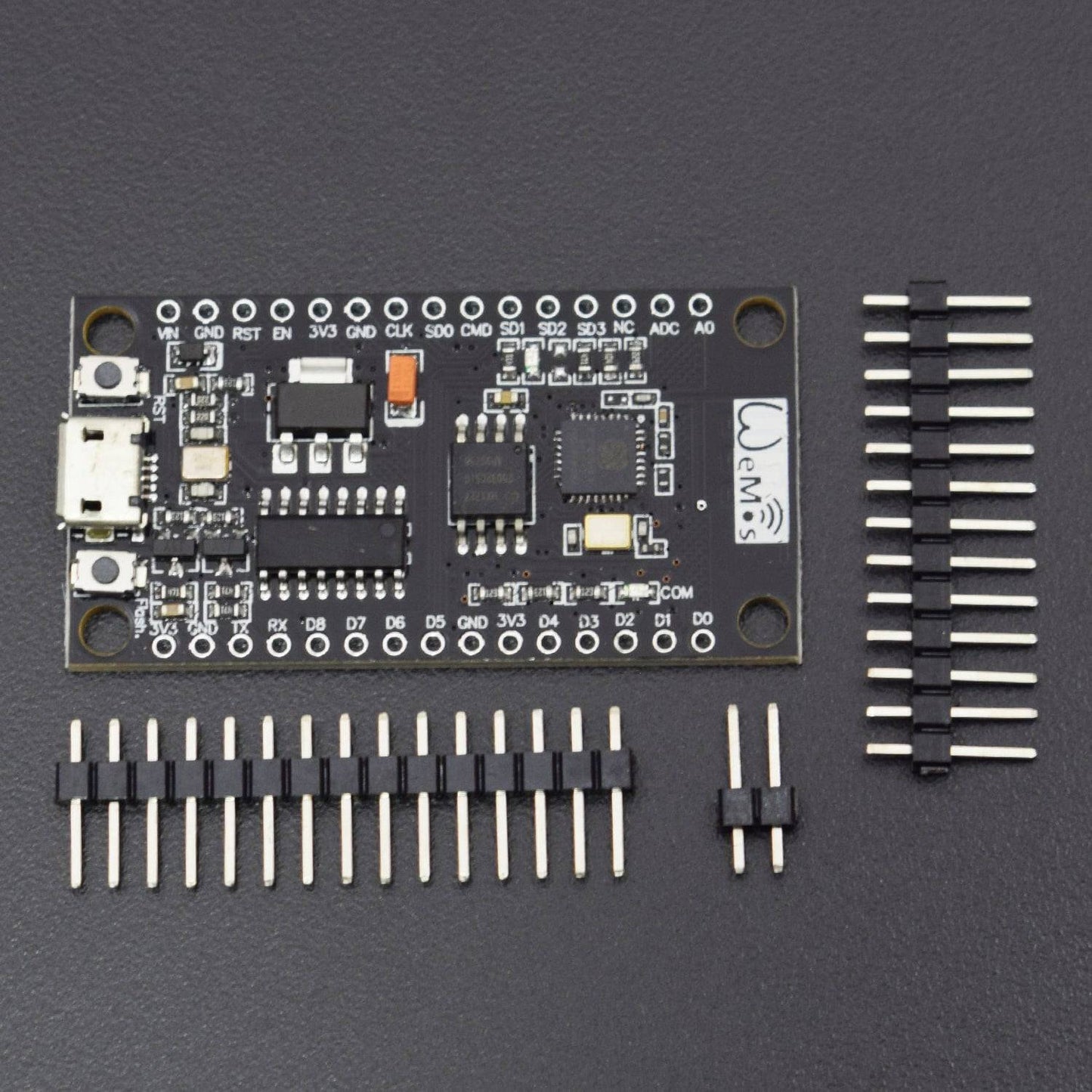

NodeMCU V3 Lua WIFI module integration of ESP8266 + extra memory 32M flash, USB-serial CH340G - RS1074

NodeMCU V3 Lua WIFI module integration of ESP8266 + extra memory 32M flash, USB-serial CH340G - RS1074

SKU:RS1074

Low stock: 1 left

Regular price Rs. 599.00
Regular price Sale price Rs. 599.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Voltage: DC 5~9V
  • Wi-Fi Direct (P2P), soft-AP.
  • Current consumption: 10uA~170mA.
  • Flash memory attachable: 16MB max (512K normal).
  • Integrated TCP/IP protocol stack.
  • Processor: Tensilica L106 32-bit.
  • Processor speed: 80~160MHz.
  • RAM: 32K + 80K.
  • GPIOs: 17 (multiplexed with other functions).
  • Analog to Digital: 1 input with 1024 step resolution.


Description:

  • The ESP8266 is the name of a microcontroller.
  • The ESP8266 itself is a self-contained WiFi networking solution offering as a bridge from the existing microcontroller to WiFi and is also capable of running self-contained applications.
  • This module comes with a built-in USB connector and a rich assortment of pin-outs.
  • With a micro USB cable, you can connect NodeMCU devkit to your laptop and flash it without any trouble, just like Arduino.
  • It is also immediately breadboarded friendly.

Features:

  • Arduino-like hardware I/O. And can programming in Arduino IDE
  • Event-driven API for network applications
  • 10 GPIO's D0-D10, PWM functionality, IIC, and SPI communication, 1-Wire and ADC A0, etc. all in one board
  • WiFi networking (can be used as an access point and/or station, host a web server), connect to the internet to fetch or upload data
  • With header pins

Package Included:

1*NodeMcu Lua V3 CH340G ESP8266 Wireless Internet Development Module
