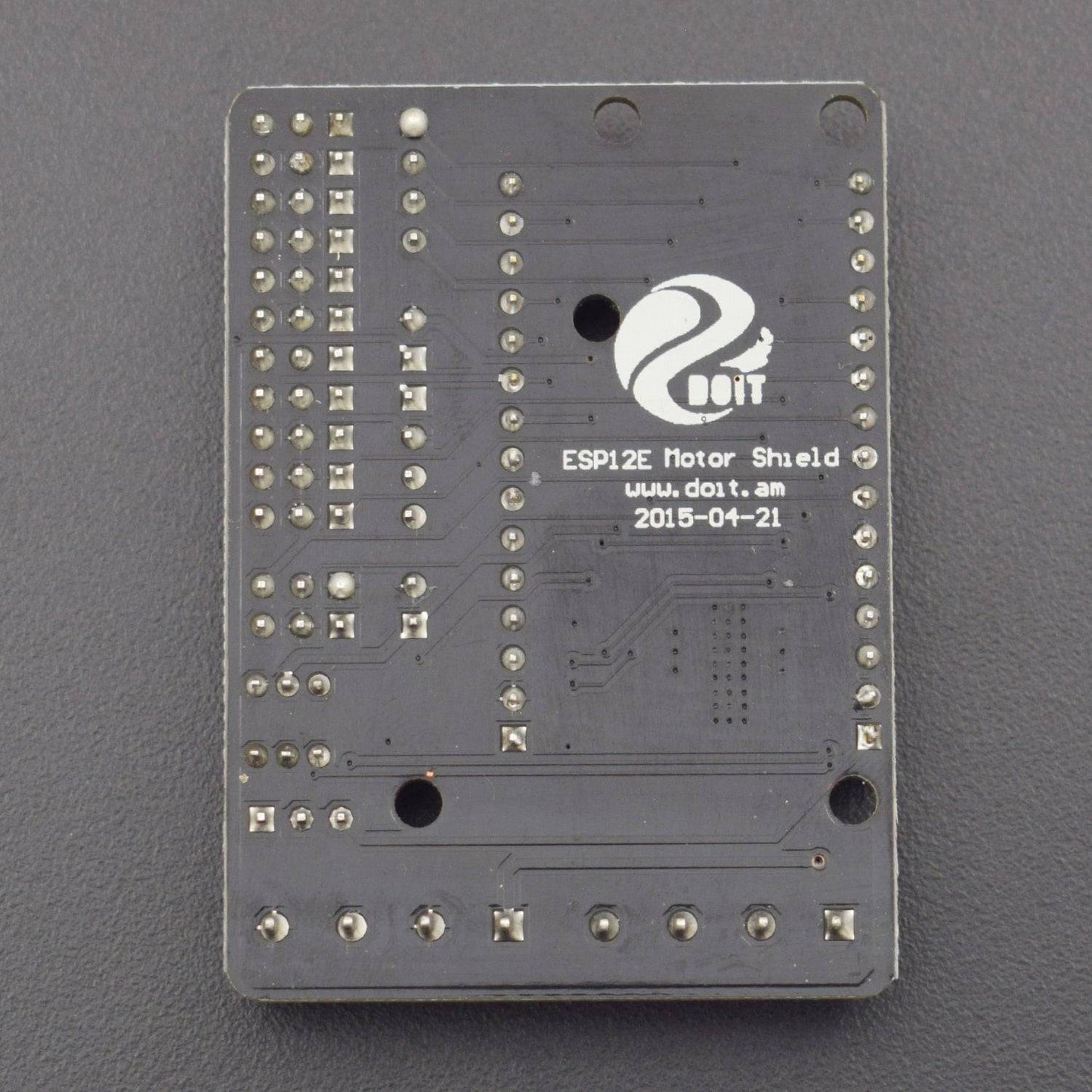

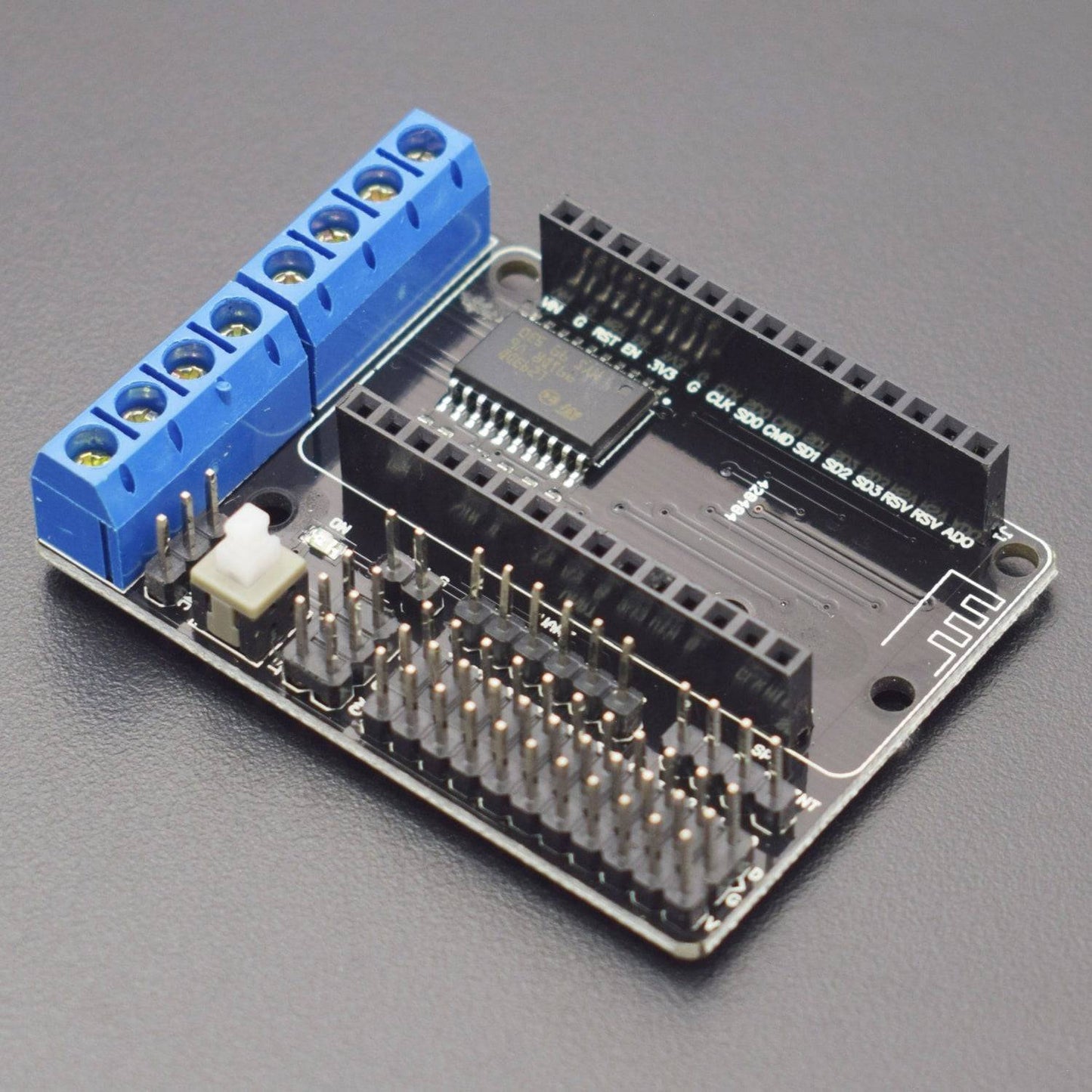

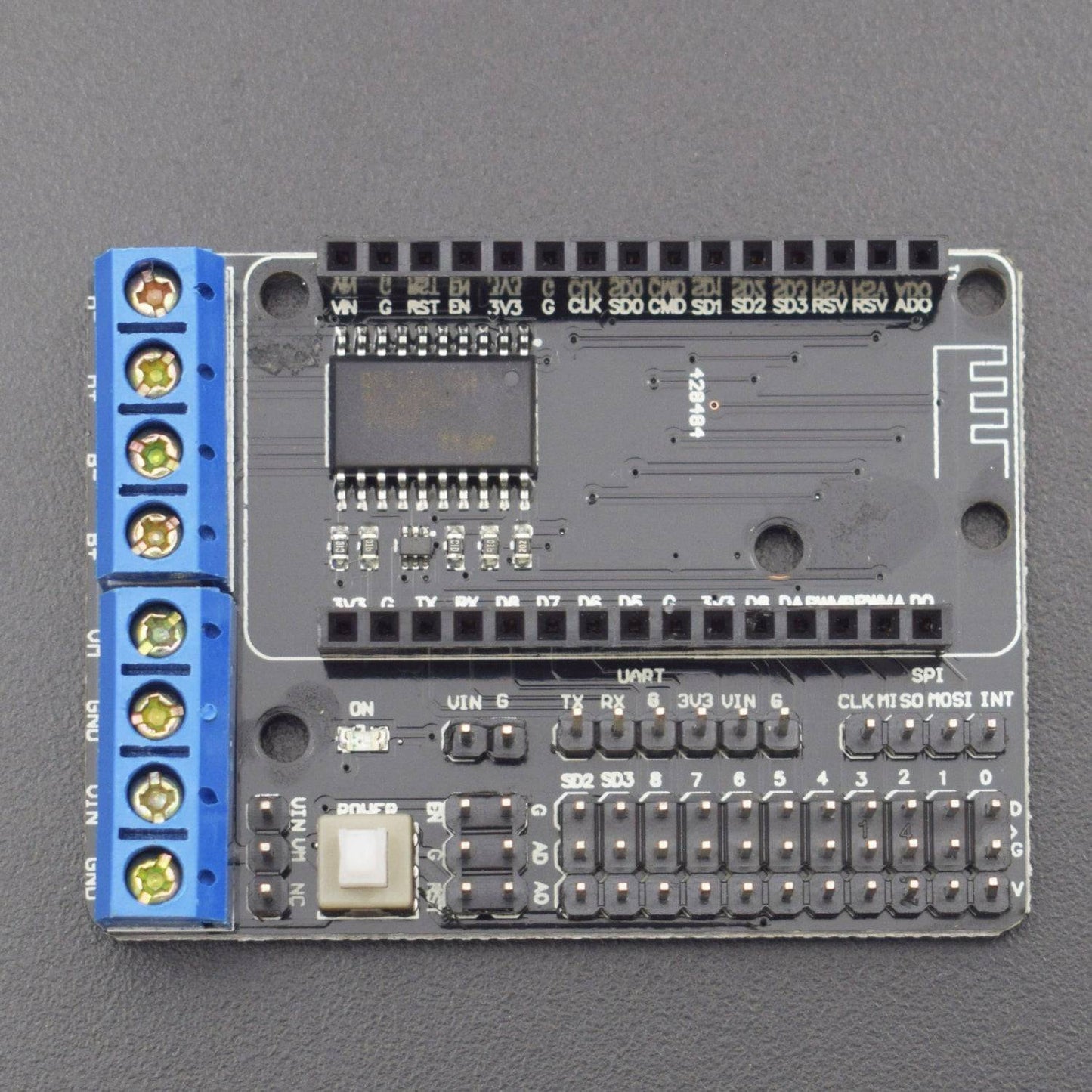

NodeMCU Motor Shield Board L293D for ESP-12E from ESP8266 ESP 12E Kit DIY RC Toy wi-fi RC Smart Car Remote Control - RS1399

NodeMCU Motor Shield Board L293D for ESP-12E from ESP8266 ESP 12E Kit DIY RC Toy wi-fi RC Smart Car Remote Control - RS1399

SKU:RS1399

Low stock: 1 left

Regular price Rs. 150.00
Regular price Sale price Rs. 150.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Motor Power Supply Range: 4.5V ~ 36V
  • Control Power Range: 4.5V ~ 9V (10VMAX)
  • Logic Operating Current: ≤60mA
  • Drive part of the work current Io: ≤1.2A

Description:

L293D Motor Driver module is compatible with ESP12E Dev Kit and NodeMCU. This shield board is driven by the power full-bridge chip L293DD which can directly drive 2-channels DC motors or one-channel stepper motor. In this motor shield board, the IO port of ESP-12E Dev Kit is used as the control port. The logic chip configured inside can finish IC driven. Thus, the shield board has four ports: D1, D2, D3, and D3, which are used as PWMA(motor A), PWMB (motor B), DA (direction of motor A), and DB (direction of motor B), respectively. In addition, this shield board has many pins, such as VIN, 3.3V, DIO, AIO, SDIO, UART, SPI, RST, and EN, thus can conveniently connect all kinds of sensors (e.g., temperature and humidity, buzzer, light, relay sensor, etc.)

Specification:

Motor Power Supply Range

4.5V ~ 36V

Control Power Range

4.5V ~ 9V (10VMAX)

Logic Operating Current

≤60mA

Drive part of the work current Io

≤1.2A

Maximum Power Dissipation

4W

Drive Type

Dual high-power H-bridge driver

Working Temperature

-25 ℃ ~ + 125 ℃

Features:

  • ESP12 DEV KIT development board expansion module
  • Lead ESP12 DEV KIT all the features of pins: SPI, UART, GPIO, AI, and 3.3V power connector
  • Extend two-way motor-driven, two-way direct-drive motor
  • onboard power switch
  • Motor power, control power separation

Package Included:

1 x NodeMCU Motor Shield Board L293D for ESP-12E from ESP8266 ESP 12E Kit DIY RC Toy wi-fi RC Smart Car Remote Control
