Description:
This is Nextion NX8048P070-011R-Y Intelligent 7.0‘’ HMI Display with Enclosure. With several character encodings, you are able to create the HMI project in your language characters and strings. The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of “Arial” with Height “24” and Encoding “UTF-8”
Nextion 7" HMI Display is a Human Machine Interface (HMI )solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text-based instructions for coding how components interact on the display side. Nextion HMI display connects to the peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that the peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.
The Intelligent Nextion 7" HMI products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enrich user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent components, page loading effect, component Move and Drag .etc.
Specifications:
| Data | Description | |
| Color | 65K 65536 colors | 16 bit 565, 5R-6G-5B |
| Layout size | 218.1mm(L)×150mm(W)×22.5mm(H) | NX8048P070-011R-Y |
| Active Area (A.A.) | 164.90mm(L)×100.00mm(W) | |
| Visual Area (V.A.) | 154.08mm(L)×85.92mm(W) | |
| Resolution | 800×480 pixel | Also can be set as 480×800 |
| Touch type | Resistive | |
| Touches | > 1 million | |
| Backlight | LED | |
| Backlight lifetime (Average) | >30,000 Hours | |
| Brightness | 300nit | 0% to 100%, the interval of adjustment is 1% |
Features:
- Nexiton Display Type: Intelligent Series
- Nexiton Model: NX8048P070-011R-Y(18.1 cm resistive touchscreen with enclosure)
- Built-in RTC support (Battery type: CR1220)
- Operating Voltage:5V-6.5V
- Operating Current: 530mA(VCC=+5V, Brightness is 100%)

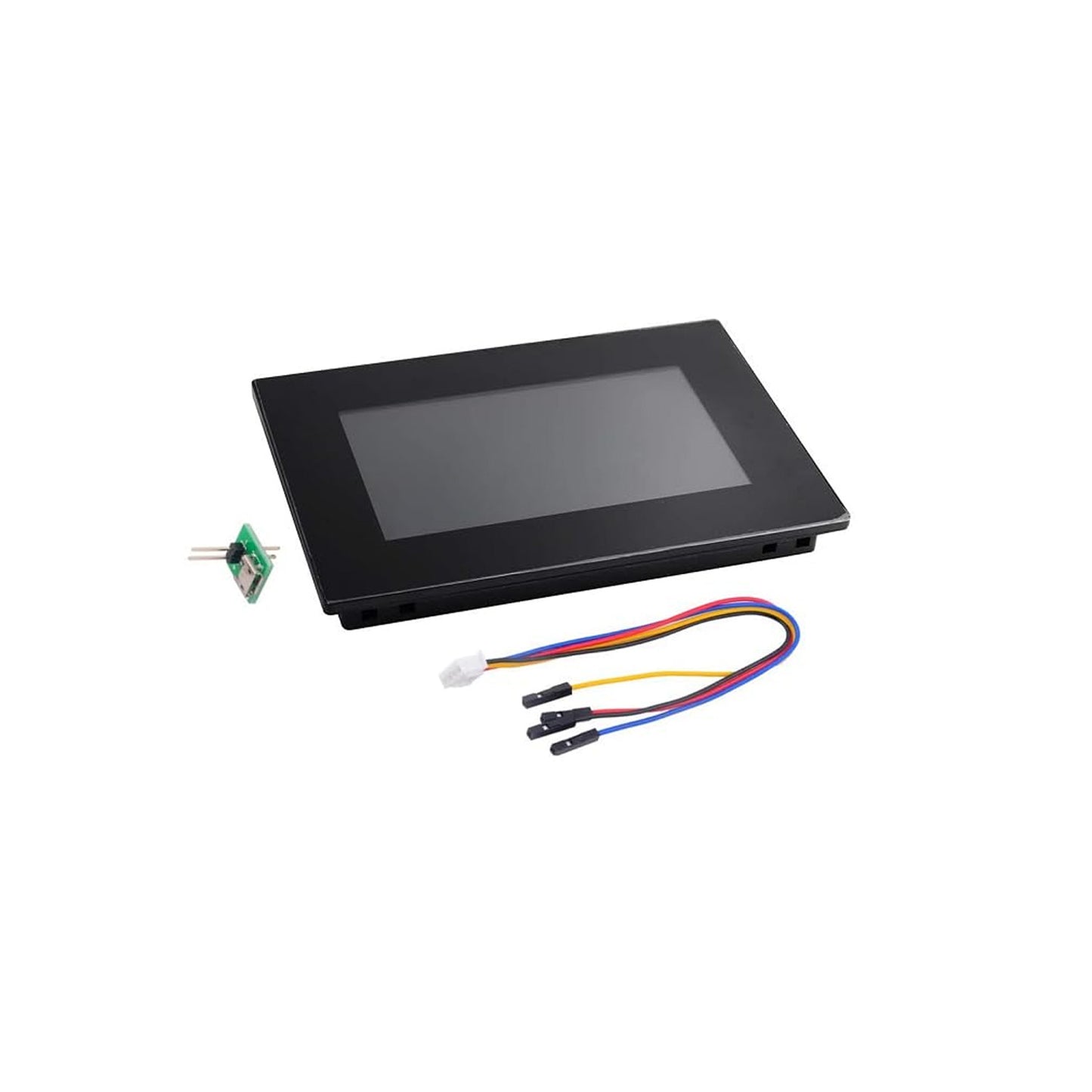

Package Included:
- 1 x NX8048P070-011R-Y HMI Display
- 1 x XH2.54 4P Wire
- 1 x Power Supply Test Board
- 1 x Mounting buckle & Screw
