Description:

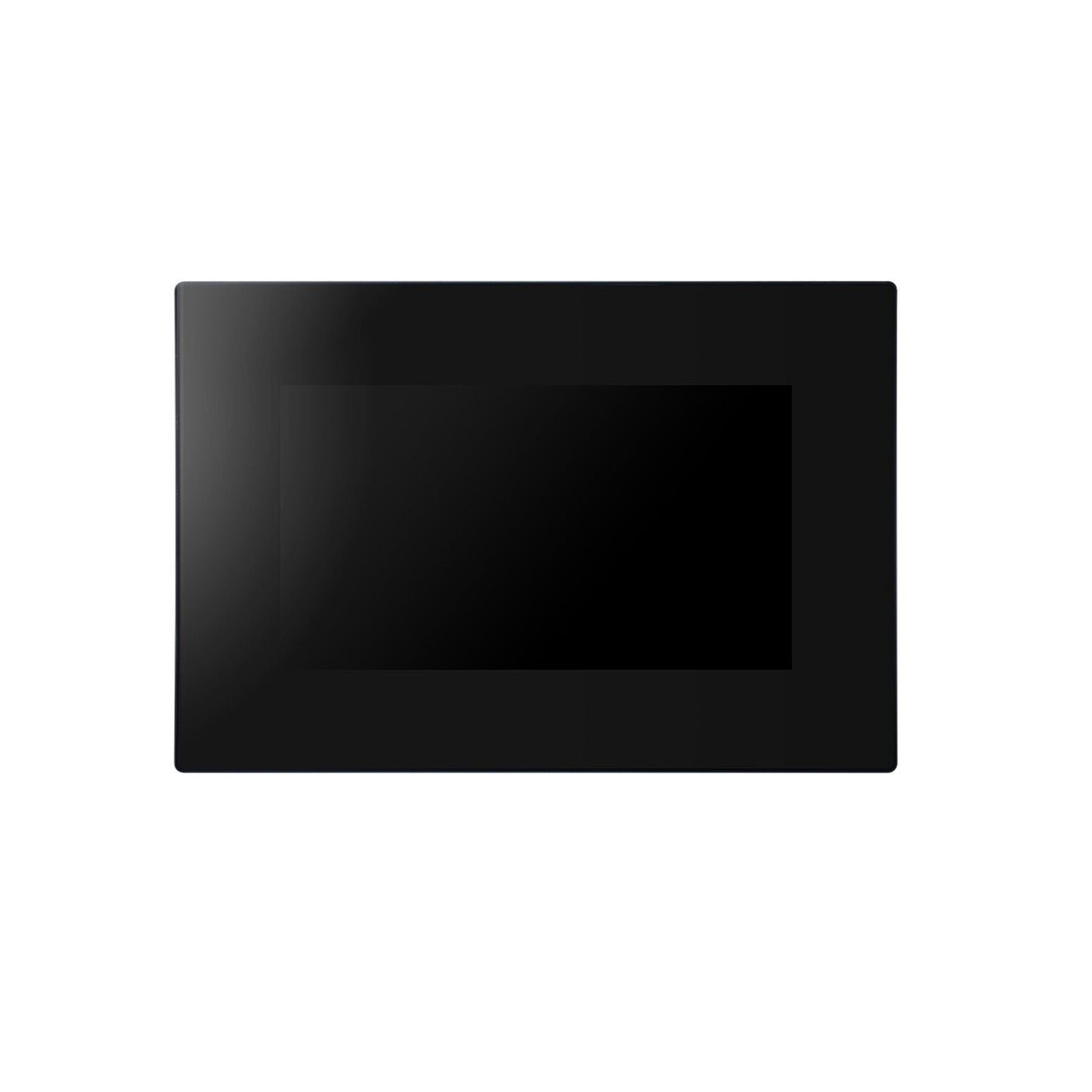

Nextion NX8048P070-011C-Y 7" Intelligent HMI Display is a Human Machine Interface HMI solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider, etc.) and ASCII text-based instructions for coding how components interact on the display side.
Nextion 7-inch Display NX8048P070-011C-Y connects to the peripheral MCU via TTL Serial 5V, TX, RX, and GND to provide event notifications that the peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text-based instructions.
Specifications:

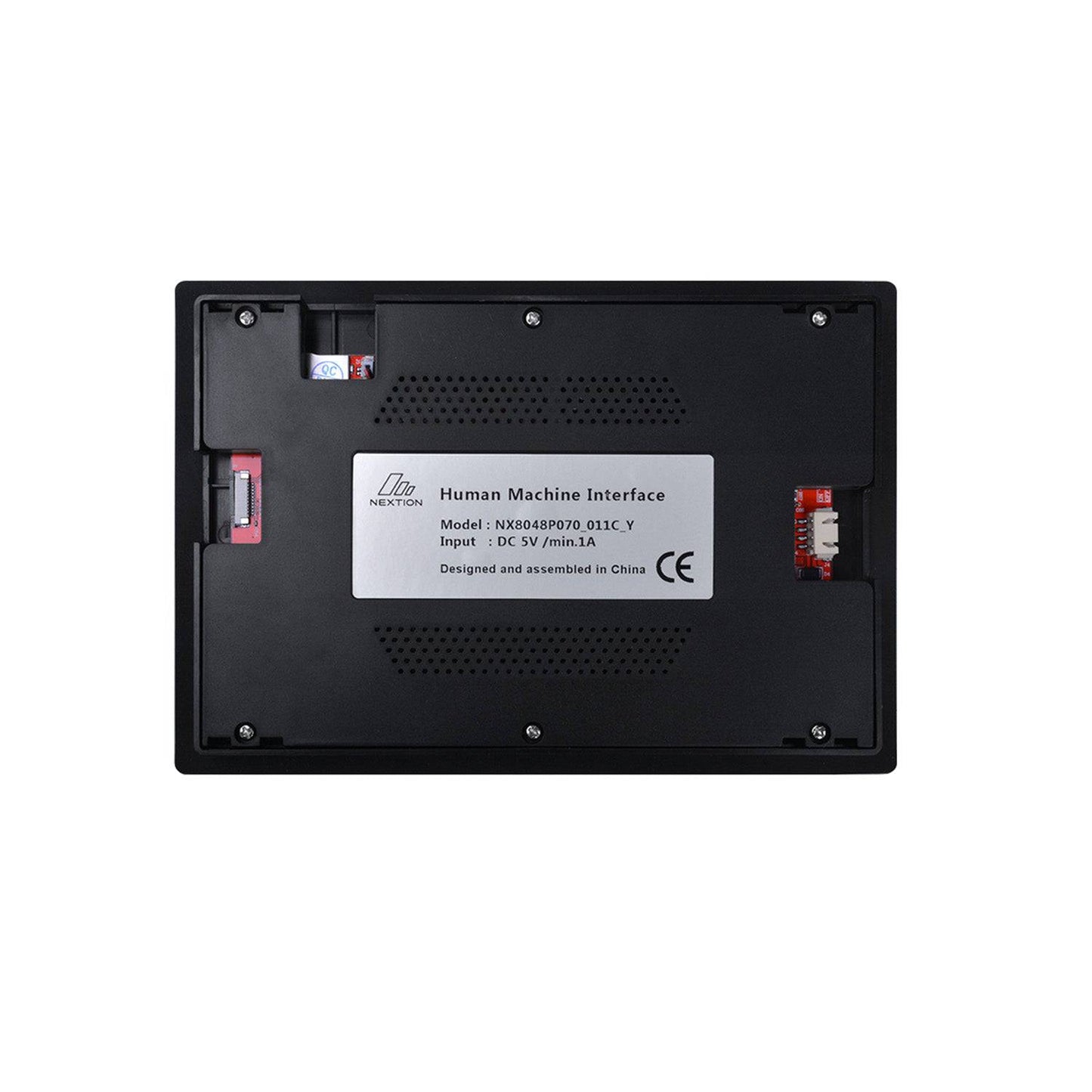

- Model: NX8048P070-011C-Y
- Resolution: 800×480 Pixel
- Operating Voltage: 5V-6.5V
- Max. Operating Current: 530mA
- Touch Type: Capacitive
- Backlight: LED
- Colour: Black
Features:
- Nextion 7-inch Display NX8048P070-011C-Y has built-in RTC support (Battery type: CR1220)
- Operating Current 530mA(VCC=+5V, Brightness is 100%).
- Nextion 7-inch Display NX8048P070-011C-Y is an intelligent series display.

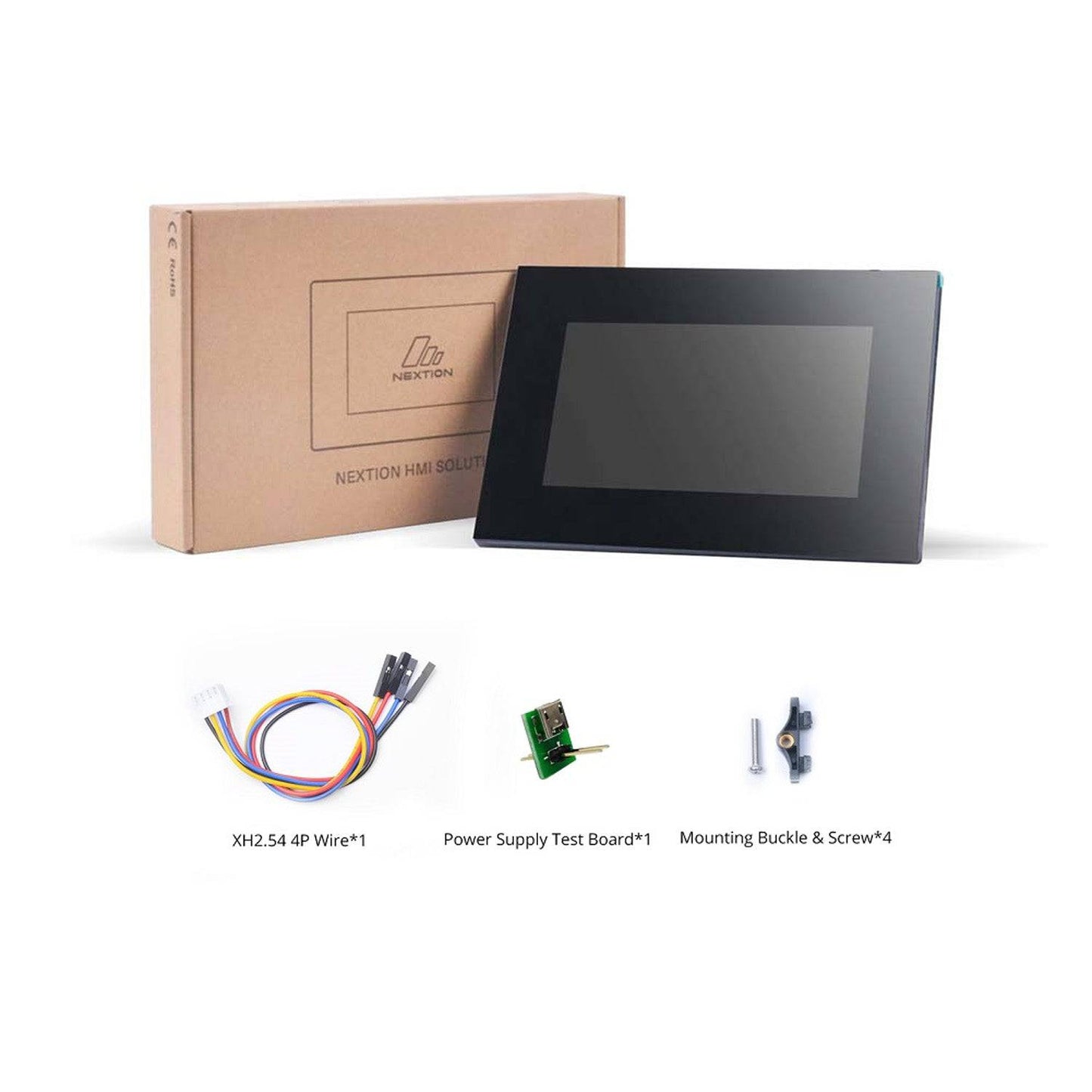

Package Included:
1 x Nextion NX8048P070-011C-Y 7" Intelligent HMI Display Human Machine Interface 18.1 cm (7 inch) Capacitive Touchscreen Display With Enclosure Ideal For Industrial Automation and Control Systems
