Description:

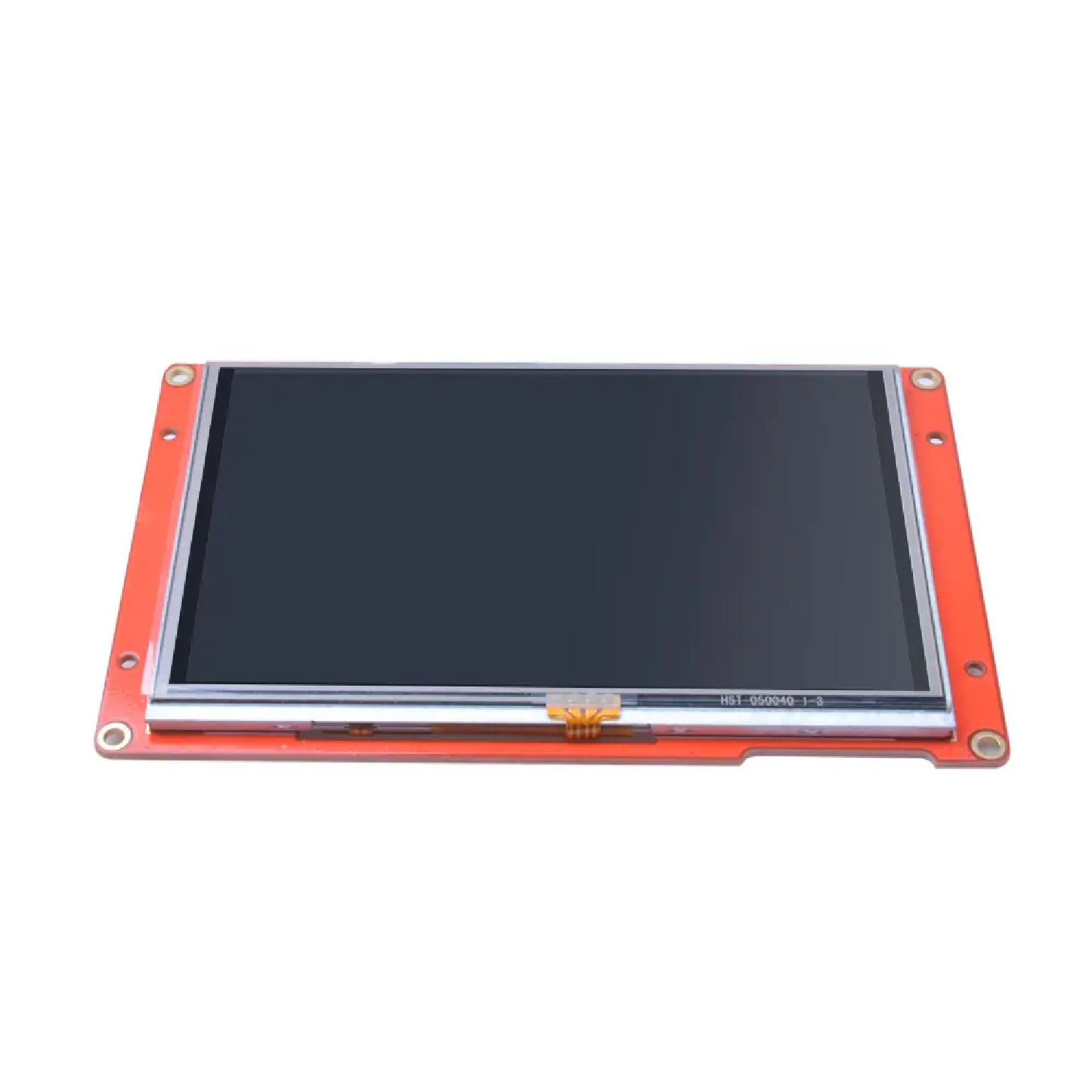

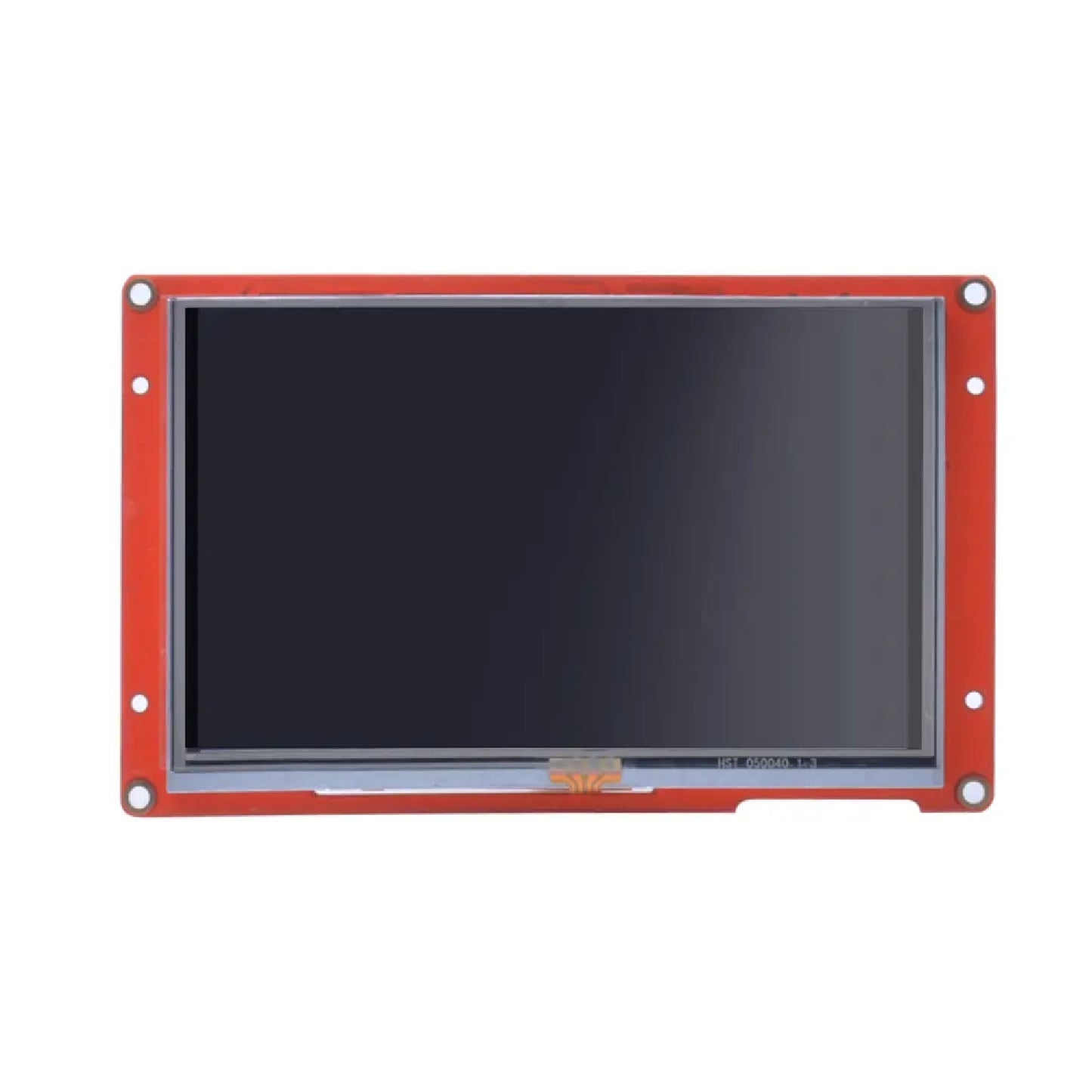

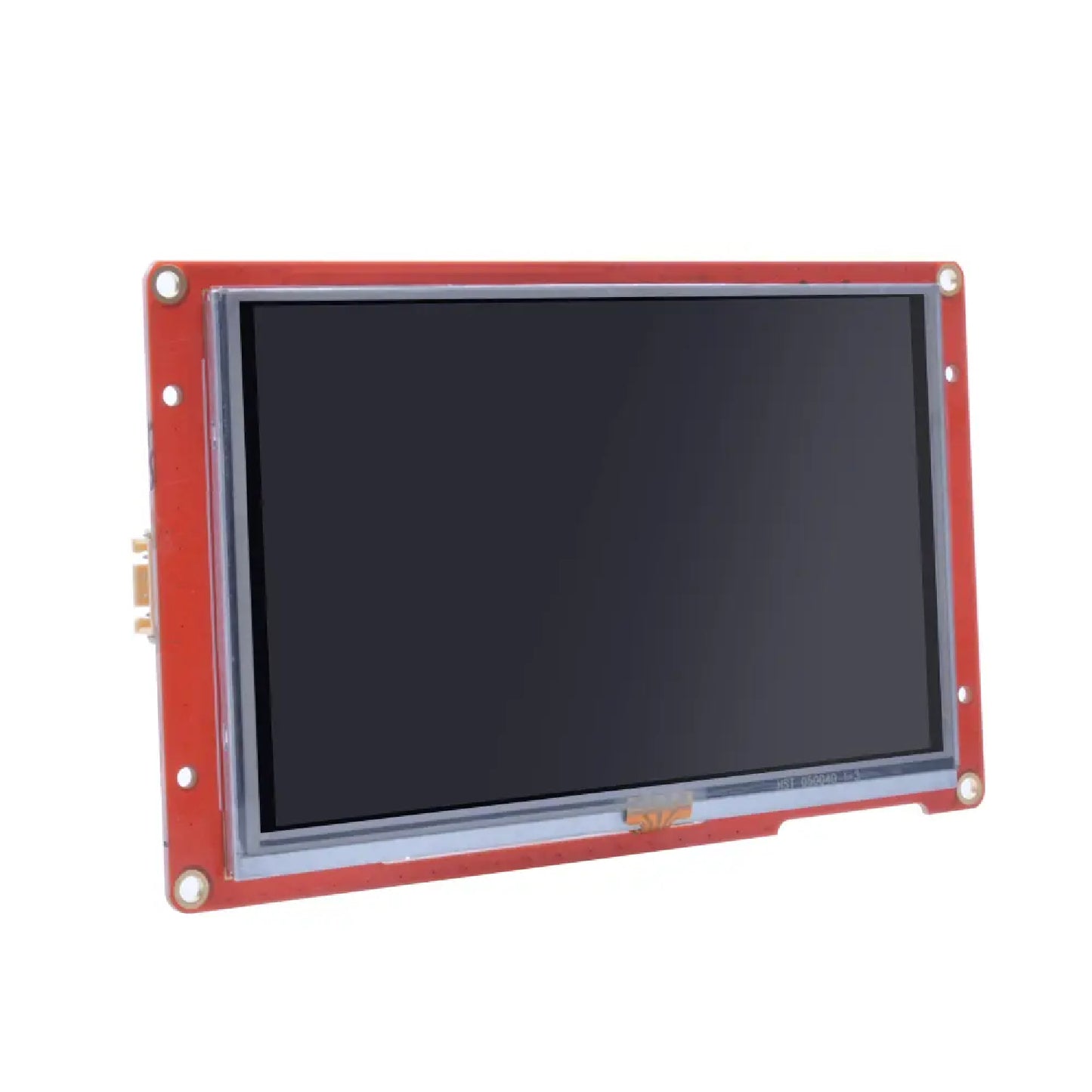

Nextion is a Human Machine Interface (HMI) solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider, etc.) and ASCII text-based instructions for coding how components interact on the display side.
Nextion HMI display connects to the peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that the peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text-based instructions.
Specifications:
- Model: NX8048P050-011C
- Ram Memory Installed Size: 512 KB
- Memory Storage Capacity: 128 MB
- CPU Speed: 200 MHz
- Connectivity Technology: GPIO
Features:

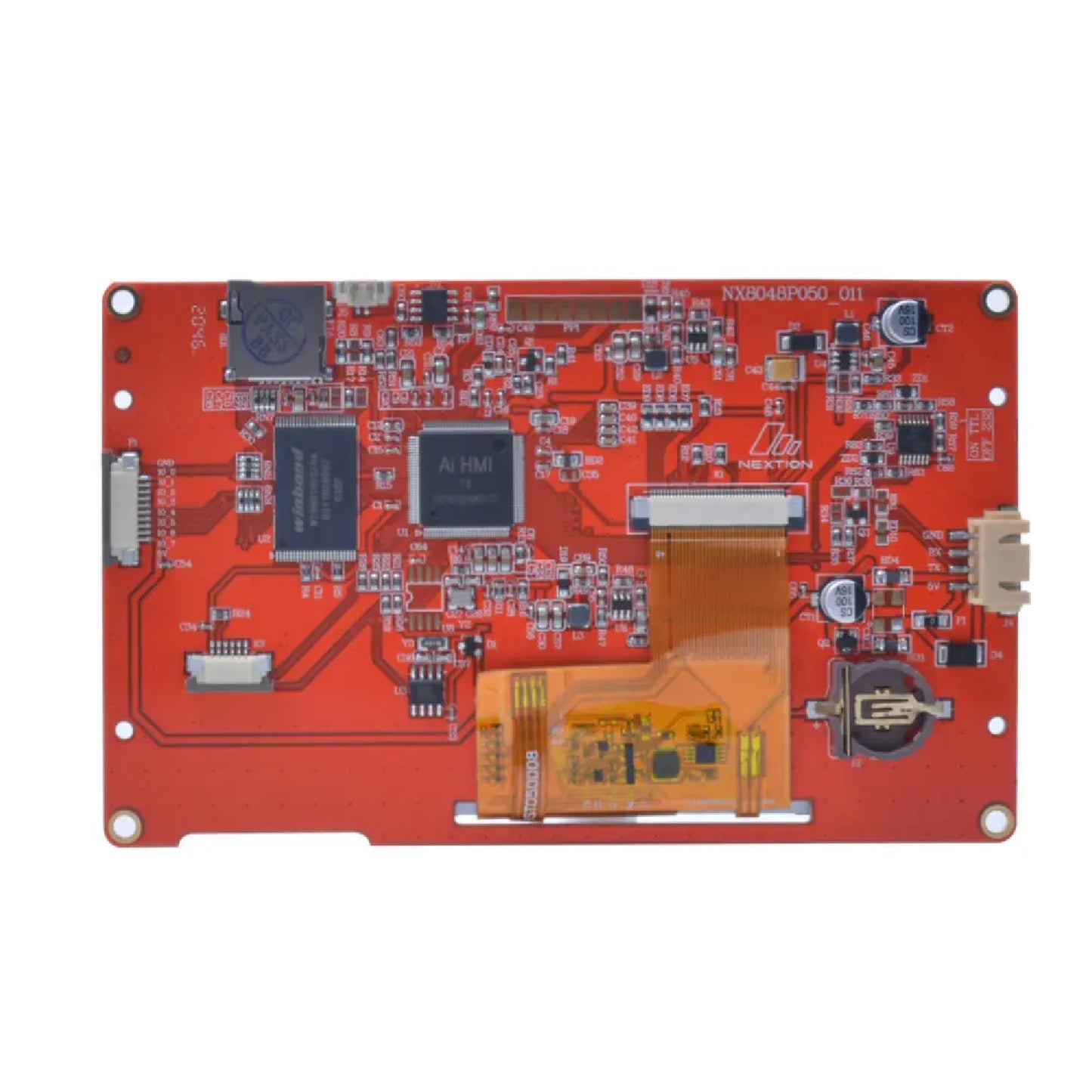

- Powerful Hardware: The Intelligent Series products have more powerful hardware in terms of MCU (200MHz), Flash storage (128MB), and SRAM (512KB).
- Unique Functions: The audio, video, and animation play functions enrich the user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent components, page loading effects, component Move, and Drag, etc.
- Free Programming Software: You can use the free Nextion Editor software, which has powerful features such as display-side encoding for ASCII text-based instructions, Built-in debugger for HMI project simulation, Drag-and-Drop components for GUI design and interaction, etc.
- Wide Range of Applications: Nextion can be widely used in Vehicle HMI, 3D Printers, Medical Devices, Beauty Devices, Production lines, etc.

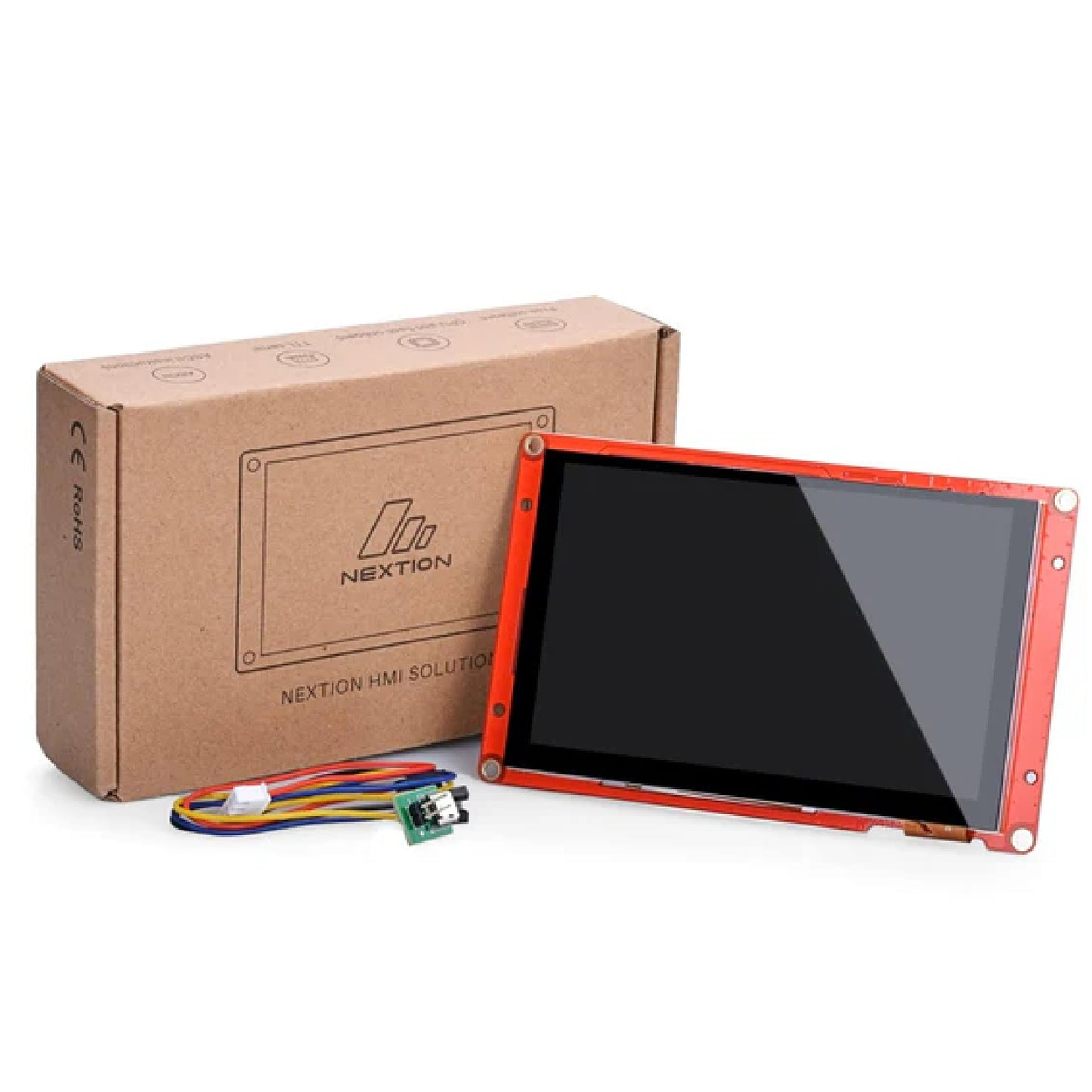

Package Included:
1 x Nextion NX8048P050-011C HMI Display Nextion 5" Intelligent Display 5-Inch Nextion HMI Touchscreen High-Quality 5-Inch HMI Display for Industrial Applications
