Description:
Nextion NX8048K070 7-inch Enhanced HMI Display is more powerful than the standard ones. Compared to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, saving data to Flash, supporting GPIO, larger flash capacity, and larger CPU clock. The enhanced Nextion series has 7 size covers from generic 2.4 to 7.0.
Nextion NX8048K070 7-inch Enhanced HMI Display is a powerful 18.1 cm (7 inches) HMI TFT display, with 32MB Flash data storage space, 1024 byte EEPROM, and 8192 byte RAM. Nextion NX8048K070 7-inch Enhanced HMI Display with GPIO supported, now customers can use Nextion to control external devices.
Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes.
Nextion NX8048K070 7-inch Enhanced HMI Display includes a hardware part (a series of TFT boards) and a software part (theNextion editor). The Nextion NX8048K070 7-inch Enhanced HMI Display uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time on application development but get unsatisfactory results. As a solution to this situation, the Nextion editor has mass components such as buttons, text, progress bars, sliders, instrument panels, etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
Specifications:
- Model Name: NX8048K070-011R
- Operating Voltage: 5~7V
- Size: 7 Inch
- Colour: 64K 65536 Colours
- Layout Size: 181 mm(L)×108 mm(W)×9.3 mm(H)
- Active Area: 164.90mm(L)×100.00mm(W)
- Visual Area: 154.08mm(L)×85.92mm(W)
- Resolution: 800×480
- Touch Type: Resistive
- Brightness: 230 nit
- RAM: 8192 BYTE
- FLASH Memory: 32MB
- Instruction Buffer: 1024 BYTE
- User Storage: 1024 BYTE
Features:
- Nextion NX8048K070 7-inch Enhanced HMI Display supports GPIO
- SD Card Interface: Support max 32G Micro TF/SD card (FAT32 file format)
- Flash Data Storage Space: 32MB
- Nextion NX8048K070 7-inch Enhanced HMI Display supports built-in RTC

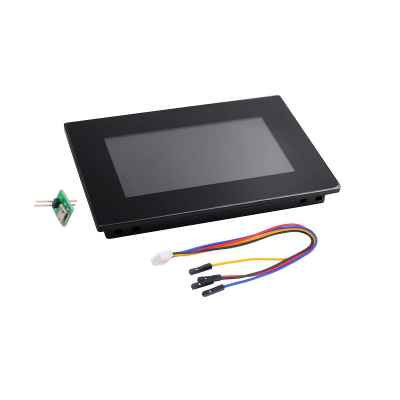

Package Included:
1 x Nextion NX8048K070 7-inch Enhanced HMI Display 18.1 Cm (7 Inch) Enhanced NX8048K070 HMI Touch Display
