Description:
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (IoT) or consumer electronics field. Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series.
The software offers an easy way to create an intuitive and superb touch user interface even for beginners. As a solution to this situation, the Nextion editor has mass components such as buttons, text, progress bars, sliders, instrument panels etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, reducing 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.

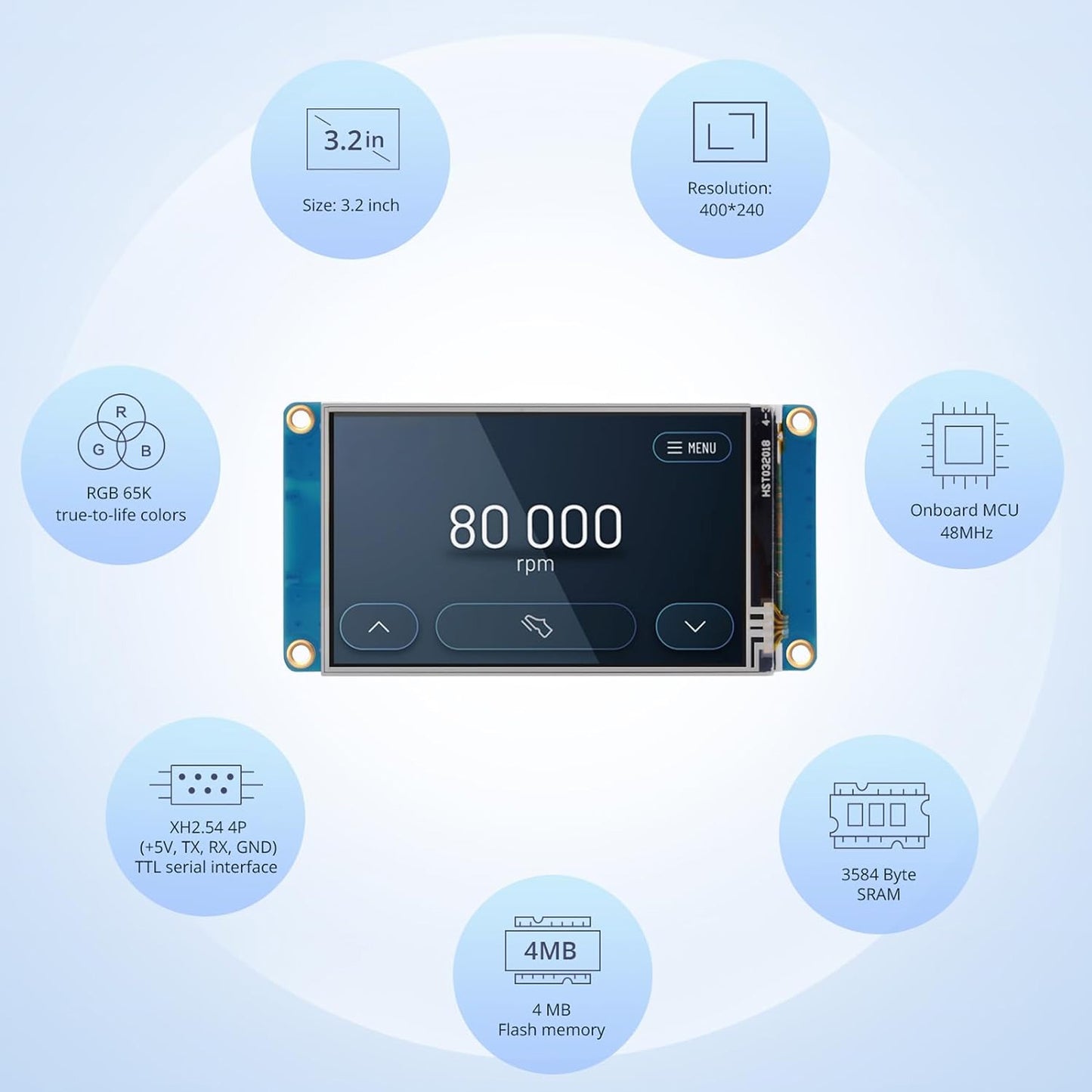

Specifications:
| Model No. |
NX4024T032 |
|---|---|
| Touch Type |
Resistive |
| Display Type |
011R(R: Resistive Touchscreen), NX4024T032 |
| Operating Voltage |
4.75 ~ 7V DC |
| Max. Operating Current |
85mA |
| Display Layout Size |
95 × 47.6 × 5.8 |
| Colour |
65K (65536) |
| Recommended Power Supply |
5V, 500mA, DC |
| Operating humidity |
10% to 90% RH |
| USB Interface |
No |
| Micro SD Card Slot |
Yes (FAT32 format), support maximum 32G Micro SD Card Memory Features |
| Flash Memory |
4 MB |
| RAM Memory |
3584 BYTE |
Features:
- Displays vibrant images with 65,000 colours.
- Integrated 4-wire resistive touch panel for accurate and reliable touch input.
- Connects effortlessly to any TTL serial host using a simple 4-pin interface.
- Provides 4MB of Flash memory for storing user application code and data.
- Easily update the display's firmware using the onboard micro-SD card slot.
- Operates at 5V with a low power consumption of just 85mA.

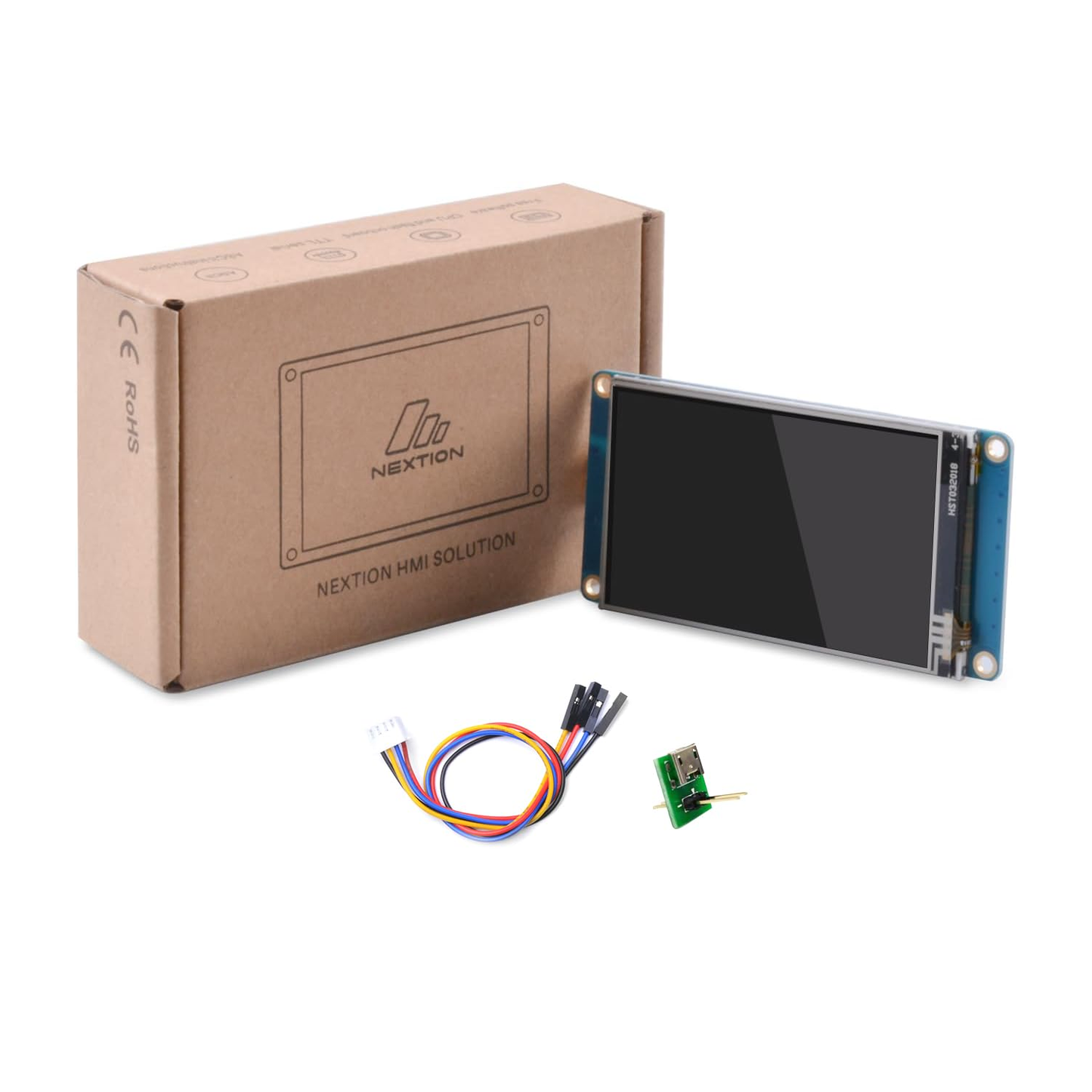

Package Included:
- 1 x Nextion NX4024T032 3.2" Basic HMI Display
- 1 x Power Supply Test Board
- 1 x 4-pin Grove Cable
