Description:
The Nextion IO Adapter is made specially to work with Nextion Enhanced HMI Display Series – for use with any of the 2.4″, 2.8″, 3.2″, 3.5″, 4.3″, 5.0″, 7.0″ enhanced models.

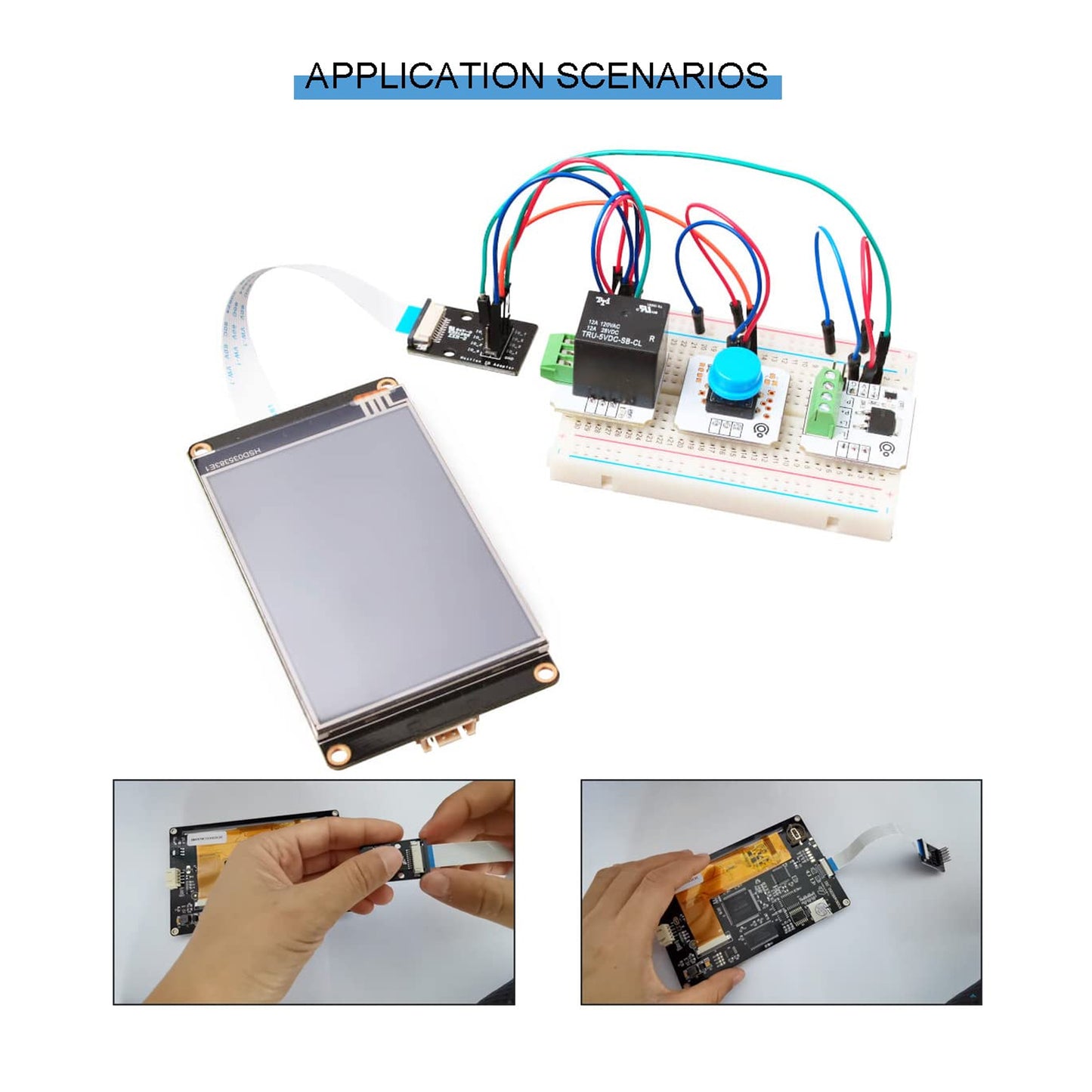

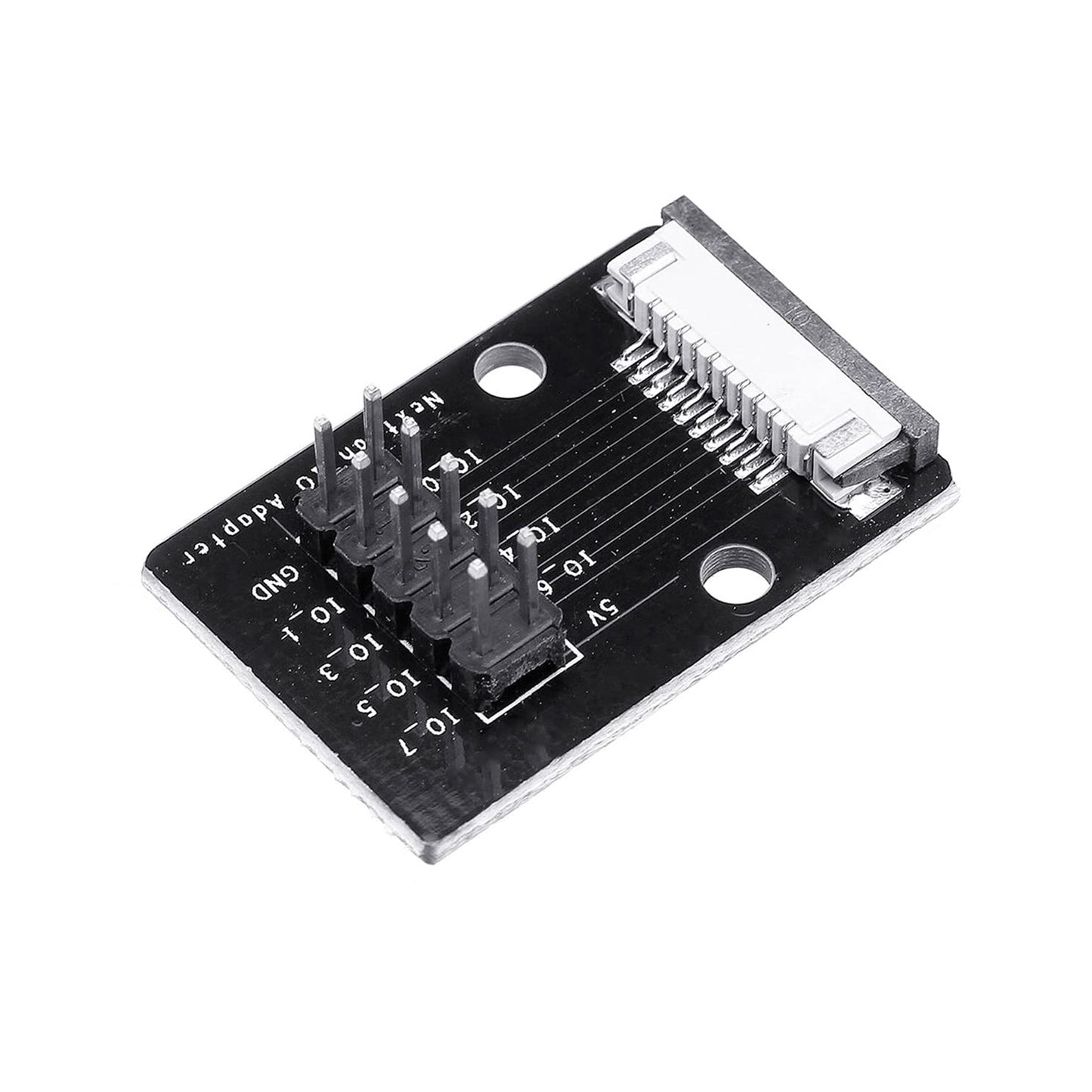

This small board breaks out the enhanced Nextion’s GPIOs to 0.1 inches/2.54 mm headers, allowing users to conveniently connect external devices to Nextion’s Digital/PWM GPIOs.
Specifications:
- Operating Voltage: 5V
- Version: 1.0
- Compatibility: Nextion Display Series 2.4″ to 7.0″
Features:
- The Nextion IO Adapter is made specially to work with Nextion Enhanced HMI Display Series which covers standard 2.4", 2.8", 3.2", 3.5", 4.3", 5.0", 7.0".
- The Nextion IO Adapter is designed to work with the Nextion Enhanced HMI Display Series.
- The small board pins out the GPIOs of the Nextion Enhanced display to 2.54-inch headers, which allows users to access the GPIOs more conveniently.
Note: This expansion board can only work with Nextion Enhanced Display, not for basic Nextion Display.
Package Included:

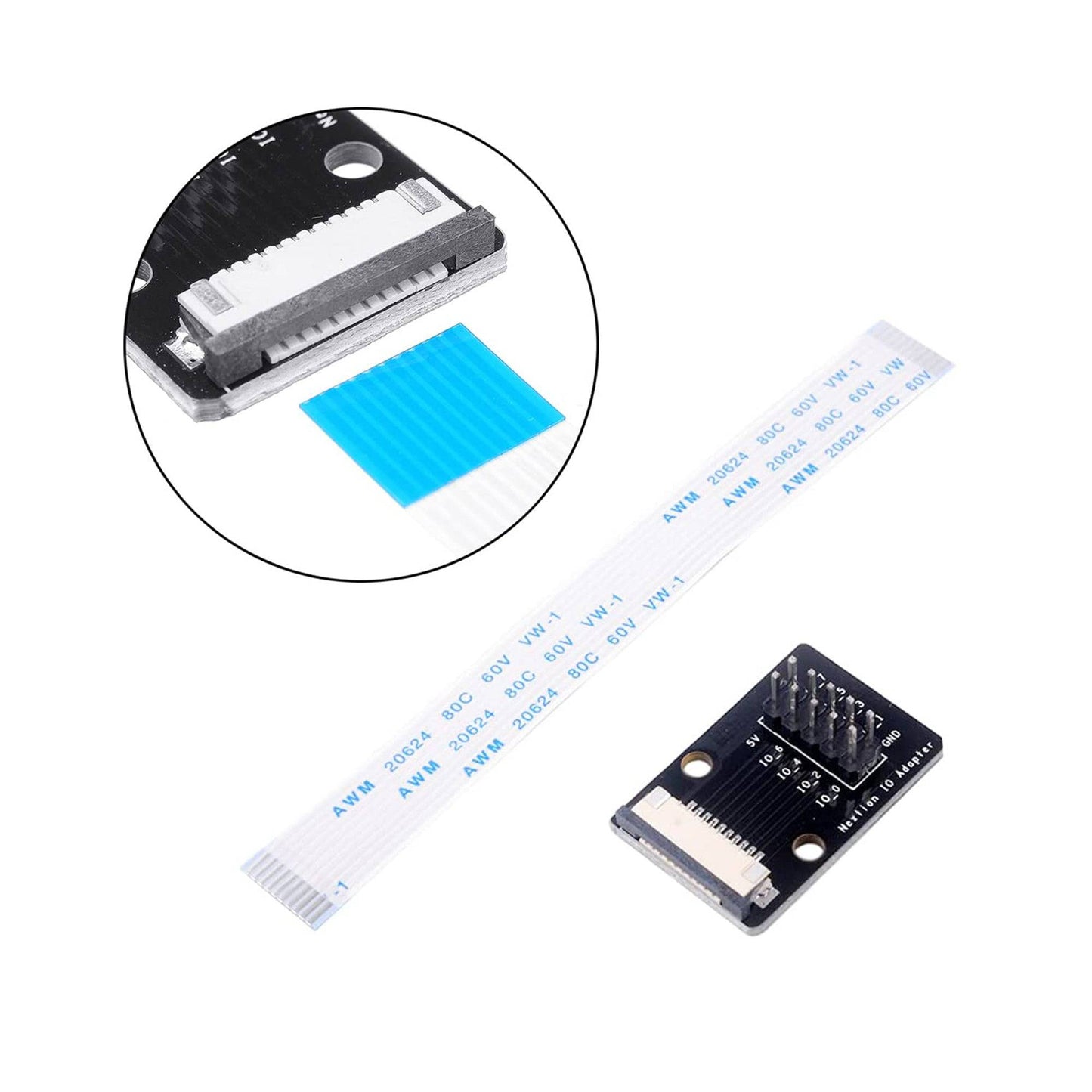

1 x Nextion IO Adapter with FFC Cable for Nextion Enhanced Display Series 2.4″ to 7.0″ Intelligent Display 7" and 10.1"
